GNA5 Series
• Current ratings 10 and 25 amps
• Output voltage 24-280 VAC
• Triac Output (Resistive Loads Only)
• LED input status indicator
• Available with or without IP20 “touch-safe” cover
• Screw or Fast-on Terminals

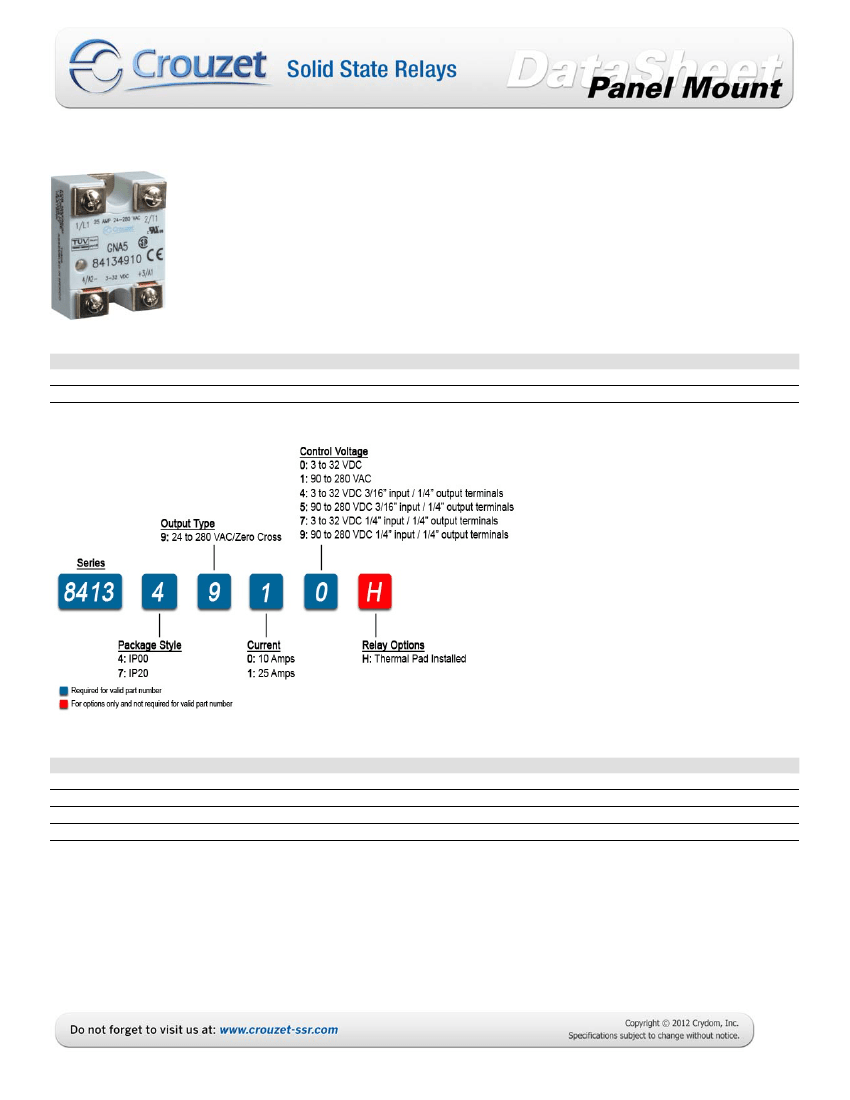

PRODUCT SELECTION
Control Voltage
3-32 VDC
90-280 VAC
10A
84134900
84134901
25A
84134910
84134911
AVAILABLE OPTIONS
OUTPUT SPECIFICATIONS (Voltage) (1)
Description
Operating Voltage (47-63Hz) [Vrms]
Transient Overvoltage [Vpk, t = 1 min.]
Maximum Off-State Leakage Current @ Rated Voltage [mArms]
Static off-state dv/dt (Vµs, Ta =25°C)
280 VAC
24-280
600
0.1
500
OUTPUT SPECIFICATIONS (Current) (1)
Description
Maximum Load Current (3) [Arms]
Minimum Load Current [mArms]
1 cycle surge current (50Hz)
1 cycle surge current (60Hz)
1 second surge current (Apk. Ta = 25°C) 50/60 Hz
Forward Voltage Drop (Vpk @ Imax, Ta = 25°C)
I²T (50Hz, 1/2 cycle)
I²T (60Hz, 1/2 cycle)
Thermal Resistance Junction to baseplate (Rjb) [°C/W]
Minimum heat sink @ Ambient (for max current = °C/W & Ta)
10A
10A
100
90
100
30
1.5
40
40
2.2
3.0 @ 40°C
25A
25A
100
230
250
75
1.3
260
250
1.7
1.0 @ 40°C
INPUT SPECIFICATIONS (1)
Description
Input Voltage Range (2)
Minimum Turn-On Voltage
Drop out Voltage
Maximum Input Current
Minimum input current (for on-state)
Input Resistance
Turn-on time
Turn-off time
8413x9x0
3-32 VDC
3.0 VDC
1.0 VDC
14mA
9.5mA
Current Regulated
8.33ms
8.33ms
8413x9x1
90-280 VAC
90 Vrms
10 Vrms
8.5mArms
5mArms
Current Regulated
20ms
30ms
GENERAL SPECIFICATIONS
Description
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Input to output isolation
Input/output to ground isolation
Input to output capacitance
Housing Material
Status Indicating Display
Weight (typical)
Parameters
-20 to 80 °C
-40 to 100 °C
4000 Vrms
2500 Vrms
8 pF
UL 94V0 (self extinguishing)
Green LED
3.0 oz (86.5 g)
GENERAL NOTES
1) All parameters at 25°C unless otherwise specified.
2) For ambient temperatures above 40°C the maximum control voltage
must not exceed 250Vac.

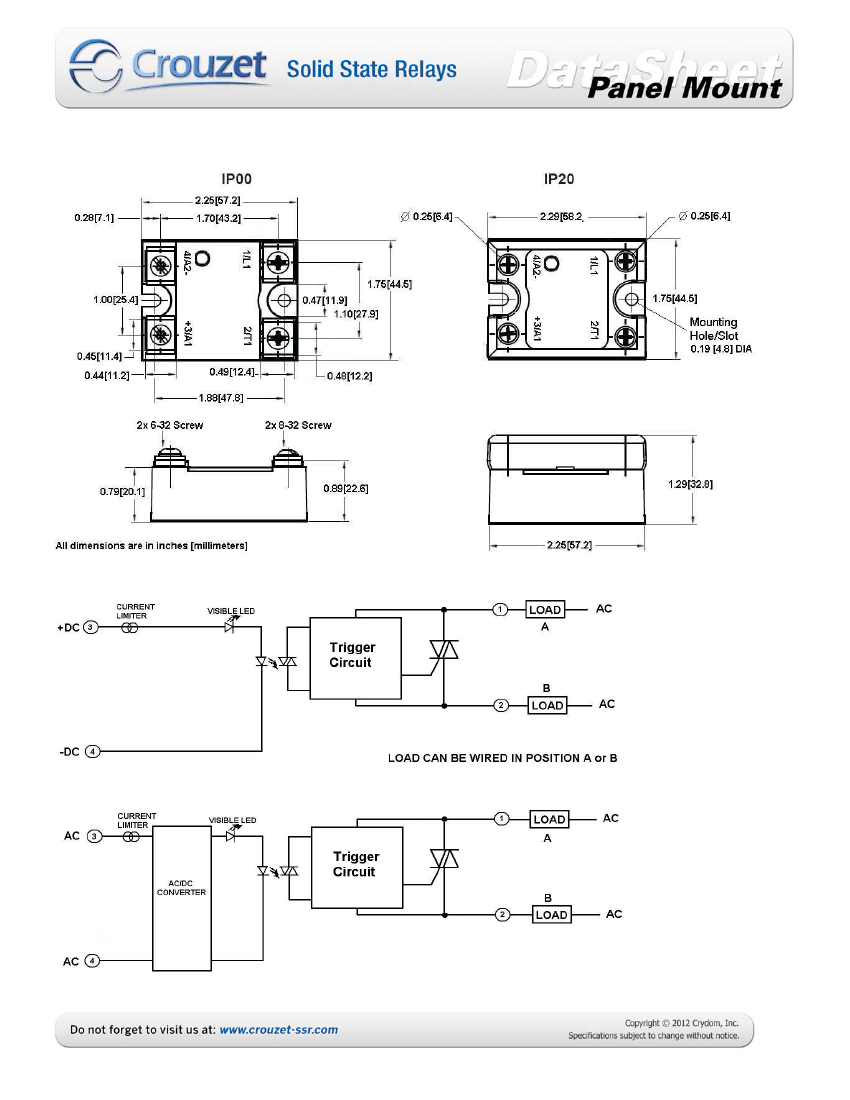

MECHANICAL SPECIFICATIONS
WIRING DIAGRAM

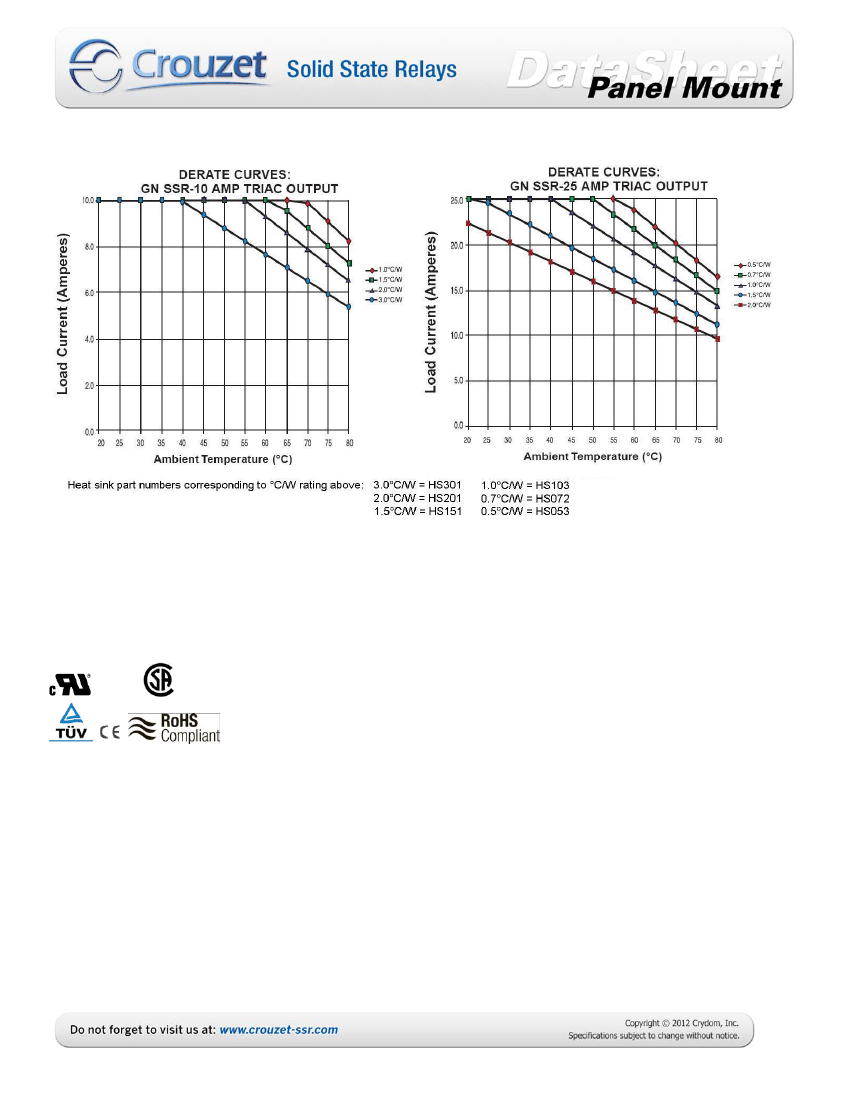

THERMAL DERATE INFORMATION
AGENCY APPROVALS
Designed in accordance with the requirements of IEC 62314
IEC 1000-4-2 : Electrostatic Discharge – Level 3
IEC 1000-4-3 : Radiated Electromagnetic Noise – Level 3
IEC 1000-4-4 : Electrically Fast Transients – Level 3
IEC 1000-4-5 : Electrical Surges – Level 3
IEC 1000-4-6 : Conducted Electromagnetic Noise – Level 3
CISPIR 11 – Class A: Allowable Levels of Conducted and Radiated Noise for Industrial Environments
E79183,
LR38595
Rev. 101311
