TPSW476M10R0250 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> TPSW476M10R0250

TPSW476M10R0250: DescriptionTantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 2312, CHIP, LEAD FREE; CategoryPassive components capacitor; File Size112KB，10 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

TPSW476M10R0250 Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 2312, CHIP, LEAD FREE

TPSW476M10R0250 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1689221772
package instruction	, 2312
Reach Compliance Code	compliant
Country Of Origin	Czechia, El Salvador
ECCN code	EAR99
YTEOL	7.2
capacitance	47 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
high	1.5 mm
JESD-609 code	e3
leakage current	0.0047 mA
length	6 mm
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, 7 INCH
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	10 V
Guideline	AEC-Q200
size code	2312
surface mount	YES
Delta tangent	0.06
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	J BEND
width	3.2 mm

Preview

Download Datasheet

View All

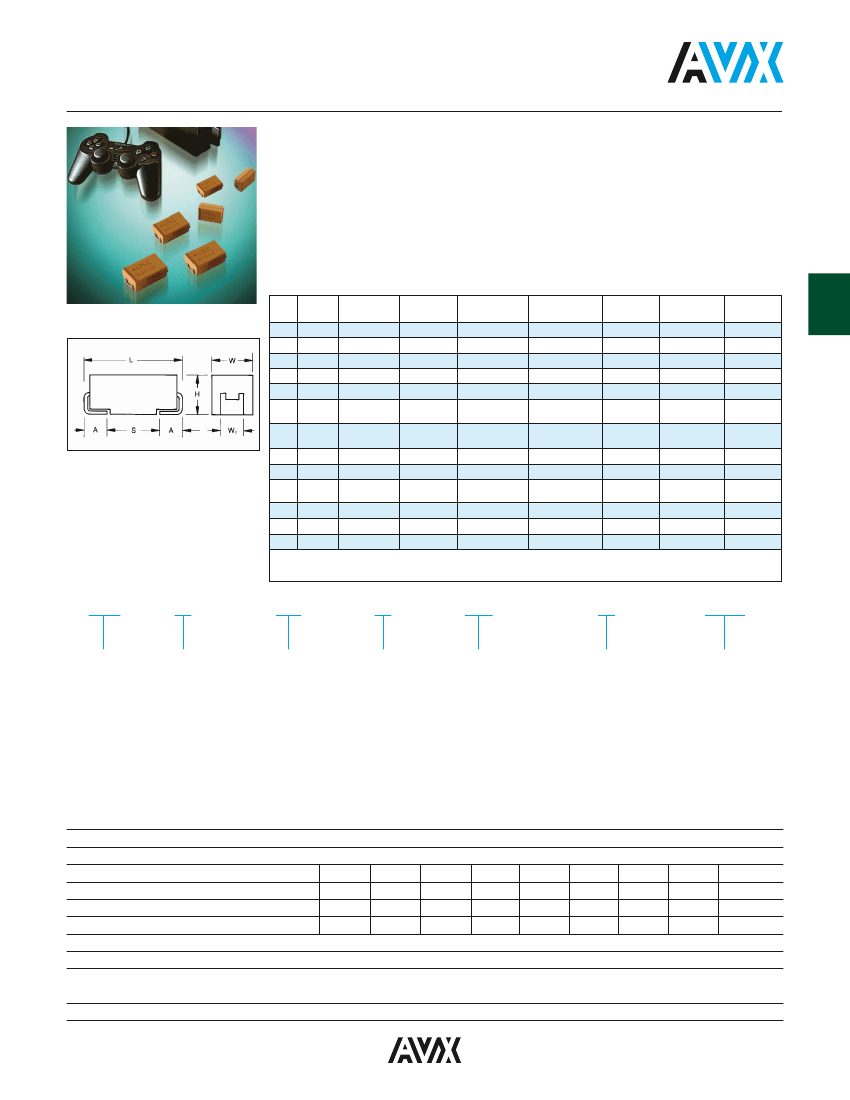

TPS Series

Low ESR

TPS surface mount products have inher-

ently low ESR (equivalent series resistance)

and are capable of higher ripple current

handling, producing lower ripple voltages,

less power and heat dissipation than stan-

dard product for the most efficient use of

circuit power. TPS has been designed,

manufactured, and preconditioned for

optimum performance in typical power

supply applications. By combining the

latest improvements in tantalum powder

technology, improved manufacturing

processes, and application specific pre-

conditioning tests, AVX is able to provide a

technologically superior alternative to the

standard range.

CASE DIMENSIONS:

millimeters (inches)

Code

For part marking see page 157

S**

T**

W**

X**

Y**

EIA

Code

3216-18

3528-21

6032-28

7343-31

7343-43

2012-15

Dimension

Low Profile

–

L±0.20

(0.008)

3.20 (0.126)

3.50 (0.138)

6.00 (0.236)

7.30 (0.287)

2.05 (0.081)

W+0.20 (0.008)

-0.10 (0.004)

1.60 (0.063)

2.80 (0.110)

3.20 (0.126)

4.30 (0.169)

1.35 (0.053)

1.30 (0.051)

1.60 (0.063)

2.80 (0.110)

6.10 (0.240)

3.20 (0.126)

4.30 (0.169)

H+0.20 (0.008)

-0.10 (0.004)

1.60 (0.063)

1.90 (0.075)

2.6 (0.102)

2.90 (0.114)

4.10 (0.162)

1.50 (0.059)

max.

1.20 (0.047)

max.

±0.20

(0.008)

1.20 (0.047)

2.20 (0.087)

2.40 (0.094)

1.0 ±0.1

(0.039 ±0.004)

A+0.30 (0.012)

-0.20 (0.008)

0.80 (0.031)

1.30 (0.051)

0.50 (0.020)

0.80 (0.031)

1.40 (0.055)

1.30 (0.051)

S Min.

1.80 (0.071)

1.40 (0.055)

2.90 (0.114)

4.40 (0.173)

0.85 (0.033)

0.70 (0.028)

1.10 (0.043)

2.00 (0.079)

1.80 (0.071)

2.90 (0.114)

4.40 (0.173)

2012-12 R Case (1.20) 2.05 (0.081)

3216-12 A Case (1.20) 3.20 (0.126)

3528-12 B Case (1.20) 3.50 (0.138)

7361-38

–

7.30 (0.287)

1.0 ±0.1

(0.039 ±0.004)

1.20 (0.047) max. 1.20 (0.047)

1.20 (0.047) max. 2.20 (0.087)

3.45 ±0.30

3.10 (0.120)

(0.136 ±0.012)

1.50 (0.059) max. 2.20 (0.087)

1.50 (0.059) max. 2.40 (0.094)

2.00 (0.079) max. 2.40 (0.094)

6032-15 C Case (1.50) 6.00 (0.236)

7343-15 D Case (1.50) 7.30 (0.287)

7343-20 D Case (2.00) 7.30 (0.287)

dimension applies to the termination width for A dimensional area only.

HOW TO ORDER

TPS

* 0805 Footprint Compatible ** Low Profile Versions of A & B & C & D Case

107

010

0100

Type

Case Size

See table

above

Capacitor Code

pF code: 1st two

digits represent

significant figures,

3rd digit represents

multiplier (number of

zeros to follow)

Tolerance

K = ±10%

M = ±20%

NOTE:

The EIA & CECC standards for low ESR Solid Tantalum Capacitors

allow an ESR movement to 1.25 times catalog limit post mounting.

Rated DC Voltage

002 = 2.5Vdc

004 = 4Vdc

006 = 6.3Vdc

010 = 10Vdc

016 = 16Vdc

020 = 20Vdc

025 = 25Vdc

035 = 35Vdc

050 = 50Vdc

Packaging

R = 7" T/R

(Lead Free since

production date 1/1/04)

Maximum ESR in

Milliohms

See note below

S = 13" T/R

(Lead Free since

production date 1/1/04)

A = Gold Plating

7" Reel

B = Gold Plating

13" Reel

TECHNICAL SPECIFICATIONS

Technical Data:

Capacitance Range:

Capacitance Tolerance:

Rated Voltage (V

)

Category Voltage (V

)

Surge Voltage (V

)

Surge Voltage (V

)

Temperature Range:

Environmental Classification:

Reliability:

All technical data relate to an ambient temperature of +25°C

0.15 µF to 1500 µF

±10%; ±20%

2.5

6.3

1.7

2.7

3.3

5.2

2.2

3.4

-55°C to +125°C

55/125/56 (IEC 68-2)

1% per 1000 hours at 85°C, V

with 0.1Ω/V series impedance,

60% confidence level

Meets requirements of AEC-Q200

+85°C:

+125°C:

+85°C:

+125°C:
