Standard Frequencies – see Page 5 for common frequencies.
* Check with factory for availability of frequencies not listed.
Applications
IoT and IIoT Applications
Wireless Communications
FPGA/Microcontrollers
USB Interfaces
Computer Peripherals
Portable Equipment
Test and Measurement
M2M Communications
Wearables
Description

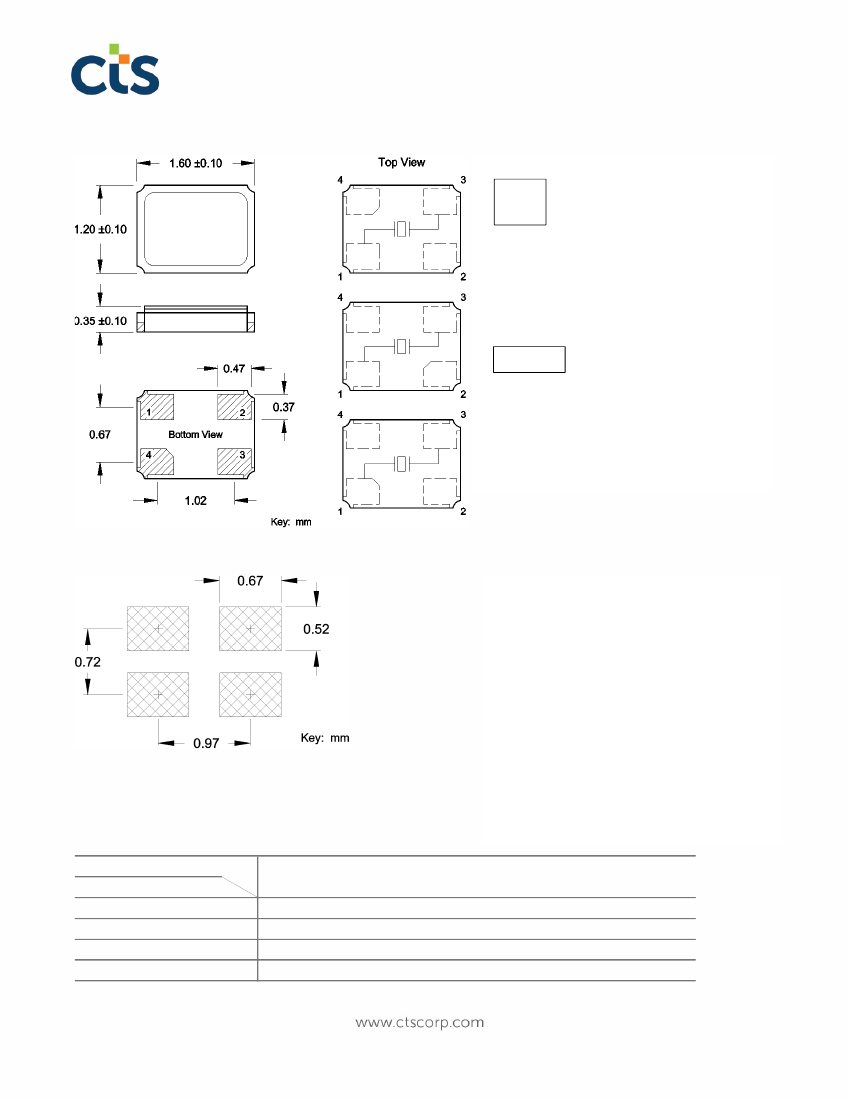

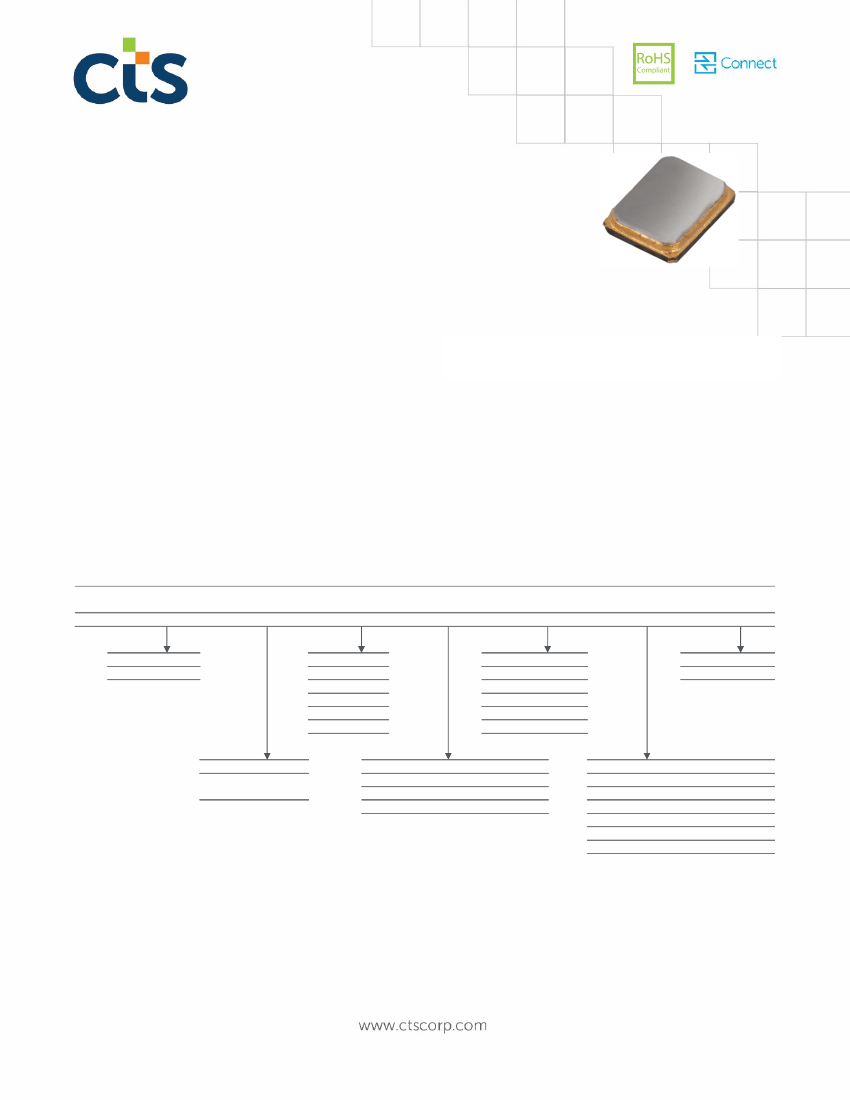

CTS Model 416 incorporates a high Q quartz resonator and is ideal for supporting a wide range of commercial and
industrial applications.
Ordering Information
Model
416
Mode of
Os ci l l a ti on
F
F requency Code
[ MHz ]
XXX
Tol era nce
@ +25°C
3
T em pera ture
Sta bi l i ty
3
Tem pera ture
Ra ng e
C
Loa d
Ca pa ci ta nce
K
Pa cka g i ng
R
Mode
Code
Fundamental
F
Code
1
X
2
Y
3
Tolerance
±10ppm
±15ppm
±20ppm
±25ppm
±30ppm
Temp. Range
Code
2
A
-10°C to +60°C
2
C
-20°C to +70°C
2
D
-30°C to +85°C
3
I
-40°C to +85°C
G -40°C to +105°C
4
Code
R
Packing
3k pcs./reel
Code
Frequency
1
Product Frequency Code
Code
1
X
2
Stability
±10ppm
±15ppm
±20ppm
Code
Y
3
5
Stability
±25ppm
±30ppm
±50ppm
Code
W
T
V
K
J
A
Capacitance
5pF
6pF
7pF
8pF
9pF
10pF
Code
L
B
C
D
E
S
Capacitance
12pF
13pF
16pF
18pF
20pF
Series
Notes:
1]
2]
3]
4]
Refer to document 016-1454-0, Frequency Code Tables. 3-digits for frequencies <100MHz.
Available with all stability codes.
Available with stability codes X, 2, Y, 3 and 5.
Available with stability codes 3 and 5.
N ot a l l perf orm a nce com bi na ti ons a nd f requenci es m a y be a va i l a bl e.
Conta ct your l oca l CTS Repres enta ti ve or CTS Cus tom er Servi ce f or a va i l a bi l i ty.
This product is specified for use only in standard commercial applications. Supplier disclaims all express and implied warranties and liability in connection with any use of this
product in any non-commercial applications or in any application that may expose the product to conditions that are outside of the tolerances provided in its specification.
