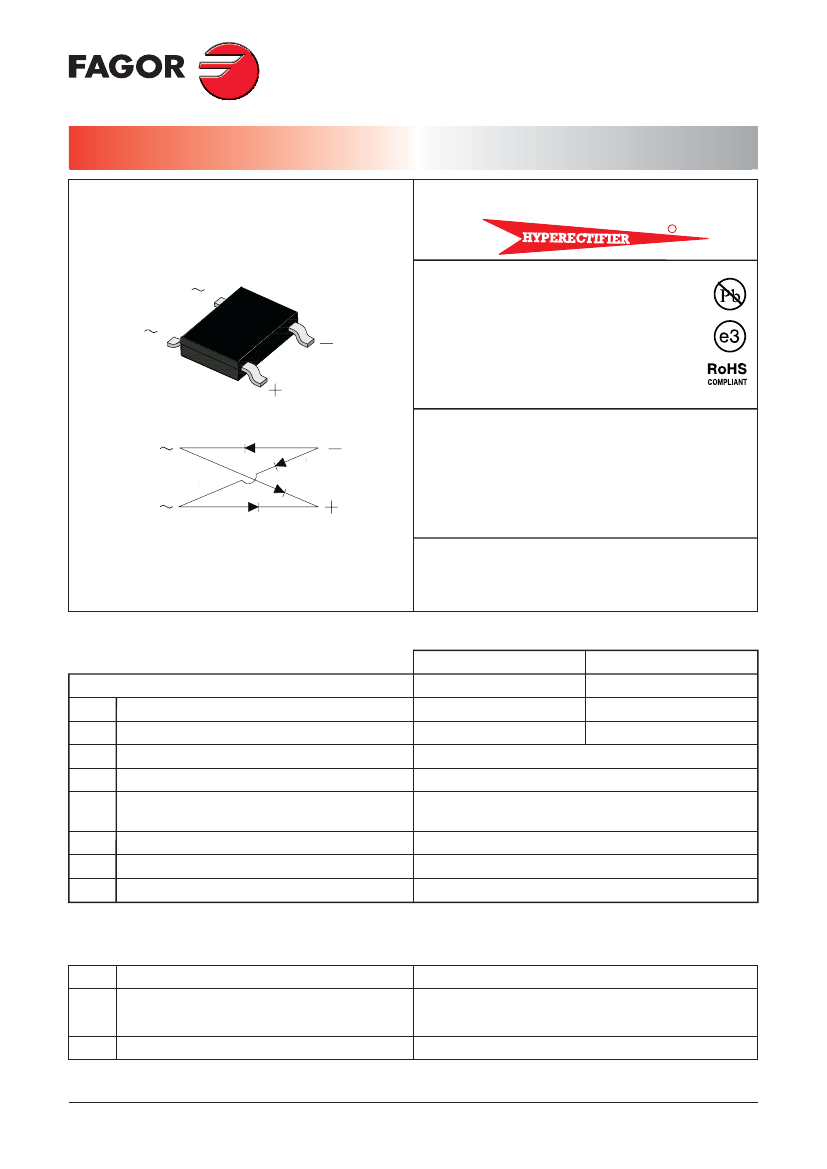

DF15-S
1.5 Amp. Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifier
Voltage
600 V to 1000 V
Current
1.5 Amp. at 40ºC
R
DFS
FEATURES
Ideal for automated placement
High forward surge current capability
Solder dip 260ºC, 10s
Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
Meets MSL level 1, per J-STD-020, LF maximum
peak of 250º C
MECHANICAL DATA
Case
:
DFS
Epoxy meets UL 94V-0 flammability rating.
Polatity
:
As marked on body.
Terminals
:
Matte tin plated leads, solderable per
MIL-STD-750 Method 2026, J-STD-002 and JESD22-B102.
Consumer grade, meets JESD 201 class 1A whisker test.
TYPICAL APPLICATIONS
Used in ac-to-dc bridge full wave rectification for SMPS,
lighting ballaster, adapter, battery charger, home appliances, office
equipment, and telecommunication applications..
Maximun Ratings and Electrical Characteristics at 25°C
DF1506S
Marking code
DF1506S
600
420
1.5 A
10 A
50 A
12 A
2
sec
55 to + 150 °C
55 to + 150 °C
DF1510S
DF1510S
1000
700
V
RRM
V
RMS
I
F (AV)
I
F RM
I
FSM
I
2
t
T
j
T
stg
Peak recurrent reverse voltage (V)
Maximum RMS voltage (V)
Forward current at Tamb = 40 °C
Recurrent peak forward current
8.3 ms. peak forward surge current
(Jedec Method)
I
2
t value for fusing (t = 8.3 ms)
Operating temperature range
Storage temperature range
Electrical Characteristics at Tamb = 25 °C
V
F
I
R
Max. forward voltage drop at I
F
= 1.5 A
Max. reverse current
at
V
RRM
d.c.
and T = 25 °C
and T = 125 °C
1.1 V
10 µA
500 µA
40 °C/W
R
th(j-a)
Maximum thermal resistance junction to ambient (*)
(*) NOTE: Thermal Resistance from junction to ambient mounted on P.C. Board with 12 mm. sq. Copper
www.fagorelectronica.com
Document Name: df15-s
Version: Sep-11
Page Number: 1/4
DF15-S
1.5 Amp. Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifier
Ratings and Characteristics
(Ta 25 ºC unless otherwise noted)
TYPICAL FORWARD CHARACTERISTIC
FORWARD CURRENT DERATING CURVE
1.50
I
F(AV)
, average forward rectified current (A)
10
I
F
, instantaneous forward current (A)
1
1.25
R or L Load
10
0
1.00
0.75
0.50
0.25
0
10
-1
10
-2
0
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6
0
25
50
75
100 125 150 175
V
F
, instantaneous forward voltage (V)
Tamb, ambient temperature (ºC)
MAXIMUM NON-REPETITIVE
PEAK FORWARD SURGE CURRENT
100
I
FSM
, peak forward surge current (A)
50
20
10
1
2
4 6
10
20
40
100
Number of cycles at 60 Hz.
www.fagorelectronica.com
Document Name: df15-s
Version: Sep-11
Page Number: 3/4
DF15-S
1.5 Amp. Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifier
