APH-3-03-RA-SDA-SG15: DescriptionBoard Connector, 3 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size151KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

APH-3-03-RA-SDA-SG15 Overview

Board Connector, 3 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle

APH-3-03-RA-SDA-SG15 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1166967337
Reach Compliance Code	unknown
Country Of Origin	Mainland China, Taiwan, USA
YTEOL	9.1
Other features	ROHS COMPLIANT
body width	0.295 inch
subject depth	0.372 inch
body length	0.1 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	600VAC V
Durability	1000 Cycles
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
Rated current (signal)	3 A
Guideline	UL
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	3

Preview

Download Datasheet

View All

SPECIFICATIONS

Current rating:

Contact material:

Contact plating:

Contact resistance:

Insulation material:

Insulation resistance:

Withstanding:

Operating temperature:

3 amps

Copper alloy

Tin or gold over nickel

20 milliohms max.

Glass filled polyester, UL94V-0

1,000 megohms min.

600VAC for 1 min.

-40˚C to 105˚C

Recommended PC Board

Hole Layout

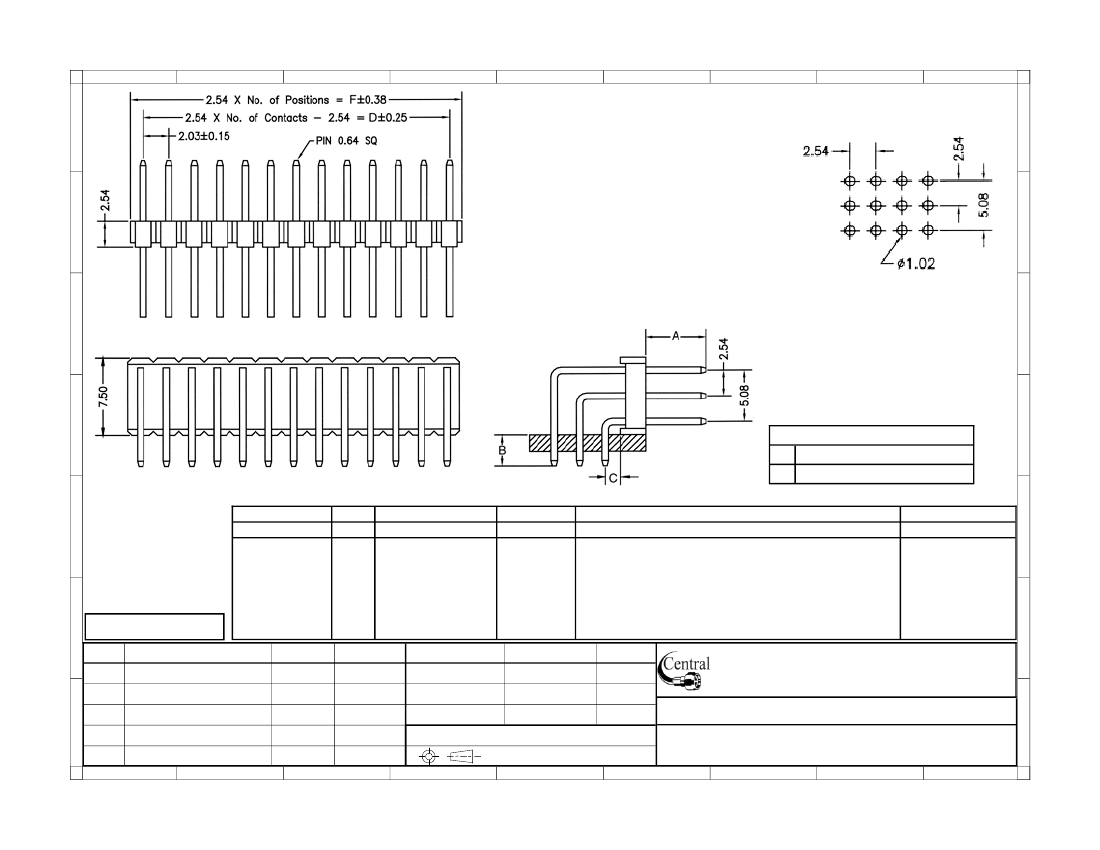

Dimensional Information - inch (mm)

F 0.100 (2.54) x No. of positions

D 0.100 (2.54) x No. of spaces

Series

APH

0.100” pitch pin

header

Blank=.100”

(2.54mm)

C=.059” (1.5mm)

D=.067” (1.7mm)

Rows

1, 2, 3

Positions

Single row: 1-40 pos.

Double row: 2-80 pos.

Triple row: 3-120 pos.

Type

Contact Length

XXX

Right angle

SDA=Standard contact A (A length=.240”, B length=.120”

Blank=Straight SDB=Standard contact B (A length=.318”, B length=.120”

CSL=Customer specified length

(A=mating length/C=tail offset length/E=overall length

[A+C+Insulator+B])

Plating

TN=Tin

SGXX=Duplex

GDXX=Gold

XX=Flash if blank; 10,

15, 30µ”

RoHS compliant

Rev.

Description

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

08/10/99

08/10/99 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

APH-3-XX-RA-XXX-XX

0.00 ± 0.20 Angles ± 3’

UNIT: mm

Description: Pin header, three rows, right angle, 0.100” pitch, un-
