CC065H-A2B245-1.8432TS datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> CC065H-A2B245-1.8432TS

CC065H-A2B245-1.8432TS: DescriptionCMOS/TTL Output Clock Oscillator, 1.8432MHz Nom, ROHS COMPLIANT PACAKGE-4; CategoryPassive components oscillator; File Size707KB，1 Pages; ManufacturerCardinal Components; Environmental Compliance

Download Datasheet Parametric View All

CC065H-A2B245-1.8432TS Overview

CMOS/TTL Output Clock Oscillator, 1.8432MHz Nom, ROHS COMPLIANT PACAKGE-4

CC065H-A2B245-1.8432TS Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cardinal Components
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; BULK
maximum descent time	7 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
JESD-609 code	e4
Manufacturer's serial number	CC065H
Installation features	SURFACE MOUNT
Nominal operating frequency	1.8432 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS/TTL
Output load	10 TTL, 50 pF
physical size	7.5mm x 5.1mm x 1.7mm
longest rise time	7 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	45/55 %
Terminal surface	Gold (Au)
Base Number Matches	1

Preview

Download Datasheet

View All

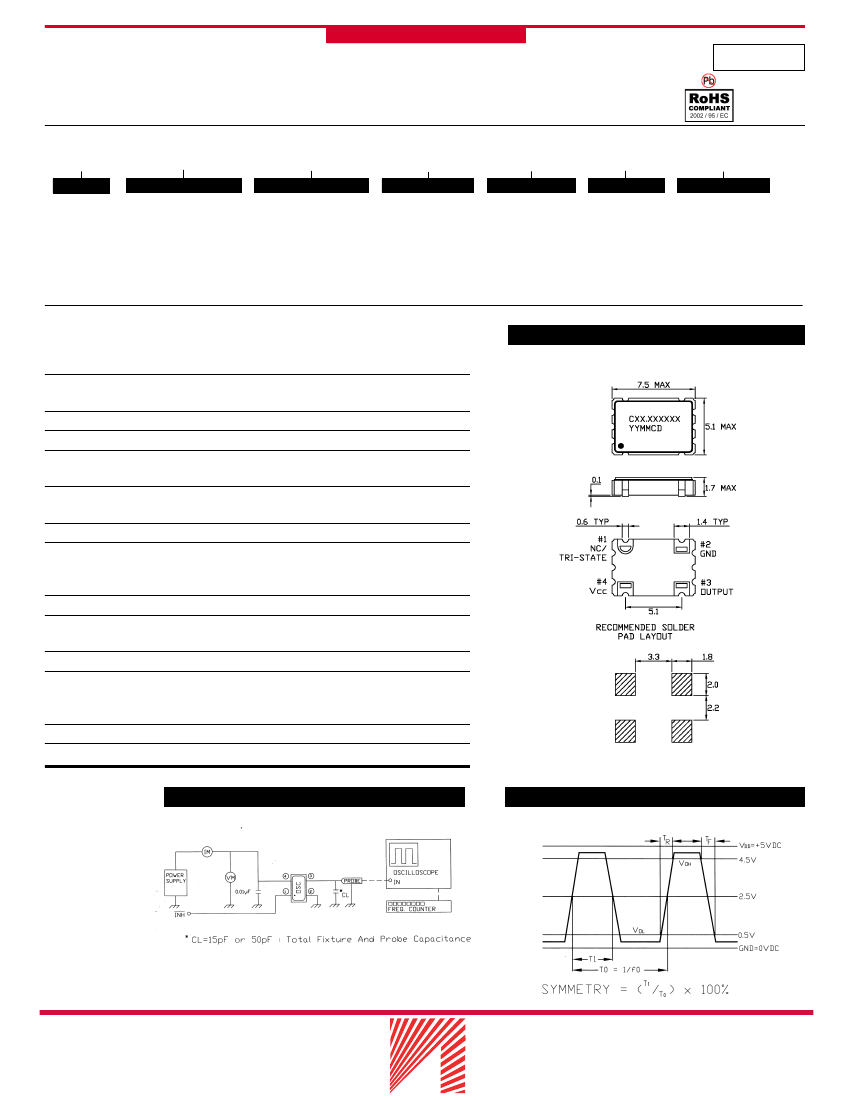

Surface Mount Clock Oscillator

• Tristate capable

• 1.7 mm height

• 50 pf load compatible

CARDINAL COMPONENTS

Series CC065H

Part Numbering Example: CC065H Z - A2 B2 45 - 33.333 TS

CC065H

SERIES

CC065H

SYMMETRY

Blank = 40/60%

45 = 45/55%

33.333

FREQUENCY

TRI STATE

Tri State Standard

ADDED FEATURES

BLANK = BULK PACK

Z = TAPE AND REEL

OPERATING TEMP.

Blank = 0°C ~

70°C

40°C ~

85°C

STABILITY

Blank = ±100 ppm

= ± 50 ppm

Specifications:

Frequency Range:

1.8432 MHz to 80.000 MHz

Available Stability Options:

±100 ppm

±50 ppm

Output Series:

Input Voltage:

Operating Temperature

Range Options:

Output Voltage:

Output Load:

Maximum Input Current:

CC065H

Standard

LSTTL / HCMOS

+5.0 VDC ±10%

-10°C to +70°C

-40°C to +85°C

= 0.5 V Max.

= 4.5 V Min.

10 TTL, 50 pf CMOS

27 mA (1.8432 to 31.999 MHz)

45 mA (32.000 to 49.999 MHz)

75 mA (50.000 to 80.000 MHz)

7 ns

40/60%

45/55%

10 ms

+0.80 VDC Max. to Disable

+3.60 VDC Min. to Enable

or open to Enable

-55°C to +125°C

Tape and Reel (1K per Reel)

Standard

Maximum Rise/Fall Time:

Duty Cycle:

Max. Start-Up Time:

Tristate Input:

Standard

Storage Temperature:

Packaging:

TEST CIRCUIT

OUTPUT WAVE FORM

155 Route 46 West

Wayne, NJ 07470

Rev: C-090414-11

Cardinal Components, Inc.

O-9

TEL:

(973)785-1333

E-MAIL: sales@cardinalxtal.com

WEB: http://www.cardinalxtal.com
