EA2017-D56C-00C datasheet, PDF

EA2017-D56C-00C: DescriptionBoard Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size81KB，1 Pages; ManufacturerTeka Interconnection Systems

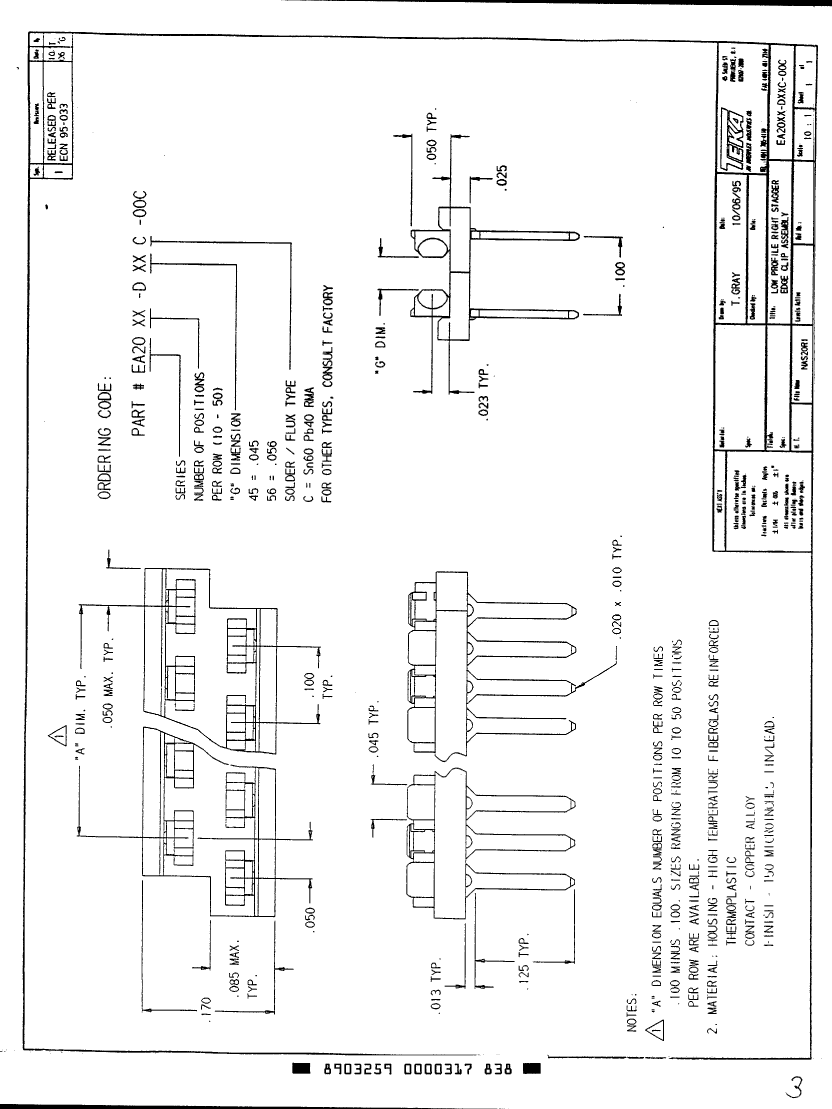

Download Datasheet Parametric View All

EA2017-D56C-00C Overview

Board Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

Parameter Name	Attribute value
Objectid	301536629
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.17 inch
subject depth	0.075 inch
body length	1.75 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact style	SQ PIN-SKT
insulator material	GLASS FILLED POLYETHYLENE
Plug contact pitch	0.1 inch
Match contact row spacing	0.056 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	150u inch
Terminal length	0.125 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	34
