JANTXV1N3614: DescriptionRectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, HERMETIC SEALED, GLASS PACKAGE-2; CategoryDiscrete semiconductor diode; File Size182KB，3 Pages; ManufacturerSENSITRON; Websitehttp://www.sensitron.com/

Download Datasheet Parametric View All

JANTXV1N3614 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	JANTXV1N3614	-	-	View	Buy Now

JANTXV1N3614 Overview

Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, HERMETIC SEALED, GLASS PACKAGE-2

JANTXV1N3614 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	HERMETIC SEALED, GLASS PACKAGE-2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	METALLURGICALLY BONDED
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	O-LALF-W2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Maximum operating temperature	300 °C
Maximum output current	1 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Guideline	MIL-19500/286
Maximum repetitive peak reverse voltage	800 V
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

SENSITRON

___

SEMICONDUCTOR

1N3611 thru 1N3614 and 1N3957

Standard

STANDARD RECOVERY

RECTIFIERS

______________________________________________________________________________________

TECHNICAL DATA

V AI L AB L E AS

DATA SHEET 128, REV. A.1

1 N , J AN , J AN T X , J ANT XV

JAN EQUIVALENT *

SJ*, SX*, SV*

Standard Recovery Rectifiers

Qualified per MIL-PRF-19500/228

DESCRIPTION:

This voidless hermetically sealed standard recovery rectifier diode series is military qualified per

MIL-PRF-19500/228 and is targeted for space, commerical and military aircraft, military vehicles,

shipboard markets and all high reliability applications.

FEATURES / BENEFITS:



Hermetic, non-cavity glass package

Category I Metallurgically bonded

All devices are 100% hot solder dipped

JAN/ JANTX/ JANTXV available per MIL-PRF-

19500/228

“JANS Plus” removes atypical/out of family V



MAXIMUM RATINGS



Operating and Storage Temperature: -65 C to

+175 C

Thermal Resistance: 38 C (junction to lead)

Forward surge current: 30A @ 8.3 ms half-

sine

ELECTRICAL CHARACTERISTICS

TYPE

NUMBER

PEAK

INVERSE

VOLTAGE

AVG

RECTIFIED

CURRENT

Amps

55C

MAXIMUM

REVERSE

CURRENT

@ PIV

Amps

25C

150C

MAX. PEAK

FORWARD

VOLTAGE

(PULSED)

@ 1A

MAXIMUM

SURGE

CURRENT

FSM

Amps

MAXIMUM

REVERSE

RECOVERY

TIME

nsec

1N3611

1N3612

1N3613

1N3614

1N3957

Volts

200

400

600

800

1000

1.0

300

1.1

5000

Note 1: I

= 1A, 8ms surge

Note 2: I

=0.5A, Irm=1A, I

r(REC)

=.250A

*Sensitron equivalent diodes are manufactured and screened to MIL-PRF-19500 flow and guidelines starting from

wafer fabrication through assembly and testing using our internal specification.



221 West Industry Court



Deer Park, NY 11729-4681

Phone (631) 586 7600 Fax (631) 242 9798



www.sensitron.com



sales@sensitron.com

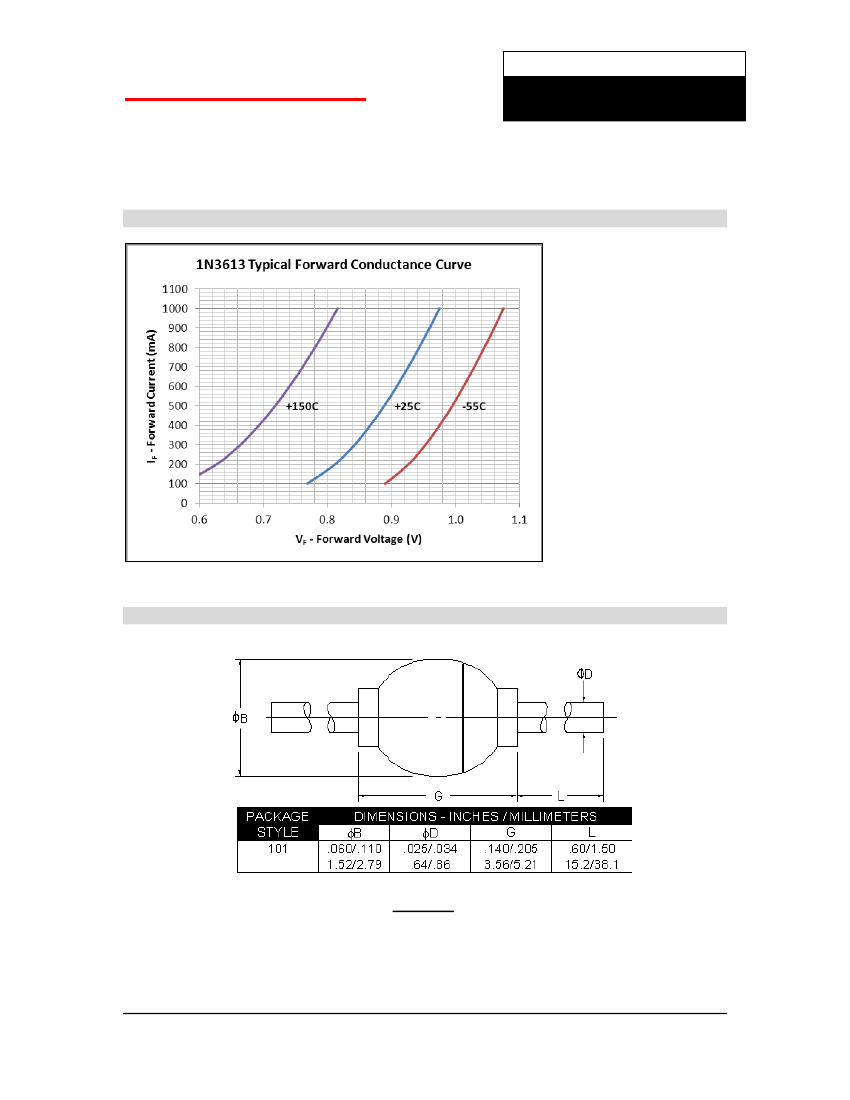

SENSITRON

___

SEMICONDUCTOR

1N3611 thru 1N3614 and 1N3957

Standard

STANDARD RECOVERY

RECTIFIERS

______________________________________________________________________________________

TECHNICAL DATA

DATA SHEET 128, REV. A.1

PART ORDERING INFORMATION

The following part numbers can be screened and tested to the military screening flow. The parts are marked in

accordance with the testing performed, example:

Sensitron Screening Level

*Part Number--

Leaded Package

(example for 1N3611)

1N3611

JAN1N3611

SJ3611

JANTX1N3611

SX3611

JANTXV1N3611

SV3611

JAN

JANTX

JANTXV

*Parts can also be ordered Tape & Reel

DISCLAIMER:

1- The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product

characteristics. Before ordering, purchasers are advised to contact the Sensitron Semiconductor sales department for the latest version of

the datasheet(s).

2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment,

medical equipment , and safety equipment) , safety should be ensured by using semiconductor devices that feature assured safety or by

means of users’ fail-safe precautions or other arrangement .

3- In no event shall Sensitron Semiconductor be liable for any damages that may result from an accident or any other cause during

operation of the user’s units according to the datasheet(s). Sensitron Semiconductor assumes no responsibility for any intellectual

property claims or any other problems that may result from applications of information, products or circuits described in the datasheets.

4- In no event shall Sensitron Semiconductor be liable for any failure in a semiconductor device or any secondary damage resulting from

use at a value exceeding the absolute maximum rating.

5- No license is granted by the datasheet(s) under any patents or other rights of any third party or Sensitron Semiconductor.

6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written permission of

Sensitron Semiconductor.

7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will

hinder maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third

party. When exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and

regulations.



221 West Industry Court



Deer Park, NY 11729-4681

Phone (631) 586 7600 Fax (631) 242 9798



www.sensitron.com



sales@sensitron.com
