TC02-Series Specifications
2.50L x 2.00W x 0.80H (mm)
PDI
TC02-Series

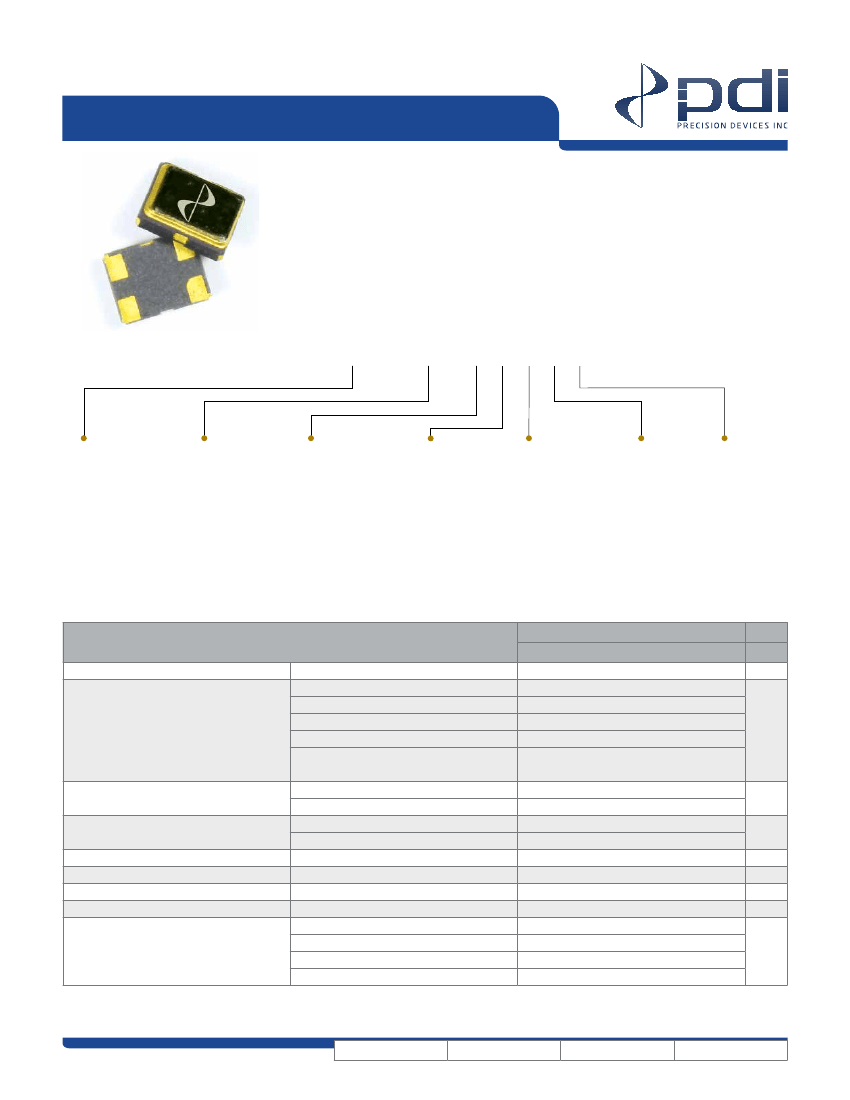

Temperature Compensated Crystal Oscillator (TCXO) ensures a
precise frequency under demanding circumstances. With ultra-low phase noise,
low jitter, and excellent performance in high vibration environments this TCXO
available, in both standard and custom frequencies. PDI provides fast sampling
for your proto-typing needs, mass production capability, and competitive pricing.
ex)
TC—T—2—25000X—W—N—D—2—R—X
*
ENABLE
T
= Tri-State
0
= No/Connect
FREQUENCY
10000X-52000X
=
10.000MHz –
52.000MHz
OUTPUT
W
= Clipped Sine
FREQUENCY
STABILITY
K
= +/-0.5
L
= +/-1.0
M
= +/-2.0
N
= +/-2.5
S
= Special
OPERATING
TEMPERATURE
A
= 0 to +70°C
B
= -20 to +70°C
D
= -40 to +85°C
S
= Special
SUPPLY
VOLTAGE
1
= 1.8
2
= 2.5
F
= 3.0
3
= 3.3
PACKAGE
R
= Tape & Reel
* - for standard or assigned for customization.
Parameter
Frequency Range
*1
Supply Voltage
*1
Range (±5%)
1.8 to 3.3
10.000000 to 52.000000
Per Option
±0.2
±0.2
±1
±2
Per Option
-55 to +125
2.0
2.5
Clipped Sinewave
0.8
10 kΩ//10pF
2.0
-110
-132
-147
-151
Units
V
MHz
Frequency Stability
*1
vs Temperature (Max.)
vs Supply Voltage (Max.)
vs Load (Max.)
vs Aging (Max. 1st year)
Calibration (@ +25°C)
1 Hour After Refow (Max.)
ppm
Temperature Range
*1
Supply Current (Maximum)
Waveform
Output (Minimum)
Load
Start Up Time (Maximum)
Phase Noise (Typical) (For 26.0 MHz)
Operating
Storage
10.00000 to 25.999999 MHz
26.000000 to 52.000000 MHz
Peak to Peak
°C
mA
V
ms
dBc/Hz
@ 100 Hz
@ 1 kHz
@ 10 kHz
@ 100KHz
*1 - Not all Frequency/Temperature/Voltage combinations are available.
REV:
NA
SIZE:
A
CAGE:
0S4G1
1
of
3
TC02-Series
2.50 x 2.00 x 0.80
(mm)

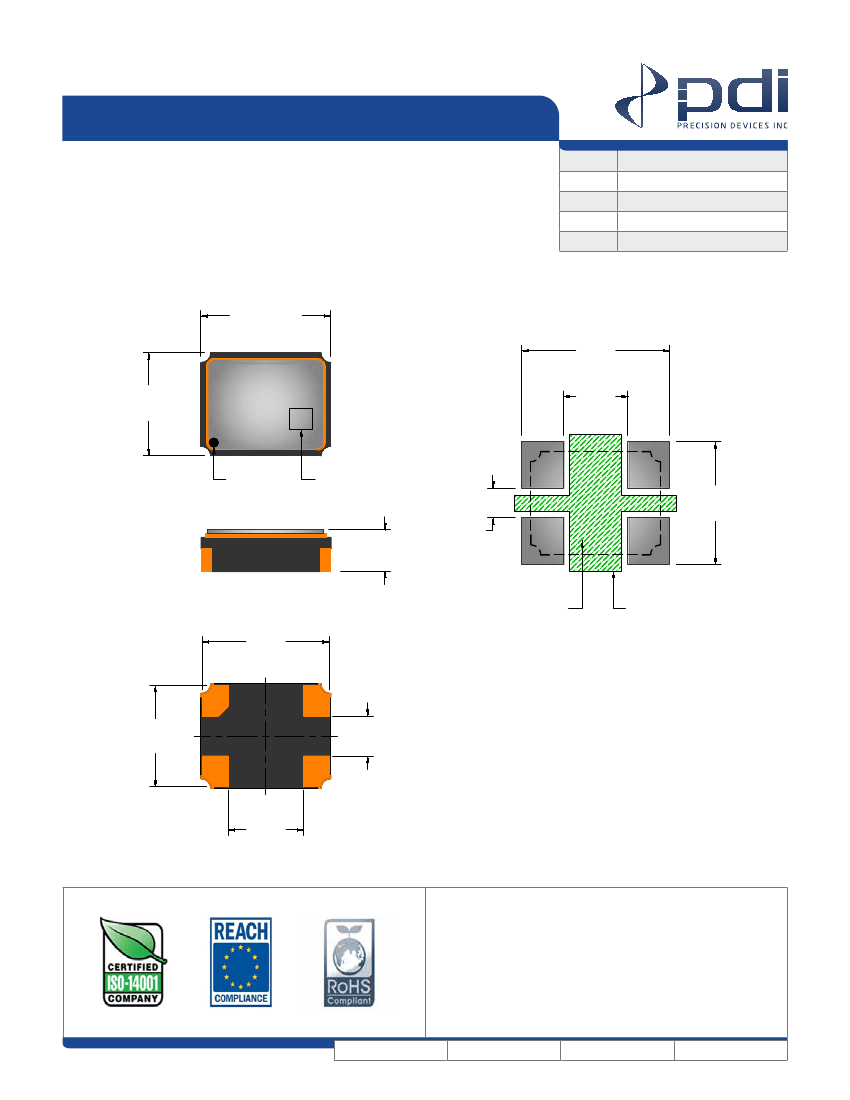

PA C K A G E D I M E N S I O N S
Decimal XXX = ± .008, XX = ± .02 Metric [XXX = ± .20], [XX = ± .50]
PIN
1
2
3
4
CONNECTION
Tri-State or No Connect
Ground/Case
Output
Supply Voltage
Top View:
.098 ±.006
[2.50 ±.15]
.112
[2.85]
.049
[1.25]
.078 ±.006
[2.00 ±.15]
D/C
P FKA
Pin 1
Traceability Code
.022
[.55]
.093
[2.35]
.031 Max
[.80 Max]
.096
[2.45]
1
.077
[1.95]
4
Bottom View:
.057
[1.45]
3
2
.030
[.75]
Do not run traces
under device
Solder Mask
Recommended Land Pattern
(Top View)
NOTES:
Terminals are Au.
Other options are available, please consult factory.
All product is supplied
RoHS
and
REACH
compliant.
Product can be supplied on Tape and Reel, on reels of 1,000 units.
Specifications subject to change without notice, last updated 4/1/13.
REV:
NA
SIZE:
A
CAGE:
0S4G1
2
of
3
TC02-Series
2.50 x 2.00 x 0.80
(mm)

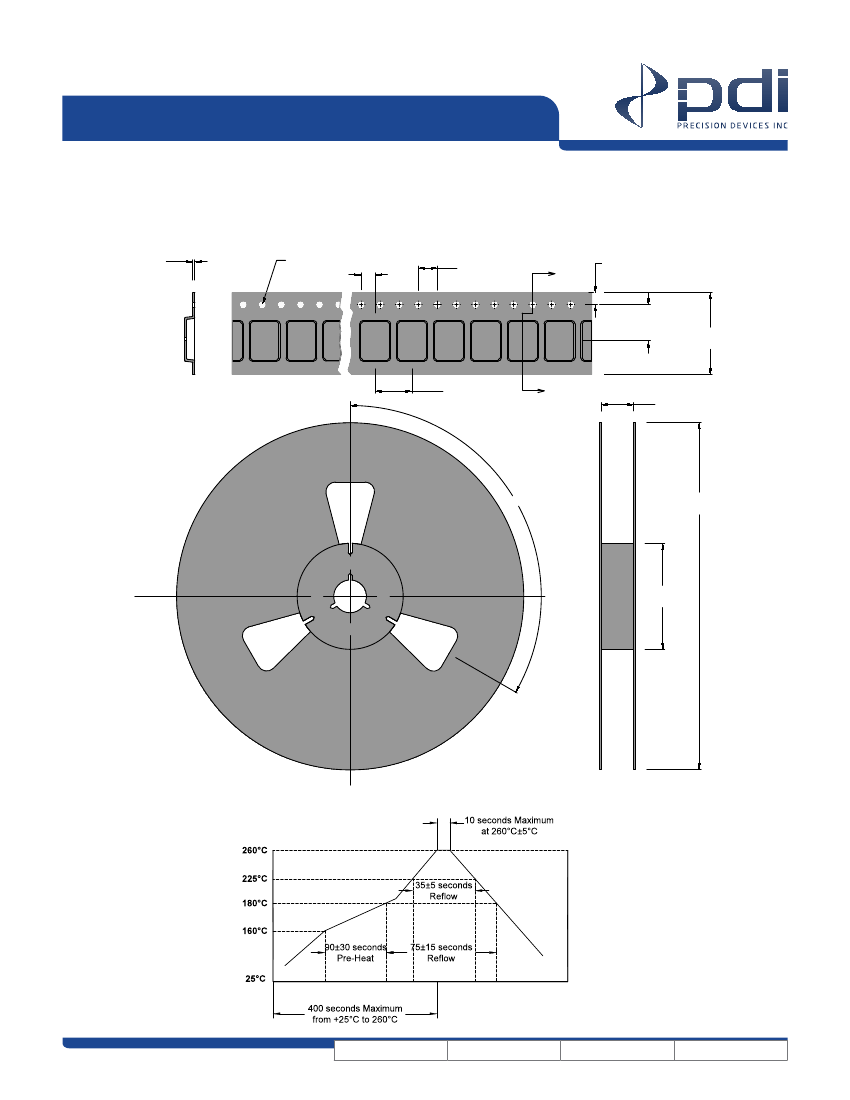

1.
Material: Black Conductive Polystyrene or equivalent.
2.
10 Sprocket Hole pitch cumulative tolerance of ±.008.
3.
Camber in compliance with EIA 481.
4.
Empty pockets: Trailing end (Minimum) 200 mm. and Leading end (Minimum) 400 mm.
5.
Pocket position relative to sprocket hole measured as true position of pocket, not pocket hole.
.012±.002
[0.30±.05]
Ø.059
[Ø1.50]
.157 Typ.
[4.00 Typ.]
.069
[1.75]
.079
[2.00]
A
.207
[5.25]
.315 ±.012
[8.00 ±.30]
Section A-A
.157 Typ.
[4.00 Typ.]
A
.319
[8.10]
120°
Ø7.09
[Ø180.00]
3.15
[80.00]
REV:
NA
SIZE:
A
CAGE:
0S4G1
3
of
3
