204532 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 204532

204532: DescriptionD Subminiature Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size122KB，1 Pages; ManufacturerProvertha Connectors Cables & Solutions GmbH; Environmental Compliance

Download Datasheet Parametric View All

204532 Overview

D Subminiature Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug, ROHS COMPLIANT

204532 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	4004429828
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
body width	0.496 inch
subject depth	0.524 inch
body length	2.728 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	YES
empty shell	NO
Filter function	NO
IEC compliance	YES
Insulation resistance	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER
MIL compliance	YES
Plug contact pitch	0.109 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Rated current (signal)	5 A
Guideline	UL, CSA
Shell surface	TIN
Shell material	STEEL
Housing size	4/C
Terminal length	0.114 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	37
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

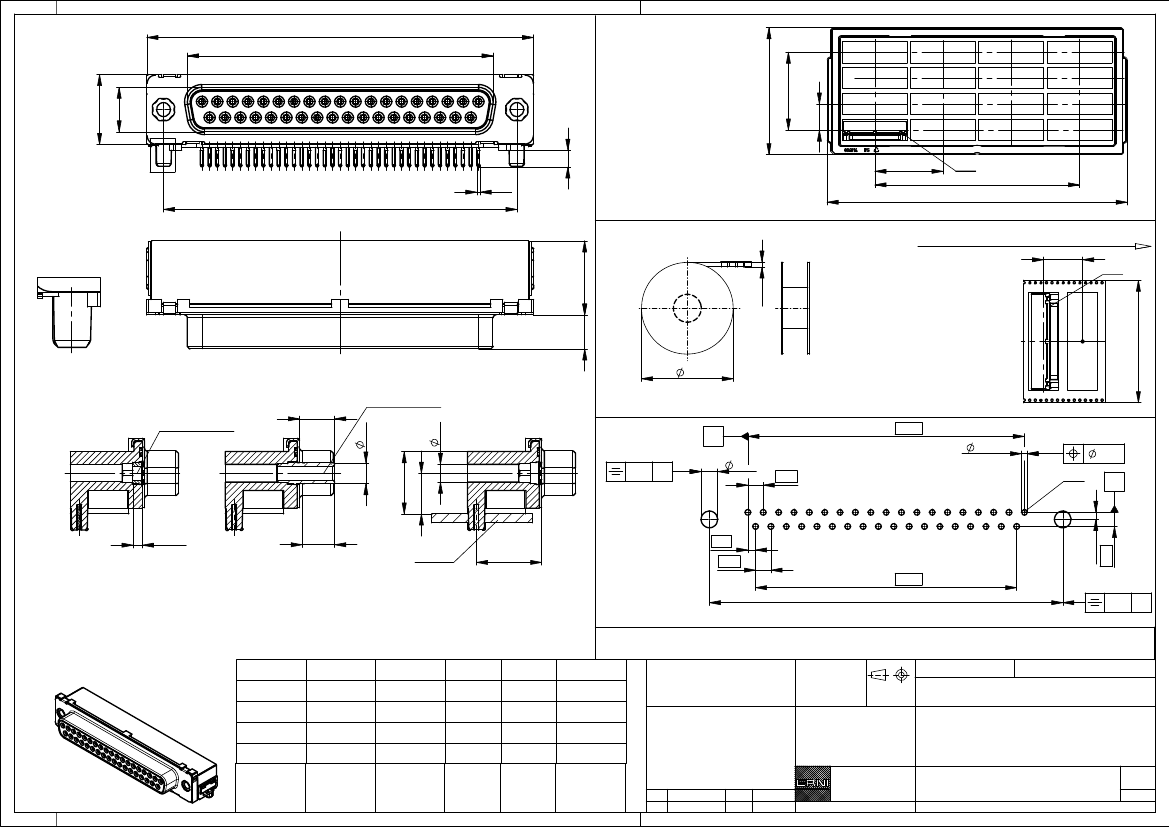

69,5

-0,4

+0,2

54,95

-0,2

12,6

±0,3

-0,2

tray packaging

packaging unit 16 pcs

3 x 28 = 84

138

max.

Verpackt in Tray

Verpackungseinheit 16 Stück

0,6

DETAIL X

M5:1

63,5

±0,2

73,5

Pin 1

3 x 73,5 = 220,5

325

max.

Sonstige Angaben siehe Zeichnung 204629 /

additional indications according to drawing 204629

Verpackt in Gurtverpackung

Tape on Reel Packaging

Verpackungseinheit: 75 Stück -

Packaging unit: 75 pcs

13,3

powerless assembly

Bestückung kraftlos

Abspulrichtung -

Reel off Direction

Pin 1

6,3

-0,25

17,6

330

Mutter /

nut

Gewinde /

thread

M3 /

#4-40

Bolzen /

bolt

6,4

3,7

Gewinde /

thread

M3 /

#4-40

3,2

ohne / without

Sonstige Angaben siehe Zeichnung 204655 /

additional indications according to drawing 204655

Layoutvorschlag

0,05

recommended layout

±0,1

11,2

7,3

±0,1

2,76

18 x 2,76 = 49,68

-0,06

+0,09

0,05

Pin 1

1,65

Gewindetiefe /

depth of thread

Gewindetiefe /

depth of thread

1,27

LP /

PCB

11,7

2,76

17 x 2,76 = 46,92

63,5

±0,05

Sonstige Angaben siehe Zeichnung 204626 /

additional indications according to drawing 204626

Fehlende Masse und Angaben siehe DIN 41652 /

Missing information and dimensions according to DIN 41652

Sonstige Angaben siehe Fertigungsunterlagen /

Additional indications according to production documentation

Proprietary notice pursuant to ISO 16016 to be observed.

Anschlussbereich verzinnt

2,54

0,05

1,38

Information:

Tolerances

All Dimensions

in mm

terminal area tin plating

Anforderungsstufe: 2

class: 2

204533

204532

204531

204530

204529

Ident-Nr.

3,2

#4-40

Scale

2:1

part-no.

Gurt

Ident-Nr.

part-no.

Tray

tape on reel

tray

without

ohne

Mutter

nut

Bolzen

bolt

Bemerkung

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

25.11.2011

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

TMC-S-37-THR OM-Standard-BA8

remark

www.ERNI.com

Class

204528

TMCS
