CVU-1H101MK14-R datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> CVU-1H101MK14-R

CVU-1H101MK14-R: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 5050, ROHS COMPLIANT; CategoryPassive components capacitor; File Size216KB，2 Pages; ManufacturerCal-Chip Electronics; Environmental Compliance

Download Datasheet Parametric View All

CVU-1H101MK14-R Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 5050, ROHS COMPLIANT

CVU-1H101MK14-R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1788746594
package instruction	, 5050
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6.5
capacitance	100 µF
Capacitor type	CERAMIC CAPACITOR
diameter	12.5 mm
dielectric materials	ALUMINUM (WET)
high	13.5 mm
leakage current	0.15 mA
length	13 mm
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	SMT
method of packing	TR, 15 INCH
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
ripple current	357 mA
size code	5151
surface mount	YES
Delta tangent	0.15
Terminal shape	FLAT
width	13 mm

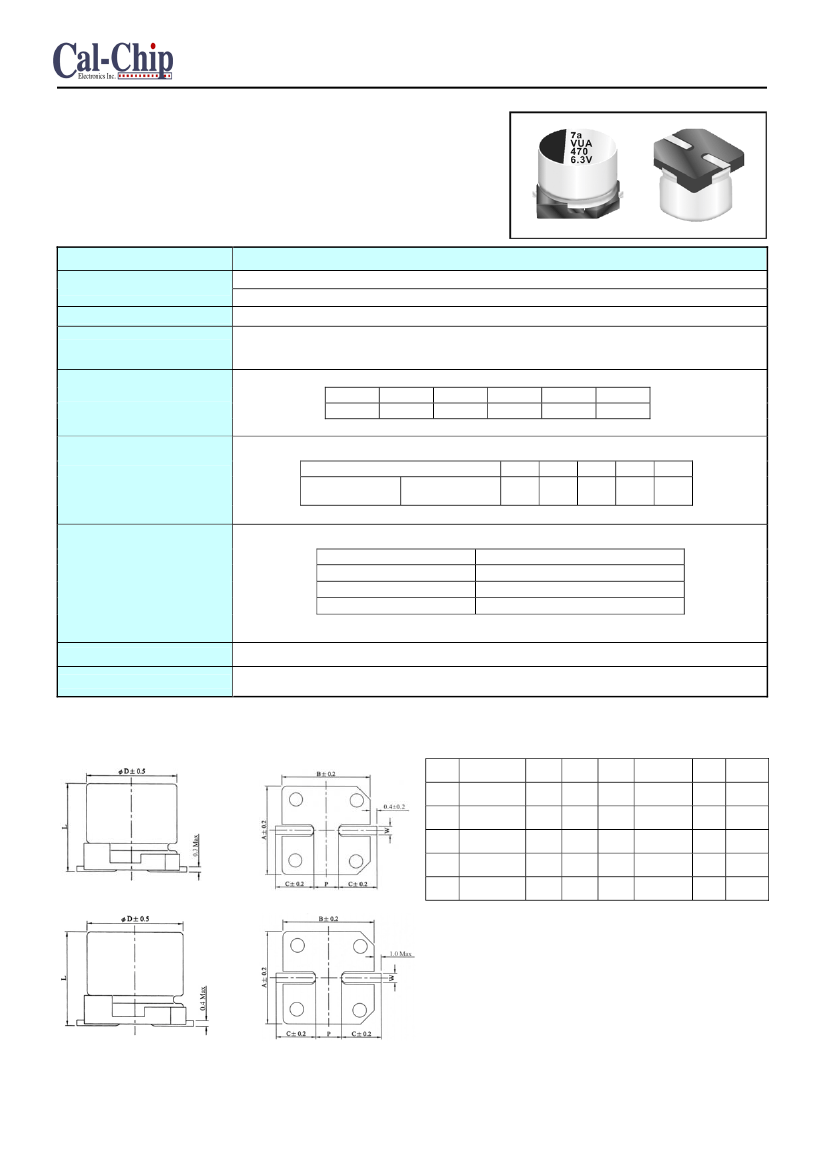

CVU-1H101MK14-R Preview

SMD Aluminum Electrolytic Capacitors

Features:

‧

8 ~ 16φ, 125

℃

, 1,000 hours assured

‧

Chip type high temperature range, for +125

℃

use

‧

For automobile modules and other high temperature applications

‧

RoHS Compliance

SPECIFICATIONS

Items

Operating Temperature Range

Capacitance Tolerance

Leakage Current (at 20℃)

Performance

10 ~ 50V

-40

℃

~ +125℃

±20%

I = 0.03CV or 4 (μA) whichever is greater (after 1 minutes)

Where, C= rated capacitance in

μF.

V = rated DC working voltage in V.

Rated

Tanδ(max)

CVU

(at 120Hz, 20

℃

)

Dissipation Factor

(Tanδat 120Hz, 20℃)

0.32

0.24

0.21

0.18

Low Temperature

Characteristics (at 120Hz)

Impedance ratio shall not exceed the values given in the table below.

Rated Voltage

Impedance

Z(-40

℃

)/Z(+20

℃

)

Ratio

Load Life Test

1,000 Hrs

Within ±30% of initial value

Less than 300% of specified value

Within specified value

Leakage Current

* The above specifications shall be satisfied when the capacitors are restored to 20

℃

after the rated voltage

applied for 1,000 hrs at 125

℃

Test Time

Capacitance Change

Dissipation Factor

Test time: 1,000 hrs; other items are the same as those for the load life test.

JIS C 5101-1, -18

Shelf Life Test

Other Standards

DIAGRAM OF DIMENSIONS

Fig. 1

LEAD SPACING AND DIAMETER

φD

12.5

10±0.5

13.5±0.5

16±0.5

16.5±0.5

8.4

10.4

12.8

16.3

8.4

10.4

12.8

16.3

3.0

3.3

4.9

5.8

0.7 to 1.1

1.1 to 1.4

3.1

4.7

4.2

6.0

Unit: mm

P±0.2 Fig. No.

Fig. 2

CVU

SMD Aluminum Electrolytic Capacitors

DIMENSIONS & PERMISSILBE RIPPLE CURRENT

V.DC

μF

100

220

330

470

680

1,000

Contents

330

470

101

221

331

471

681

102

8x10

10x10

12.5x13.5

12.5x16

112

480

585

8x10

10x10

12.5x13.5

16x16.5

102

480

650

8x10

10x10

12.5x13.5

16x16.5

116

480

650

Dimension:

φD

×L(mm)

Ripple Current: mA/rms at 120KHz, 125℃

25V (1E)

D×L

10V (1A)

D×L

16V (1C)

D×L

35V (1V)

D×L

8x10

10x10

12.5x13.5

16x16.5

50V (1H)

D×L

8x10

10x10

12.5x13.5

16x16.5

357

552

357

650

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
