PR42BQ504K6N3: DescriptionCeramic Capacitor, Multilayer, Ceramic, 500V, 10% +Tol, 10% -Tol, BQ, 15% TC, 0.5uF, Through Hole Mount; CategoryPassive components capacitor; File Size1MB，6 Pages; ManufacturerPresidio Components Inc; Websitewww.presidiocomponents.com

Download Datasheet Parametric View All

PR42BQ504K6N3 Overview

Ceramic Capacitor, Multilayer, Ceramic, 500V, 10% +Tol, 10% -Tol, BQ, 15% TC, 0.5uF, Through Hole Mount

PR42BQ504K6N3 Parametric

Parameter Name	Attribute value
Objectid	1288750627
package instruction	,
Reach Compliance Code	compliant
Country Of Origin	USA
ECCN code	EAR99
YTEOL	6
capacitance	0.5 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
Manufacturer's serial number	PR42
Installation features	THROUGH HOLE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
positive tolerance	10%
Rated (DC) voltage (URdc)	500 V
surface mount	NO
Temperature characteristic code	BQ
Temperature Coefficient	15% ppm/°C
Terminal shape	WIRE

PR42BQ504K6N3 Preview

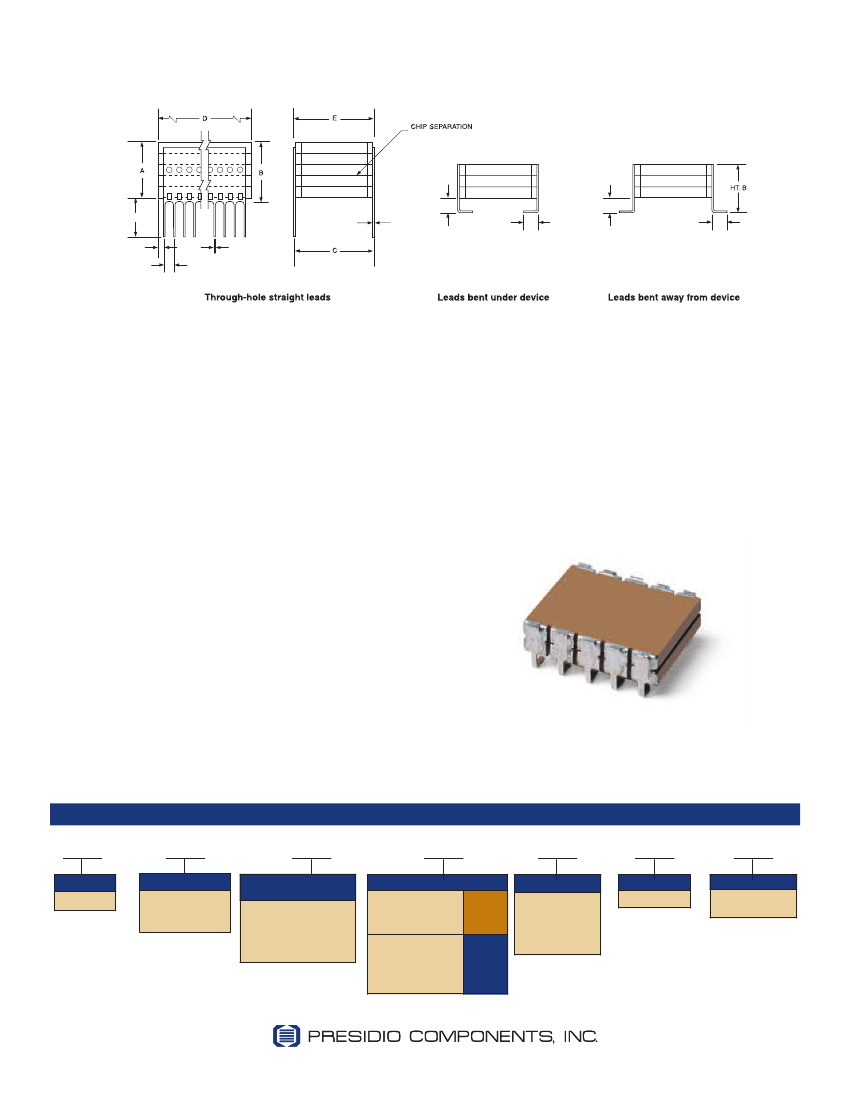

EUROPEAN SIZES

SMPS STACKED CAPACITORS

X7R AND NPO STACKED CAPACITORS

CAP DIMENSIONS

All Measurements

Millimeters (inches)

0.25 ± 0.050

(0.010 ± .002)

6.35 (0.250) Min.

0.25

0.050

(0.010

.002)

0.51

0.050

(0.020

.002)

2.54

0.130

(0.100

.005)

1.65

0.250

(.065

.010)

1.14

0.250

(.045

.010)

1.14

0.250

(.045

.010)

1.65

0.250

(.065

.010)

2.54 (0.100) Max.

0.64 (0.025) Min.

“N” STYLE

“J” STYLE

“G” STYLE

PERFORMANCE CHARACTERISTICS

Capacitance:

Tested at 1kHz, 25°C, 1 VAC RMS.

Dissipation Factor:

X7R < 2.5%, NPO < .15%, at 1kHz,

25°C, 1 VAC RMS.

Insulation Resistance (25°C):

100,000 MegΩ or

1000 MegΩ•µF, whichever is less.

DWV:

Per MIL-PRF-49470 for 5 seconds, 50mA maximum

charging current.

Burn-in (optional):

Per MIL-PRF-49470.

Voltage Temperature Coefficient:

From -55°C to +125°C.

X7R:

±15% maximum

∅

without applied voltage

50 V rated: +15 / -30%

∅

typical at 25 VDC

+15 / -60%

∅

typical at 50 VDC

100 V rated: +15 / -30%

∅

typical at 50 VDC

+15 / -60%

∅

typical at 100 VDC

BX:

BR:

BQ:

±15% maximum

∅

at 0 VDC

+15 / -25% maximum

∅

at rated voltage

ALSO AVAILABLE IN STACKED CAPACITORS

•

Interdigitated stacked capacitors

Voltage ratings optimized for your application

BX, N2200, NPO, NPQ (High Q Porcelain)

MIL-PRF-49470 style capacitors

Encapsulated / Plastic Packages

Vertical Stacks

Custom Lead Styles

Typical interdigitated stacked capacitor

±15% maximum

∅

at 0 VDC

+15 / -40% maximum

∅

at rated voltage

NPO:

±30 ppm per °C max.

∅

at rated voltage

±15% maximum

∅

at 0 VDC

+15 / -50% maximum

∅

at rated voltage

Interdigitated configuration results

in reduced ESL

HOW TO ORDER

PH41

SIZE CODE

SIZE

X7R

DIELECTRIC TYPE

NPQ*

NPO

X7R

565

CAPACITANCE

(IN PICOFARADS)

Two significant figures

followed by the number

of zeros.

Example:

103 = 10,000 pF = .01µF

TOLERANCE CODE

VOLTAGE CODE

= 50 V

= 100 V

= 200 V

= 500 V

LEAD STYLE

J, G, N

NO. OF LEADS

Number of Leads

Per Sde

F = ± 1%

≥

10pF

G = ± 2%

≥

10pF

J = ± 5%

≥

10pF

K =

Z =

P =

NPQ*

NPO

ONLY

± 10%

± 20%

+ 80% / -20%

+ 100% / -0%

ALL

* Contact factory for NPQ dielectric

7169 Construction Court, San Diego, CA 92121 USA • Tel: 858-578-9390 • Fax: 800-538-3880 or 858-578-6225

www.presidiocomponents.com • info@presidiocomponents.com

X7R AND NPO STACKED CAPACITORS

4K2NN Leads

TABLE 1 — MAXIMUM CAPACITANCE (µF)

1NPO0%, 50V,

PR µF, 1

PRESIDIO CASE SIZE

50V

X7R

PH31

PH32

PH33

PH34

PH41

PH42

PH43

PH44

PH51

PH52

PH53

PH54

PH61

PH62

PH63

PH64

PH71

PH72

PH73

PH74

PH76

PH77

PH78

PH79

PH81

PH82

PH83

PH84

PH86

PH87

PH88

PH89

PH91

PH92

PH93

PH94

2.7

5.2

8.2

1.0

5.6

8.2

110

120

100

130

100

160

200

140

220

270

1.8

3.3

5.0

6.8

3.3

6.8

5.6

100

120

100

150

180

NPO

.056

.12

.18

.22

.10

.22

.33

.39

.18

.39

.56

.68

.33

.68

1.0

1.2

.56

1.2

1.8

2.2

.56

1.2

1.8

2.2

.68

1.5

2.2

2.7

1.0

2.2

3.3

3.9

1.5

3.3

4.7

5.6

X7R

1.5

3.0

4.7

5.6

2.7

5.6

8.2

3.9

8.2

100

120

150

100 V

.62

1.2

2.0

2.7

1.2

2.5

3.9

5.2

1.8

3.9

6.0

8.2

3.6

7.5

6.2

6.8

7.5

NPO

.047

.082

.15

.20

.082

.18

.27

.33

.12

.27

.39

.47

.22

.47

.68

1.0

.47

1.0

1.5

1.8

.47

1.0

1.5

1.8

.56

1.2

1.8

2.2

.82

1.8

2.7

3.3

1.2

2.7

3.9

4.7

X7R

—

200V

.33

.68

1.0

1.5

.56

1.2

1.8

2.2

1.0

2.2

3.3

3.9

2.2

4.7

6.8

3.3

6.8

3.3

6.8

3.9

8.2

6.8

NPO

.036

.082

.12

.15

.068

.15

.22

.27

.10

.22

.33

.39

.18

.39

.56

.68

.33

.68

1.0

1.2

.33

.68

1.0

1.2

.47

1.0

1.5

1.8

.68

1.5

2.2

2.7

1.0

2.2

3.3

3.9

X7R

—

PH32N

.022µF O223J6G3

, 5%, 50

0V, G Le

ads

500V

.15

.27

.39

.56

.22

.47

.68

1.0

.39

.82

1.2

1.5

.82

1.8

2.7

3.3

1.5

3.3

4.7

5.6

1.5

3.3

4.7

5.6

1.5

3.3

4.7

5.6

2.2

4.7

6.8

8.2

4.7

NPO

.012

.022

.039

.047

.018

.039

.056

.068

.027

.056

.082

1.0

.056

.12

.18

.22

.10

.22

.33

.39

.10

.22

.33

.39

.15

.33

.47

.56

.22

.47

.68

.82

.33

.68

1.0

1.2

“B” Height Max.

mm (inches)

5.3 (.209)

8.9 (.351)

12.6 (.496)

16.3 (.642)

5.3 (.209)

8.9 (.351)

12.6 (.496)

16.3 (.642)

5.3 (.209)

8.9 (.351)

12.6 (.496)

16.3 (.642)

5.3 (.209)

8.9 (.351)

12.6 (.496)

16.3 (.642)

5.3 (.209)

8.9 (.351)

12.6 (.496)

16.3 (.642)

5.3 (.209)

8.9 (.351)

12.6 (.496)

16.3 (.642)

5.3 (.209)

8.9 (.351)

12.6 (.496)

16.3 (.642)

5.3 (.209)

8.9 (.351)

12.6 (.496)

16.3 (.642)

5.3 (.209)

8.9 (.351)

12.6 (.496)

16.3 (.642)

3J14

PH88BX396K V, J Leads

39µ, 10%, 10

PH31-34

C (±.5mm)

D (Max) Width

E (Max) Length

Leads per Side

Chip Size

Notes:

DIMENSIONS

mm (inch)

PH51-54

10.2 (.400)

10.7 (.421)

3740

PH61-64

14.0 (.551)

13.6 (.535)

14.9 (.586)

5550

PH71-74

15.2 (.600)

21.6 (.850)

16.8 (.661)

5783

PH76-79

20.3* (.800)

16.6 (.653)

21.6 (.850)

7763

PH81-84

10.2 (.400)

38.2 (1.503)

12.0 (.472)

37148

PH86-89

15.2 (.600)

38.2 (1.503)

18.9 (.744)

57148

PH91-94

20.3* (.800)

40.6 (1.598)

24.0 (.944)

77148

PH41-44

8.2 (.322)

8.7 (.342)

9.2 (.362)

3033

6.4 (.252)

7.4 (.291)

2424

“B” height dimensions in Table 1 are based on commonly ordered parts. Custom heights are available.

* Tolerance is ± .8mm (.032").

The above case sizes are the most commonly used. Other case sizes are available, consult factory or website.

Vertical stacks are available, consult factory.

Other voltages available; consult factory.

Consult factory for NPQ dielectric.

7169 Construction Court, San Diego, CA 92121 USA • Tel: 858-578-9390 • Fax: 800-538-3880 or 858-578-6225

www.presidiocomponents.com • info@presidiocomponents.com

R41B, 10%, 50

10µF

X7R AND NPO STACKED CAPACITORS

PR3

2NP

.025µF O223J6G3

N3 eads

TABLE 2 — MAXIMUM CAPACITANCE (µF)

K2 N L

, 5%, 5

106

PRESIDIO CASE SIZE

100 V

NPO

.056

.10

.068

.12

.10

.22

.15

.33

.68

X7R

2.2

4.7

1.8

3.9

3.3

6.8

4.7

.47

1.0

.82

1.5

1.2

2.5

2.2

4.5

3.9

8.2

NPO

.33

.68

.047

.10

.082

.15

.12

.25

.47

X7R

.47

1.0

.68

1.2

2.2

1.8

3.6

3.3

6.8

200V

.27

.52

.39

.82

.68

1.2

1.0

2.2

3.9

NPO

.027

.050

.039

.080

.068

.12

.10

.20

.39

X7R

.18

.33

.25

.47

.39

.82

.56

1.2

2.5

500V

50V

00V, G

Leads

“B” Height Max.

mm (inches)

X7R

PR21

PR22

PR31

PR32

PR41

PR42

PR51

PR52

PR61

PR62

2.2

4.7

2.7

5.6

4.7

6.8

1.2

2.5

1.5

3.0

2.7

5.6

4.2

8.2

7.5

.12

.22

.15

.25

.39

.82

1.5

NPO

.010

.018

.012

.025

.022

.047

.033

.068

.12

4.6 (.181)

7.5 (.295)

5.08 (.200)

8.13 (.320)

4.9 (.192)

8.2 (.323)

4.9 (.192)

8.2 (.323)

4.9 (.192)

8.2 (.323)

DIMENSIONS

mm (inch)

PR21-22

C (±.5mm)

D (Max) Width

E (Max) Length

Leads per Side

Chip Size

6.4 (.252)

5.4 (0.213)

7.6 (.300)

2620

PR31-32

6.4 (.252)

6.9 (.27)

7.6 (.3)

2626

PR41-42

8.2 (.322)

8.7 (.342)

9.2 (.362)

3233

PR51-52

10.2 (.400)

10.7 (.421)

3740

PR61-62

14.0 (.551)

13.6 (.535)

14.9 (.586)

5451

Notes:

“B” height dimensions in Table 2 are based on commonly ordered parts. Custom heights are available.

The above case sizes are the most commonly used. Other case sizes are available, consult factory or website.

Vertical stacks are available, consult factory.

Other voltages available; consult factory.

Consult factory for NPQ dielectric.

7169 Construction Court, San Diego, CA 92121 USA • Tel: 858-578-9390 • Fax: 800-538-3880 or 858-578-6225

www.presidiocomponents.com • info@presidiocomponents.com

PRESIDIO COMPONENTS

PRESIDIO

AL PART NUMBERS

EW GLOB

CUSTOM PRODUCTS

PRESIDIO COMPONENT S, INC.

maintains more than 100 million standard

commercial and military parts in inventory. If

you need a custom product, call our

engineering team.

CUSTOM LEADS

Custom products include non-standard

part sizes and voltages such as high

voltage, high temperature, high “Q”, custom

le a d s , c r y o g e n i c c e r a m i c s , n e g a t i v e

and positive temperature characteristic

ceramics, and piezoelectric formulations.

European sizes are also available.

Backed with numerous patents and

hundreds of years of combined experience,

Presidio’s engineering team is ready

and able to create the ideal solution for

any application.

CUSTOM SHAPES

CUSTOM STACKED

CUSTOM ASSEMBLY

ENCAPSULATED

HIGH TEMP

DOWNHOLE OIL

POWER-STACK™

CAPACITORS

HIGH FREQUENCY

HIGH POWER

MAIN PRODUCT CATALOGS

CERAMIC CHIP

CAPACITORS

HIGH RELIABILITY

EXTENDED RANGE

CHIPS FOR SPACE

SMPS STACKED

CAPACITORS

X-BAND

CAPACITORS

HIGH TEMPERATURE

CERAMIC

CAPACITORS

HIGH VOLTAGE &

RADIAL LEADED PRODUCTS

MIL-PRF-49467 CAPACITORS

CERAMIC CAPACITORS

FOR RF, MICROWAVE &

FIBER OPTIC APPLICATIONS

ULTRA-PORCELAIN

RF CAPACITORS

7169 Construction Court, San Diego, CA 92121 USA • Tel: 858-578-9390 • Fax: 800-538-3880 or 858-578-6225

www.presidiocomponents.com • info@presidiocomponents.com

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Visual doorbell circuit for deaf people

Object departure alarm circuit

Simple hysteresis-free dimming circuit

Simple biofeedback physiotherapy device

Simple and practical signal generator circuit

Crystal oscillator composed of time base 555

Recruiting part-time simulink training teachers: Recruiting part-time Simulink training teachers and other related professional lecturers or technical support personnel, short-term training or technical support, weekends.Beijing, Shanghai, Guangzhou...; zkxr20 Recruitment

Teach you how to get started with FPGA tutorials: Teach you how to get started with FPGA tutorials...; ww498968965 FPGA/CPLD

Use of 2.4G wireless communication module NRF24L01 on Cortex M: [size=4] The NRF24L01 module is a 2.4GHz communication module. The output power, channel selection and protocol settings can be set through the SPI interface. It can be connected to almost all microco...; Jacktang RF/Wirelessly

Analysis of the Causes of AC Servo Motor Damage: Three-phase AC servo motors are widely used, but after long-term operation, various faults will occur. Timely judgment of the cause of the fault and corresponding treatment are important tasks to prev...; eeleader-mcu Industrial Control Electronics

Powering the isolated side of a half-bridge configuration: Powering the high-side gate of a half-bridge configuration may seem a daunting task at first, as most systems have high level translation and drive strength requirements. This article discusses a poss...; nmg ADI Reference Circuit

Digital Control DC Voltage Source Based on Single Chip Microcomputer: Digitally controlled DC power supply based on single chip microcomputer 1. Basic requirements (1) Output voltage: range 0～＋12V, step 0.1V, ripple no more than 10mV; (2) Output current: 500mA; (3) Outp...; xiaohuoshan MCU

Shortcut: L0 L1 L2 L3 L4 L5 L6 L7 L8 L9 LA LB LC LD LE LF LG LH LI LJ LK LL LM LN LO LP LQ LR LS LT LU LV LW LX LY LZ M0 M1 M2 M3 M4 M5 M6 M7 M8 M9 MA MB MC MD ME MF MG MH MI MJ MK ML MM MN MO MP MQ MR MS MT MU MV MW MX MY MZ N0 N1 N2 N3 N4 N5 N6 N7 N8 NA NB NC ND NE NF NG NH NI NJ NK NL NM NN NO NP NQ NR NS NT NU NV NX NZ O0 O1 O2 O3 OA OB OC OD OE OF OG OH OI OJ OK OL OM ON OP OQ OR OS OT OV OX OY OZ P0 P1 P2 P3 P4 P5 P6 P7 P8 P9 PA PB PC PD PE PF PG PH PI PJ PK PL PM PN PO PP PQ PR PS PT PU PV PW PX PY PZ Q1 Q2 Q3 Q4 Q5 Q6 Q8 Q9 QA QB QC QE QF QG QH QK QL QM QP QR QS QT QV QW QX QY R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 RA RB RC RD RE RF RG RH RI RJ RK RL RM RN RO RP RQ RR RS RT RU RV RW RX RY RZ

Popular Components
