Features: Dual In-Line IC Compatible Relay, Available with Dielectric Strength 4.25VDC
Applications: General Purpose, Measuring and Testing Devices & Others
Markets: Telecommunications, Test and Measurement, Security & Others

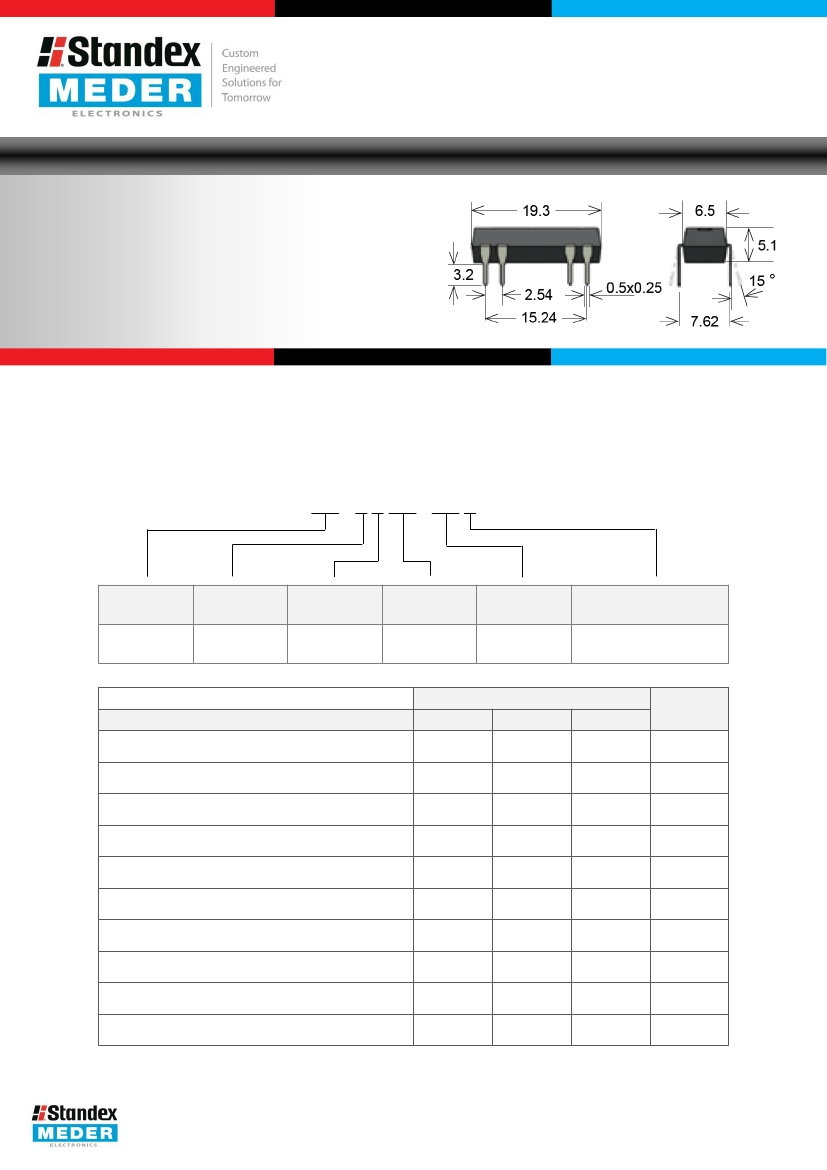

Part Description:
DIP 00-0X00-00X
Nominal
Voltage
05, 12, 15, 24
Contact QTY
1, 2
Contact
Form
A, B, C
Switch
Model
72, 75, 90

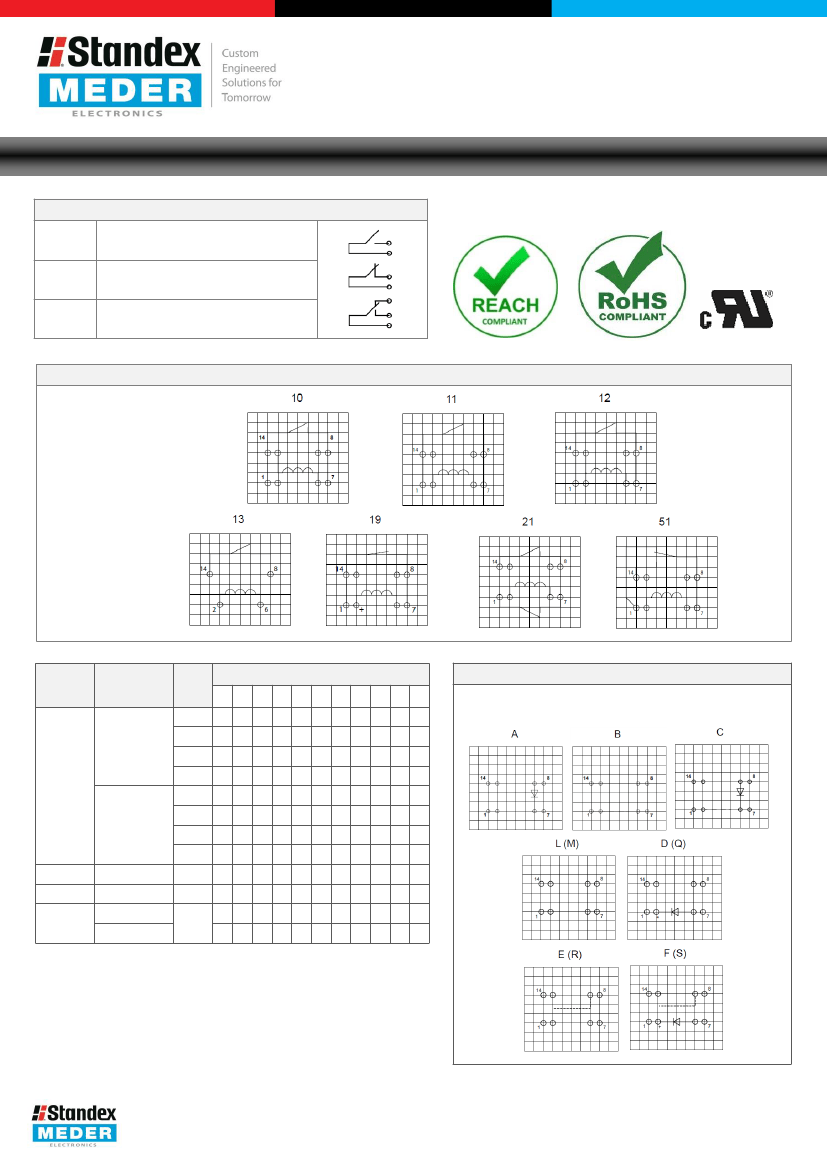

Pin Out
10, 11, 12, 13,
19, 21, 51
Switch Model
Option
() Version with Magnetic Shield
A, B, C,
L(M), D(Q), E(R), F(S)
Customer Options
Contact Data
Rated Power (max.)
Any DC combination of V&A not to exceed their individual max.’s
72
10
200
0.5
1.0
100
0.25
0.5
0.1
10
10
0.3
75
10
500
0.5
1.0
200
0.6
0.5
0.1
10
10
0.4
90
10
175
0.5
1.2
150
0.2
0.7
1.5
10
9
1.0
Unit
W
V
A
A
mOhm
kVDC
ms
ms
GOhm
pF
Switching Voltage (max.)
DC or peak AC
Switching Current (max.)
DC or peak AC
Carry Current (max.)
DC or peak AC
Contact Resistance (max.)
@ 0.5V & 50mA
Breakdown Voltage (min.)
According to EN60255-5
Operating Time (max.)
Incl. Bounce; Measured with w/ Nominal Voltage
Release Time (max.)
Measured with no Coil Excitation
Insulation Resistance (typ.)
Rh<45%, 100V Test Voltage
Capacitance (typ.)
@ 10kHz across open Switch
USA:
Europe:
Asia:
+1 866/782 6339
+49 7731/8399-0
+86 21/37820625
│ salesusa@standexmeder.com
│ info@standexmeder.com
│ salesasia@standexmeder.com
Vers. 01
27.01.2015
A Global Leader in the Design, Development, and
Manufacture of Sensor and Magnetic Components
Series Datasheet – DIP Reed Relays

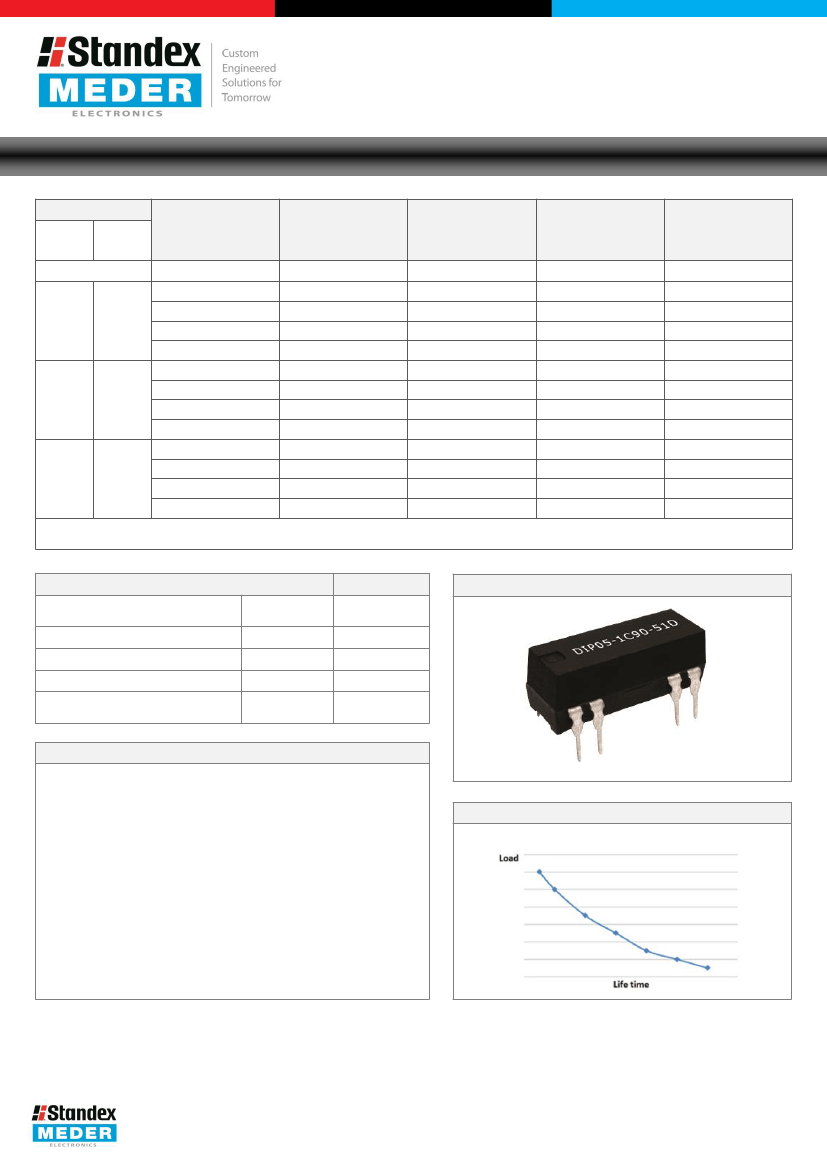

Coil Data
Contact
Form
Switch
Model
www.standexmeder.com
Coil Voltage
(nom.)
VDC
05
12
15
24
05
12
15
24
05
12
15
24
Coil Resistance
(typ.)
Ohm
500 (200)
1,000
2,000
2,000
200
500
2,000
2,000
200
500
2,000
2,000
Pull-In Voltage
(max.)
VDC
3.5
8.4
10.5
16.8
3.5
8.4
10.5
16.8
3.5
8.4
10.5
16.8
Drop-Out Voltage
(min.)
VDC
0.75
1.8
2.2
3.6
0.75
1.8
2.2
3.6
0.75
1.8
2.2
3.6
Nominal Coil Power
(typ.)
mW
50
145
115
290
125
290
115
290
125
290
115
290
Unit
1A, 1B* 72, 75**
1C
90
2A
72
The Pull-In / Drop-Out Voltage and Coil Resistance will change at rate of 0.4% per °C. *Re-closure of Form B may occur if the max. coil voltage is exceeded. Coil
polarity on Form B must be observed. Pin 2 is positive. () For Switch 1A75 **1B-75 only with Coil Voltage 24 available.
Environmental Data
Shock Resistance (max.)
1/2 sine wave duration 11ms
Unit
50
20
-20 to 70
-35 to 95
260
g
g
°C
°C
°C
DIP Reed Relay
Vibration Resistance (max.)
Operating Temperature
Storage Temperature
Soldering Temperature (max.)
5 sec. max.
Handling & Assembly Instructions
Switching inductive and/or capacitive loads create voltage
and/or current peaks, which may damage the relay.
Protective circuits need to be used.
External magnetic fields needs to be taken into
consideration, including a too high packing density. This may
influence the relays’ electrical characteristics.
Mechanical shock impacts e.g. dropping the relays may cause
immediate or post-installation failure.
Wave soldering: maximum 260°/5 seconds.
Reflow soldering: Recommendations given by the soldering
paste manufacturer need to be considered as well as the
temperature limits of other components/processes.
Life Test Data
*Load increase reduces life expectancy of Reed Switches
