applications. It can be used as either a driver or an
output stage amplifier. This device is fully matched
input and output to 50 Ω which eliminates any
sensitive external RF tuning components.
The device is packaged in a lead free 10-lead
flanged package for high volume manufacturing.
The MAAP-010169 is fabricated using a high
reliability pHEMT process, to realize good power
added efficiency and gain. The pHEMT process
features full passivation for high performance and
reliability.
Pin Configuration
2
Pin No.
1
2
3
4
5
6
7
Function
V
GG
2
V
GG
1
RF Input
V
GG
1
V
GG
2
V
DD
1
V
DD
2
RF Output
V
DD
2
V
DD
1
Ordering Information
1
Part Number
MAAP-010169-000000
Package
Bulk
8
9
10
2. Flange is DC and RF ground.
1. Reference Application Note M567 for package handling and
mounting procedure.
Handling Procedures
Please observe the following precautions to avoid
damage:
Static Sensitivity
* Restrictions on Hazardous Substances,
European Union Directive 2002/95/EC.
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be
damaged by static electricity. Proper ESD control
techniques should be used when handling these
devices.
1
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
MAAP-010169
10 W Power Amplifier
2 - 6 GHz
Parameter
Gain
Input Return Loss
Output Return Loss
P1dB
P
SAT
PAE
Duty Cycle
Gate Bias
Current
Test Conditions
—
—
—
—
—
P
SAT
—
Voltage
I
DQ
P
SAT
Units
dB
dB
dB
dBm
dBm
%
%
V
A
Min.
14
—
—
—
—
—
—
—
—
Typ.
18
8
10
38
40
30
—
-0.56
3.5
5.5
V1
Electrical Specifications: Freq. = 2 - 6 GHz, V
DD
= 10 V, I
DQ
= 3.5 A, T
A
= +25 °C, Z
0
= 50 Ω
Max.
—
—
—
—
—
—
100
—
—
Absolute Maximum Ratings
3,4,5
Parameter
Input Power
Operating Supply Voltage
Operating Gate Voltage
Operating Temperature
6
Channel Temperature
7
Storage Temperature
Absolute Maximum
+26 dBm
+11 Volts
-2 V < V
GG
< 0 V
-40°C to +25°C
+150 °C
-65°C to +150°C
Recommended Bias Configuration
V
DD
RF
OUT
V
DD
0.1 to 1.0 µF
MAAP-010169
3. Exceeding any one or combination of these limits may cause
permanent damage to this device.
4. M/A-COM Technology Solutions does not recommend
sustained operation near these survivability limits.
5. Operating at nominal conditions with T
J
≤ +150°C will ensure
MTTF > 1 x 10
6
hours.
6. Operating temperatures >25°C will require regulation of
dissipated power to maintain T
J
≤ 150°C. Refer to the
Max. Power Dissipation vs. Base Plate Temperature curve
on page 6.
7. Junction Temperature (T
J
) = T
C
+ Ө
JC
* ((V * I) - (P
OUT
- P
IN
))
Typical thermal resistance (Ө
JC
) = 2.8°C/W
a) For T
C
= 25°C, 4 GHz
T
J
= +130°C @ +10 V, 5.3 A, P
OUT
= 42 dBm, P
IN
= 24 dBm
V
GG
RF
IN
V
GG
0.1 to 1.0 µF
Operating the MAAP-010169
The MAAP-010169 is static sensitive.
Please
handle with care. To operate the device, follow
these steps. Ramp down or shutdown in reverse
order (gate bias on first and off last). All V
GG
pins
should have the same voltage applied at all times.
1. Apply V
GG
(-1.5 V).
2. Apply V
DD
(10 V Typical).
3. Set I
DQ
by adjusting V
GG
.
4. Apply RF
IN
.
2
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
MAAP-010169
10 W Power Amplifier
2 - 6 GHz

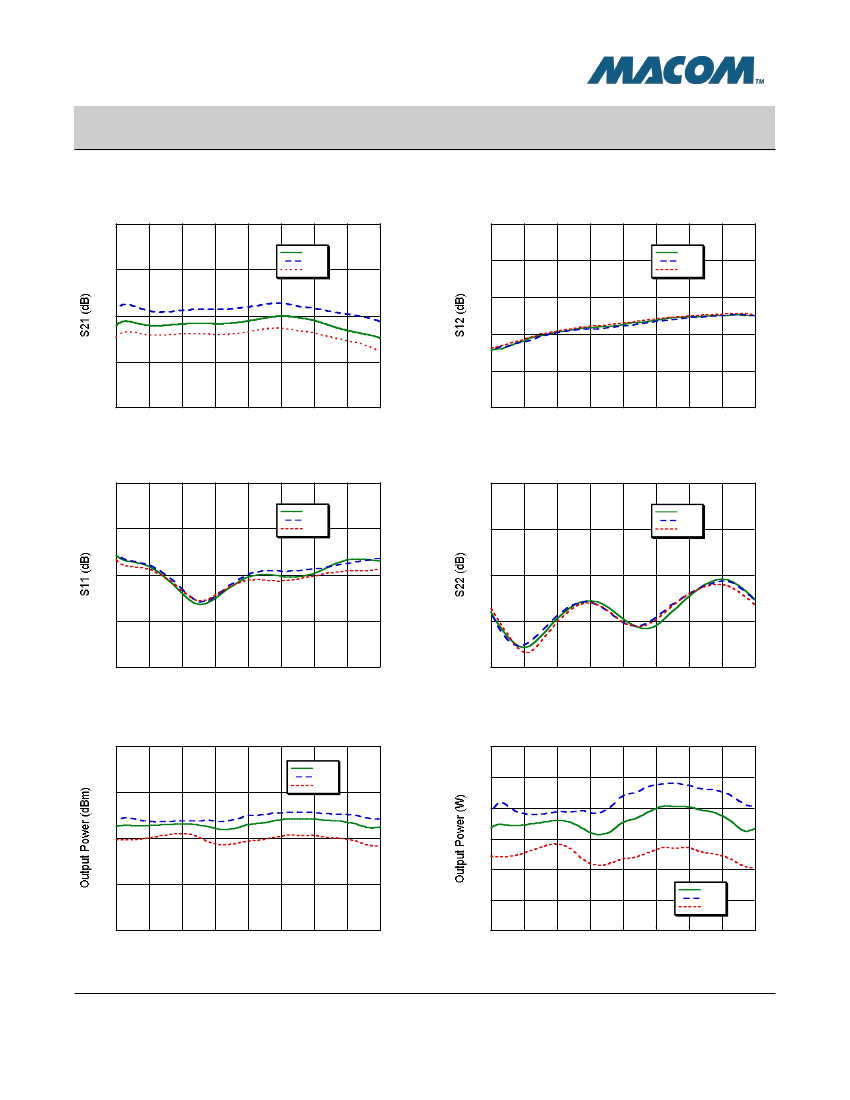

Typical Performance Curves
Gain
30
+25 C
-40 C
+85 C
V1
Reverse Isolation
0
+25 C
-40 C
+85 C
25
-20
-40
20
-60
15
-80
10
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
-100
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
Frequency (GHz)
Frequency (GHz)
Input Return Loss
0
+25 C
-40 C
+85 C
Output Return Loss
0
+25 C
-40 C
+85 C
-5
-5
-10
-10
-15
-15
-20
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
-20
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
Frequency (GHz)
Frequency (GHz)
Output Power (dBm)
50
+25 C
-40 C
+85 C
Output Power (W)
24
20
16
45
40
12
8
35
4
30
+25 C
-40 C
+85 C
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
0
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
Frequency (GHz)
Frequency (GHz)
3
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
MAAP-010169
10 W Power Amplifier
2 - 6 GHz

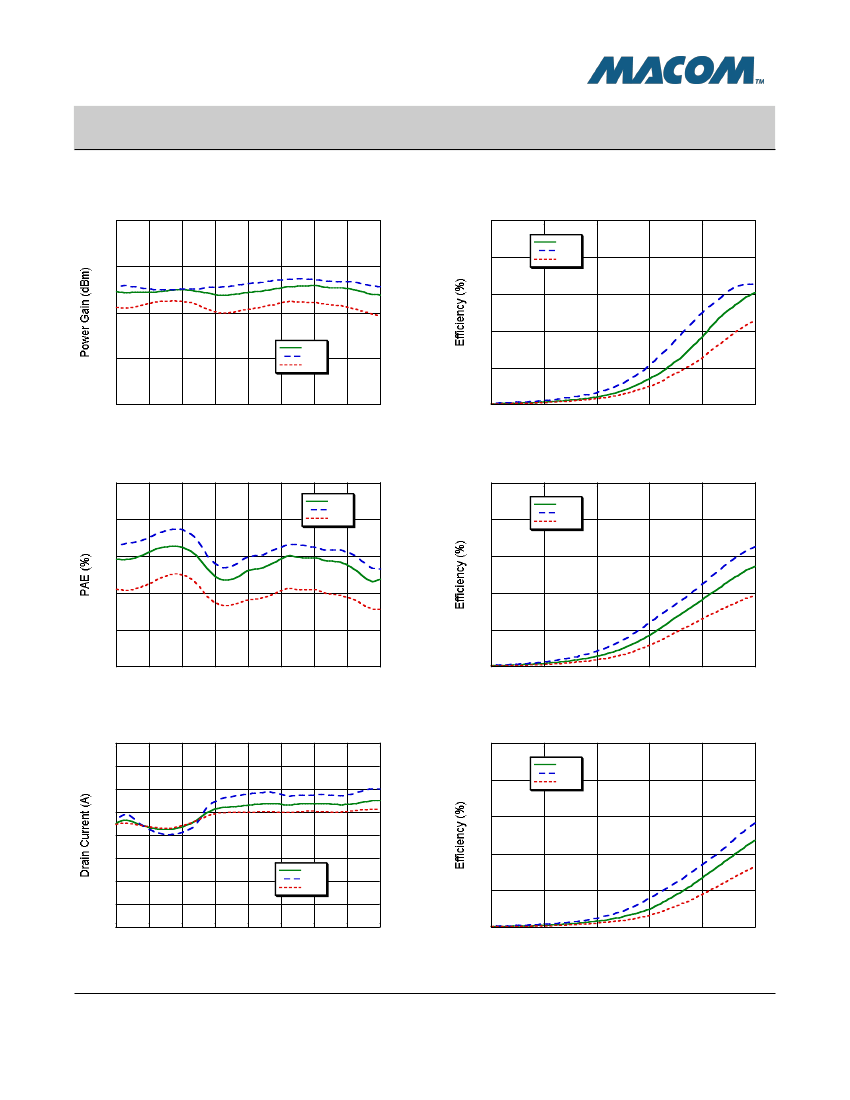

Typical Performance Curves
Power Gain
25
V1
Efficiency @ 2 GHz
50
+25 C
-40 C
+85 C
20
40
30
15
20
10
+25 C
-40 C
+85 C
10
5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
0
0
5
10
15
20
25
Frequency (GHz)
Input Power (dBm)
Power Added Efficiency
50
+25 C
-40 C
+85 C
Efficiency @ 4 GHz
50
+25 C
-40 C
+85 C
40
40
30
30
20
20
10
10
0
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
0
0
5
10
15
20
25
Frequency (GHz)
Input Power (dBm)
Drain Current
8
7
6
5
4
3
2
1
0
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
+25 C
-40 C
+85 C
Efficiency @ 6 GHz
50
+25 C
-40 C
+85 C
40
30
20
10
0
0
5
10
15
20
25
Frequency (GHz)
Input Power (dBm)
4
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
MAAP-010169
10 W Power Amplifier
2 - 6 GHz

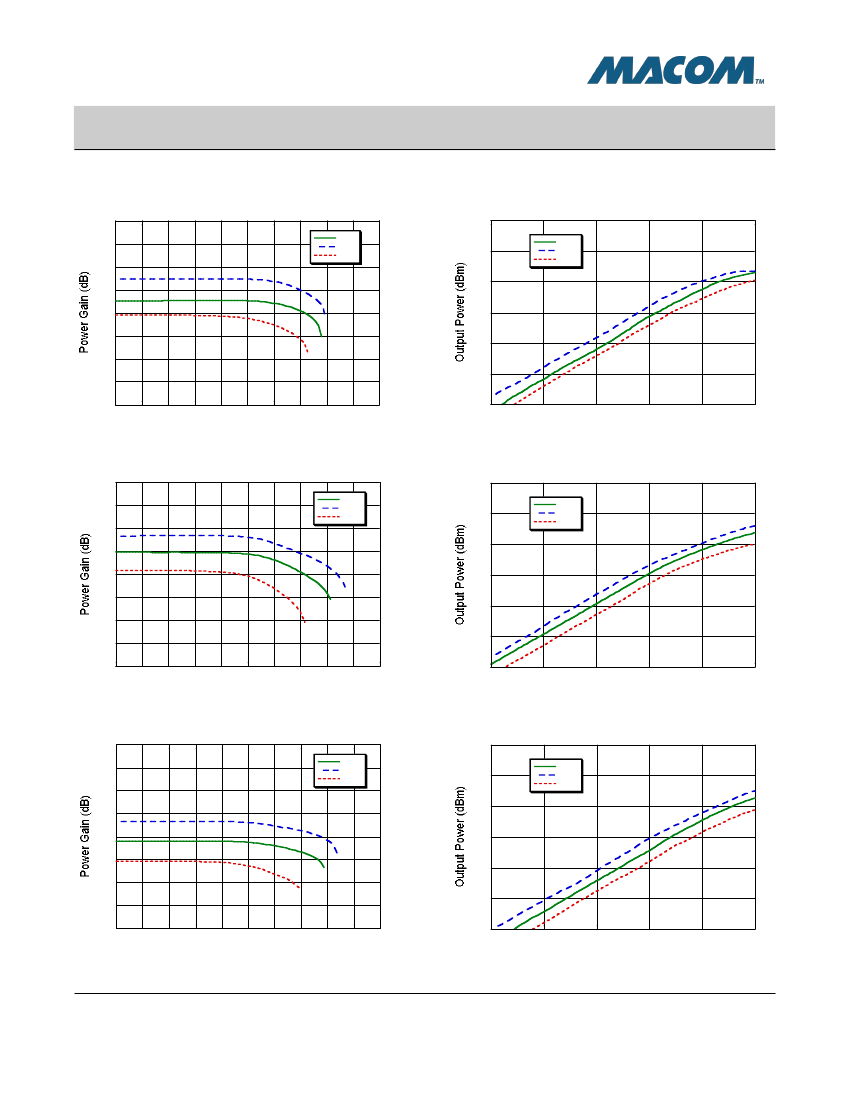

Typical Performance Curves
Power Gain @ 2 GHz
26
24
22
20
18
16
14
12
10
26
28
30
32
34
36
38
40
42
44
46
+25C
-40C
+85C
V1
Output Power Sweep @ 2 GHz
50
45
40
35
30
25
20
+25 C
-40 C
+85 C
0
5
10
15
20
25
Output Power (dBm)
Input Power (dBm)
Power Gain @ 4 GHz
26
24
22
20
18
16
14
12
10
26
28
30
32
34
36
38
40
42
44
46
+25 C
-40 C
+85 C
Output Power Sweep @ 4 GHz
50
45
40
35
30
25
20
+25 C
-40 C
+85 C
0
5
10
15
20
25
Output Power (dBm)
Input Power (dBm)
Power Gain @ 6 GHz
26
24
22
20
18
16
14
12
10
26
28
30
32
34
36
38
40
42
44
46
+25 C
-40 C
+85 C
Output Power Sweep @ 6 GHz
50
45
40
35
30
25
20
+25 C
-40 C
+85 C
0
5
10
15
20
25
Output Power (dBm)
Input Power (dBm)
5
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
