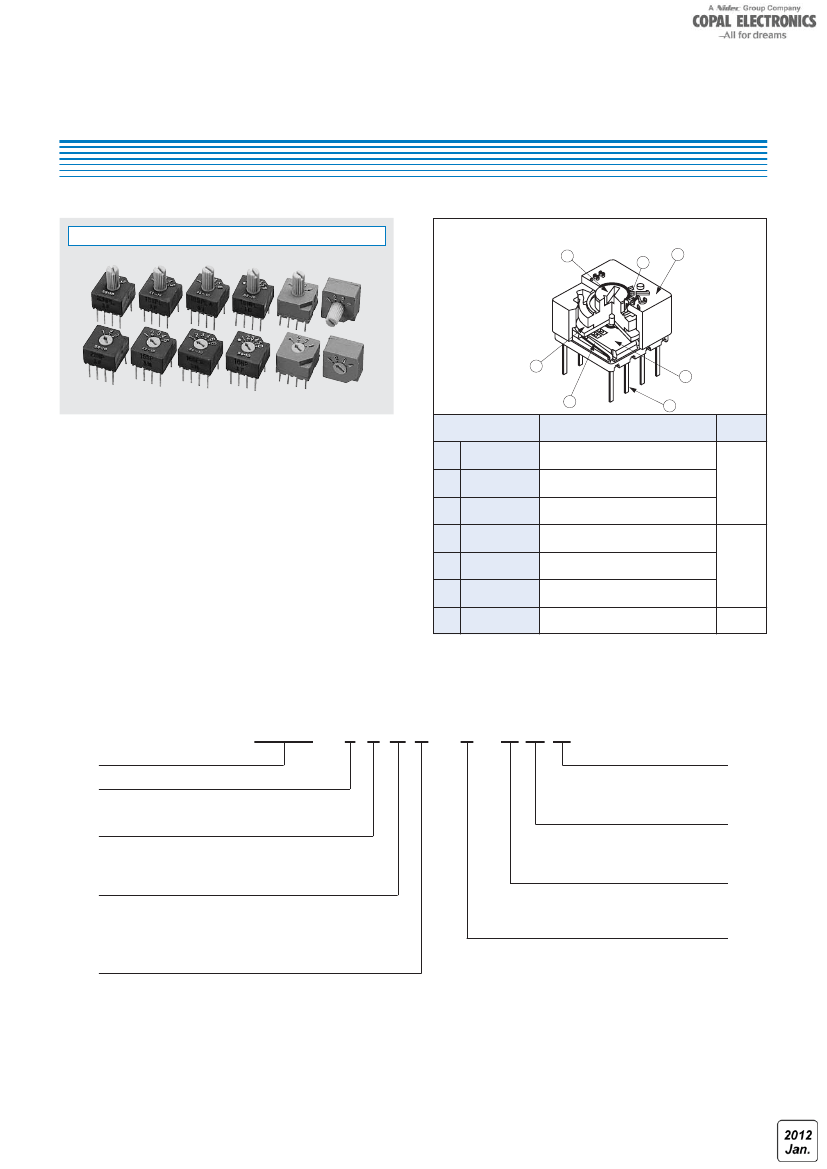

Protected against dust and washable after soldering
●
Self-cleaning mechanism
①
②
③
④
⑤
⑥
⑦
Rotor
“O” ring
Base
Terminal pin
Contact
P.C.B.
Housing
UL-94HB
Copper alloy, Gold-plated
Gold-plated epoxy board
PBT(Polybutyleneterephthalate)
—
UL-94HB
■
PART NUMBER DESIGNATION
SS-10 - 1 6 S P - L - A E W
Series name
No. of poles
1：1 pole
2：2 poles
Form of packaging
W：Tray packaging
Blank：Plastic bag
Terminal pin
E：Au (Lead-free)
No. of contacts
3：3 contacts (2 poles only)
5：5 contacts (1 pole only)
6：6 contacts (1 pole only)
Schematic
※1
Contact timing
N：Non-shorting (1pole 6 contacts with OFF, 2 poles 3 contacts)
S：Shorting (1 pole 5 contacts, 1 pole 6 contacts without OFF)
A：Without OFF position
Blank：With OFF position
Shape of rotor
Setting position
P：Top setting
L：With knob (extended shaft)
Blank：Without knob
※1：
The designation for schematic is only aplicable to SS-10-16
□□
.
The other partnumbers (ex. S-2050, SS-10-15SPEW) are without OFF position.
※Please
refer to the LIST OF PART NUMBERS when placing orders.
■
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
COPAL ELECTRONICS
ROTARY SELECTOR SWITCHES
SS-10/S-2050
■
LIST OF PART NUMBERS
Contact timing
Circuit type
Shape
Without knob
With knob
Without knob
With knob
Without knob
Form of packaging
Non-shorting
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
S-2050W
S-2050
S-2150W
S-2150
S-2051W
S-2051
S-2151W
S-2151
SS-10-15SPEW
SS-10-15SPE
SS-10-15SP-LEW
SS-10-15SP-LE
SS-10-16NPEW
SS-10-16NPE
SS-10-16NP-LEW
SS-10-16NP-LE
SS-10-16SP-AEW
SS-10-16SP-AE
SS-10-16SP-L-AEW
SS-10-16SP-L-AE
SS-10-23NPEW
SS-10-23NPE
SS-10-23NP-LEW
SS-10-23NP-LE
Shorting
Pieces in package
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
Top
setting
1 pole 4 contacts
Side
setting
1 pole 5 contacts
With knob
Without knob
With OFF
1 pole
6 contacts
Without OFF
With knob
Without knob
2 poles 3 contacts
With knob
Top
setting
With knob
Without knob
: Not manufactured
※
Verify the above part numbers when placing orders.
Tray version can be supplied only in tray nuits.
■

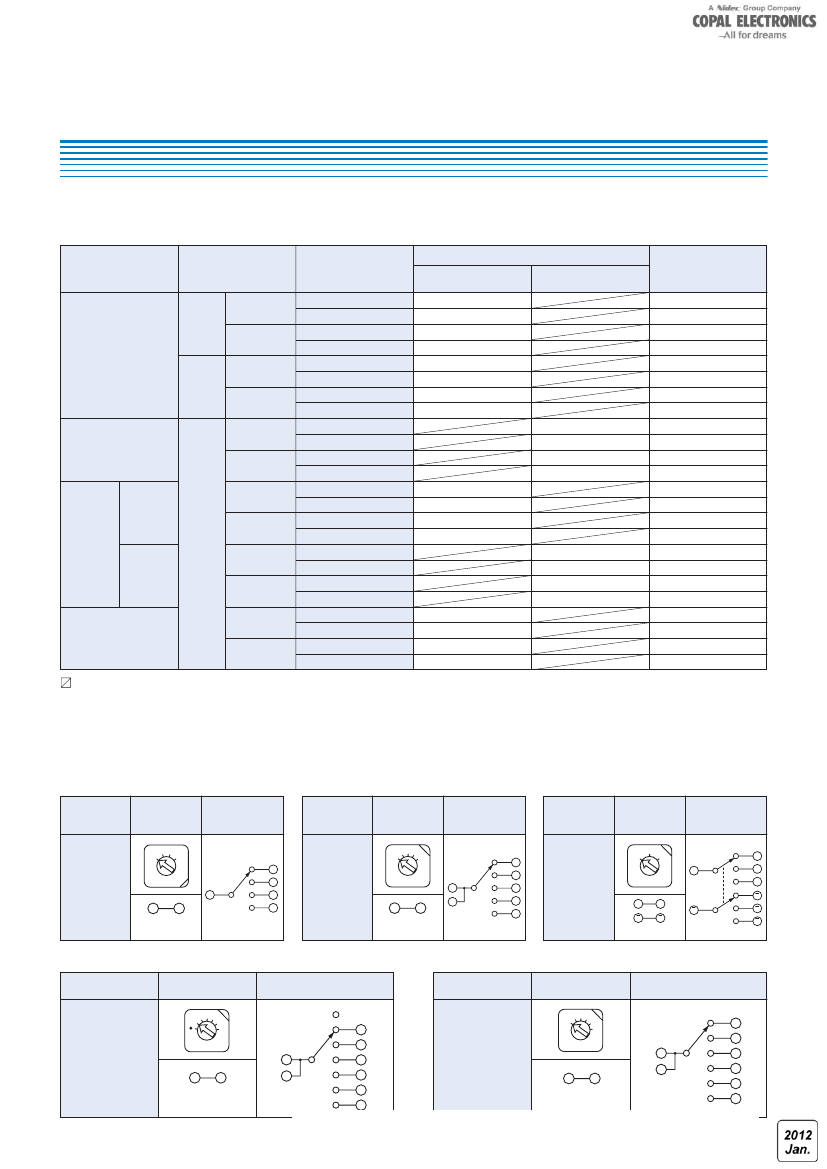

SCHEMATIC DIAGRAMS
●
1 pole 4 contacts
Series
Switching
specifications
2
●
1 pole 5 contacts
Schematic
Series
Switching
specifications
2
3
4
●
2 poles 3 contacts
Schematic
Series
Switching
specifications
2
Schematic
3
1
4
S-2050
S-2051
S-2150
1
C
2
3
1
1
3
1
1
2
C
3
4
SS-10-15SPE
C
2
3
4
5
SS-10-23NPE
SS-10-23NP-LE
C
C
1
SS-10-15SP-LE
C
1
C
1
C
1
5
S-2151
ON
ON
C
1
2
3
ON
●
1 pole 6 contacts (With OFF)
Series
Switching specifications
2
3
4
●1
pole 6 contacts (Without OFF)
Schematic
(OFF)
1
Series
Switching specifications
2
3
4
Schematic
1
2
C
3
4
5
1
2
1
5
5
6
6
SS-10-16NPE
SS-10-16NP-LE
C
1
C
SS-10-16SP-AE
SS-10-16SP-L-AE
C
1
C
C
3
4
5
6
ON
6
ON
■
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
COPAL ELECTRONICS
ROTARY SELECTOR SWITCHES
SS-10/S-2050
■
TERMINAL CONNECTION / P.C.B. THROUGH HOLE DIMENSIONS
SS-10-15
SS-10-16
SS-10-23
S-2050
S-2150
(Unit: mm)
S-2051
S-2151
Operating face
Terminal pin layout
(Bottom view)
3 2 C 1
NC C 5 4
3 2 C 1
6 C 5 4
3 2 C 1
1 C 2 3
4 3 2 1
C
4 3 2 1
C
2.54±0.1
2.54±0.1
8 –
φ
0.8 hole
2.54±0.1
7.62±0.1
5 –
φ
0.8 hole
2.54±0.1
2.54±0.1
Operating
face
5 –
φ
0.8 hole
5.08±0.1
S – 2051 case
S – 2151 case
Dimension is common to SS-10-15, SS-10-16 and
SS-10-23 series.
SS – 10 case
S – 2050 case
S – 2150 case
■
STANDARD SPECIFICATIONS
Circuit type
1 pole 4 contacts
1 pole 5 contacts
1 pole 6 contacts
2 poles 3 contacts
■
ELECTRICAL CHARACTERISTICS
Contact rating
Non-switching
Switching
Minimum
DC50 V 100 mA
DC5 V 100 mA
DC20 mV 1
μA
Operating temperature range
Storage temperature range
Sealing
Net weight
7.62±0.1
P.C.B. dimensions
(Bottom view)
−
25 ~ 70 °C
Washable by “O” ring
Approx. 0.84 g (without knob)
Approx. 0.94 g (with knob)
Contact timing
Contact resistance
Insulation resistance
Dielectric strength
Shorting
Non-shorting
100 mΩ maximum
100 MΩ (DC100 V) minimum
AC300 V, 60 s
■
MECHANICAL CHARACTERISTICS
No. of positions
Adjustment torque
Stopper strength
3, 4, 5, 6
40 mN·m {408 gf·cm} maximum
50 mN·m {510 gf·cm} minimum
1 pole 4 contacts
36°
2 poles 3 contacts
30° (1 pole 5 contacts)
22.5° (1 pole 6 contacts, with OFF)
28° (1 pole 6 contacts, without OFF)
■
ENVIRONMENTAL CHARACTERISTICS
Vibration
Amplitude 1.5 mm or Acceleration 98 m/s
2
,
10-500-10 Hz, 3 directions for 2 h each
490 m/s
2
, 11 ms
6 directions for 3 times each
40 °C, Relative humidity 90 ~ 95 %, 240 h
500 cycles minimum
DC5 V, 100 mA
70 °C, 240 h
−
25 °C, 96 h
−
25 (0.5 h) ~ 70 °C (0.5 h), 5 cycles
(
)
Shock
Humidity (Steady state)
Load life
High temperature exposure
Low temperature exposure
Thermal shock
Stepping angle
Terminal strength
Solderability
15 N {1.53 kgf} minimum
245
±
3 °C, 2 ~ 3 s
Flow soldering
260
±
3 °C, 5 ~ 6 s, two times maximum
Manual soldering
380
±
10 °C, 3 ~ 4 s
Soldering heat
{ } : Reference only
■
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
2.54±0.1
COPAL ELECTRONICS
ROTARY SELECTOR SWITCHES
SS-10/S-2050
■

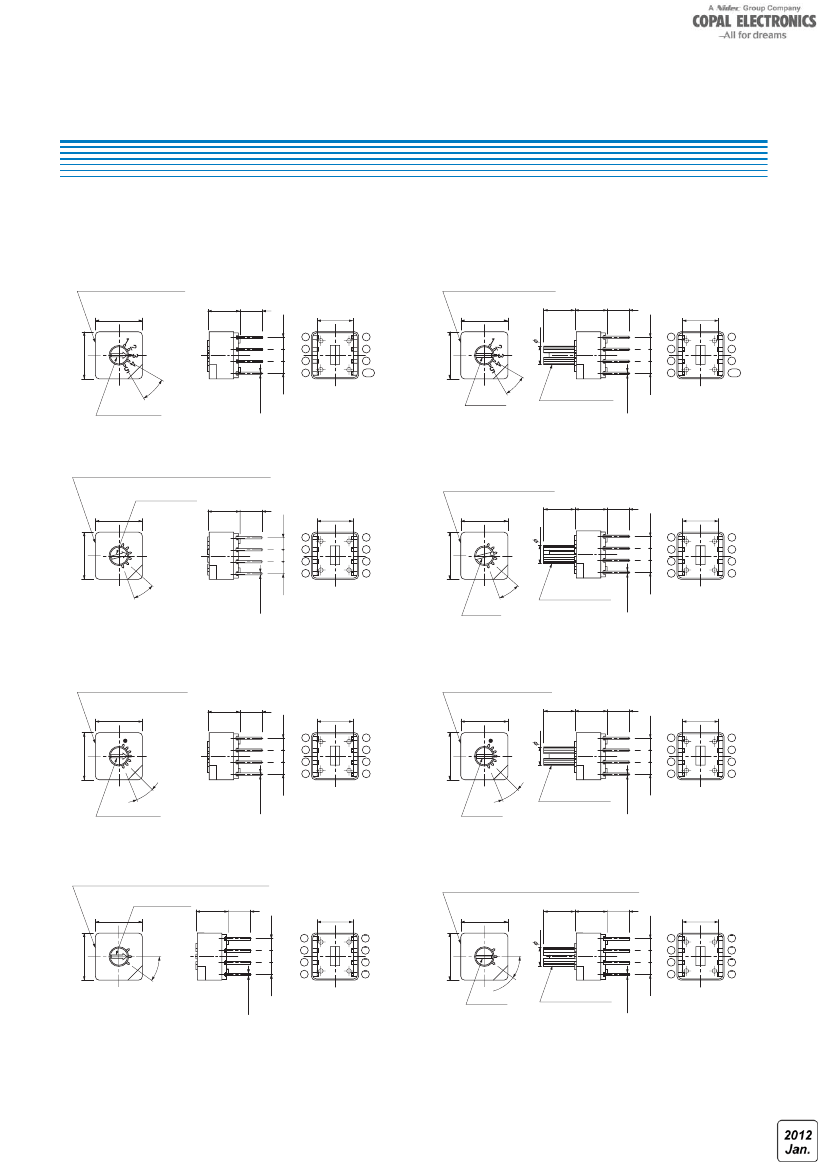

OUTLINE DIMENSIONS
●
SS-10-15SPE
Part No., Production date code &
Lead-free Identification mark
7
10
4.5±0.5
2.54
7.62
1
SS–1 0
Unless otherwise specified, tolerance:
±
0.3 (Unit: mm)
●
SS-10-15SP-LE
Part No., Production date code &
Lead-free Identification mark
6.6
10
4
SS–1 0
7
4.5±0.5
2.54
7.62
1
2.54
C
2
3
4
5
C
NC
2.54
10
2
3
C
NC
10
C
5
8 – 0.5±0.1
t = 0.2
2.54
3
0˚
0.7 W
×
3.2 L
×
1 D
0.7 W
×
1 D
Straight knurl M = 0.2
●
SS-10-16SP-AE
Part No., Production date code & Lead-free Identification mark
0.7 W
×
3.2 L
×
1 D
7
10
4.5±0.5
2.54
7.62
1
2.54
C
2
3
˚
28
●
SS-10-16SP-L-AE
Part No., Production date code &
Lead-free Identification mark
6.6
10
4
SS–1 0
7
4.5±0.5
2.54
7.62
1
2.54
C
2
3
4
5
C
6
1
23
4
5
SS–1 0
SS–1 0
SS –1 0
1
23
4
5
10
10
5
C
6
3.9
8 – 0.5±0.1
t = 0.2
2.54
˚
28
Straight knurl M = 0.2
0.7 W
×
1 D
●
SS-10-16NPE
Part No., Production date code &
Lead-free Identification mark
7
10
4.5±0.5
2.54
7.62
1
2.54
4
●
SS-10-16NP-LE
Part No., Production date code &
Lead-free Identification mark
6.6
10
3.9
7
4.5±0.5
2.54
7.62
1
2.54
C
2
3
8 – 0.5±0.1
t = 0.2
4
5
C
6
10
10
C
2
3
5
C
6
8 – 0.5±0.1
t = 0.2
2.54
22
.5˚
.5˚
22
0.7 W
×
1 D
Straight knurl M = 0.2
0.7 W
×
3.2 L
×
1 D
●
SS-10-23NPE
Part No., Production date code & Lead-free Identification mark
0.7 W
×
3.2 L
×
1 D
10
7
4.5
±
0.5
2.54
7.62
1
3
●
SS-10-23NP-LE
Part No., Production date code & Lead-free Identification mark
6.6
10
3.9
7
4.5±0.5
2.54
7.62
1
2.54
C
2
3
8 – 0.5±0.1
t = 0.2
0.7 W
×
1 D
Straight knurl M = 0.2
2.54
36
˚
3
2
C
1
2.54
10
36˚
2
3
C
1
■
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
8 – 0.5±0.1
t = 0.2
2.54
10
C
2
2.54
8 – 0.5±0.1
t = 0.2
2.54
8 – 0.5±0.1
t = 0.2
2.54
˚
30
3.9
6
6
6
6
1
2
1
2
SS–1 0
3
45
3
45
1
23
1
23
SS –1 0
COPAL ELECTRONICS
ROTARY SELECTOR SWITCHES
SS-10/S-2050
■

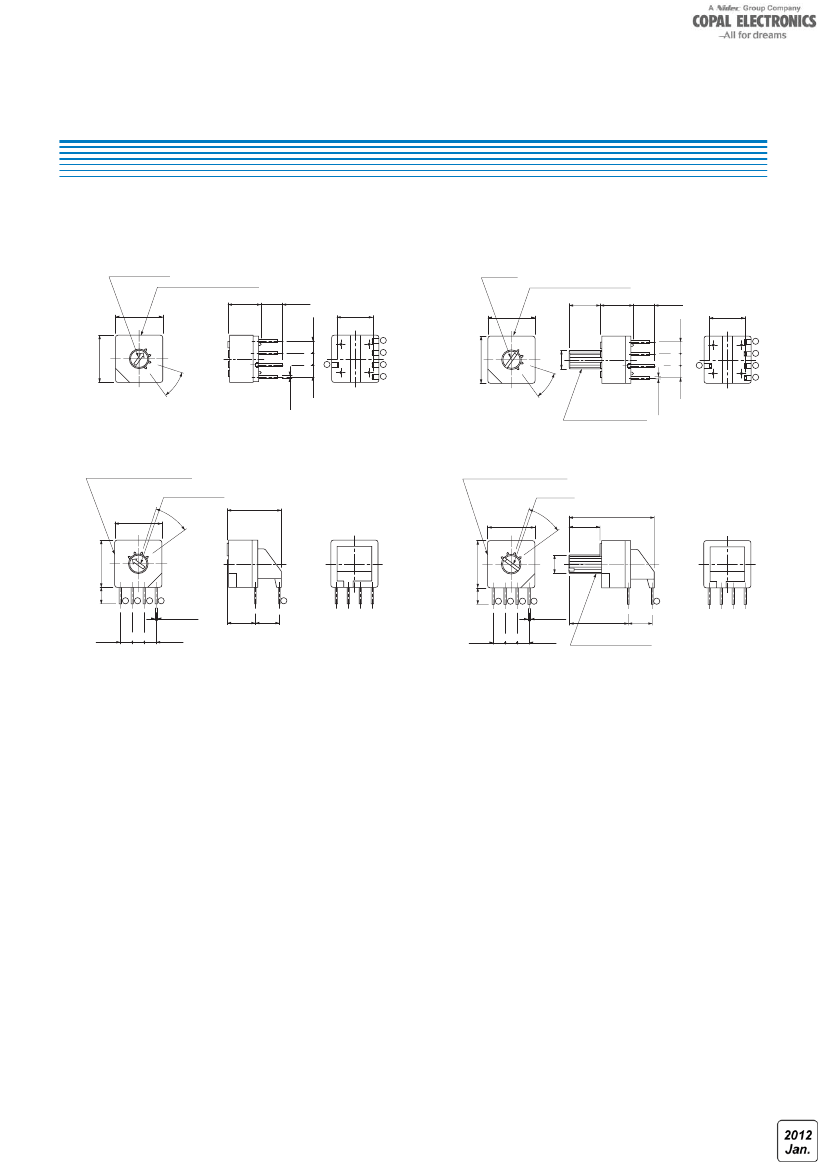

OUTLINE DIMENSIONS
●
S-2050
0.7 W
×
3.2 L
×
1 D
Part No. & Production date code
7
10
2.54
4.5±0.5
7.62
Unless otherwise specified, tolerance:
±
0.3 (Unit: mm)
●
S-2150
0.7 W
×
1 D
Part No. & Production date code
6.6
10
2.54
7
4.5±0.5
7.62
1
2.54
4
3
1
φ
3.9
2.54
4
3
C
2
1
23
23
10
5–0.5±0.1
t = 0.2
˚
1
36
˚
36
5–0.5±0.1
t = 0.2
C
2.54
Straight knurl M = 0.2
●
S-2051
Part No. & Production date code
0.7 W
×
3.2 L
×
1 D
10
36
●
S-2151
Part No. & Production date code
0.7 W
×
1 D
11.5
˚
36
˚
18.1
6.6
10
2
3
4
2
3
4
1
1
3.5
±
0.5
4
3
2
1
C
3.5±0.5
4
3
2
1
5 – 0.5±0.1
t = 0.2
2.54
2.54
2.54
6
5.08
2.54
2.54
5 – 0.5±0.1
t = 0.2
2.54
φ
3.9
10
10
12.6
5.08
Straight knurl M = 0.2
■
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
