3-435668-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 3-435668-2

3-435668-2: DescriptionDIP SW 12 POSN W/TAPE AU; CategoryMechanical and electronic products switch; File Size120KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

3-435668-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-435668-2	-	-	View	Buy Now

3-435668-2 Overview

DIP SW 12 POSN W/TAPE AU

3-435668-2 Parametric

Parameter Name	Attribute value
Brand Name	Alcoswitch
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	6 weeks
Actuator color	WHITE
Actuator length
Actuator material	THERMOPLASTIC
Actuator type	ROCKER
Other features	LOW PROFILE
body width	9.65 mm
Body color	BLUE
body height	7.37 mm
Body length or diameter	32.51 mm
center contact material	COPPER ALLOY
Center contact plating	GOLD OVER NICKEL
Maximum contact current (DC)	0.015 A
Contact (DC) maximum rated R load	0.015A@24VDC
Contact function	ON-OFF
Contact resistance	0.1 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (DC)	24 V
Dielectric withstand voltage	500VDC V
Electrical life	2000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	GOLD OVER NICKEL
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	435668
Installation features	THROUGH HOLE-STRAIGHT
Number of switching segments	12
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB hole count	24
seal	TAPE SEALED
surface mount	NO
Switch action	LATCHED
switch function	SPST
Switch type	SLIDE DIP SWITCH
Terminal length	0.14 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

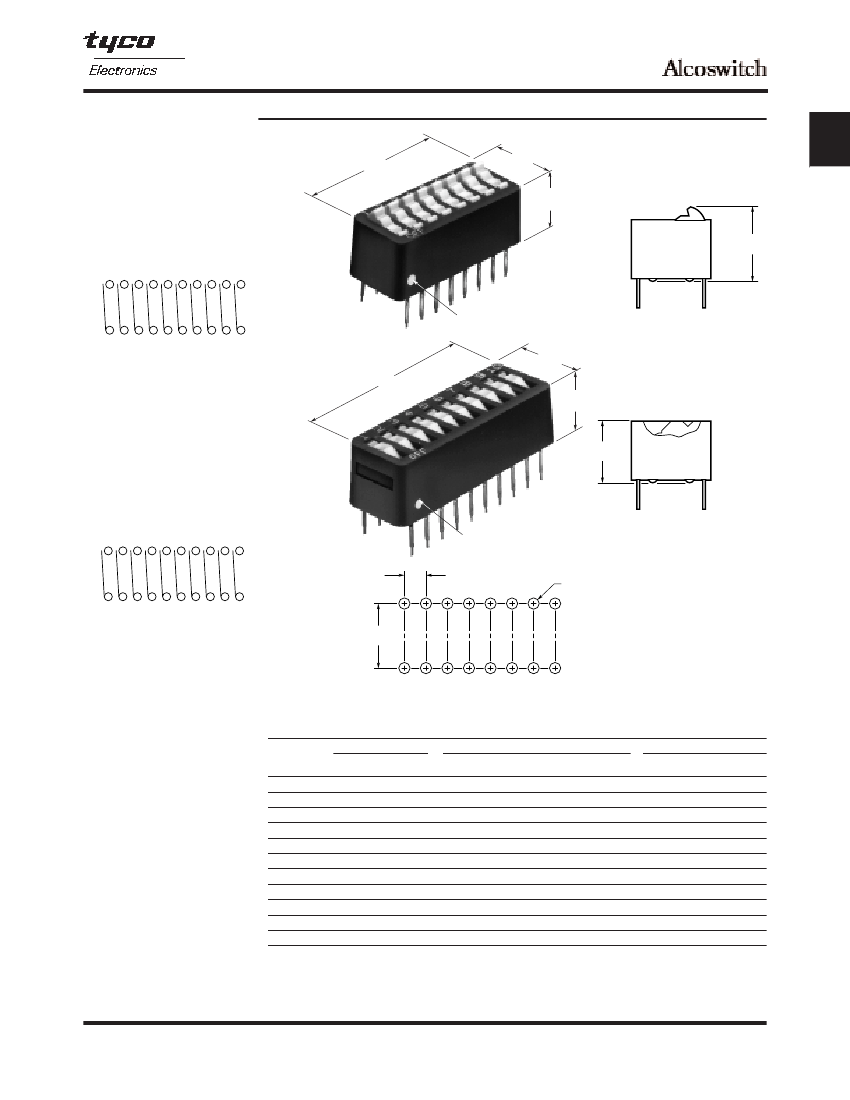

7100 Series

DIP Switches, Rocker Style Actuator

Single Pole

Single Throw

Contact Lead Spacing —

.100 x .300 [2.54 x 7.62]

Lead Length —

.140 [3.56]

below mounting surface

Contact Arrangement

.380

[9.65]

7100 Series

.290

[7.37]

.340

[8.64]

White Dot Identifies Pin 1

Pin 1

Note:

Switches shown in open position.

.380

[9.65]

Single Pole

Single Throw

Low Profile

Contact Lead Spacing —

.100 x .300 [2.54 x 7.62]

Lead Length —

.140 [3.56]

below mounting surface

Contact Arrangement

.290

[7.37]

.290

[7.37]

White Dot Identifies Pin 1

.100

± .005

Typ.

[2.54

± 0.13

]

.035

± .005

Dia. Typ.

[0.89

± 0.13

]

Pin 1

Note:

Switches shown in open position.

.300

± .005

[7.62

± 0.13

]

Recommended PC Board Hole Pattern

No. of

Switches

Dim. A

inch

.280

.380

.480

.580

.680

.780

.880

.980

1.080

1.180

1.280

7.11

9.65

12.19

14.73

17.27

19.81

22.35

24.89

27.43

29.97

32.51

SPST Standard Profile

Unsealed

Sealed

Part No.

2-435640-9

3-435640-0

435640-2

435640-3

435640-4

435640-1

435640-5

435640-6

435640-7

—

3-435640-2

—

3-435640-5

3-435640-6

3-435640-7

3-435640-8

3-435640-9

4-435640-0

4-435640-1

—

4-435640-3

SPST Low Profile

Unsealed

Tape Sealed

Part No.

435668-1

—

435668-3

435668-4

435668-5

—

435668-7

—

435668-9

—

2-435668-6

3-435668-3

3-435668-4

3-435668-5

2-435668-5

2-435668-7

2-435668-8

2-435668-9

3-435668-0

3-435668-1

3-435668-2

All switches are bottom sealed.

A17

Catalog 1308390

Issued 9-04

www.tycoelectronics.com

Dimensions are in inches

and millimeters unless otherwise

specified. Values in parentheses

or brackets are metric equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-5-729-0425

South America: 55-11-3611-1514

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 44-141-810-8967
