803-99-072-61-001 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 803-99-072-61-001

803-99-072-61-001: DescriptionBoard Connector, 72 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Black Insulator, Socket; CategoryThe connector The connector; File Size212KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

803-99-072-61-001 Overview

Board Connector, 72 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Black Insulator, Socket

803-99-072-61-001 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	COMPATIBLE CONTACT: 4614-0-31-01-47-01-04-0
body width	0.2 inch
subject depth	0.276 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD (200) OVER NICKEL
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	803
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	200u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.104 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	72
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

INTERCONNECTS

Solderless Press-Fit

Double Row

•

The unique compliant tail pins

conform to .040”

±.003

finished

hole without stressing inner layers.

•

Pin headers are offered in two tail

lengths for .060”-.100” (M-M# 5601)

and .090”-.130” (M-M# 5602) thick

panels. (See page 178 for details)

•

Sockets use Hi-Rel, six-finger

clips which accept .030” dia. pins

and also .025” square pins.

(M-M# 4614 or 4615). (See page

147 for details)

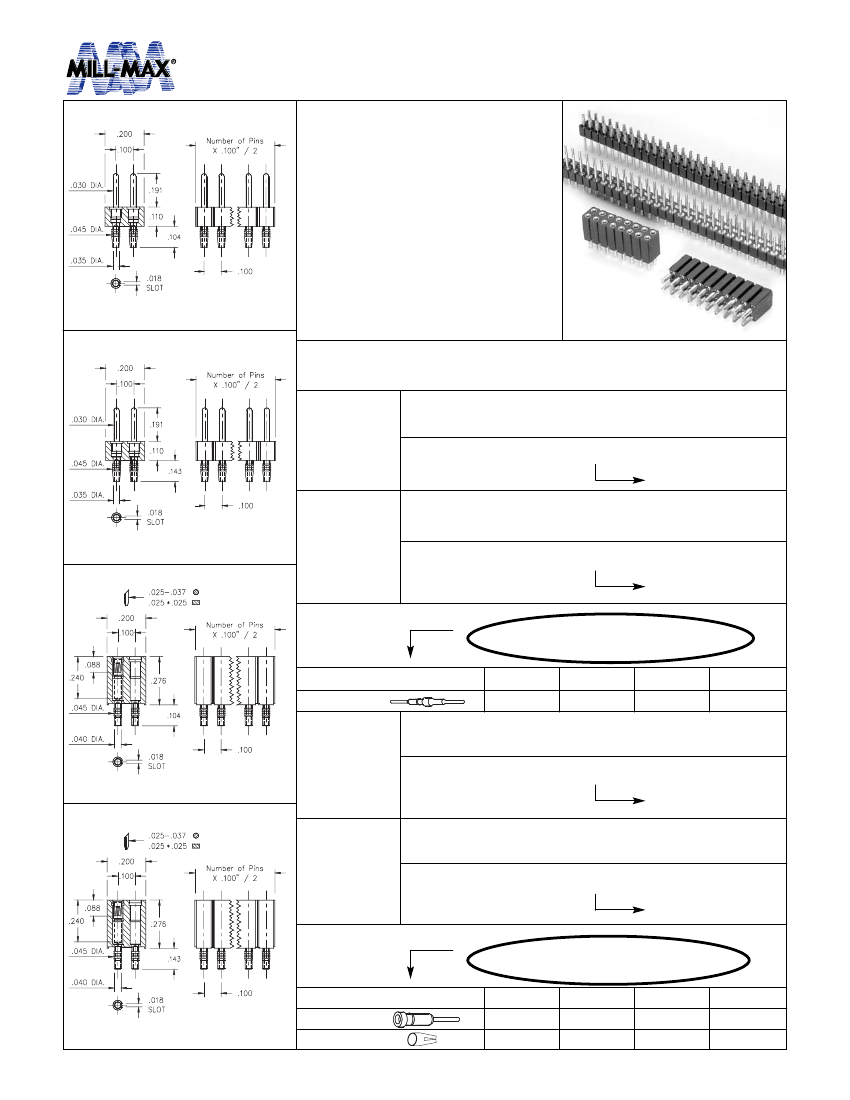

Series 802, 803

Fig. 1

Ordering Information

Compliant Tail Pin Header

for .060 - .100” thick boards

Fig. 1

802-XX-0 _ _-61-001

Specify # of pins

02-64

Fig. 2

Compliant Tail Pin Header

for .090 - .130” thick boards

802-XX-0 _ _-62-001

Specify # of pins

02-64

XX=

Plating Code See Below

SPECIFY PLATING CODE XX=

10µ” Au

200µ” Sn/Pb

Pin Plating

Fig. 3

Compliant Tail Socket

for .060 - .100” thick boards

803-XX-_ _ _-61-001

Specify # of pins

002-100

Fig. 4

Compliant Tail Socket

for .090 - .130” thick boards

803-XX-_ _ _-62-001

Specify # of pins

002-100

XX=

Plating Code See Below

SPECIFY PLATING CODE XX=

30µ” Au

200µ”Sn/Pb

Sleeve (Pin)

200µ” Sn/Pb 200µ”Sn/Pb

Fig. 4

Contact (Clip)

w w w. m i l l - m a x . c o m
