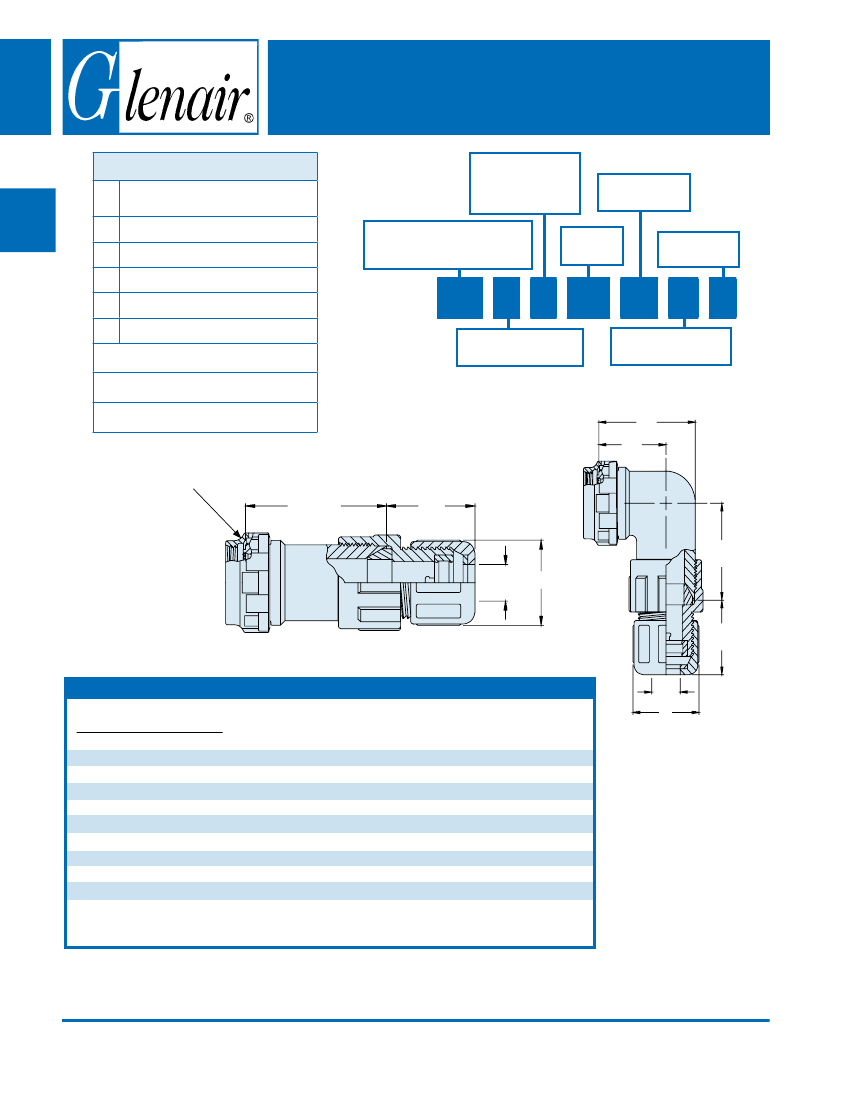

EMI/RFI Shield Termination Backshell
with Self-Locking Rotatable Coupling and Qwik Clamp
CONNECTOR DESIGNATOR:
Angle and Profile
S
- Straight
W
- 90° Elbow
T
- 45° Elbow
Product Series
380
- EMI/RFI Non Environmental
Backshells with Strain Relief
380-100
Composite Cone and Ring Style
Composite
Backshells
A
A
F
L
H
G
U
MIL-DTL-5015, -26482 Series II, and
-83723 Series I and III
MIL-DTL-38999 Series I, II
MIL-DTL-38999 Series 1.5 (JN1003)
MIL-DTL-38999 Series III and IV
MIL-DTL-28840
DG123 and DG123A
Finish Symbol
(See
Table III)
Basic Part
Number
Cable Entry
(See
Table IV)
380
H
S
100
XM
19
28
B
SELF-LOCKING
ROTATABLE COUPLING
STANDARD PROFILE
Connector Designator
A, F, L, H, G and U
Connector Shell Size
(See
Table II)
F
E
C
Anti-Decoupling
Device
1.28 Max
(32.5)
J
G
D
Shell Size For
Connector Designator
A F/L H G U
08 08 09 – –
10 10 11 – 08
12 12 13 11 10
14 14 15 13 12
16 16 17 15 14
18 18 19 17 16
20 20 21 19 18
22 22 23 – 20
24 24 25 23 22
28 – – 25 24
TABLE II: CONNECTOR SHELL SIZE
± .06
.69
.75
.81
.88
.94
.97
1.06
1.13
1.19
1.34
E
(1.5)
(17.5)
(19.1)
(20.6)
(22.4)
(23.9)
(24.6)
(26.9)
(28.7)
(30.2)
(34.0)
± .09
.88
1.00
1.13
1.31
1.38
1.44
1.63
1.75
1.88
2.13
F
(2.3)
(22.4)
(25.4)
(28.7)
(33.3)
(35.1)
(36.6)
(41.4)
(44.5)
(47.8)
(54.1)
± .09
1.06
1.13
1.19
1.25
1.31
1.34
1.44
1.50
1.56
1.66
G
Cable
Range
H
J
Cable
Range
E
F
(2.3)
(26.9)
(28.7)
(30.2)
(31.8)
(33.3)
(34.0)
(36.6)
(38.1)
(39.6)
(42.2)
Max Entry
Dash No.**
08
12
16
20
24
28
32
36
40
44
H
US PATENT 5211576
**Consult factory for additional entry sizes available.
See introduction for additional connector front-end details.
G
© 2009 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-52
REV 28 JANUARY 2013
REV 22 NOVEMBER2014
EMI/RFI Shield Termination Backshell
with Self-Locking Rotatable Coupling and Qwik Clamp
Anti-Decoupling Device
K
L
J
Cable
Range
TABLE II: CONNECTOR SHELL SIZE (CONT.)
Shell Size For
Connector Designator
Max Entry
K
L
H
A & F/L
Dash No. *
± .06 (1.5) ± .06 (1.5)
09
08
08
.72 (18.3)
.88 (22.4)
11
10
.75 (19.1)
.94 (23.9)
12
13
12
16
.75 (19.1) 1.00 (25.4)
15
14
20
.76 (19.3) 1.03 (26.2)
17
16
.78 (19.8) 1.06 (26.9)
24
19
18
28
.79 (20.1) 1.07 (27.2)
21
20
32
.82 (20.8) 1.09 (27.7)
23
22
.86 (21.8) 1.14 (29.0)
36
25
24
40
.92 (23.4) 1.17 (29.7)
* Consult factory for additional entry sizes available.
H
NOTES
1.
2.
3.
Coupling nut supplied unplated.
See Table I in Intro for front-end
dimensional details.
Metric dimensions (mm) are in
parentheses and are for reference
only
Entry
Code
08
12
16
20
24
28
32
36
40
44
TABLE IV: CABLE ENTRY
Cable Range
J
H
(Max)
Minimum
(Max)
Maximum
.72 (18.3)
.87 (22.1) .10 (2.5) .25 (6.4)
1.01 (25.7)
.20 (5.1) .38 (9.7)
.91 (23.1)
1.11 (28.2)
1.09 (27.7)
.33 (8.4) .50 (12.7)
1.22 (31.0)
1.11 (28.2)
.45 (11.4) .63 (15.9)
1.11 (28.2)
.52 (13.2) .75 (19.1)
1.34 (34.0)
1.26 (32.0)
1.53 (38.9)
.64 (16.3) .88 (22.2)
1.72 (43.7)
1.41 (35.8)
.77 (19.6) 1.00 (25.4)
1.41 (35.8)
.86 (21.8) 1.13 (28.6)
1.85 (47.0)
1.41 (35.8)
.98 (24.9) 1.25 (31.8)
1.97 (50.0)
1.53 (38.9) 1.13 (28.6) 1.38 (34.9)
2.09 (53.1)
TABLE III: FINISH
Symbol
XM
Finish Description
2000 Hour Corrosion Resistant
Electroless Nickel
2000 Hour Corrosion Resistant
Ni-PTFE, Nickel-Fluorocarbon
Polymer.
1000 Hour Grey
TM
2000 Hour Corrosion Resistant
Cadmium/Olive Drab over
Electroless Nickel
XMT
XW
