550-004
EMI/RFI D-Subminiature Split Backshells
for Individual or overall Shielding
with Strain Relief
Cable Entry Dash No. (Table II)
F = Strain Relief, G = Gland Nut
0 = Without EMI Gasket,
1 = With EMI Gasket
Jackscrew Type (Page A-4)
Receptacle Mounting (Right Page)
CC = Cable-to-Cable Mounting
F0 = Front Mounting
R1-R9 = Rear Mounting
H
Cable Range
Shell I.D.
1.280
(32.5) Max
MIL-DTL-24308
D-Subminiature

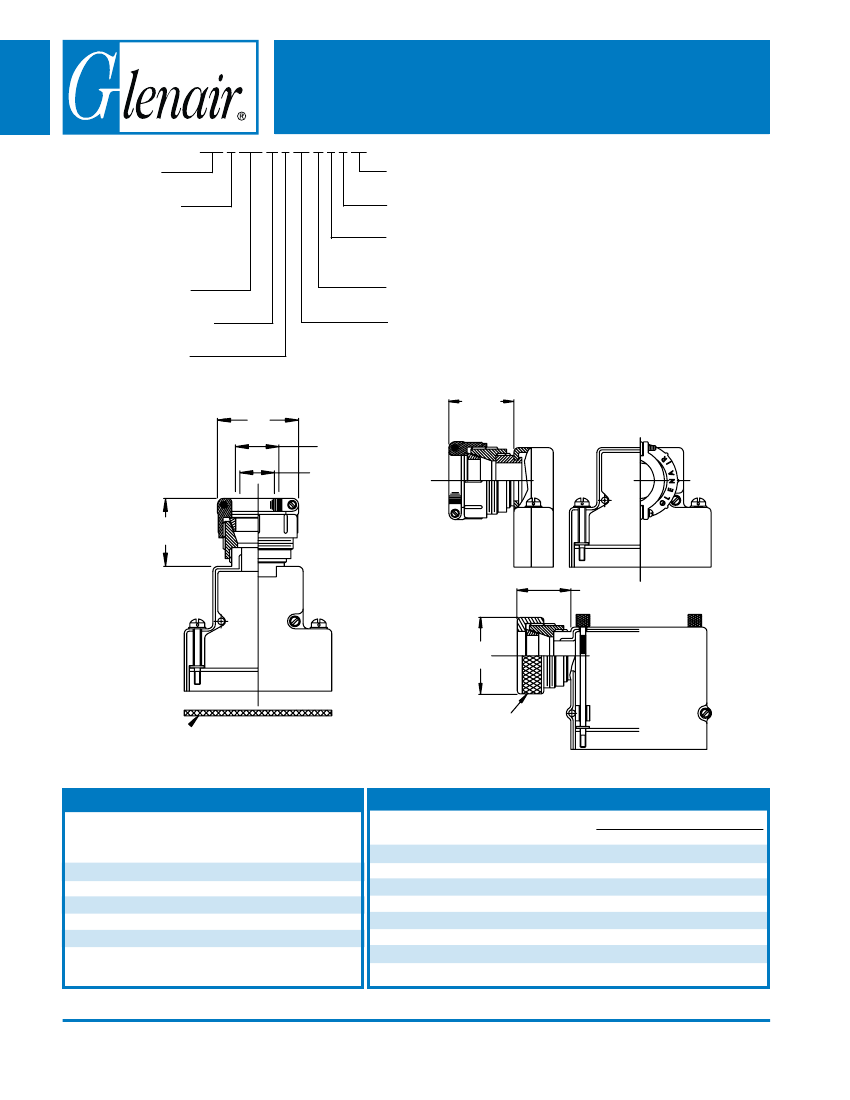

550 T 004 M 2 F0 B 1 F 02
Basic Part No.
Cable Entry Style
T = Top
S = Side
E = End
Basic Part Number
Finish Symbol (Page 3)
Shell Size (Table I)
1. Metric dimensions
(mm) are indicated in
parentheses.
2.
Do NoT uSE CoN-
NECToRS WITH
FLoAT MouNT-
INGS.
3. Overall shield thick-
ness range:
Max to .062 (1.6).
1.280 (32.5)
Max
Style F
Strain Relief
S
SIDE
ENTRY
1.000 (25.4) Max
T
ToP
ENTRY
J
E
END
ENTRY
EMI Gasket (Optional)
Style G
Gland Nut
TABLE I: SHELL SIZE & ENTRY STYLE
Com’l
Entry Style Entry Style
Shell Shell Size
T (Ref)
E
Size
Ref
Shell I.D.
Shell I.D.
1
E/09
.250 (6.4) .375 (9.5)
2
A/15
.375 (9.5) .375 (9.5)
3
B/25
.475 (12.1) .475 (12.1)
4
C/37
.475 (12.1) .475 (12.1)
5
D/50
.575 (14.6) .575 (14.6)
6*
F/104 1.000 (25.4)
n/a
* Shell Size 6 Available in Top Entry Only.
© 2011 Glenair, Inc.
TABLE II: BACKSHELL DIMENSIoNS & CABLE ENTRY
Dash
H
J
No.
Max
Max
02
.968 (24.6)
.781 (19.8)
03 1.046 (26.6)
.906 (23.0)
04 1.156 (29.4) 1.031 (26.2)
05 1.218 (30.9) 1.156 (29.4)
06 1.343 (34.1) 1.281 (32.5)
07* 1.468 (37.3) 1.406 (35.7)
08* 1.593 (40.5) 1.531 (38.9)
* Available in Shell Size 6 Only
Cable Range
Min
Max
.125 (3.2) .250 (6.4)
.250 (6.4) .375 (9.5)
.312 (7.9) .500 (12.7)
.437 (11.1) .625 (15.9)
.562 (14.3) .750 (19.1)
.687 (17.4) .875 (22.2)
.812 (20.6) 1.000 (25.4)
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-16
D-Subminiature Split Backshells
Standard Dimensions
Termination
Type
Jackscrew
Types B, D,
E, H, K
(Page A-4)
P
Jackscrew
Types B, D,
E, H, K
(Page A-4)
F
R
F
E
E
S - SIDE
ENTRY
T - TOP
ENTRY
Termination
Type
A
D
C
B
Jackscrew Types B , D, H
and J Only (Page A-4)
Shrink Sleeve (As Required)
E - END
ENTRY
E
A
G
.12 (3.0) Ref.
Com’l
Shell Shell Size
Size
Ref
1
E/09
2
A/15
3
B/25
4
C/37
5
D/50
6
F/104
CoMMoN CoNNECToR/SHELL INTERFACE & BACKSHELL DIMENSIoNS
A
Max
1.393 (35.4)
1.706 (43.3)
2.265 (57.5)
2.900 (73.7)
2.800 (71.1)
2.900 (73.7)
B
Max
.624 (15.8)
.624 (15.8)
.624 (15.8)
.624 (15.8)
.750 (19.1)
.844 (21.4)
C Ref.
.312 (7.9)
.312 (7.9)
.312 (7.9)
.312 (7.9)
.375 (9.5)
.422 (10.7)
±.005
.984
1.312
1.852
2.500
2.406
2.500
D
(.1)
(25.0)
(33.3)
(47.0)
(63.5)
(61.1)
(63.5)
P
(18.5)
(26.7)
(40.5)
(56.9)
(54.4)
(56.9)
R Ref
.719 (18.3)
.719 (18.3)
.938 (23.8)
.938 (23.8)
.938 (23.8)
1.094 (27.8)
.730
1.050
1.594
2.240
2.140
2.240
Panel
Dash
No. Thickness
n/a
CC
n/a
F0
.031 (.8)
R1
.047 (1.2)
R2
.062 (1.6)
R3
.093 (2.4)
R4
.104 (2.6)
R5
.125 (3.2)
R6
.156 (4.0)
R7
.135 (3.4)
R8
.188 (4.8)
R9
CABLE MouNTING AND BACKSHELL DIMENSIoNS
E
.174 (4.4)
.343 (8.7)
.247 (6.3)
.231 (5.9)
.216 (5.5)
.185 (4.7)
.174 (4.4)
.153 (3.9)
.125 (3.2)
.140 (3.6)
.094 (2.4)
Sizes 1 & 2
1.451 (36.9)
1.625 (41.3)
1.525 (38.7)
1.509 (38.3)
1.500 (38.1)
1.470 (37.3)
1.451 (36.9)
1.430 (36.3)
1.400 (35.6)
1.417 (36.0)
1.368 (34.7)
F + .031 (0.79)
Sizes 3 - 5
1.671 (42.4)
1.844 (46.8)
1.745 (44.3)
1.728 (43.9)
1.720 (43.7)
1.690 (42.9)
1.671 (42.4)
1.650 (41.9)
1.620 (41.1)
1.637 (41.6)
1.590 (40.4)
Size 6
1.820 (46.2)
2.000 (50.8)
1.890 (48.0)
1.875 (47.6)
1.860 (47.2)
1.829 (46.5)
1.820 (46.2)
1.798 (45.7)
1.767 (44.9)
1.805 (45.8)
1.740 (44.2)
G + .031 (0.79)
Sizes 1 & 2 Sizes 3 - 5
1.583 (40.2) 1.831 (46.5)
1.750 (44.5) 2.000 (50.8)
1.656 (42.1) 1.904 (48.4)
1.640 (41.7) 1.888 (48.0)
1.625 (41.3) 1.873 (47.6)
1.594 (40.5) 1.842 (46.8)
1.583 (40.2) 1.831 (46.5)
1.563 (39.7) 1.811 (46.0)
1.531 (38.9) 1.781 (45.2)
1.550 (39.4) 1.798 (45.7)
1.500 (38.1) 1.750 (44.5)
Metric dimensions (mm) are indicated in parentheses.
© 2011 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-17
MIL-DTL-24308
D-Subminiature
