5962-9306003MXA datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> converter> 5962-9306003MXA

5962-9306003MXA: DescriptionIC 1-CH 12-BIT PROPRIETARY METHOD ADC, PARALLEL ACCESS, CDIP28, CERAMIC, DIP-28, Analog to Digital Converter; CategoryAnalog mixed-signal IC converter; File Size103KB，4 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

5962-9306003MXA Overview

IC 1-CH 12-BIT PROPRIETARY METHOD ADC, PARALLEL ACCESS, CDIP28, CERAMIC, DIP-28, Analog to Digital Converter

5962-9306003MXA Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP, DIP28,.6
Contacts	28
Reach Compliance Code	compliant
ECCN code	3A001.A.2.C
Maximum analog input voltage	1 V
Minimum analog input voltage	-1 V
Converter type	ADC, PROPRIETARY METHOD
JESD-30 code	R-CDIP-T28
JESD-609 code	e0
Nominal negative supply voltage	-5 V
Number of analog input channels	1
Number of digits	12
Number of functions	1
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Output bit code	2\'S COMPLEMENT BINARY
Output format	PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-5 V
Certification status	Not Qualified
Sampling rate	10 MHz
Filter level	MIL-STD-883
Nominal supply voltage	5 V
surface mount	NO
technology	BICMOS
Temperature level	AUTOMOTIVE
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

SMD/883B

Scope

Complete 12-Bit 10 MSPS

Monolithic A/D Converter

AD872A

This specification covers the detail requirements for a complete monolithic 12-bit, 10 MSPS A/D con-

verter with an on-chip, high performance track-and-hold amplifier (THA) and voltage reference. The

electrical specifications match the Standard Microcircuit Drawing (SMD) 5962-93060 in effect at the

release of this data sheet. For a copy of the latest official SMD, contact DESC-ELDS.

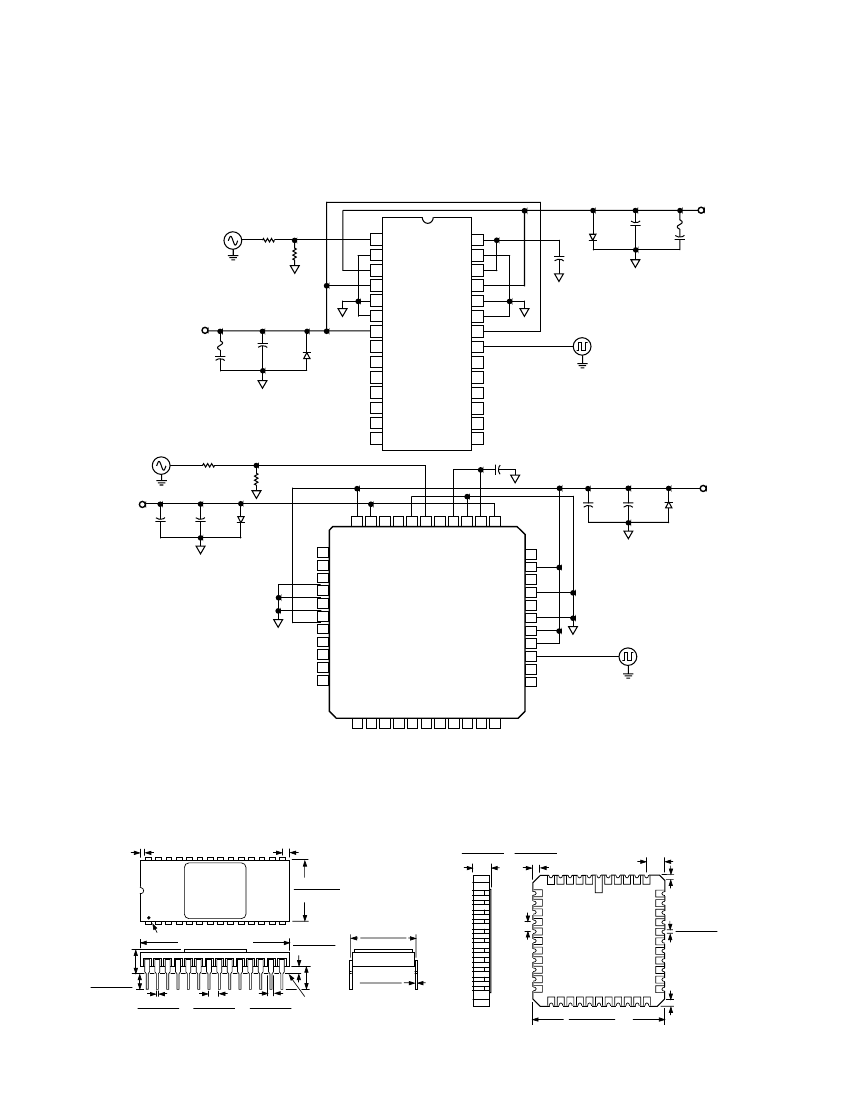

Part Number/Case Outline

For case outline dimensions, see Package Information Appendix of General Specification ADI-M-1000.

The complete part numbers of these SMD and 883 devices are as follows:

Device

Type

SMD

Part Number

ADI 883B

Part Number

Package

Description

Package Designation

ADI MIL-STD-1835

5962-9306001MXA

5962-9306002MYA

AD872ASD/883B 28-Pin Side Brazed DIP

AD872ASE/883B 44-Terminal LCC

D-28 CDIP2-T28

E-44A CQCCI-N44

Absolute Maximum Ratings

= +25°C unless otherwise noted)

to AGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

−0.5

V to +6.5 V

to AGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

−6.5

V to +0.5 V

, DRV

DD2

to DGND, DRGND

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

−0.5

V to +6.5 V

DRV

to DV

DD2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

−6.5

V to +6.5 V

DRGND to DGND

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

−0.3

V to +0.3 V

AGND to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

−1

V to +1 V

to DV

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

−6.5

V to +6.5 V

Clock Input, OEN

to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

−0.5

V to DV

+ 0.5

Digital Outputs to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

−0.5

V to DV

+ 0.3

REF IN to AGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . AV

to AV

INA

, to V

INB

, REF IN to AGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

−6.5

V to +6.5 V

Storage Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

−65°C

to +150°C

Lead Temperature (Soldering 10 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +300°C

Recommended Operating Conditions

Operating Ambient Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –55°C to +125°C

Thermal Characteristics

Thermal Resistance, Junction-to-Case

(θ

) for D-28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28°C/W

Thermal Resistance, Junction-to-Ambient

(θ

J A

) for D-28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60°C / W

Thermal Resistance, Junction-to-Case

(θ

) for E-44A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20°C/W

Thermal Resistance, Junction-to-Ambient

(θ

J A

) for E-44A . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70°C / W

NOTES

Permanent damage may occur if any absolute maximum rating is exceeded. Functional operation is not implied and device

reliability may be impaired by exposure to higher-than-recommended voltages for extended periods of time.

Device Type 02 only.

REV. B

Information furnished by Analog Devices is believed to be accurate and

reliable. However, no responsibility is assumed by Analog Devices for

its use, nor for any infringements of patents or other rights of third

parties which may result from its use. No license is granted by implica-

tion or otherwise under any patent or patent rights of Analog Devices.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

Tel: 781/329-4700

World Wide Web Site: http://www.analog.com

Fax: 781/326-8703

5962-9306003MXA Related Products

	5962-9306003MXA	5962-9306002MYA	5962-9306001MXA	5962-9306004MYA
Description	IC 1-CH 12-BIT PROPRIETARY METHOD ADC, PARALLEL ACCESS, CDIP28, CERAMIC, DIP-28, Analog to Digital Converter	IC 1-CH 12-BIT PROPRIETARY METHOD ADC, PARALLEL ACCESS, CQCC44, CERAMIC, LCC-44, Analog to Digital Converter	IC 1-CH 12-BIT PROPRIETARY METHOD ADC, PARALLEL ACCESS, CDIP28, CERAMIC, DIP-28, Analog to Digital Converter	IC 1-CH 12-BIT PROPRIETARY METHOD ADC, PARALLEL ACCESS, CQCC44, CERAMIC, LCC-44, Analog to Digital Converter
Parts packaging code	DIP	LCC	DIP	LCC
package instruction	DIP, DIP28,.6	CERAMIC, LCC-44	CERAMIC, DIP-28	CERAMIC, LCC-44
Contacts	28	44	28	44
Reach Compliance Code	compliant	unknown	not_compliant	compliant
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Maximum analog input voltage	1 V	1 V	1 V	1 V
Minimum analog input voltage	-1 V	-1 V	-1 V	-1 V
Converter type	ADC, PROPRIETARY METHOD	ADC, PROPRIETARY METHOD	ADC, PROPRIETARY METHOD	ADC, PROPRIETARY METHOD
JESD-30 code	R-CDIP-T28	S-CQCC-N44	R-CDIP-T28	S-CQCC-N44
JESD-609 code	e0	e0	e0	e0
Nominal negative supply voltage	-5 V	-5 V	-5 V	-5 V
Number of analog input channels	1	1	1	1
Number of digits	12	12	12	12
Number of functions	1	1	1	1
Number of terminals	28	44	28	44
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-55 °C	-55 °C	-40 °C
Output bit code	2\'S COMPLEMENT BINARY	2\'S COMPLEMENT BINARY	2\'S COMPLEMENT BINARY	2\'S COMPLEMENT BINARY
Output format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	QCCN	DIP	QCCN
Encapsulate equivalent code	DIP28,.6	LCC44,.65SQ	DIP28,.6	LCC44,.65SQ
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE
Package form	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER
power supply	+-5 V	+-5 V	+-5 V	+-5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Sampling rate	10 MHz	10 MHz	10 MHz	10 MHz
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	YES
technology	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	AUTOMOTIVE	MILITARY	MILITARY	AUTOMOTIVE
Terminal surface	TIN LEAD	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn63Pb37)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	NO LEAD
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	QUAD	DUAL	QUAD
Base Number Matches	1	1	1	1
Is it Rohs certified?	-	incompatible	incompatible	incompatible
Maker	-	ADI	ADI	ADI
Peak Reflow Temperature (Celsius)	-	220	NOT SPECIFIED	220
Maximum time at peak reflow temperature	-	30	NOT SPECIFIED	30
