This document was generated on 11/16/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Replacement Part
Number:
Documents:
Drawing (PDF)
0398500112
Obsolete
5.00mm (.197") Pitch Beau™ Eurostyle™ 45° Wire Entry Fixed Terminal Block, 12
Circuits
39543-0212
Agency Certification
CSA
UL
LR25562
E48521
Series

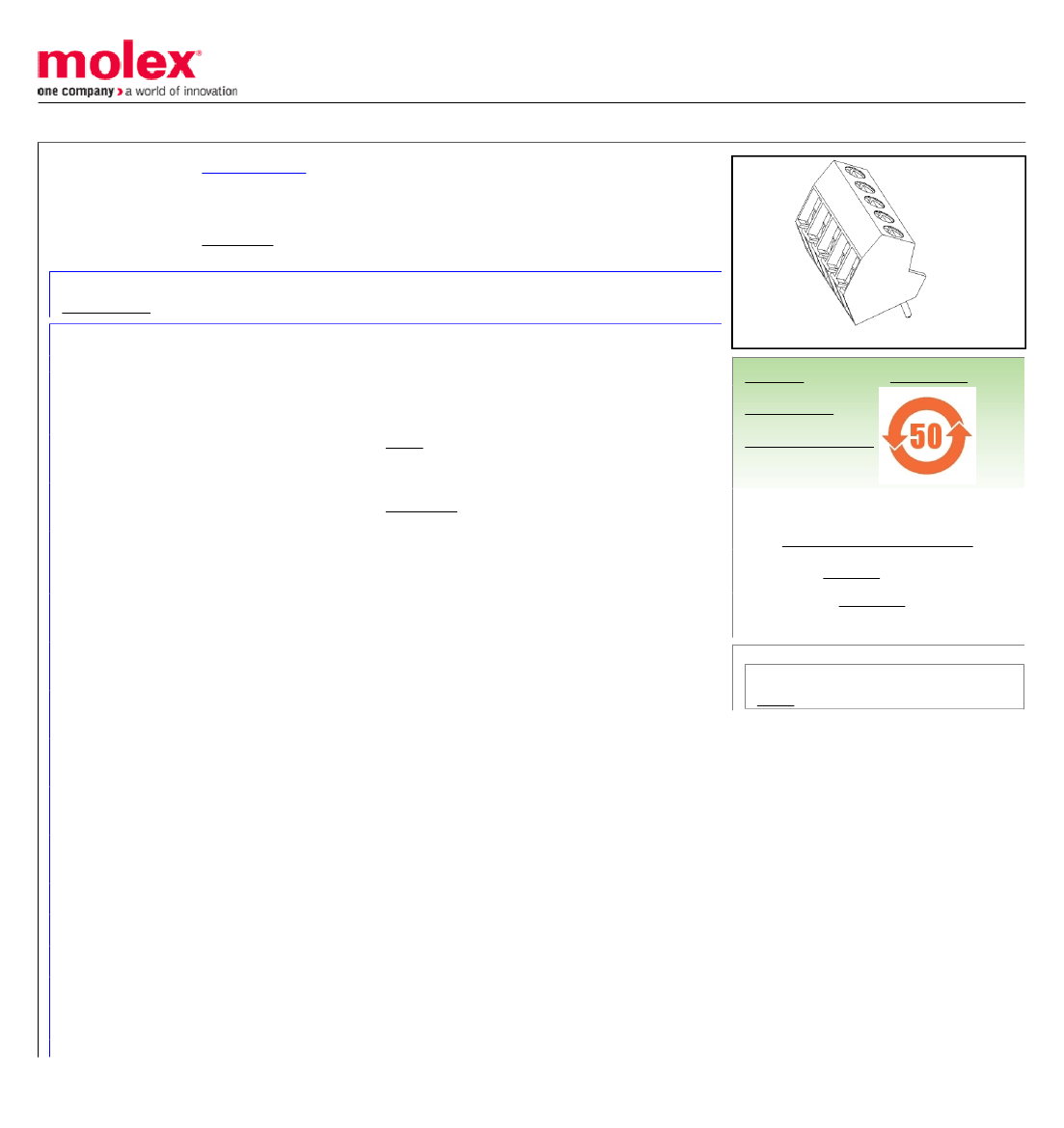

image - Reference only
EU RoHS
Not RoHS Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
China RoHS
General
Product Family
Series
Application
Component Type
Product Name
Replacement Part Number
Type
Terminal Blocks
39850
Wire-to-Board
One Piece
Eurostyle™Fixed Mount
39543-0212
Euro Block
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (Loaded)
Circuits (maximum)
Entry Angle
Flammability
Lock to Mating Part
Material - Metal
Number of Rows
Orientation
PC Tail Length
PCB Retention
PCB Thickness - Recommended
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to Mating Part
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Wire Size AWG
12
12
45° Angle
94V-0
None
Phosphor Bronze
1
Vertical
4.60mm (.181")
N/A
1.60mm (.063")
No
5.00mm (.197")
5.00mm (.197")
No
Fully
No
No
110°C
12, 14, 16, 18, 20, 22
Search Parts in this Series
39850Series
Electrical
Current - Maximum per Contact
Voltage - Maximum
20A
250V
Material Info
Country of Origin
Old Part Number
MX, US
85412
Reference - Drawing Numbers
Sales Drawing
SD-39850-002
