39850-1615 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 39850-1615

39850-1615: Descriptionfixed terminal blocks 5mm vert fixed term 15 ckt; CategoryThe connector terminals; File Size42KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

39850-1615 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39850-1615	-	-	View	Buy Now

39850-1615 Overview

fixed terminal blocks 5mm vert fixed term 15 ckt

39850-1615 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Other features	LOW PROFILE, POLYETHYLENE, 94V-0
Fastening method	SCREW
Manufacturer's serial number	39850
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	15
Rated current	15 A
Rated voltage	300 V
safety certificate	UL; CSA
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Conductor cross section	2.5 mm2
Wire gauge	12 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

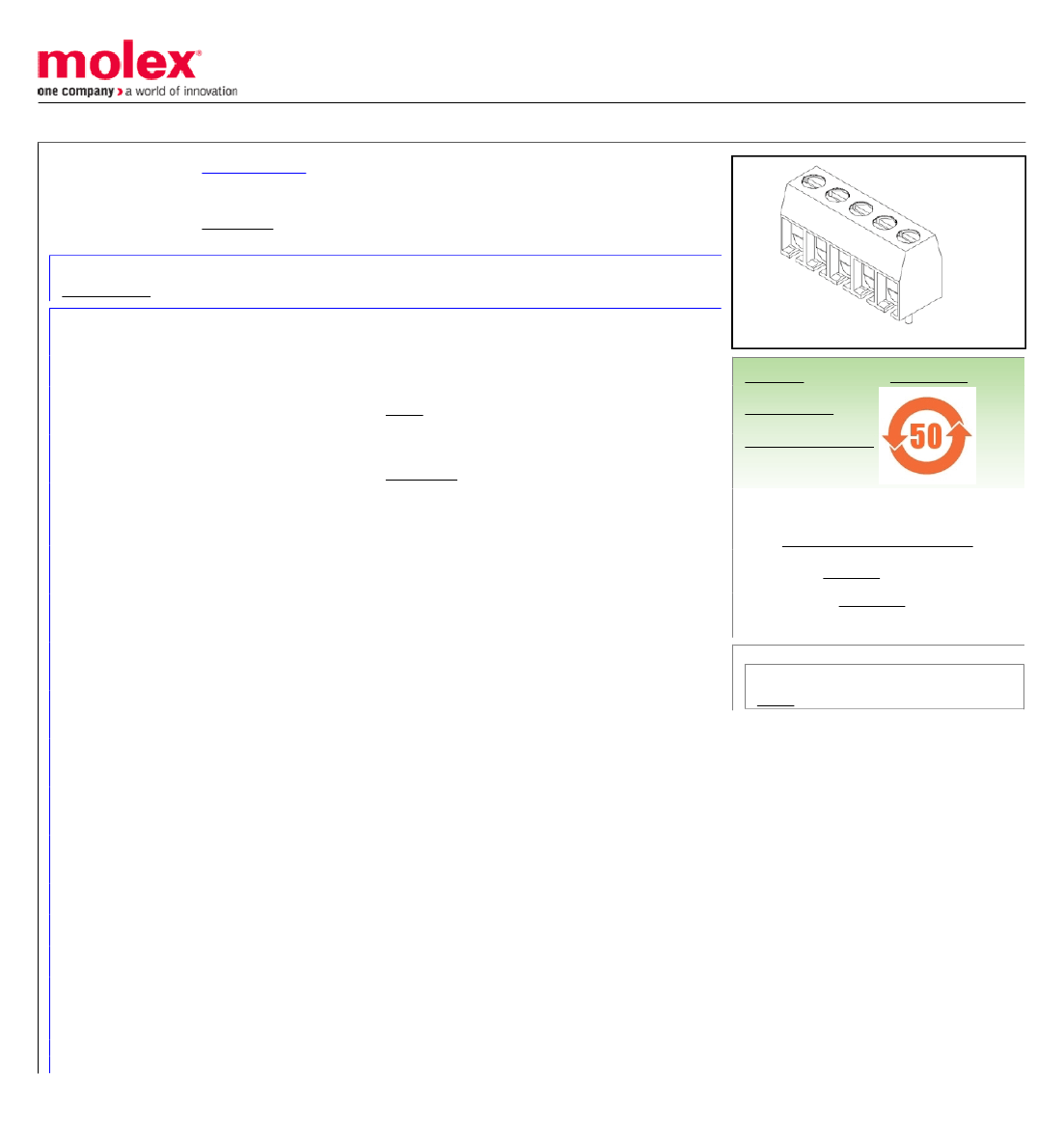

This document was generated on 10/29/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Replacement Part

Number:

Documents:

Drawing (PDF)

0398501615

Obsolete

5.00mm (.197") Pitch Beau™ Eurostyle™ Vertical Fixed Terminal Block, 15 Circuits

39543-0015

Agency Certification

E48521

Series

image - Reference only

EU RoHS

Not RoHS Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Reviewed

China RoHS

General

Product Family

Series

Application

Component Type

Product Name

Replacement Part Number

Type

Terminal Blocks

39850

Wire-to-Board

One Piece

Eurostyle™Fixed Mount

39543-0015

Euro Block

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Entry Angle

Flammability

Lock to Mating Part

Material - Metal

Material - Resin

Number of Rows

Orientation

PC Tail Length

PCB Retention

PCB Thickness - Recommended

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Wire Size AWG

Black

Horizontal

94V-0

None

Phosphor Bronze

Polysulfone

Vertical

3.30mm (.130"), 4.00mm (.157")

N/A

1.60mm (.063")

5.00mm (.197")

Fully

110°C

12, 14, 16, 18, 20, 22

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

39850Series

Electrical

Current - Maximum per Contact

Voltage - Maximum

20A

250V

Material Info

Country of Origin

Old Part Number

MX, US

85515

Reference - Drawing Numbers

Packaging Specification

Sales Drawing

PK-39850-001

SD-39850-001
