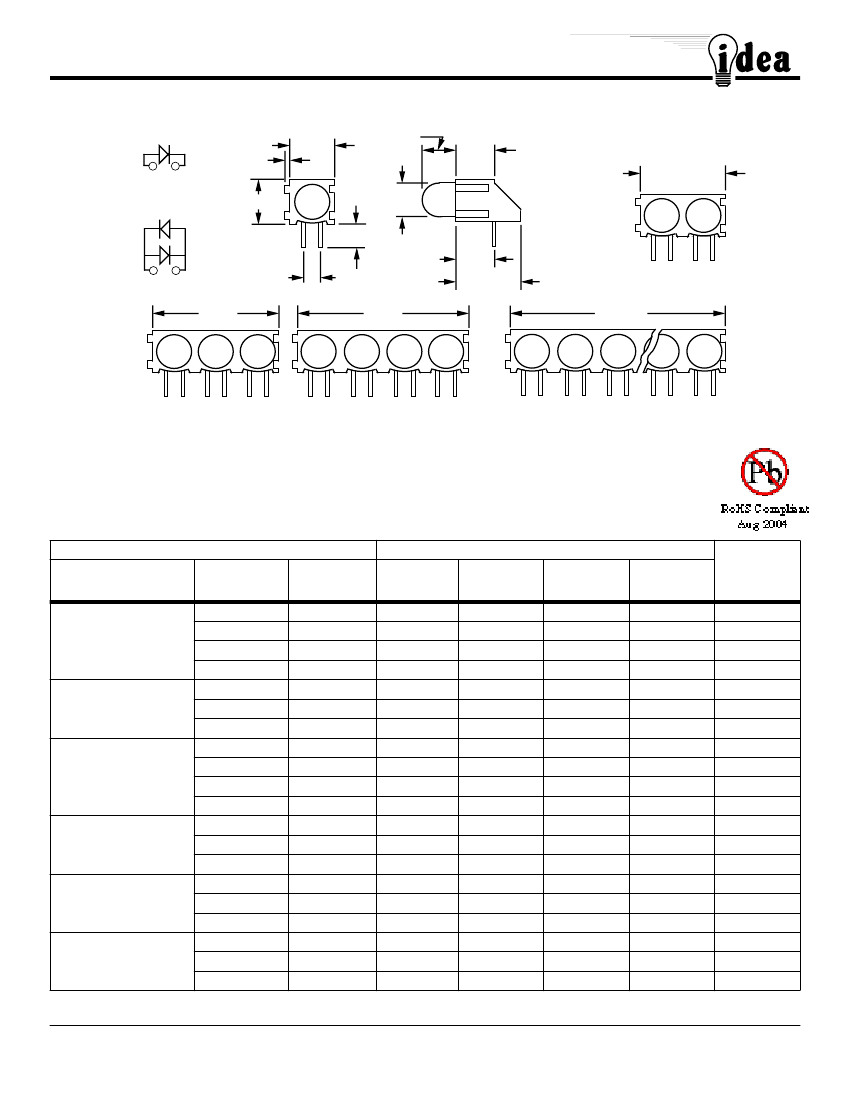

T-1-3/4, Right-Angle LED Assembly
G65XB Series (Snap-together Style)
The G65XB series of right-angle indicators is made of interlocking units. This series is available with leads cut to 4 mm as standard. In
addition to the variety of lamps listed below, most T-1-3/4 LEDs, from blue to super bright red, can be special ordered.
6.4±.2
0.5
+ –
(Pinout for single color)
6.1±.2
Red or
yellow
Anode
3.5 min
5±1
2.54
(typ for bi-color)
19.2±.3
1
2
3
1
G651B
25.6±.5
2
3
4
1
2
9.1±.3
6.4 x N±.5
3
G652B
D
1
Green
Anode
+, typ
2
4.8±.5
4.8
12.8±.3
...
N
G653B
G654B
G65NB
*D is nominally 4.8 mm to 5.0 mm depending on type.
Specify part desired as follows:
G65NB/Order Code1 + ... + Order Code N; where N = number of segments.
For example:
“G654B/I+3G” designates an assembly with 1 red LED on the left and 3 green LEDs to the right.
It is recommended that N <= 8 to minimize handling difficulty and tolerance build up.
ORDER CODE AND INFORMATION (ALL RATINGS AT 25°C AMBIENT)
LED Lamp
Epoxy & Type
Color
Red
TInted Diffused
Resistor Required
Hi Eff Red
Green
Yellow
Hi Eff Red
Tinted Transparent
High Brightness
Green
Yellow
Red
Tinted Diffused
For 2mA Operation
Hi Eff Red
Green
Yellow
Hi Eff Red
Tinted Diffused
5V Operation
Green
Yellow
Hi Eff Red
Tinted Diffused
12V Operation
Green
Yellow
Hi Eff Red/Grn
White Diffused
Bipolar, Bicolor
Yellow/Green
Red/Green
Order Code
H
I
G
Y
IT
GT
YT
H2
I2
G2
Y2
I5
G5
Y5
IB
GB
YB
EG
YG
SG
Peak
λ
(nm)
697
635
565
585
635
565
585
697
635
565
585
635
565
585
635
565
585
635/565
585/565
660/570
Typical Characteristics
Vf
(V)
@If=20mA
2.1
2.0
2.1
2.0
2.0
2.1
2.0
2.0
2.1
2.0
2.0
-
-
-
-
-
-
2.1/2.0
2.1/2.0
1.8/2.2
Iv
(mcd)
@If=10mA
2.0
9.0
9.0
7.0
30
30
28
1.6 @ 2mA
2.0 @ 2mA
2.0 @ 2mA
2.0 @ 2mA
4.5
4.5
4.5
4.5
4.5
4.5
2.5/2.5
2.5/2.5
6.0/2.5
2
Θ
1/2
(Deg)
36
36
36
36
16
16
16
36
36
36
36
36
36
36
36
36
36
54
54
-
Recom.
Op. If
(mA)
5-10
10-20
10-20
10-20
10-20
10-20
10-20
2-10
2-10
2-10
2-10
5V
5V
5V
12 V
12 V
12 V
10-20
10-20
10-20
* Specifications subject to change without notice. Dimensions are in mm±0.25 unless stated otherwise.
IDEA, Inc., 1351 Titan Way, Brea, CA 92821 Ph:714-525-3302, 800-LED-IDEA; Fax: 714-525-3304 Catalog 995A
A-34
