O20.0-JO32-B-3.3-2

Description
CMOS Output Clock Oscillator, 20MHz Nom, METAL CERAMIC, FLAT, SMD, 4 PIN
CategoryPassive components    oscillator
File Size148KB,2 Pages
ManufacturerJauch
Websitehttp://www.jauchusa.com/
Download Datasheet Parametric View All

O20.0-JO32-B-3.3-2 Overview

CMOS Output Clock Oscillator, 20MHz Nom, METAL CERAMIC, FLAT, SMD, 4 PIN

O20.0-JO32-B-3.3-2 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Objectid1476987156
Reach Compliance Codecompliant
Country Of OriginTaiwan
YTEOL4.99
Other featuresSTAND-BY; ENABLE/DISABLE FUNCTION; TAPE AND REEL; BULK
maximum descent time8 ns
Frequency Adjustment - MechanicalNO
frequency stability50%
Installation featuresSURFACE MOUNT
Number of terminals4
Nominal operating frequency20 MHz
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
Oscillator typeCMOS
Output load30 pF
physical size3.2mm x 2.5mm x 1.05mm
longest rise time8 ns
Maximum supply voltage3.465 V
Minimum supply voltage3.135 V
Nominal supply voltage3.3 V
surface mountYES
maximum symmetry60/40 %

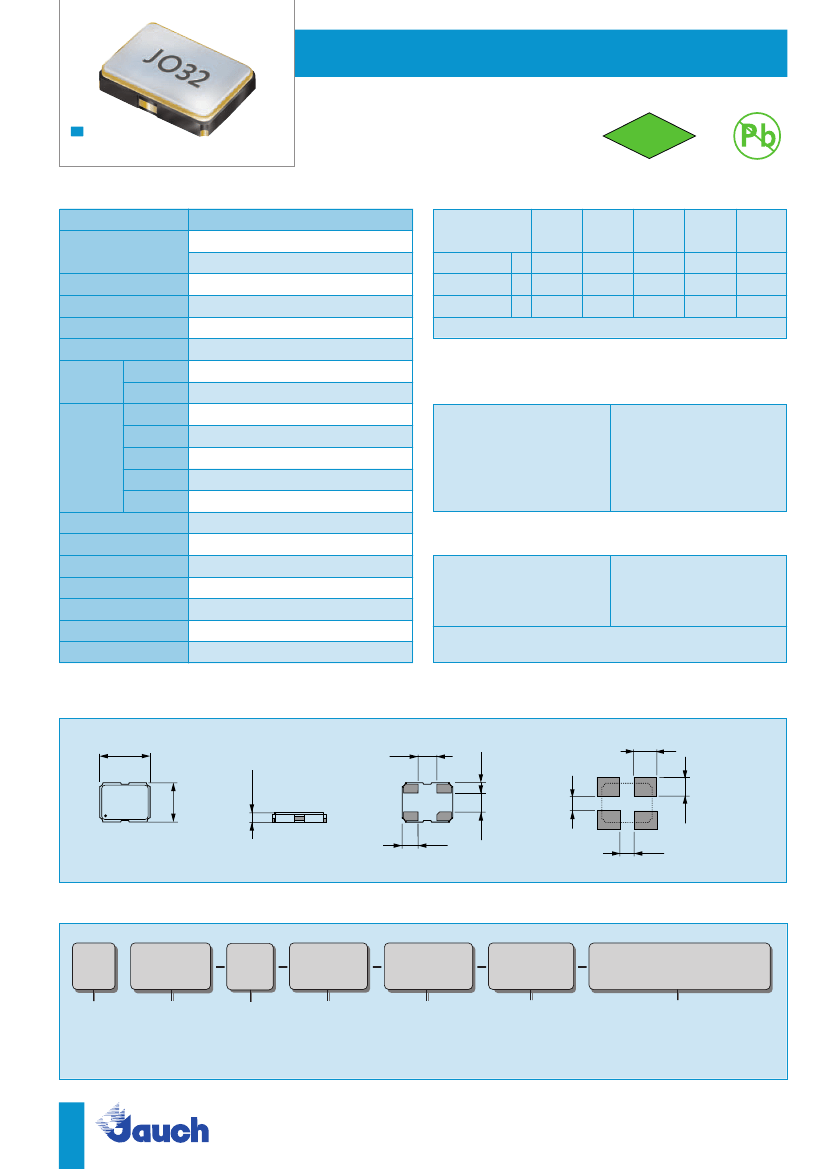

Oscillator · JO32 · 3.3 V
SMD Oscillator with Stop Function · 3.2 x 2.5 mm
actual size
I
reflow soldering temperature: 260
°C max.
I
compact & flat ceramic/metal package
2002/95/EC
RoHS compliant
Pb free: pins / pads
RoHS
General Data
type
frequency range
JO32 3.3 V
0.75 ~ 80.0 MHz (15 pF max.)
0.75 ~ 50.0 MHz (30 pF max.)
higher frequencies
frequency stability over all**
current consumption
supply voltage V
DC
temperature
operating
storage
output
80.0 ~ 135.0 MHz (15 pF max.)*
± 20 ppm ~ ± 100 ppm (table 1)
see table 2
3.3 V ± 5%
-10 °C ~ +70 °C / -40 °C ~ +85 °C / -40 °C ~ +105 °C
-55 °C ~ +125 °C
15 pF / 30 pF (≤ +85 °C and
50.0 MHz)
4 mA / 5 mA
0.4 V
Table 1: Frequency Stability Code
stability code /
temp. code**
-20 °C ~ +70 °C
-40 °C ~ +85 °C
-40 °C ~ +105 °C
O
available
T1
T2
O
O
A
B
G
± 30 ppm
O
O
C
± 25 ppm
O
D
± 20 ppm
Δ
± 100 ppm ± 50 ppm
O
O
O
Δ
excludes aging
** includes stability at 25 °C, operating temp. range, supply voltage change,
shock and vibration, aging 1st year.
Table 2: Current Consumption max.
Current at 15 pF load
0.75 ~ 19.9 MHz
4 mA
20.00 ~ 39.9 MHz
7 mA
40.00 ~ 59.9 MHz 19 mA
60.00 ~ 79.9 MHz 24 mA
80.00 ~ 135.0 MHz* 45 mA
Current at 30 pF load
0.75 ~ 19.9 MHz
20.00 ~ 39.9 MHz
40.00 ~ 50.0 MHz
6 mA
13 mA
24 mA
rise & fall time see table 3
load max.
current max.
low level max.
high level min. V
DC
- 0.4 V
output enable time max.
output disable time max.
start-up time max.
standby function
standby current max.
10 ms
50 µs
10 ms
stop
5 µA
Table 3: Rise & Fall Time max.
at 15 pF
5 ns: 0.75 ~ 49.99 MHz
4 ns: 50.00 ~ 79.99 MHz
3 ns: 80.00 ~ 135.00 MHz*
at 30 pF
8 ns:
0.75 ~ 49.99 MHz
phase jitter 12 kHz ~ 20.0 MHz < 1.0 ps RMS
symmetry at 0.5 x V
DC
* ask if available
45% ~ 55% (40% ~ 60% max.)
note:
rise time: 0.1 V
DC
~ 0.9 V
DC
/ fall time: 0.9 V
DC
~ 0.1 V
DC
specific data on request
Dimensions
0.75
±0.1
3.2
±0.15
#4
1.05 max.
#3
2.5
±0.15
1.2
±0.1
#3
#4
1.3
±0.1
#1
#2
#2
1.0
±0.1
#1
1.0
±0.1
pin connection
# 1: e/d
# 2: ground
# 3: output
# 4: V
DC
in mm
0.8
±0.1
top view
side view
bottom view
1.0
±0.1
pad layout
Order Information
O
Oscillator
frequency
type
frequency stability
code
see table 1
supply voltage
code
3.3 = 3.3 V
output load
code
1 = 15 pF
2 = 30 pF
option
0.75 ~ 80.0 MHz
JO32
blank = -20 °C ~ +70 °C
T1 = -40 °C ~ +85 °C
T2 = -40 °C ~ +105 °C
Example: O 20.0-JO32-B-3.3-1-T1-LF
(LF = RoHS compliant / Pb free pins or pads)
Jauch Quartz GmbH
e-mail: info@jauch.de
full data can be found under: www.jauch.de / www.jauch.co.uk / www.jauch.fr / www.jauchusa.com
All specifications are subject to change without notice
270212
1.1
±0.1
