ZP2-H4-06-G: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size83KB，1 Pages; ManufacturerYamaichi Electronics Co., Ltd.; Websitehttp://www.yamaichi.com/

Download Datasheet Parametric Compare View All

ZP2-H4-06-G Overview

Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Receptacle

ZP2-H4-06-G Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	NONE
body width	0.157 inch
subject depth	0.198 inch
body length	0.236 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Insulation resistance	1000000000 Ω
Manufacturer's serial number	ZP2
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.112 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	6

Preview

Download Datasheet

View All

ZP2 Series

Specifications

Contact Resistance:

20mΩ max.

Insulation Resistance:

1,000ΜΩ min.

Current Rating:

1.0A

Operating Temperature Range: –40°C to +105°C

Various Pin Headers with 1.5 mm Base

Part Number

(Details)

ZP2

Series No.

Styles H1 to H4:

H1 = Straight Single Row

H2 = Straight Dual Row

H3 = Right Angle Single Row

H4 = Right Angle Dual Row

No. of Contact Pins:

2 to 88 (Single Row)

4 to 80 (Dual Row)

Plating: G = Au Flash

-

H* - ** - G

Materials and Finish

Housing:

UL 94V-0 listed

Terminals:

Brass

Contact Plating:Gold plated

Features

µ

Pin count from 2 to 88 (Single Row)

µ

Pin count from 4 to 80 (Dual Row)

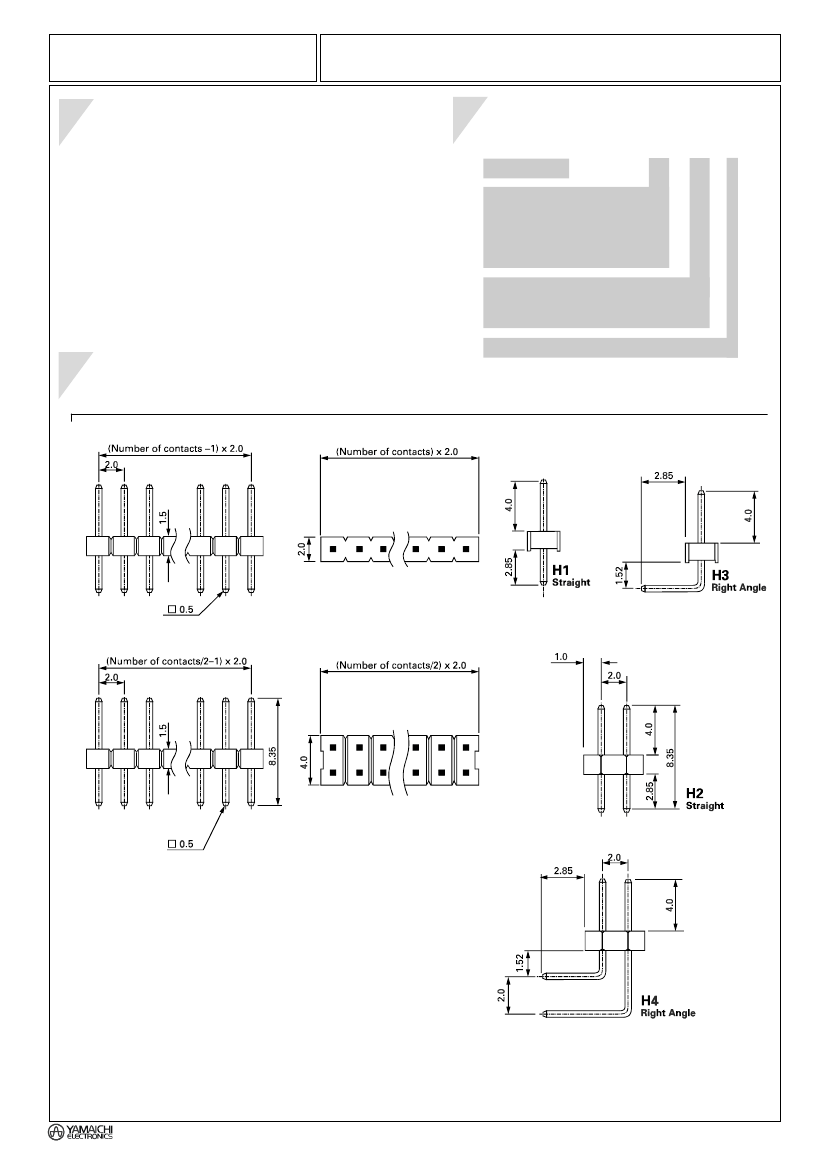

Applicable Dimensions

(Reference Only)

Outline Connector Dimensions

YAMAICHI ELECTRONICS - Munich 089 / 45109-0

SPECIFICATIONS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE – DIMENSIONS IN MILLIMETER

T rading Division

ZP2-H4-06-G Related Products

	ZP2-H4-06-G	ZP2-H1-02-G	ZP2-H2-04-G
Description	Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Receptacle	Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle	Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	NONE	NONE	NONE
body width	0.157 inch	0.079 inch	0.157 inch
subject depth	0.198 inch	0.059 inch	0.059 inch
body length	0.236 inch	0.157 inch	0.157 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	AU
Contact point gender	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
Manufacturer's serial number	ZP2	ZP2	ZP2
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch
Installation method	RIGHT ANGLE	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	2	1	2
Number of rows loaded	2	1	2
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	FLASH inch	FLASH inch	FLASH inch
Rated current (signal)	1 A	1 A	1 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.112 inch	0.112 inch	0.112 inch
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	6	2	4
Match contact row spacing	0.079 inch	-	0.079 inch
PCB contact row spacing	2.0066 mm	-	2.0066 mm
Maker	-	Yamaichi Electronics Co., Ltd.	Yamaichi Electronics Co., Ltd.
