51750-143 datasheet, PDF - EEWORLD Datasheet

51750-143: DescriptionBoard Connector, 11 Contact(s), Female, Straight, Press Fit Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size240KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

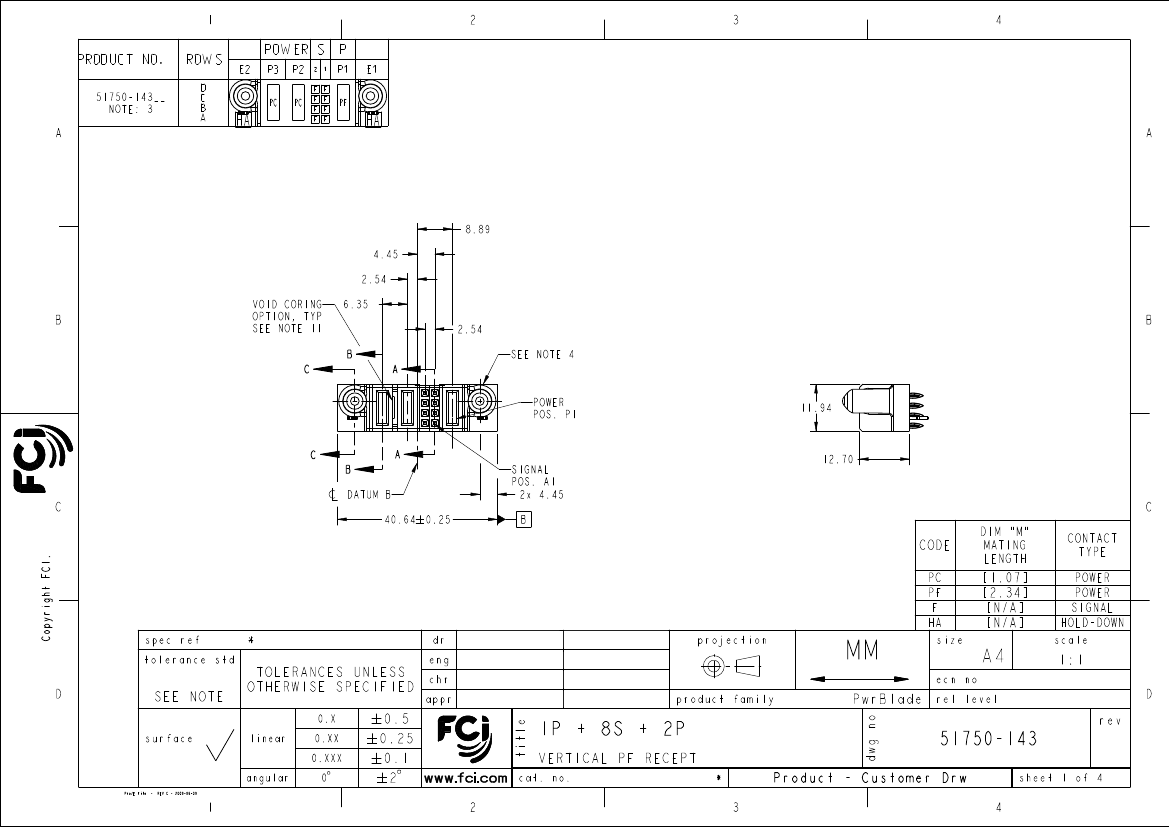

51750-143 Overview

Board Connector, 11 Contact(s), Female, Straight, Press Fit Terminal, Locking, Receptacle

Parameter Name	Attribute value
Objectid	315280618
Reach Compliance Code	compliant
ECCN code	EAR99

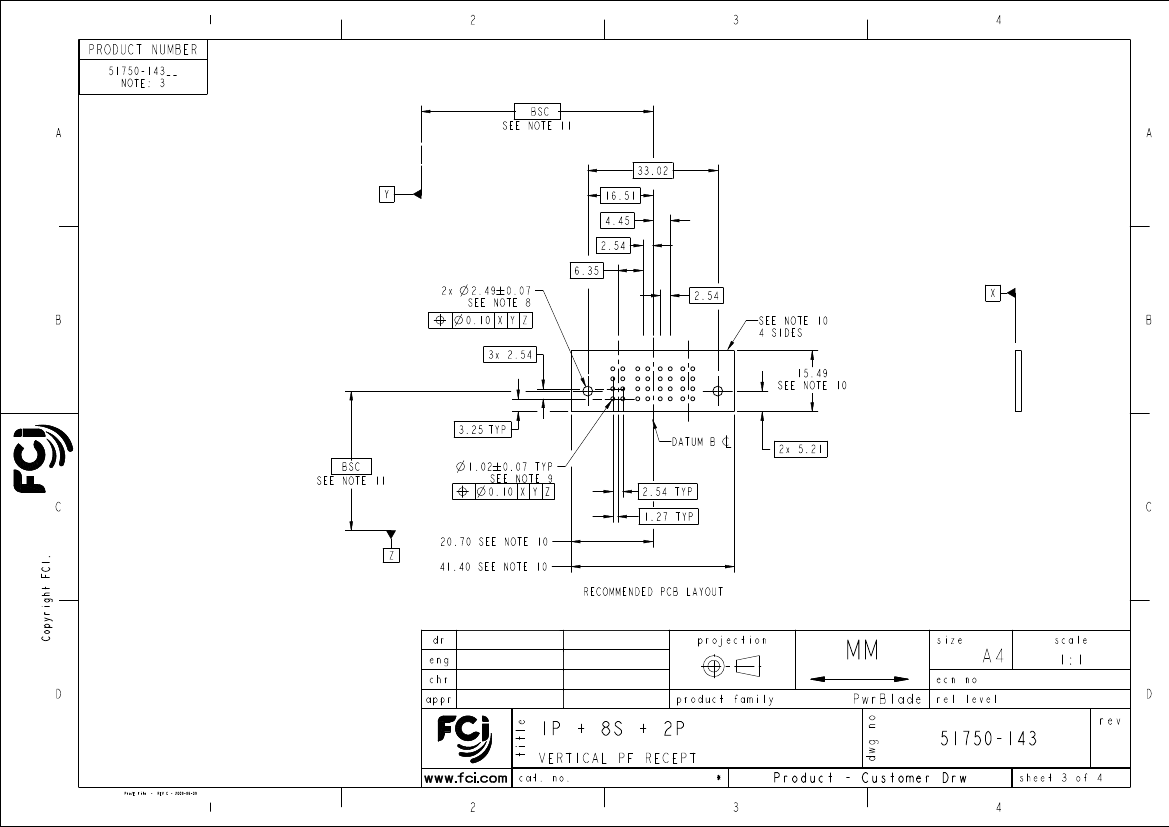

Board mount options	HOLE .086-.098
body width	0.47 inch
subject depth	0.5 inch
body length	1.6 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S8P3
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	HYBRID
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED POLYETHYLENE
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Guideline	UL
Terminal length	0.135 inch
Termination type	PRESS FIT
Total number of contacts	11
Evacuation force-minimum value	.17792 N

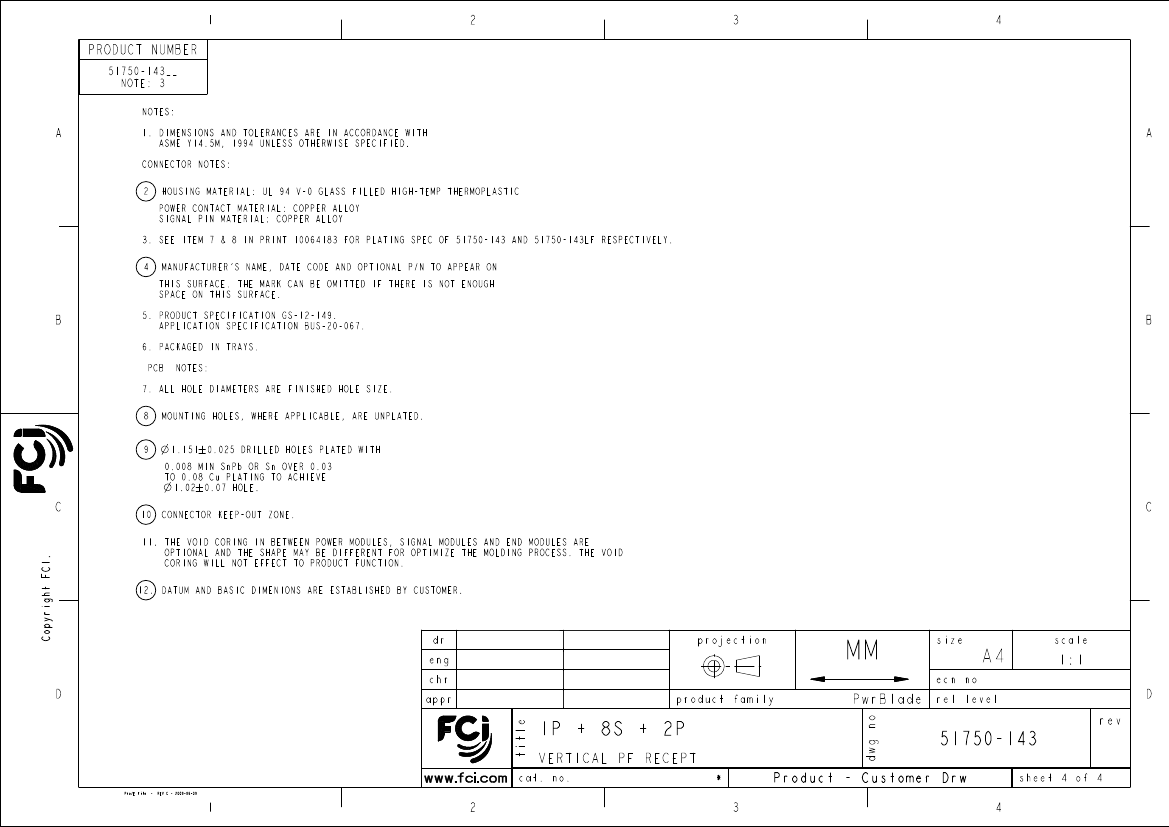

Ruan MT

Fancy Zhang

Pei-Ming Zheng

2015/03/26

2015/04/09

2015/04/08

-

Released

A

PDS: Rev :A

STATUS:Released

Printed: Apr 09, 2015
