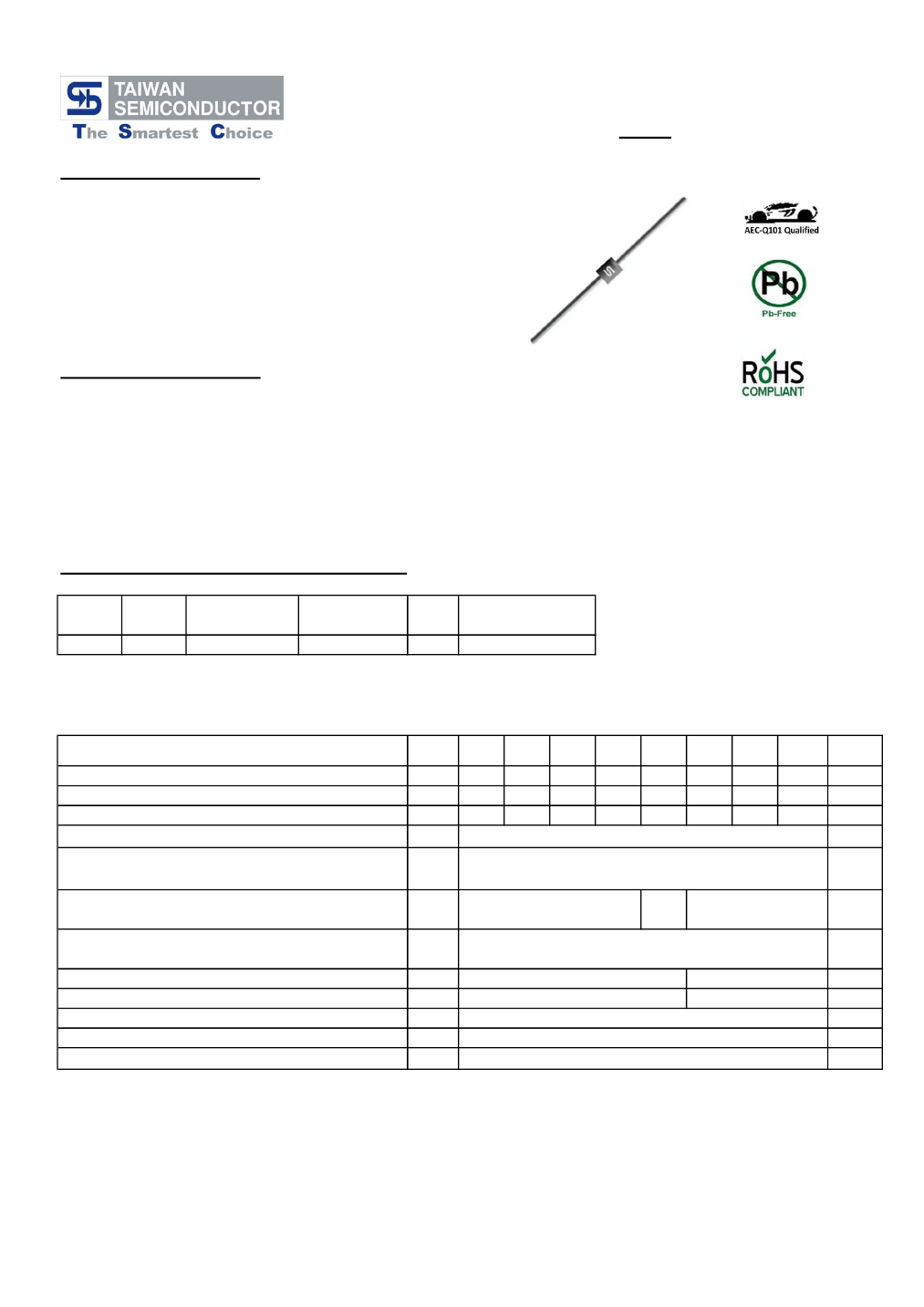

CREAT BY ART
HER201G - HER208G
2.0AMPS Glass Passivated High Efficient Rectifiers

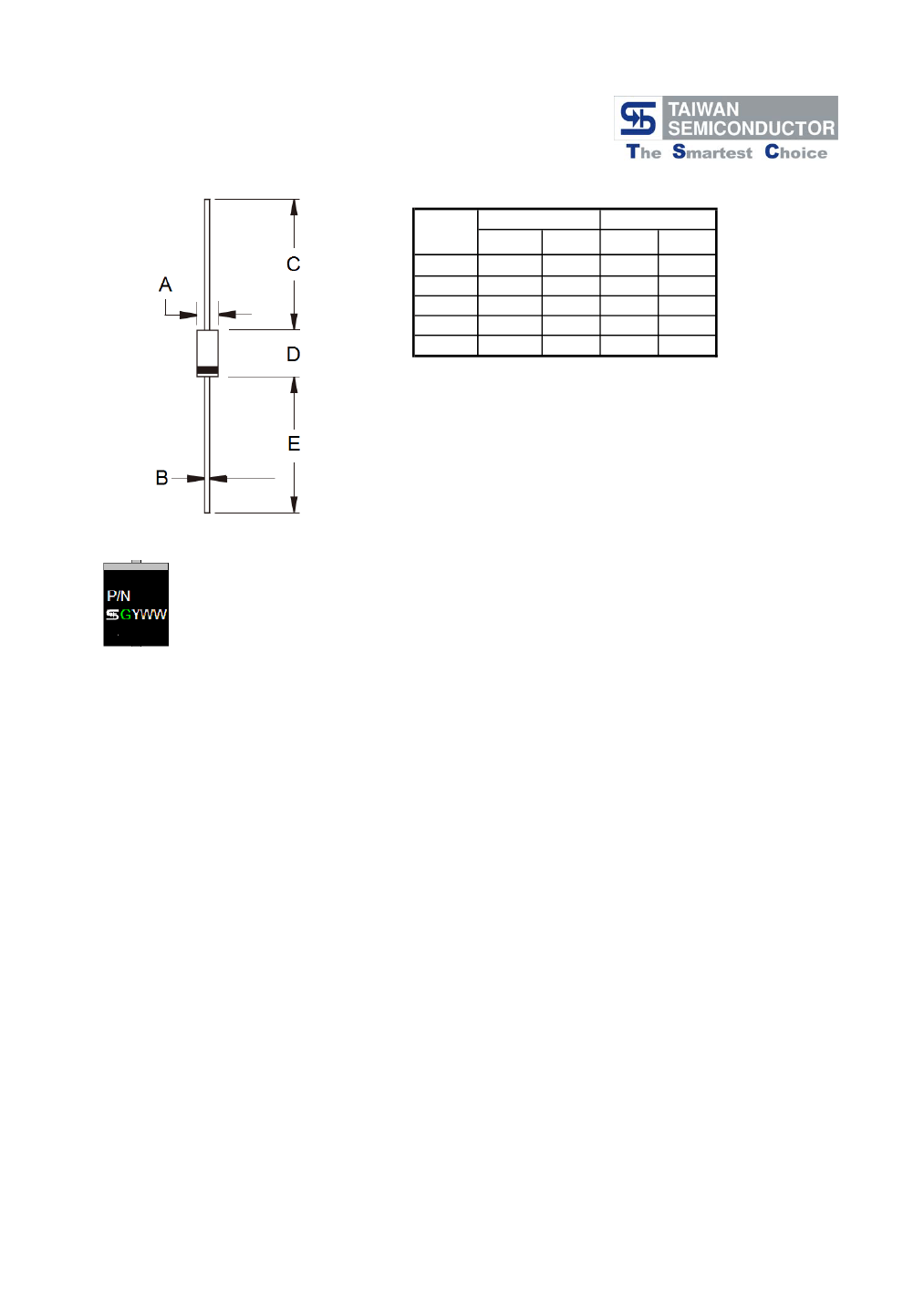

DO-15
Features
Glass passivated chip junction
High efficiency, Low VF
High current capability
High reliability
High surge current capability
For use in low voltage, high frequency inverter,
free wheeling, and polarity protection application
Green compound with suffix "G" on packing
code & prefix "G" on datecode
Mechanical Data
Case: Molded plastic DO-15
Epoxy: UL 94V-0 rate flame retardant
Lead: Pure tin plated, lead free, solderable per
MIL-STD-202, Method 208 guaranteed
Polarity: Color band denotes cathode
High temperature soldering guaranteed: 260℃/10s
/.375", (9.5mm) lead lengths at 5 lbs, (2.3kg) tension
Mounting position: Any
Weight: 0.40 grams

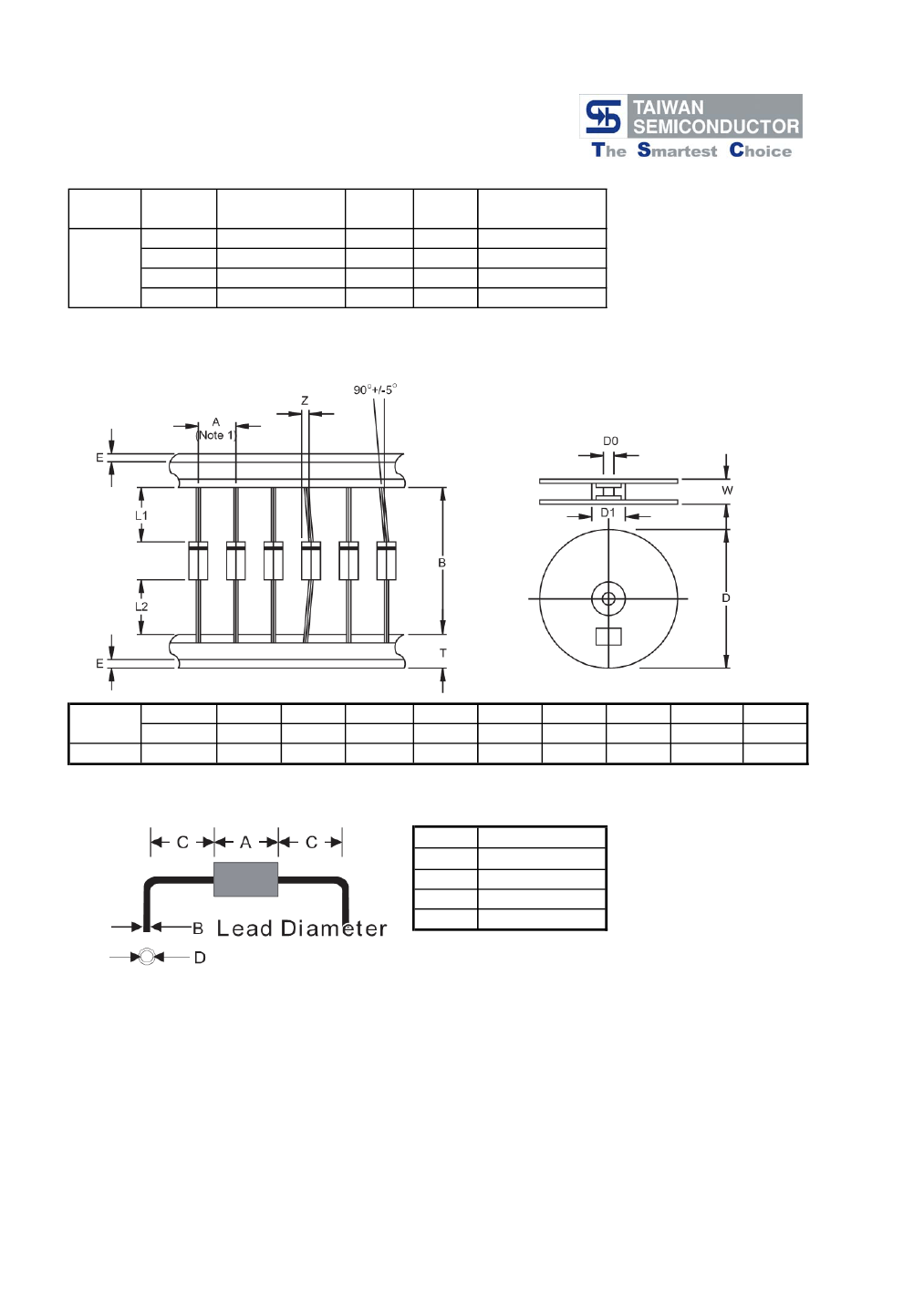

Ordering Information (example)
Part No.
HER201G
Package
DO-15
Packing
1.5K / AMMO box
INNER
TAPE
52mm
Packing
code
A0
Green Compound
Packing code
A0G
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Type Number
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave
Superimposed on Rated Load (JEDEC method)
Maximum Instantaneous Forward Voltage (Note 1)
@2A
Maximum DC Reverse Current
at Rated DC Blocking Voltage
@ T
A
=25
℃
@ T
A
=125
℃
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Trr
Cj
R
θJA
T
J
T
STG
HER
201G
50
35
50
HER
202G
100
70
100
HER
203G
200
140
200
HER
204G
300
210
300
2
HER
205G
400
280
400
HER
206G
600
420
600
HER
207G
800
560
800
HER
208G
1000
700
1000
Units
V
V
V
A
A
60
1.0
5
150
50
35
60
- 65 to + 150
- 65 to + 150
75
20
O
1.3
1.7
V
uA
uA
nS
pF
C/W
O
O
Maximum Reverse Recovery Time (Note 2)
Typical Junction Capacitance (Note 3)
Typical Thermal Resistance
Operating Temperature Range
Storage Temperature Range
Note 1: Pulse Test with PW=300 usec, 1% Duty Cycle
C
C
Note 2: Reverse Recovery Test Conditions: IF=0.5A, IR=1.0A, IRR=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
Version:D12

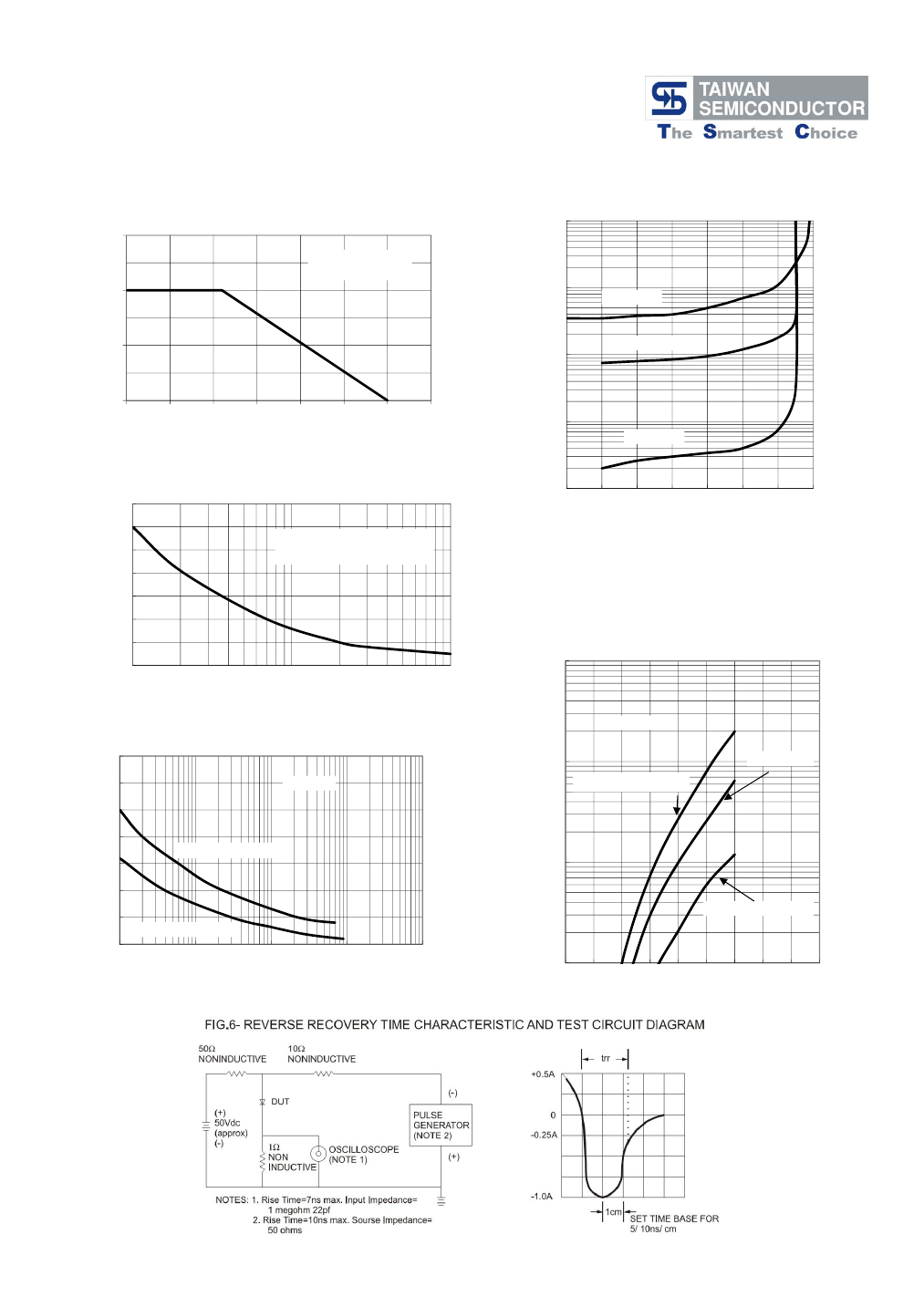

RATINGS AND CHARACTERISTIC CURVES (HER201G THRU HER208G)
FIG.1- MAXIMUM FORWARD CURRENT
DERATING CURVE
3.0
INSTANTANEOUS REVERSE CURRENT (uA)
RESISTIVE OR
INDUCTIVE LOAD
2.0
FIG. 2- TYPICAL REVERSE CHARACTERISTICS
1000
AVERAGE FORWARD
A
CURRENT (A)
100
TA=125℃
1.0
10
TA=75℃
0.0
0
25
50
75
100
125
150
175
AMBIENT TEMPERATURE (
o
C)
1
TA=25℃
PEAK FORWARD SURGE CURRENT
(A)
FIG. 3- MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
70
60
50
40
30
20
10
0
1
10
100
8.3mS Single Half Sine Wave
JEDEC Method
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE
(%)
FIG. 5- TYPICAL FORWARD CHARACTERISTICS
100
NUMBER OF CYCLES AT 60 Hz
INSTANTANEOUS FORWARD CURRENT (A)
FIG. 4- TYPICAL JUNCTION CAPACITANCE
175
150
JUNCTION CAPACITANCE (pF)
125
100
75
50
25
HER206G-HER208G
0
0.1
1
10
REVERSE VOLTAGE (V)
100
1000
HER201G-HER205G
TA=25℃
TA=25℃
10
HER201G-HER204G
HER205G
1
HER206G-HER208G
0.1
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
2
FORWARD VOLTAGE (V)
Version:D12
