DS1314S datasheet, PDF - EEWORLD Datasheet

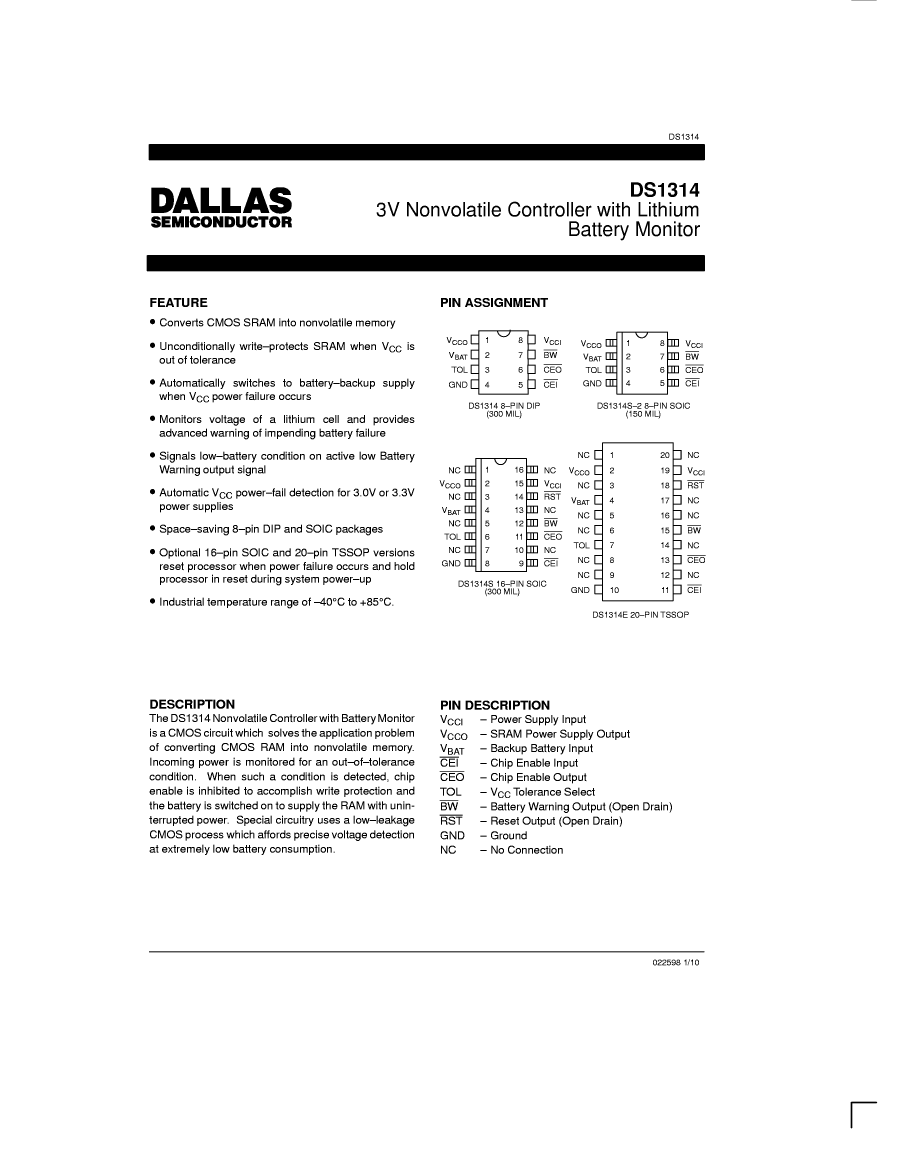

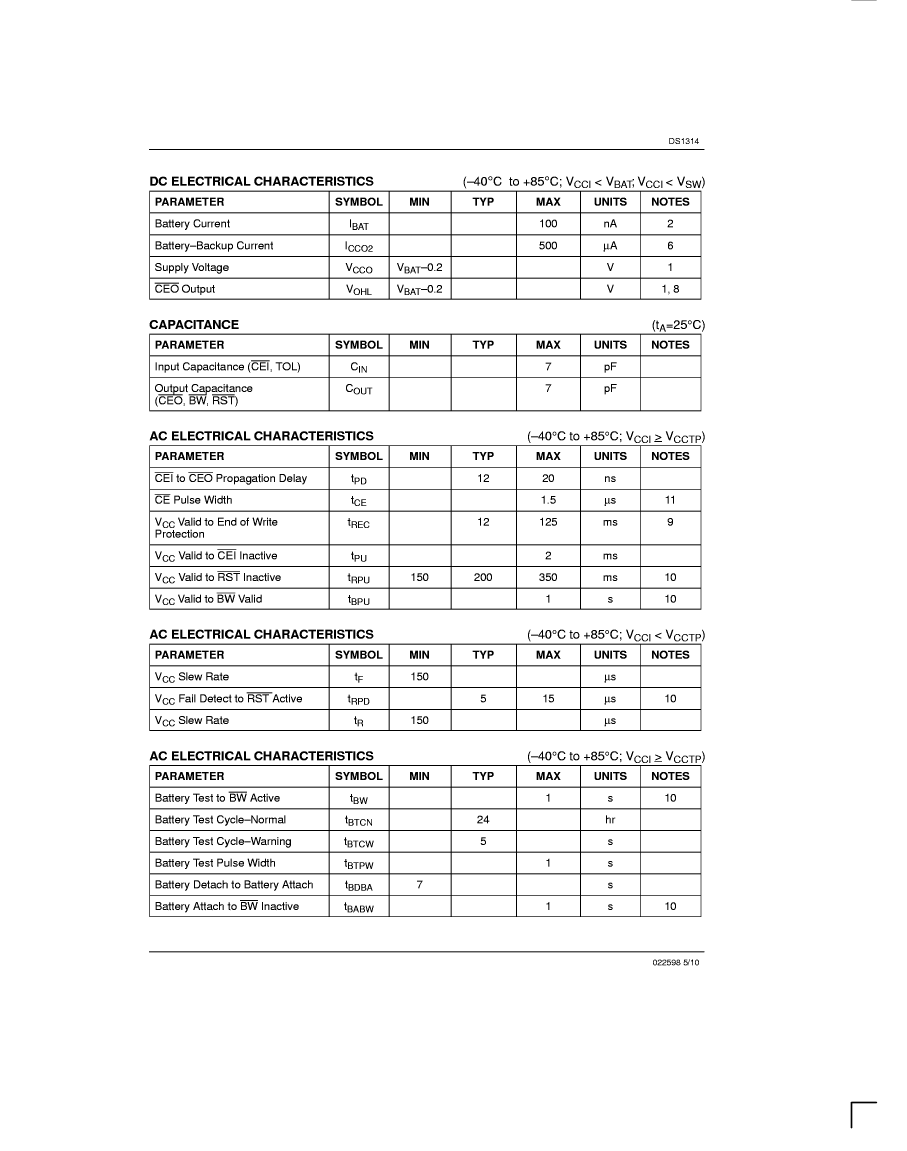

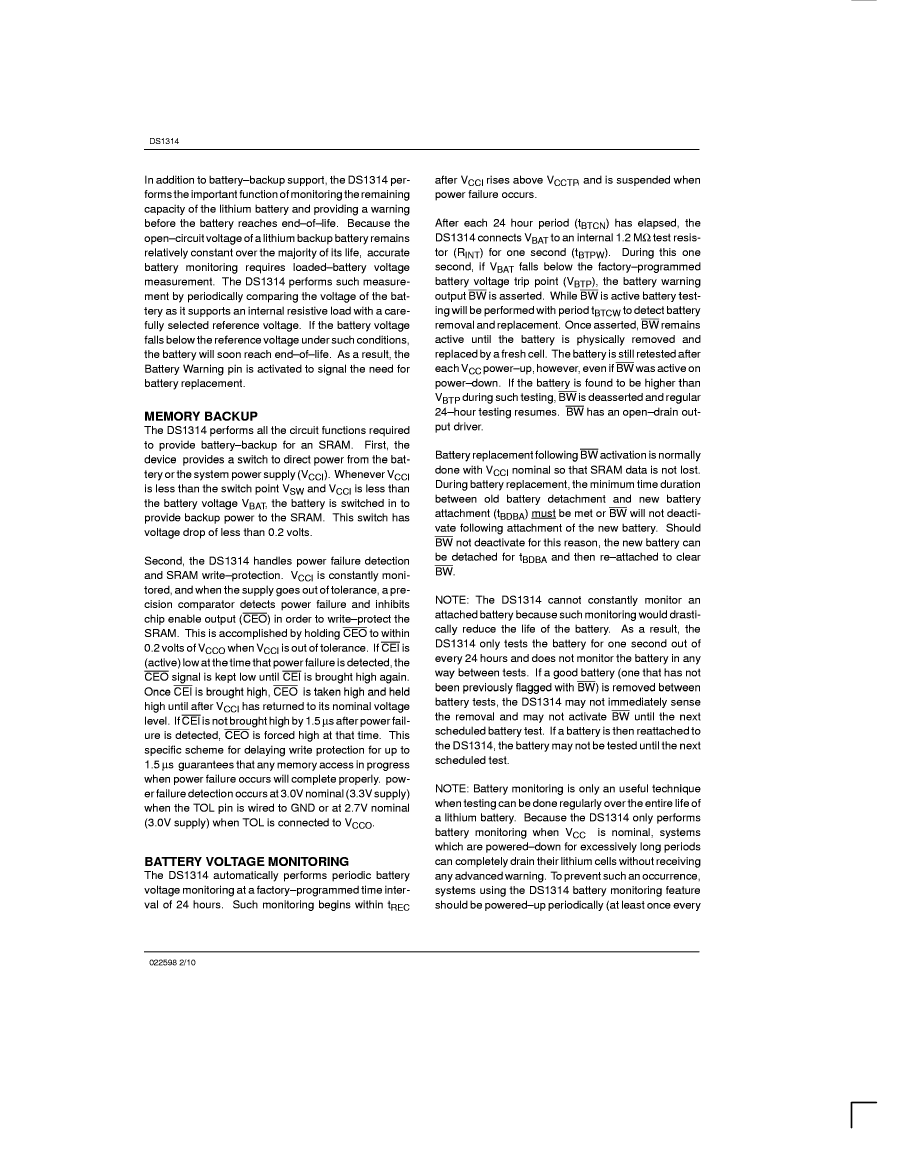

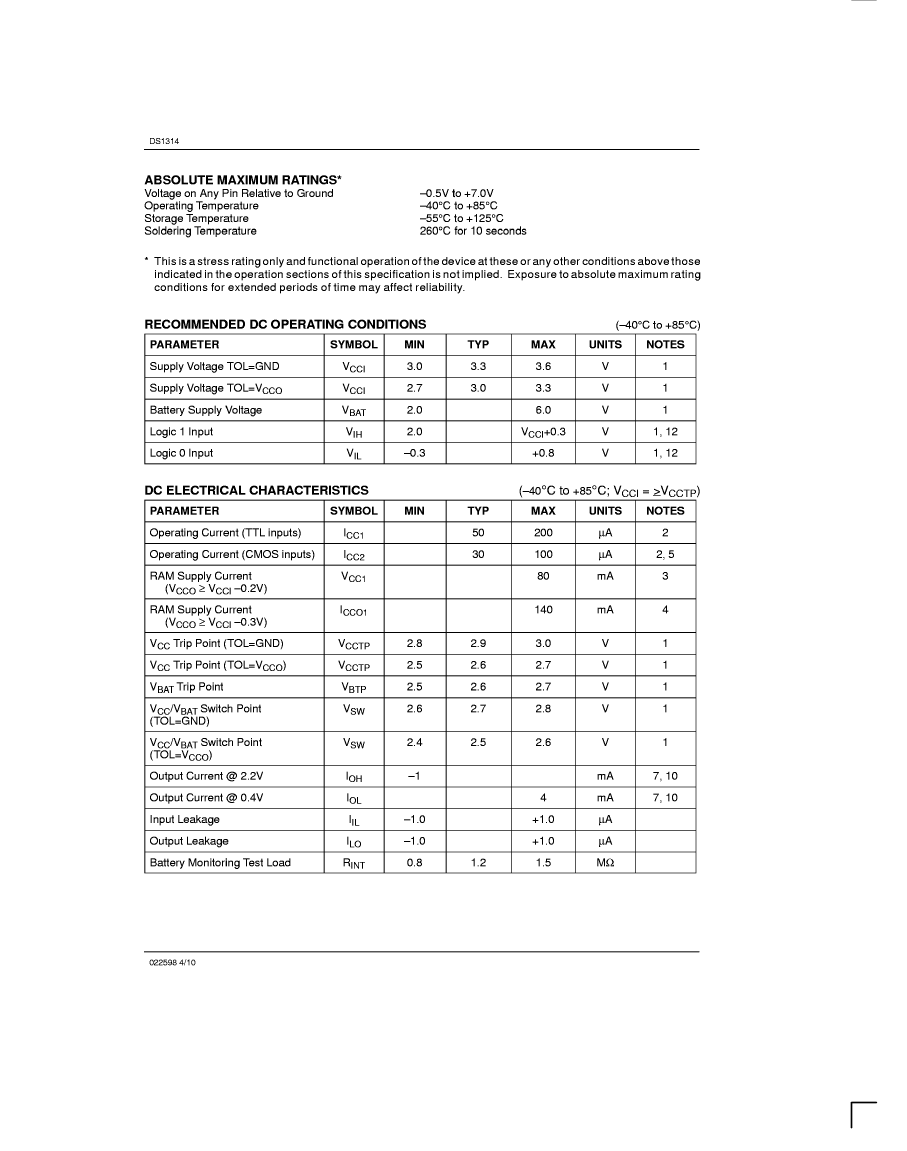

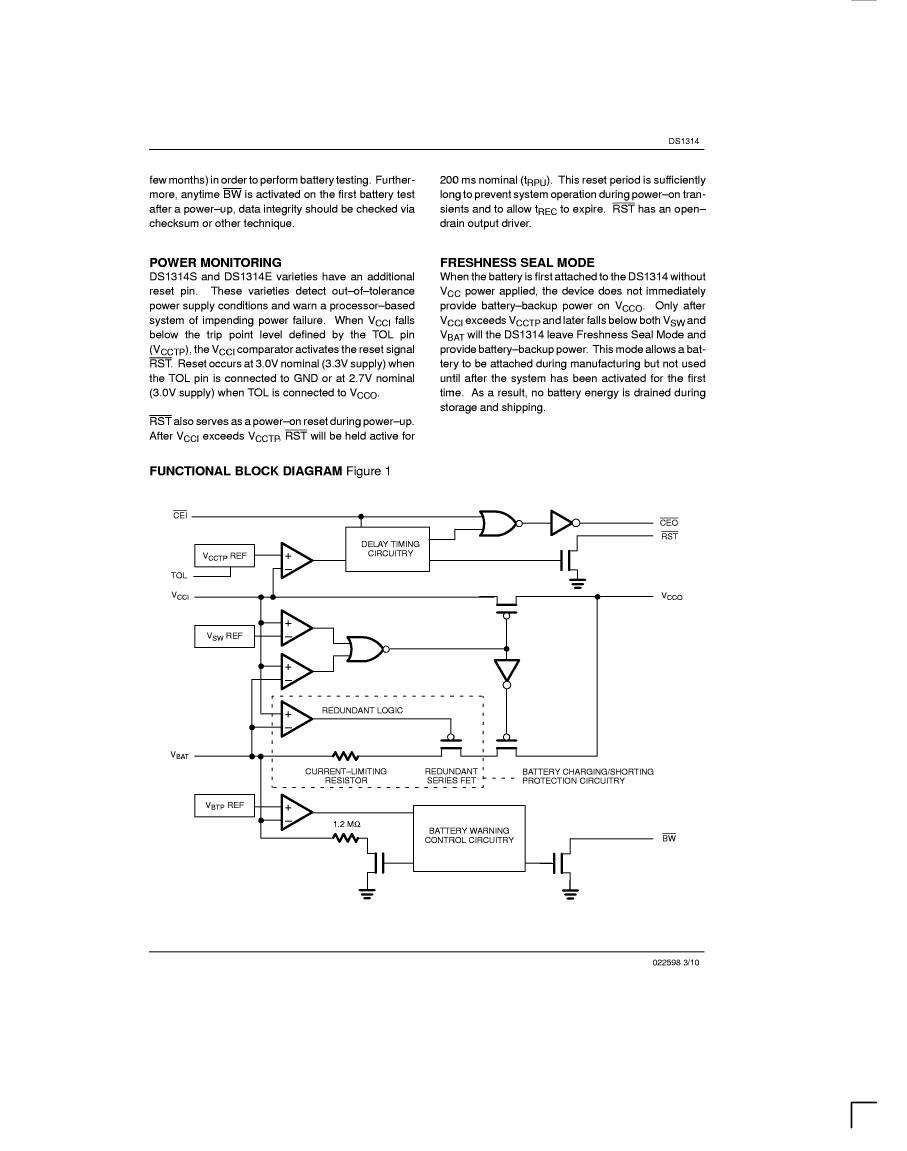

DS1314S: DescriptionPower Supply Support Circuit, Fixed, 1 Channel, CMOS, PDSO16, 0.300 INCH, SOIC-16; CategoryPower/power management The power supply circuit; File Size420KB，10 Pages; ManufacturerDALLAS; Websitehttp://www.dalsemi.com

Download Datasheet Parametric Compare View All

DS1314S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DS1314S	-	-	View	Buy Now

Power Supply Support Circuit, Fixed, 1 Channel, CMOS, PDSO16, 0.300 INCH, SOIC-16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	DALLAS
package instruction	0.300 INCH, SOIC-16
Reach Compliance Code	unknown
Adjustable threshold	NO
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Number of channels	1
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	3.3 V
Certification status	Not Qualified
Maximum supply current (Isup)	0.1 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3.05 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

	DS1314S	DS1314E
Description	Power Supply Support Circuit, Fixed, 1 Channel, CMOS, PDSO16, 0.300 INCH, SOIC-16	Power Supply Support Circuit, Fixed, 1 Channel, CMOS, PDSO20, TSSOP-20
Is it Rohs certified?	incompatible	incompatible
Maker	DALLAS	DALLAS
package instruction	0.300 INCH, SOIC-16	TSSOP-20
Reach Compliance Code	unknown	unknown
Adjustable threshold	NO	NO
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	R-PDSO-G16	R-PDSO-G20
JESD-609 code	e0	e0
Number of channels	1	1
Number of functions	1	1
Number of terminals	16	20
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	TSSOP
Encapsulate equivalent code	SOP16,.4	TSSOP20,.25
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
power supply	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified
Maximum supply current (Isup)	0.1 mA	0.1 mA
Maximum supply voltage (Vsup)	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3.05 V	3.05 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.635 mm
Terminal location	DUAL	DUAL
Base Number Matches	1	1
