VJ0402A680KFJAC2L

Description
Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, C0G, -/+30ppm/Cel TC, 0.000068uF, 0402,
CategoryPassive components    capacitor
File Size166KB，15 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

VJ0402A680KFJAC2L Overview

Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, C0G, -/+30ppm/Cel TC, 0.000068uF, 0402,

VJ0402A680KFJAC2L Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid1972860543
package instruction, 0402
Reach Compliance Codecompliant
Country Of OriginIsrael
YTEOL8.6
capacitance0.000068 µF
Capacitor typeCERAMIC CAPACITOR
dielectric materialsCERAMIC
high0.61 mm
JESD-609 codee4
length1 mm
multi-layerYes
negative tolerance10%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package formSMT
method of packingTR, Paper, 7 Inch
positive tolerance10%
Rated (DC) voltage (URdc)16 V
size code0402
Temperature characteristic codeC0G
Temperature Coefficient30ppm/Cel ppm/°C
Terminal surfaceSilver/Palladium (Ag/Pd)
width0.5 mm

VJ0402A680KFJAC2L Preview

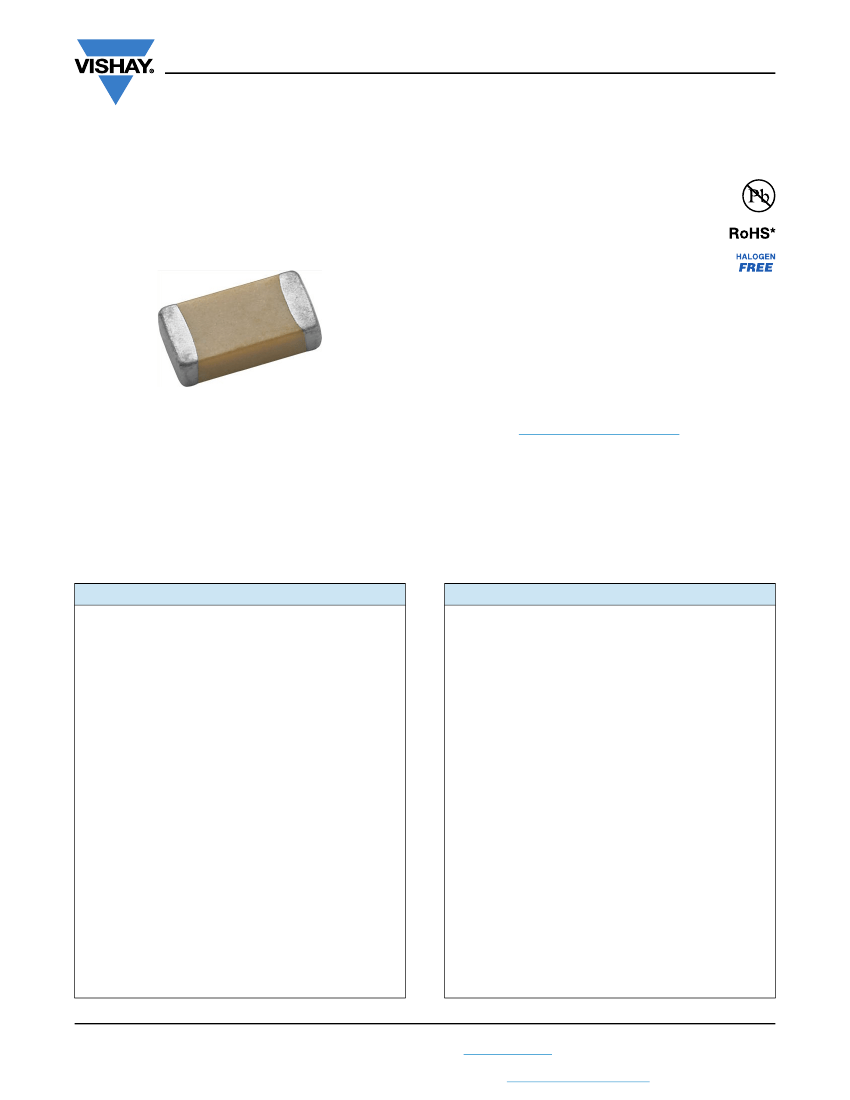

VJ Hi-Rel Series
www.vishay.com
Vishay Vitramon
Surface Mount Multilayer Ceramic Chip Capacitors
for High Reliability Applications
FEATURES
• Manufactured with a combination of design,
materials and tight process control to
Available
achieve very high field reliability
• C0G (NP0) and X7R/X5R dielectrics offered
Available
• MIL-PRF-55681 qualified production line
• Reliability maintenance testing to verify
consistent quality
(X5R max. test temperature: + 85 °C)
• Available with group A and C screening
• Available with only group A screening
• Available with only voltage conditioning
• Customized certification available on request to meet your
quality requirements
• Available with tin-lead barrier terminations order code “L”
• Wet build process
• Reliable Noble Metal Electrode (NME) system
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
This datasheet provides information about parts that are
RoHS-compliant and/or parts that are non-RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information/tables in this datasheet for details.
APPLICATIONS
• System critical medical applications
• Mission critical military and aerospace applications
ELECTRICAL SPECIFICATIONS
C0G (NP0)
X7R/X5R
GENERAL SPECIFICATION
Note
Electrical characteristics at + 25 °C unless otherwise specified
GENERAL SPECIFICATION
Note
Electrical characteristics at + 25 °C unless otherwise specified
Operating Temperature:
- 55 °C to + 125 °C
Capacitance Range:
0.5 pF to 39 nF
Voltage Range:
10 V
DC
to 600 V
DC
Temperature Coefficient of Capacitance (TCC)
0 ppm/°C ± 30 ppm/°C from - 55 °C to + 125 °C
Dissipation Factor (DF)
0.1 % maximum at 1.0 V
RMS
and
1 MHz for values
1000 pF
0.1 % maximum at 1.0 V
RMS
and
1 kHz for values > 1000 pF
Insulating Resistance
At + 25 °C 100 000 M min. or 1000
F
whichever is less
At + 125 °C 10 000 M min. or 100
F
whichever is less
Aging Rate:
0 % maximum per decade
Dielectric Strength Test
Performed per method 103 of EIA 198-2-E.
Applied test voltages
200 V
DC
-rated:
250 % of rated voltage
500 V
DC
-rated:
200 % of rated voltage
630 V
DC
-rated:
150 % of rated voltage
Operating Temperature:
- 55 °C to + 125 °C
Capacitance Range:
100 pF to 6.8 μF
Voltage Range:
6.3 V
DC
to 500 V
DC
Temperature Coefficient of Capacitance (TCC)
X5R: ± 15 % from - 55 °C to + 85 °C, with 0 V
DC
applied
X7R: ± 15 % from - 55 °C to + 125 °C, with 0 V
DC
applied
Dissipation Factor (DF)
6.3 V, 10 V ratings: 5 % maximum at 1.0 V
RMS
and 1 kHz
16 V, 25 V ratings: 3.5 % maximum at 1.0 V
RMS
and 1 kHz
50 V ratings: 2.5 % maximum at 1.0 V
RMS
and 1 kHz
Insulating Resistance
At + 25 °C 100 000 M min. or 1000
F
whichever is less
At + 125 °C 10 000 M min. or 100
F
whichever is less
Aging Rate:
1 % maximum per decade
Dielectric Strength Test
Performed per method 103 of EIA 198-2-E.
Applied test voltages
250 V
DC
-rated:
250 % of rated voltage
500 V
DC
-rated:
min. 150 % of rated voltage
630 V
DC,
1000 V
DC
-rated:
150 % of rated voltage
1500 V
DC
, 3000 V
DC
-rated:
120 % of rated voltage
Revision: 19-Jul-13
Document Number: 45200
1
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VJ Hi-Rel Series
www.vishay.com
Vishay Vitramon
CAPACITANCE
MINIMUM
0.5 pF
0.5 pF
0.5 pF
0.5 pF
0.5 pF
22 pF
39 pF
100 pF
100 pF
120 pF
27 nF
120 nF
100 pF
270 pF
150 pF
680 pF
1.0 nF
1.0 nF
3.3 nF
10 nF
10 nF
10 nF
15 nF
MAXIMUM
180 pF
1.5 nF
3.3 nF
10 nF
10 nF
10 nF
22 nF
33 nF
33 nF
39 nF
47 nF
150 nF
22 nF
100 nF
390 nF
1.0 μF
1.0 μF
270 nF
1.0 μF
2.7 μF
2.2 μF
4.7 μF
6.8 μF
QUICK REFERENCE DATA
DIELECTRIC
CASE
0402
0603
0805
1206
1210
1808
1812
1825
2220
2225
0402
0603
0402
0603
0805
1206
1210
1808
1812
1825
2220
2225
3640
MAXIMUM VOLTAGE
(V)
100
200
500
600
500
500
500
500
500
500
16
6.3
100
100
200
500
500
500
500
500
500
500
500
C0G (NP0)
X5R
X7R
ORDERING INFORMATION
VJ1206
CASE
CODE
0402
0603
0805
1206
1210
1808
1812
1825
2220
2225
3640
Y
104
J
L
TERMINATION
A
DC
VOLTAGE
RATING
(1)
Y = 6.3 V
Q = 10 V
A
MARKING
T
PACKAGING
##
(2)
PROCESS
CODE
DIELECTRIC CAPACITANCE CAPACITANCE
NOMINAL
TOLERANCE
A=
C0G (NP0)
G = X5R
Y = X7R
Expressed in
picofarads (pF).
The first two
digits are
significant, the
third is a
multiplier.
Examples:
1R0 = 1.0 pF
103 =
10 000 pF
104 =
100 000 pF
C = ± 0.25 pF
D = ± 0.50 pF
F=±1%
G=±2%
H=±3%
J=±5%
K = ± 10 %
M = ± 20 %
Note:
C0G (NP0):
C, D < 10 pF
F, G, H, J ,K
10 pF
X7R, X5R:
J, K, M
X = Ni barrier
100 % tin plated
L = Ni barrier with
tin lead plated
finish
min. 4 % lead
F = AgPd
N=
Non-magnetic
A=
Unmarked
J = 16 V
X = 25 V
A = 50 V
K = 75 V
B = 100 V
C = 200 V
P = 250 V
E = 500 V
N = 600 V
2L, 2M =
C = 7" reel/paper
High Rel
tape
group A
T = 7" reel/plastic
and C
tape
screening
(3)(4)
J = 7" reel
(low quantity)
68 = High Rel
P = 11 1/4"/13"
group A
reel/paper tape
screening
R = 11 1/4"/13"
only
reel/plastic tape
5G = Voltage
O = 7" reel/flamed conditioning
paper tape
only
I = 11 1/4"/13"reel/
flamed paper tape
Note:
“I” and “O” are
used for “F”, “N”
terminations, sizes
0402/0603/0805
Notes
(1)
DC voltage rating should not be exceeded in application. Other application factors may affect the MLCC performance.
Consult for questons:
mlcc@vishay.com
(2)
Process code with 2 digits has to be added
(3)
Process code “2L” group “C” completion not required for shipment
(4)
Process code “2M” group “C” completion required for shipment
Revision: 19-Jul-13
Document Number: 45200
2
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VJ Hi-Rel Series
www.vishay.com
Vishay Vitramon
DIMENSIONS
in inches (millimeters)
L
W
T
MAX.
P
CASE CODE
STYLE
LENGTH
(L)
WIDTH
(W)
MAXIMUM
THICKNESS
(T)
TERMINATION PAD
(P)
MINIMUM
0.004 (0.10)
MAXIMUM
0.016 (0.41)
0402
VJ0402
0.040 ± 0.004
(1.00 ± 0.10)
0.063 ± 0.006
(1.60 ± 0.15)
0.079 ± 0.008
(2.00 ± 0.20)
0.126 ± 0.010
(3.20 ± 0.25)
0.126 ± 0.010
(3.20 ± 0.25)
0.180 ± 0.012
(4.57 ± 0.30)
0.177 ± 0.012
(4.50 ± 0.30)
0.177 ± 0.012
(4.50 ± 0.30)
0.220 ± 0.010
(5.59 ± 0.25)
0.220 ± 0.010
(5.59 ± 0.25)
0.360 ± 0.015
(9.14 ± 0.38)
0.020 ± 0.004
(0.50 ± 0.10)
0.031 ± 0.006
(0.80 ± 0.15)
0.049 ± 0.008
(1.25 ± 0.20)
0.063 ± 0.010
(1.60 ± 0.25)
0.098 ± 0.010
(2.50 ± 0.25)
0.080 ± 0.010
(2.03 ± 0.25)
0.126 ± 0.008
(3.20 ± 0.20)
0.252 ± 0.010
(6.40 ± 0.25)
0.200 ± 0.010
(5.08 ± 0.25)
0.250 ± 0.010
(6.35 ± 0.25)
0.400 ± 0.015
(10.2 ± 0.38)
0.024 (0.61)
0603
VJ0603
0.036 (0.92)
0.012 (0.30)
0.018 (0.46)
0805
VJ0805
0.057 (1.45)
0.010 (0.25)
0.028 (0.71)
1206
VJ1206
0.067 (1.70)
0.010 (0.25)
0.028 (0.71)
1210
VJ1210
0.067 (1.70)
0.010 (0.25)
0.028 (0.71)
1808
VJ1808
0.086 (2.18)
0.010 (0.25)
0.030 (0.76)
1812
VJ1812
0.086 (2.18)
0.010 (0.25)
0.030 (0.76)
1825
VJ1825
0.086 (2.18)
0.010 (0.25)
0.030 (0.76)
2220
VJ2220
0.086 (2.18)
0.010 (0.25)
0.030 (0.76)
2225
VJ2225
0.086 (2.18)
0.010 (0.25)
0.030 (0.76)
3640
VJ3640
0.086 (2.18)
0.010 (0.25)
0.030 (0.76)
Note
• Termination code “F” has increased dimension tolerance:
0402: Length + 0.006" (+ 0.15 mm)
0603: Length + 0.008" (+ 0.20 mm)
0805/1206/1210: Length + 0.011" (+ 0.28 mm)
Revision: 19-Jul-13
Document Number: 45200
3
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VJ Hi-Rel Series
www.vishay.com
Vishay Vitramon
SELECTION CHART
DIELECTRIC
C0G (NP0)
STYLE
VJ0402
VJ0603
CASE CODE
0402
0603
10
16
25
50 100 10
16
25
50 100 200
VOLTAGE (V
DC
)
VOLTAGE CODE
Q
J
X
A
B
Q
J
X
A
B
C
CAP. CODE
CAP.
•
•
•
•
•
•
•
•
•
•
•
0R5
0.5 pF
•
•
•
•
•
•
•
•
•
•
•
1R0
1.0 pF
•
•
•
•
•
•
•
•
•
•
•
1R2
1.2 pF
•
•
•
•
•
•
•
•
•
•
•
1R5
1.5 pF
•
•
•
•
•
•
•
•
•
•
•
1R8
1.8 pF
•
•
•
•
•
•
•
•
•
•
•
2R2
2.2 pF
•
•
•
•
•
•
•
•
•
•
•
2R7
2.7 pF
•
•
•
•
•
•
•
•
•
•
•
3R3
3.3 pF
•
•
•
•
•
•
•
•
•
•
•
3R9
3.9 pF
•
•
•
•
•
•
•
•
•
•
•
4R7
4.7 pF
•
•
•
•
•
•
•
•
•
•
•
5R6
5.6 pF
•
•
•
•
•
•
•
•
•
•
•
6R8
6.8 pF
•
•
•
•
•
•
•
•
•
•
•
8R2
8.2 pF
•
•
•
•
•
•
•
•
•
•
•
100
10 pF
•
•
•
•
•
•
•
•
•
•
•
120
12 pF
•
•
•
•
•
•
•
•
•
•
•
150
15 pF
•
•
•
•
•
•
•
•
•
•
•
180
18 pF
•
•
•
•
•
•
•
•
•
•
•
220
22 pF
•
•
•
•
•
•
•
•
•
•
•
270
27 pF
•
•
•
•
•
•
•
•
•
•
•
330
33 pF
•
•
•
•
•
•
•
•
•
•
•
390
39 pF
•
•
•
•
•
•
•
•
•
•
•
470
47 pF
•
•
•
•
•
•
•
•
•
•
•
560
56 pF
•
•
•
•
•
•
•
•
•
•
•
680
68 pF
•
•
•
•
•
•
•
•
•
•
•
820
82 pF
•
•
•
•
•
•
•
•
•
•
•
101
100 pF
•
•
•
•
•
•
•
•
•
•
•
121
120 pF
•
•
•
•
•
•
•
•
•
•
151
150 pF
•
•
•
•
•
•
•
•
•
•
181
180 pF
•
•
•
•
•
•
221
220 pF
•
•
•
•
•
•
271
270 pF
•
•
•
•
•
331
330 pF
•
•
•
•
•
391
390 pF
•
•
•
•
471
470 pF
•
•
•
•
561
560 pF
•
•
•
•
681
680 pF
•
•
•
821
820 pF
•
•
•
102
1.0 nF
•
•
122
1.2 nF
•
•
152
1.5 nF
182
1.8 nF
222
2.2 nF
272
2.7 nF
282
2.8 nF
332
3.3 nF
392
3.9 nF
472
4.7 nF
562
5.6 nF
682
6.8 nF
822
8.2 nF
103
10 nF
123
12 nF
Notes
RoHS-compliant except when supplied with lead (Pb)-containing termination, code “L”
Not RoHS-compliant
VJ0805
0805
25
50 100
X
A
B
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
10
Q
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
16
J
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
200
C
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
500
E
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Revision: 19-Jul-13
Document Number: 45200
4
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VJ Hi-Rel Series
www.vishay.com
Vishay Vitramon
SELECTION CHART
DIELECTRIC
C0G (NP0)
STYLE
VJ1206
CASE CODE
1206
VOLTAGE (V
DC
)
16
25
50
100
200
500
600
VOLTAGE CODE
J
X
A
B
C
E
N
CAP. CODE
CAP.
•
•
•
•
•
•
•
0R5
0.5 pF
•
•
•
•
•
•
•
1R0
1.0 pF
•
•
•
•
•
•
•
1R2
1.2 pF
•
•
•
•
•
•
•
1R5
1.5 pF
•
•
•
•
•
•
•
1R8
1.8 pF
•
•
•
•
•
•
•
2R2
2.2 pF
•
•
•
•
•
•
•
2R7
2.7 pF
•
•
•
•
•
•
•
3R3
3.3 pF
•
•
•
•
•
•
•
3R9
3.9 pF
•
•
•
•
•
•
•
4R7
4.7 pF
•
•
•
•
•
•
•
5R6
5.6 pF
•
•
•
•
•
•
•
6R8
6.8 pF
•
•
•
•
•
•
•
8R2
8.2 pF
•
•
•
•
•
•
•
100
10 pF
•
•
•
•
•
•
•
120
12 pF
•
•
•
•
•
•
•
150
15 pF
•
•
•
•
•
•
•
180
18 pF
•
•
•
•
•
•
•
220
22 pF
•
•
•
•
•
•
•
270
27 pF
•
•
•
•
•
•
•
330
33 pF
•
•
•
•
•
•
•
390
39 pF
•
•
•
•
•
•
•
470
47 pF
•
•
•
•
•
•
•
560
56 pF
•
•
•
•
•
•
•
680
68 pF
•
•
•
•
•
•
•
820
82 pF
•
•
•
•
•
•
•
101
100 pF
•
•
•
•
•
•
•
121
120 pF
•
•
•
•
•
•
•
151
150 pF
•
•
•
•
•
•
•
181
180 pF
•
•
•
•
•
•
•
221
220 pF
•
•
•
•
•
•
•
271
270 pF
•
•
•
•
•
•
•
331
330 pF
•
•
•
•
•
•
•
391
390 pF
•
•
•
•
•
•
•
471
470 pF
•
•
•
•
•
•
•
561
560 pF
•
•
•
•
•
•
•
681
680 pF
•
•
•
•
•
•
•
821
820 pF
•
•
•
•
•
•
•
102
1.0 nF
•
•
•
•
•
122
1.2 nF
•
•
•
•
•
152
1.5 nF
•
•
•
•
•
182
1.8 nF
•
•
•
•
•
222
2.2 nF
•
•
•
•
•
272
2.7 nF
•
•
•
•
282
2.8 nF
•
•
•
•
332
3.3 nF
•
•
•
•
392
3.9 nF
•
•
•
•
472
4.7 nF
•
•
•
562
5.6 nF
•
•
•
682
6.8 nF
•
822
8.2 nF
•
103
10 nF
123
12 nF
Notes
(1)
See soldering recommendations within this data book, or visit:
www.vishay.com/doc?45034
RoHS-compliant except when supplied with lead (Pb)-containing termination, code “L”
Not RoHS-compliant
Revision: 19-Jul-13
VJ1210
(1)
1210
(1)
100
200
B
C
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
25
X
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
50
A
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
500
E
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Document Number: 45200
5
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Inverter circuit principle for lighting 12W fluorescent lamp

TOP switch application circuit diagram in switching power supply

Using LM1875 to drive precision DC servo motor circuit

Alarm type binary password control lock circuit

Gas-smoke alarm circuit using bidirectional thyristor

Low-cost CFL electronic ballast circuit using IGBT as switch

Voice-controlled alarm circuit
...
探路者 Mobile and portable
About (there are many problems with the official uCOS-II transplant template)
ZLG said on the BBS that the official transplant has problems. I don't know if it is true. I just ordered a small batch of STM32F chips from Yali for use in products. I hope LZ can reply as soon as po...
suhu42142 stm32/stm8
[MSP430 Sharing] Using the ultra-low power MCU MSP430 as the system companion chip
MSP430 application expansion, using ultra-low power single-chip MSP430 as the system companion chip, see the transformation of 430 from master to slave...
wstt Microcontroller MCU
Help
I am going to participate in the 2015 Electronic Design Competition. Do previous competitions require outsourcing of materials? Are the materials provided by the competition sufficient?...
伟民lwm Electronics Design Contest
Are these problems serious? About PCB packaging in AD
If you want to change it, how should you change it?...
ZNF PCB Design
Come and see! STM32 driving large screen, 7-inch screen driving solution!
I have been using STM32 for a while, and I got a lot of answers from your website. I admire the moderator very much, which reminds me of Hua Mulan. Let me talk about my little understanding. When I ca...
yza223 stm32/stm8
Shortcut:   E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC ED EE EF EG EH EI EJ EK EL EM EN EO EP EQ ER ES ET EU EV EW EX EY EZ F0 F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC FD FE FF FG FH FI FJ FK FL FM FN FO FP FQ FR FS FT FU FV FW FX FY FZ G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 GA GB GC GD GE GF GG GH GI GJ GK GL GM GN GO GP GQ GR GS GT GU GV GW GX GZ H0 H1 H2 H3 H4 H5 H6 H7 H8 HA HB HC HD HE HF HG HH HI HJ HK HL HM HN HO HP HQ HR HS HT HU HV HW HX HY HZ I1 I2 I3 I4 I5 I6 I7 IA IB IC ID IE IF IG IH II IK IL IM IN IO IP IQ IR IS IT IU IV IW IX J0 J1 J2 J6 J7 JA JB JC JD JE JF JG JH JJ JK JL JM JN JP JQ JR JS JT JV JW JX JZ K0 K1 K2 K3 K4 K5 K6 K7 K8 K9 KA KB KC KD KE KF KG KH KI KJ KK KL KM KN KO KP KQ KR KS KT KU KV KW KX KY KZ

Popular Components

  1. 177-710-5-37CS8K7-24BCN
  2. ICS8432CY-111T
  3. 502LBB-ADAG
  4. EQCD-020-06.00-TTL-STR-3-SDB
  5. LTC4417HUF#TRPBF
  6. 28C17AF-15B/UB
  7. 316-025-521-178
  8. WCLA02620501F
  9. AME8834BEEV270Y
  10. 5KP85
  11. GLZ11AT/R13
  12. A2541WV-36P-C1770-G30

Popular Articles

  1. After 30 years of hard work, SK Group has implemented happiness management and grown together with the Chinese market
  2. Ziguang Cloud completed a 600 million yuan financing, led by China Mobile Capital
  3. UltraSense Systems Launches TouchPoint Edge, a Next-Generation Multi-Mode Sensing Solution
  4. ATmega168 External Clock
  5. XpCore won the 16th "China Core" EDA Excellent Support Service Enterprise Award
  6. Intel reveals more details about its mining chips
  7. HomePod Mini may be launched in five more countries
  8. How to use the logic analyzer - software
  9. In 2021, the number of ultrasonic radars used in passenger cars increased by 11.6% year-on-year
  10. PLC control circuit for sequential start/stop of two motors

Technical ResourceMore

  1. A collection of new practical power amplifier circuits
  2. Electrical Meters and Energy Metering
  3. C language learning system version 3.2
  4. Signal processing and oversampling conversion (PDG).
  5. Design of UHF RFID Reader-Writer Based on ARM7
  6. Using Instruments in Multisim
  7. Driving the ADC14DS105 high-speed analog/digital converter for high performance
  8. Design of Intelligent Monitoring System Based on LonWorks
  9. Research on the survivability of WDM mesh networks
  10. FPGA overall video introduction

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 4  454  707  2250  1665  1  10  15  46  34
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
