AZ743-2BE-24DEAF datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> relay> AZ743-2BE-24DEAF

AZ743-2BE-24DEAF: DescriptionElectromechanical Relay, DPST, Latched, 49.4VDC (Coil), 10A (Contact), 150VDC (Contact), Random, AC/DC Output,; CategoryMechanical and electronic products relay; File Size139KB，3 Pages; ManufacturerAZETTLER; Websitehttp://www.azettler.com/

Download Datasheet Parametric View All

AZ743-2BE-24DEAF Overview

Electromechanical Relay, DPST, Latched, 49.4VDC (Coil), 10A (Contact), 150VDC (Contact), Random, AC/DC Output,

AZ743-2BE-24DEAF Parametric

Parameter Name	Attribute value
Objectid	406069051
Reach Compliance Code	compliant
ECCN code	EAR99
body width	13.2 mm
body height	16.2 mm
Body length or diameter	29.5 mm
Coil operating voltage (DC)	16.8 V
Coil resistance	1440 Ω
Maximum coil voltage (DC)	49.4 V
Nominal coil voltage	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	2500VA@400VAC
Contact (AC) maximum rated R load	10A@400VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated power R load	240W@150VDC
Contact (DC) maximum rated R load	10A@150VDC
Contact resistance	50 mΩ
Maximum contact voltage (AC)	400 V
Maximum contact voltage (DC)	150 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
End contact material	Silver Tin Oxide
End contact plating	GOLD
Input switching control type	Random
Insulation resistance	1000000000 Ω
Number of terminals	8
operating hours	7 ms
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
physical size	29.5mm x 13.2mm x 16.2mm
Guideline	UL; VDE
Relay action	LATCHED
Relay style	2 FORM B
Relay function	DPST
release time	4 ms
seal	EPOXY
Terminal length	0.004099568199136398 inch
Termination type	SOLDER

Preview

Download Datasheet

View All

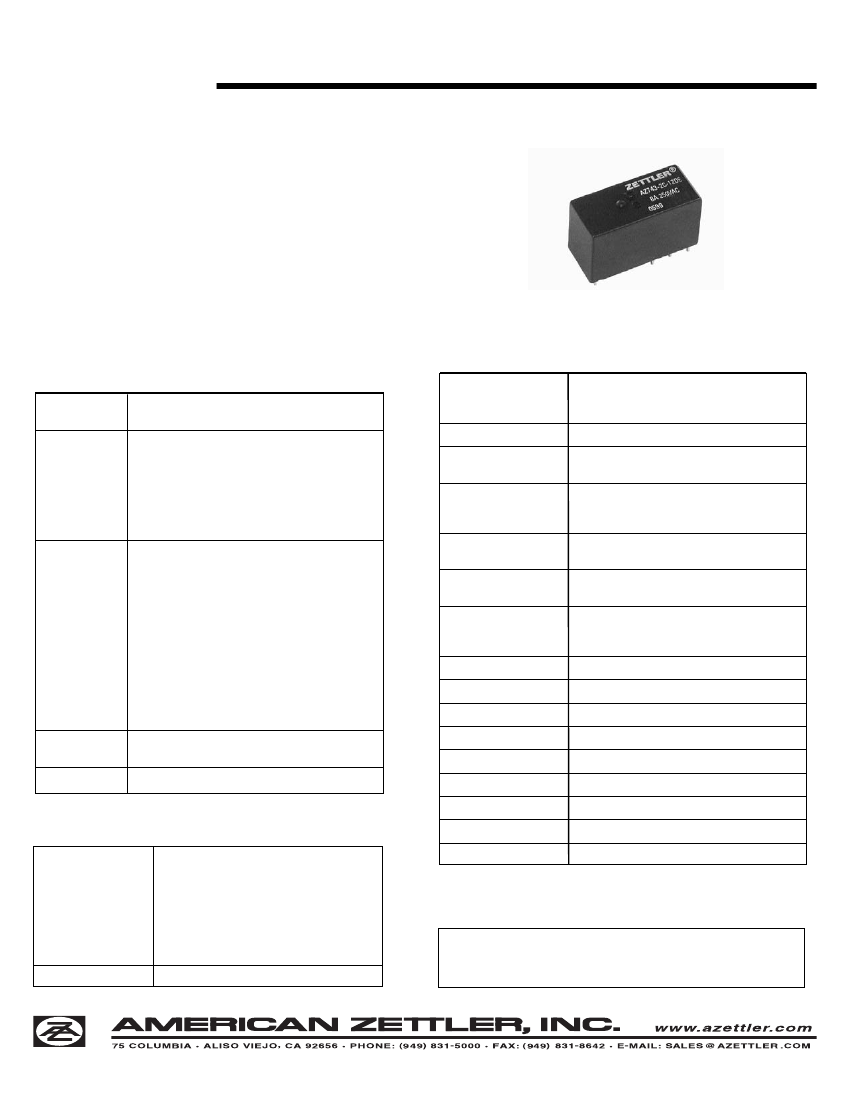

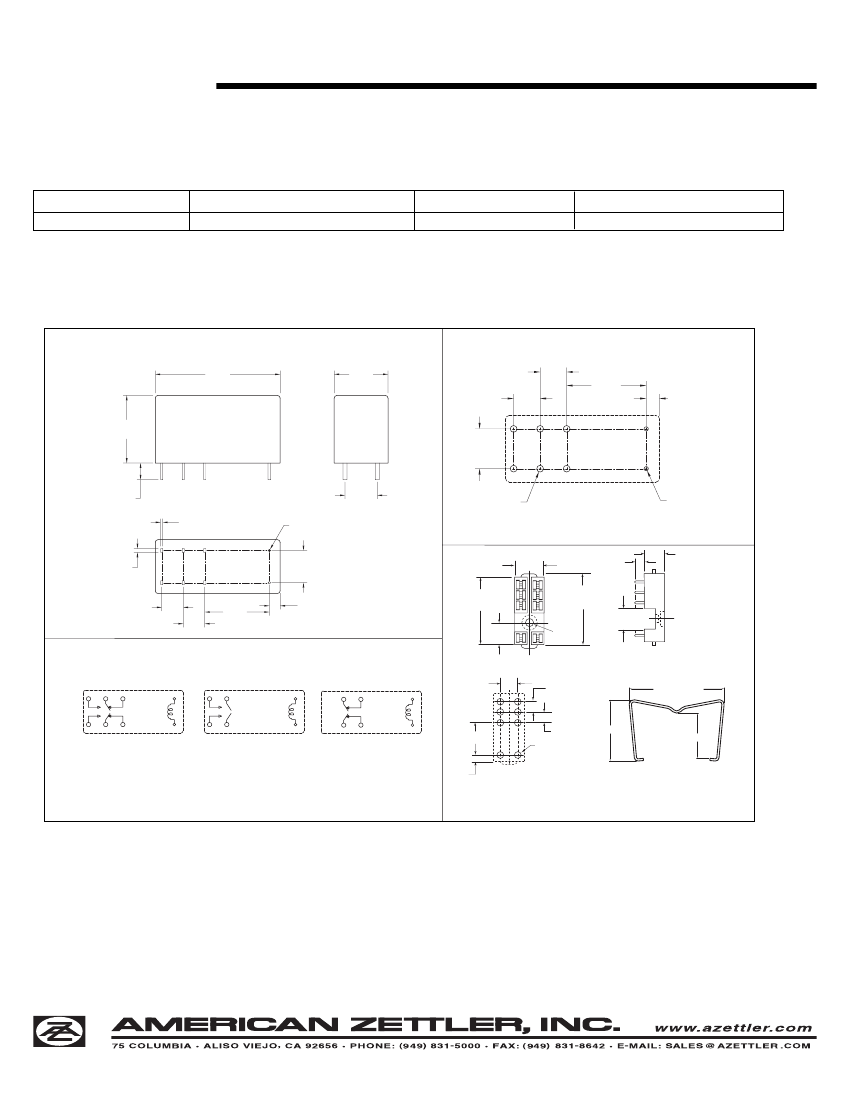

AZ743

10 AMP DPDT MINIATURE

POWER RELAY

FEATURES

•

Dielectric strength 5000 Vrms

Low cost

Epoxy sealed version available

10 Amp switching — double pole contacts

AC and DC coils

Class B (130°C) standard

Class F (155°C) versions available

Isolation spacing greater than 10 mm

UL, CUR file E44211, VDE file 40006031

GENERAL DATA

CONTACTS

Arrangement

Ratings

DPST (2 Form A, 2 Form B)

DPDT(2 Form C)

Resistive load:

Max. switched power: 240 W or 2500 VA

Max. switched current: 10 A

Max. switched voltage: 150* VDC or 400 VAC

*Note: If switching voltage is greater than 30 VDC,

special precautions must be taken. Please contact the

factory.

Life Expectancy

Mechanical

Electrical

Operate Time (typical)

Release Time (typical)

Minimum operations

1 x 10

at 8 A 240 VAC Res.

7 ms at nominal coil voltage

4 ms at nominal coil voltage

(with no coil suppression)

Dielectric Strength

5000 Vrms coil to contact

(at sea level for 1 min.)

3000 Vrms between contact sets

1000 Vrms between open contacts

Insulation

Resistance

1000 megohms min. at 500 VDC,

20°C, 50% RH

Greater than 10% of nominal coil voltage (DC)

Greater than 15% of nominal coil voltage (AC)

At nominal coil voltage

-40°C (-40°F) to 100°C (212°F)

-40°C (-40°F) to 130°C (266°F)

0.062" DA at 10–55 Hz

10 g

P.B.T. polyester

Tinned copper alloy, P.C.

270°C (518°F)

5 seconds

80°C (176°F)

30 seconds

16 grams

Rated Load

UL, CUR

10 A at 250 VAC Resistive, 30k cycles (N.O.)/

6k (N.C.) [1]

8 A at 277 VAC Resistive, 30k cycles [1]

8 A at 277 VAC Resistive. 75k cycles [2]

8 A at 277 VAC Resisive, 100k cycles [3]

HP at 250 VAC (N.O.) [1]

HP at 125 VAC (N.O) [1]

8 A at 250 VAC Resistive, 30k cycles [1]

Contact factory for additional VDE ratings

[1] Silver cadmium oxide, [2] Silver tin oxide

[3] Silver nickel

Dropout

Ambient Temperature

Operating

Storage

Vibration

Shock

Enclosure

Terminals

Max. Solder Temp.

Max. Solder Time

Max. Solvent Temp.

VDE

Material

Resistance

Silver cadmium oxide, silver tin oxide, or silver

nickel. Gold plating available

< 50 milliohms initially (using 6 V 1 A method)

COIL

Power

At Pickup Voltage

(typical)

Max. Continuous

Dissipation

Temperature Rise

Max. Temperature

196 mW (DC)

0.43 VA (AC)

Max. Immersion Time

Weight

NOTES

1.7 W at 20°C (68°F) ambient

26°C (47°F) at nominal coil voltage

130°C (266°F)

1. All values at 20°C (68°F).

2. Relay may pull in with less than “Must Operate” value.

3. Specifications subject to change without notice.

5/13/11
