P87C504IBPN: DescriptionIC 8-BIT, OTPROM, 24 MHz, MICROCONTROLLER, PDIP40, Microcontroller; CategoryThe embedded processor and controller Microcontrollers and processors; File Size489KB，24 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

P87C504IBPN Overview

IC 8-BIT, OTPROM, 24 MHz, MICROCONTROLLER, PDIP40, Microcontroller

P87C504IBPN Parametric

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	DIP
Contacts	40
Reach Compliance Code	unknown
Has ADC	NO
Other features	ON-CIRCUIT EMULATION
Address bus width	16
bit size	8
boundary scan	NO
maximum clock frequency	24 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PDIP-T40
length	52 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	2
Number of I/O lines	32
Number of serial I/Os	1
Number of terminals	40
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
RAM (number of words)	256
rom(word)	16384
ROM programmability	OTPROM
Maximum seat height	4.7 mm
speed	24 MHz
Maximum slew rate	44 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

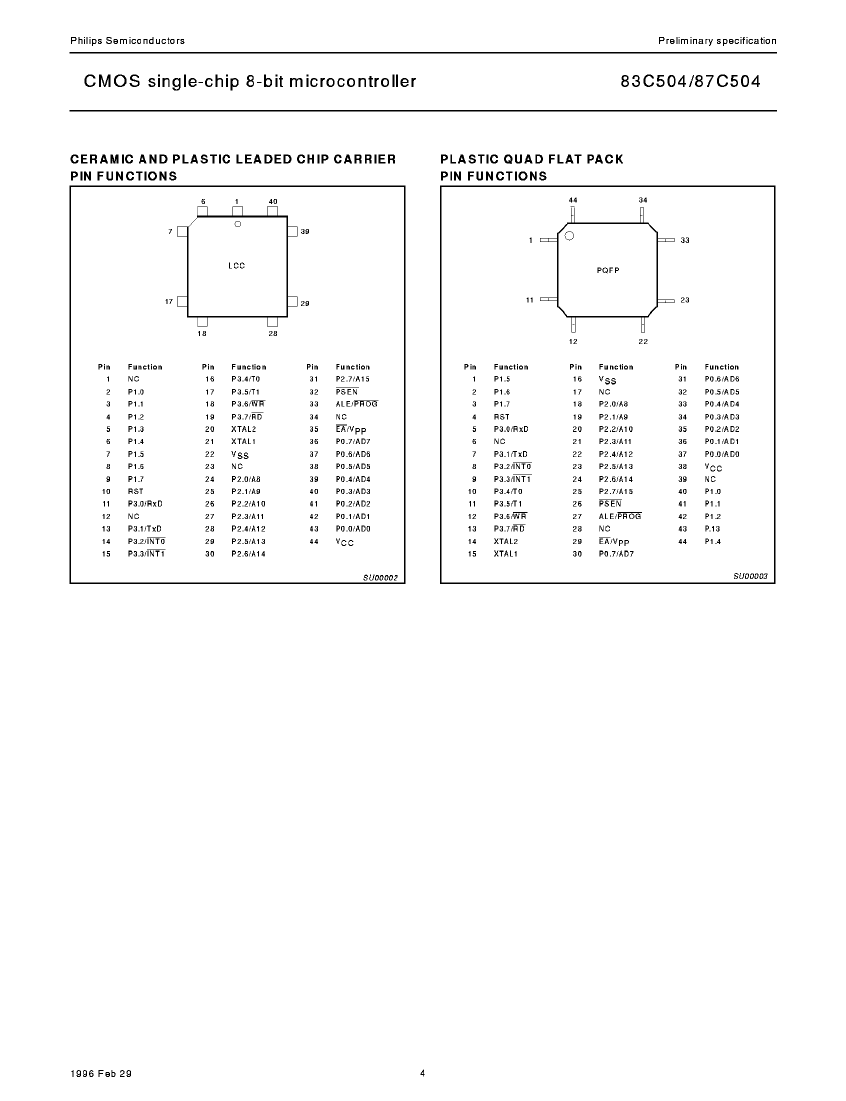

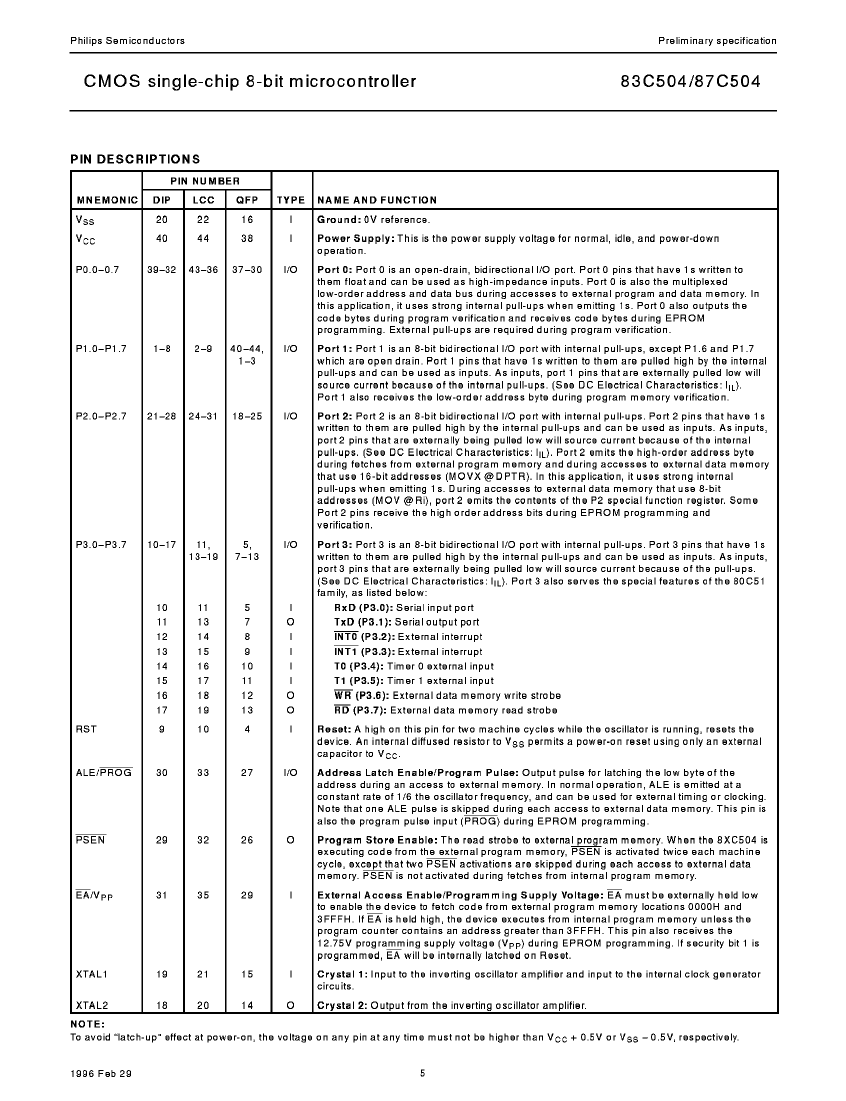

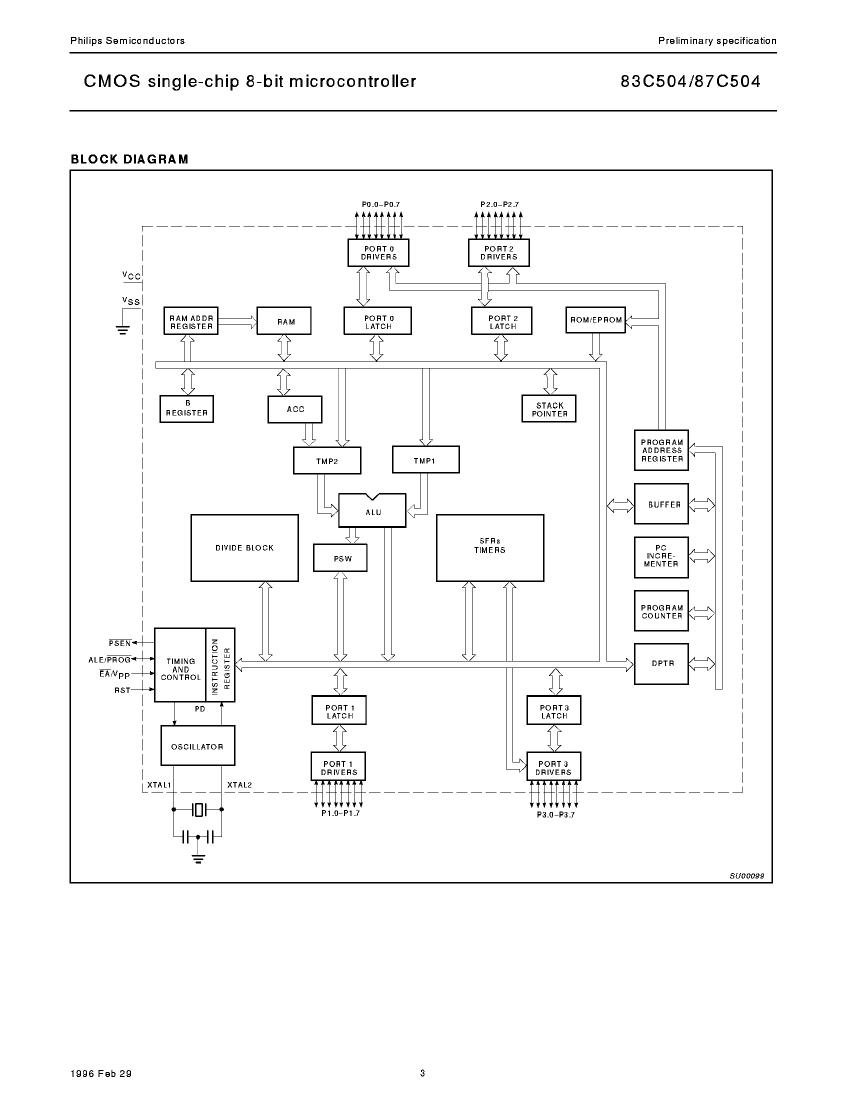

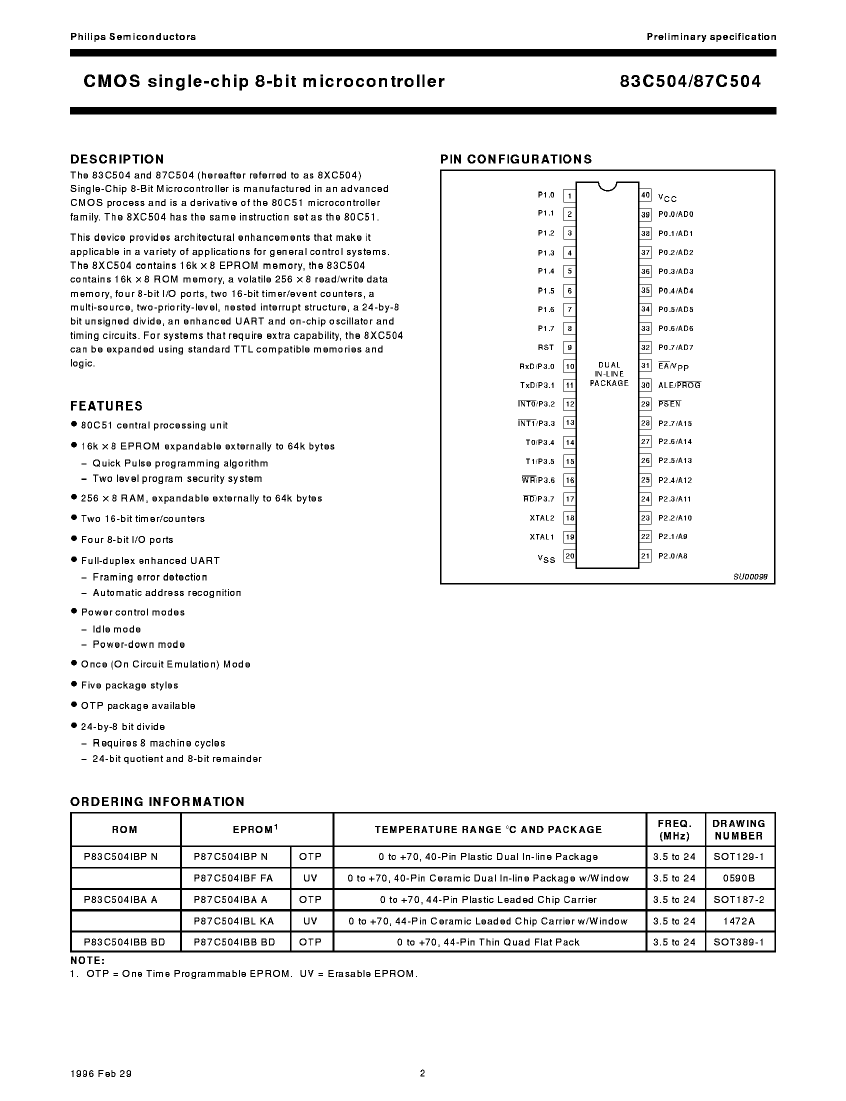

Preview

Download Datasheet

View All

P87C504IBPN Related Products

	P87C504IBPN	P87C504IBFFA	P87C504IBLKA	P83C504IBBBD	P83C504IBAA	P87C504IBAA	P83C504IBPN	P87C504IBBBD
Description	IC 8-BIT, OTPROM, 24 MHz, MICROCONTROLLER, PDIP40, Microcontroller	IC 8-BIT, UVPROM, 24 MHz, MICROCONTROLLER, CDIP40, Microcontroller	IC 8-BIT, UVPROM, 24 MHz, MICROCONTROLLER, CQCC44, Microcontroller	IC 8-BIT, MROM, 24 MHz, MICROCONTROLLER, PQFP44, Microcontroller	IC 8-BIT, MROM, 24 MHz, MICROCONTROLLER, PQCC44, Microcontroller	IC 8-BIT, OTPROM, 24 MHz, MICROCONTROLLER, PQCC44, Microcontroller	IC 8-BIT, MROM, 24 MHz, MICROCONTROLLER, PDIP40, Microcontroller	IC 8-BIT, OTPROM, 24 MHz, MICROCONTROLLER, PQFP44, Microcontroller
Maker	NXP	NXP	NXP	NXP	NXP	NXP	NXP	NXP
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Has ADC	NO	NO	NO	NO	NO	NO	NO	NO
Other features	ON-CIRCUIT EMULATION	ON-CIRCUIT EMULATION	ON-CIRCUIT EMULATION	ON-CIRCUIT EMULATION	ON-CIRCUIT EMULATION	ON-CIRCUIT EMULATION	ON-CIRCUIT EMULATION	ON-CIRCUIT EMULATION
Address bus width	16	16	16	16	16	16	16	16
bit size	8	8	8	8	8	8	8	8
boundary scan	NO	NO	NO	NO	NO	NO	NO	NO
maximum clock frequency	24 MHz	24 MHz	24 MHz	24 MHz	24 MHz	24 MHz	24 MHz	24 MHz
DAC channel	NO	NO	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO	NO	NO
External data bus width	8	8	8	8	8	8	8	8
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO	NO	NO	NO	NO
JESD-30 code	R-PDIP-T40	R-GDIP-T40	S-GQCC-J44	S-PQFP-G44	S-PQCC-J44	S-PQCC-J44	R-PDIP-T40	S-PQFP-G44
low power mode	YES	YES	YES	YES	YES	YES	YES	YES
Number of external interrupt devices	2	2	2	2	2	2	2	2
Number of I/O lines	32	32	32	32	32	32	32	32
Number of serial I/Os	1	1	1	1	1	1	1	1
Number of terminals	40	40	44	44	44	44	40	44
Number of timers	2	2	2	2	2	2	2	2
On-chip data RAM width	8	8	8	8	8	8	8	8
On-chip program ROM width	8	8	8	8	8	8	8	8
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
PWM channel	NO	NO	NO	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	WDIP	QCCJ	QFP	QCCJ	QCCJ	DIP	QFP
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	SQUARE	SQUARE	RECTANGULAR	SQUARE
Package form	IN-LINE	IN-LINE, WINDOW	CHIP CARRIER	FLATPACK	CHIP CARRIER	CHIP CARRIER	IN-LINE	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (number of words)	256	256	256	256	256	256	256	256
rom(word)	16384	16384	16384	16384	16384	16384	16384	16384
ROM programmability	OTPROM	UVPROM	UVPROM	MROM	MROM	OTPROM	MROM	OTPROM
speed	24 MHz	24 MHz	24 MHz	24 MHz	24 MHz	24 MHz	24 MHz	24 MHz
Maximum slew rate	44 mA	44 mA	44 mA	44 mA	44 mA	44 mA	44 mA	44 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	J BEND	GULL WING	J BEND	J BEND	THROUGH-HOLE	GULL WING
Terminal location	DUAL	DUAL	QUAD	QUAD	QUAD	QUAD	DUAL	QUAD
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Base Number Matches	1	1	1	1	1	1	1	1
Parts packaging code	DIP	DIP	QFN	QFP	-	QFN	-	QFP
Contacts	40	40	44	44	-	44	-	44
