UNLESS OTHERWISE
SPECIFIED
TOLERANCE
THIS IS A C.A.D. GENERATED DRAWING
DO NOT MAKE MANUAL REVISIONS TO MASTER.
ISSUE NUMBER
ORIGINAL
1
12.55
±0.38
39.19
±0.38
7.90
2.84
33.32
±0.25
24.66
±0.15
.X
.XX
.XXX
±0.25
±0.13
±0.10
5.8
6.0
1.385
10°
2.77
NOTES:
MATERIAL:
HOUSING: THERMOPLASTIC POLYESTER, UL94V-0
SHELL: STEEL, Sn or Ni PLATED
CONTACT: COPPER ALLOY SEE ORDERING GUIDE FOR PLATING
OPERATING TEMPERATURE: -55 C ~ 85 C
CURRENT RATING: 3A PER CONTACT
CONTACT RESISTANCE: 25mΩ MAX.
INSULATOR RESISTANCE: 5000MΩ min.
DIELECTRIC
WITHSTANDING VOLTAGE: 1000V AC rms
SW REFERENCE NO.:
628 ASSEMBLY
DATE:
DATE:
SHEET
AUG. 01/2018

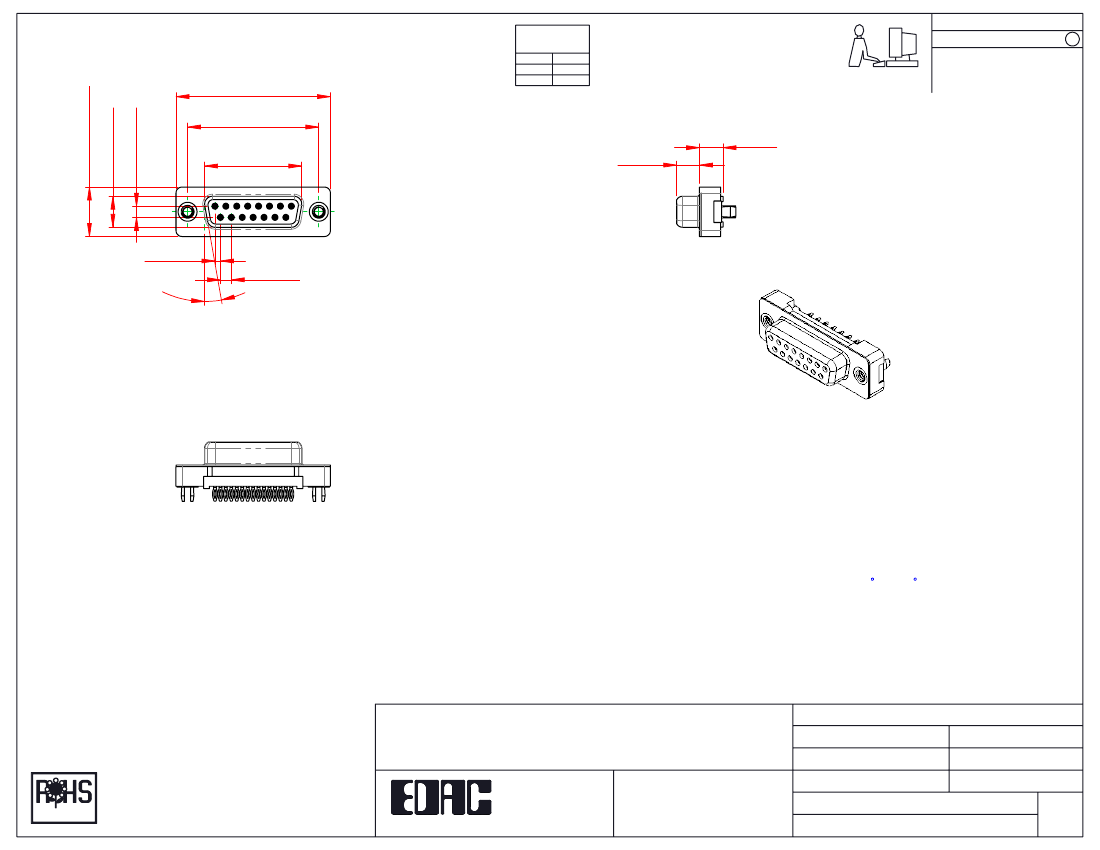

628 SERIES D-SUB CONNECTOR
THIS SERIES FULLY CONFORMS TO
THE EUROPEAN UNION DIRECTIVES
COMPLIANT
2011/65/EU FOR RoHS COMPLIANCY.
EDAC INC
TORONTO, ONTARIO
CANADA
YOUR CONNECTION TO QUALITY & SERVICE
THESE DRAWINGS AND SPECIFICATIONS
ARE THE PROPERTY OF EDAC INC.,AND
SHALL NOT BE REPRODUCED,OR COPIED
OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION.
DRAWN:
CHECKED:
SCALE:
C.B
1:1
1
OF
1
ISSUE
DRAWING NUMBER:
PART NUMBER:
628-015-326-016
628-015-326-016
1
