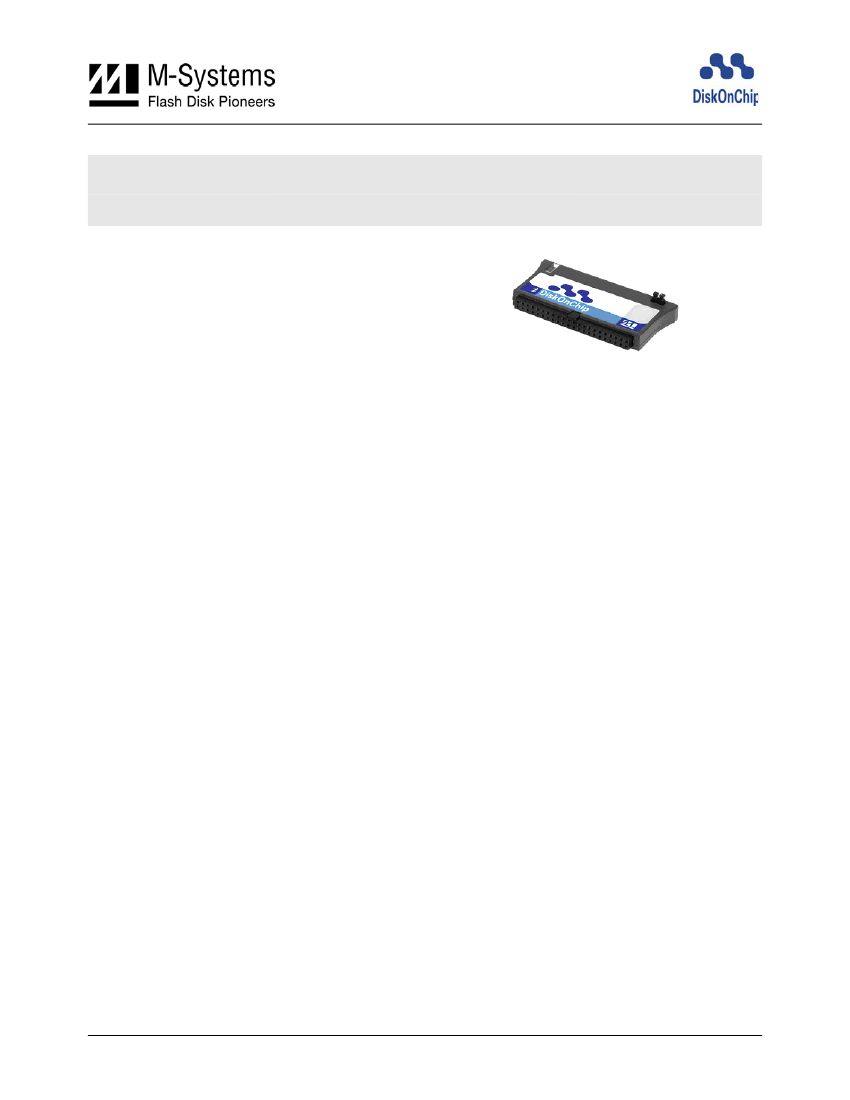

iDiskOnChip (iDOC)
Flash Disk with IDE Interface
Highlights
iDiskOnChip (iDOC) combines advanced and
proven DiskOnChip technology with a standard
IDE interface to complement the DiskOnChip
product line.
iDiskOnChip provides:
NAND flash-based technology
High performance
Platform independence
Fast time to market - no driver required
Reed-Solomon code-based EDC/ECC (2
Bits/Page)
Wear-Leveling Algorithm: This algorithm
guarantees the use of all flash components
at the same level of the write/erase cycle
Fast ATA host transfer rates supporting
PIO-4 in true IDE mode
IDE Master/Slave modes of operation
40-pin or 44-pin IDE connector
Vertical and horizontal alignments
IDE Modes
Operating Temperature
Temperature Range: 0ºC to +70ºC
Environmental Conditions
Storage Temperature: -40°C to + 80°C
Sinusoidal Vibration: 5g, 7-2000 Hz, 3 axis
Shock: 50 G, 3 axes
System Compatibility
Compatible with devices that support the
ATA-4 Attachment (without DMA support)
for Disk Drive Standard
Capacity and Packaging
PIO modes 0-4 (True IDE)
Performance
Available in capacities of 16MB to 1536MB
Alignments:
Vertical
Horizontal, left-oriented
Horizontal, right-oriented
Mechanical dimensions
Host Data Transfer Rate:
Read: 5 MB/sec
Write: 1.5 MB/sec
Power Requirements
Single power supply: 5V (± 10%) or 3.3v
(± 5%)
Current
Active Mode (Max.): 60 mA
Idle Mode (Max): 2 mA
Sleep mode (max): 500 µA
1
Vertical version:
40-pin: 56.3 x 6.0 x 30.6 (mm)
(LxWxH)
44-pin: 53.0 x 6.0 x 31.2 (mm)
(LxWxH)
Horizontal version:
40-pin: 55.0 x 30.4 x 9.1 (mm)
(LxWxH)
44-pin: 48.0 x 32.6 x 5.9 (mm)
(LxWxH)
Data Sheet, Rev 1.2
91-SR-012-01-8L
T
ABLE OF
C
ONTENTS
1. Introduction ............................................................................................................................... 4
2. Product Overview ...................................................................................................................... 5
2.1
2.2
2.3
3.1
3.2
3.3
3.4
4.1
4.2
4.3
4.4
Product Description ............................................................................................................ 5
Pin Assignment................................................................................................................... 6
Pin Description ................................................................................................................... 7
Overview............................................................................................................................. 9
Controller ............................................................................................................................ 9
Error Detection and Correction........................................................................................... 9
Wear-Leveling .................................................................................................................. 10
iDiskOnChip Pin Directions .............................................................................................. 11
iDiskOnChip Left/Right Orientation, Horizontal Version ................................................... 11
Electrical Connections for iDiskOnChip............................................................................ 12
Installing iDiskOnChip in a Two-Drive Configuration (Master/Slave) ............................... 12
4.4.1
4.4.2
Vertical Configuration ......................................................................................................... 12
Horizontal Configuration..................................................................................................... 13
3. Theory of Operation .................................................................................................................. 9
4. Installation Requirements ...................................................................................................... 11
5. Power Management................................................................................................................. 14
6. Specifications .......................................................................................................................... 15
6.1
6.2
CE and FCC Compatibility................................................................................................ 15
Environmental Specifications ........................................................................................... 15
6.2.1
6.2.2
6.2.3
6.2.4
6.2.5
Temperature Ranges ......................................................................................................... 15
Humidity.............................................................................................................................. 15
Shock and Vibration ........................................................................................................... 15
Mean Time between Failures (MTBF)................................................................................ 15
Endurance .......................................................................................................................... 16
40-Pin Horizontal Version................................................................................................... 16
44-Pin Horizontal Version................................................................................................... 16
40-Pin Vertical Version....................................................................................................... 17
44-Pin Vertical Version....................................................................................................... 17
6.3
Mechanical Dimensions.................................................................................................... 16
6.3.1
6.3.2
6.3.3
6.3.4
2
iDiskOnChip (iDOC) Data Sheet, Rev. 1.2
91-SR-012-01-8L
6.4
Electrical Specifications.................................................................................................... 18
6.4.1
6.4.2
6.4.3
Absolute Maximum Ratings................................................................................................ 18
DC Characteristics ............................................................................................................. 18
AC Characteristics.............................................................................................................. 18
7. Ordering Information............................................................................................................... 20
How to Contact Us ........................................................................................................................ 23
3
iDiskOnChip (iDOC) Data Sheet, Rev. 1.2
91-SR-012-01-8L
1.
I
NTRODUCTION
Overview of data sheet contents
Product overview, including brief product description, pin assignment and
description
Theory of operation
Installation requirements, including electrical cabling and master/slave
configurations
Power management for the various iDiskOnChip operational modes
Product specifications, including mechanical and electrical
Product ordering information and available product configurations
This data sheet includes the following sections:
Section 1:
Section 2:
Section 3:
Section 4:
Section 5:
Section 6:
Section 7:
For additional information on M-Systems’ flash disk products, please contact one of the offices
listed on the back page.
4
iDiskOnChip (iDOC) Data Sheet, Rev. 1.2
91-SR-012-01-8L
2.
2.1
P
RODUCT
O
VERVIEW
Product Description
iDiskOnChip complements the DiskOnChip product line, offering full IDE capabilities, high
performance, a built-in ECC system and flexible design options. It can be used in any system with
an IDE bus and can work with any operating system, since the driver is handled at the BIOS level.
iDiskOnChip is based on NAND flash technology. This technology is superior in its data storage
characteristics, featuring the industry’s highest write and erase performance, as well as the highest
burst read/write transfer rate. Additionally, NAND flash technology is known for its high density
and small die size, with the related cost and real estate benefits. Data integrity is guaranteed through
embedded error detection and error correction code (EDC/ECC) that automatically detects and
corrects data errors. An on-chip ECC unit generates the required code bytes for error detection and
correction of up to 2 bits per 512-byte data sector. Code-byte generation during write operations, as
well as error detection during read operation, is implemented on the fly without performance
degradation.
iDiskOnChip is ergonomically designed for easy installation and ready-to-run operation. Available
in 40-pin and 44-pin connector packages, iDiskOnChip fits easily into any platform with an IDE
connector.
The horizontal version is provided in both left and right orientations, giving maximum flexibility for
insertion to the host platform.
iDiskOnChip is available in capacities ranging from 16MB to 1536MB, making the upgrade path
simple and fast.
5
iDiskOnChip (iDOC) Data Sheet, Rev. 1.2
91-SR-012-01-8L
