DC7X

Description
Manchester Encoder/Decoder, CMOS, DIE
CategoryWireless rf/communication    Telecom circuit
File Size237KB,8 Pages
ManufacturerSupertex
Download Datasheet Parametric Compare View All

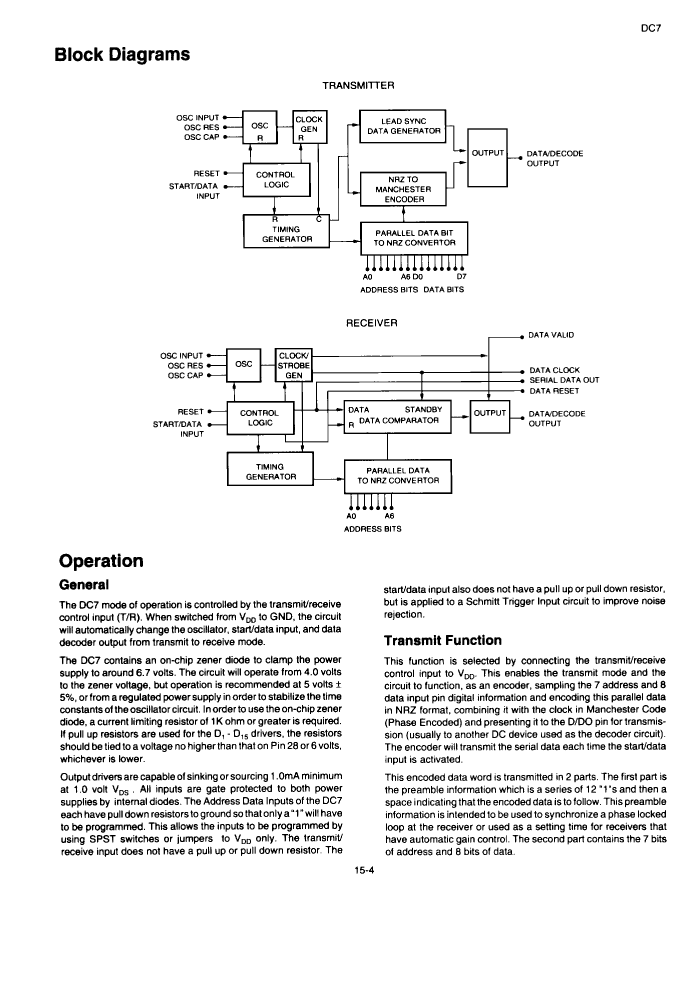

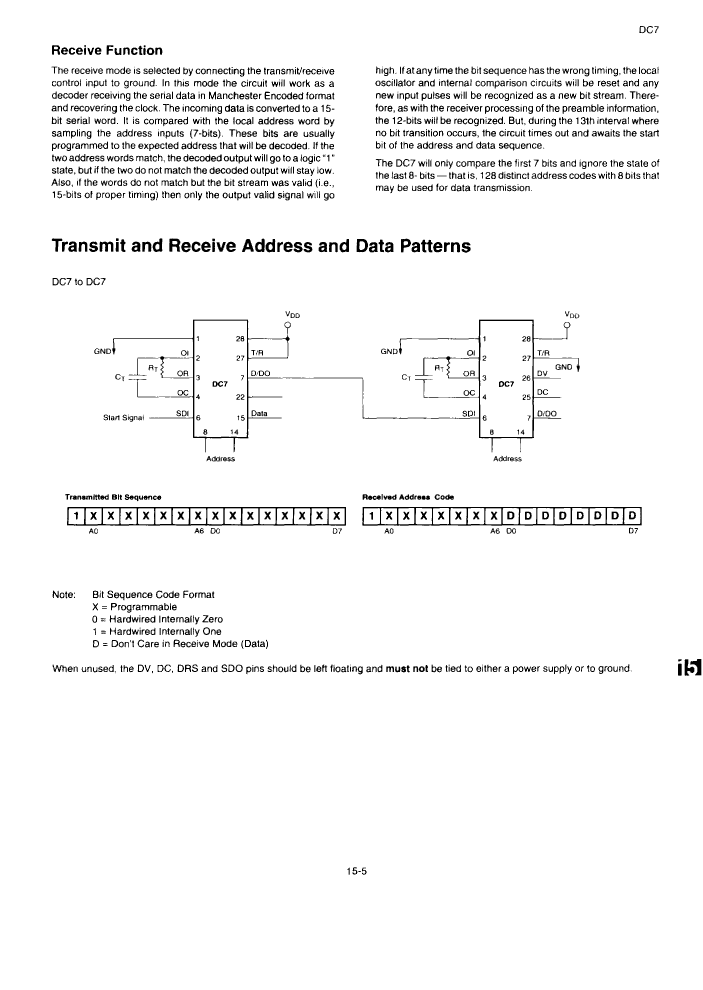

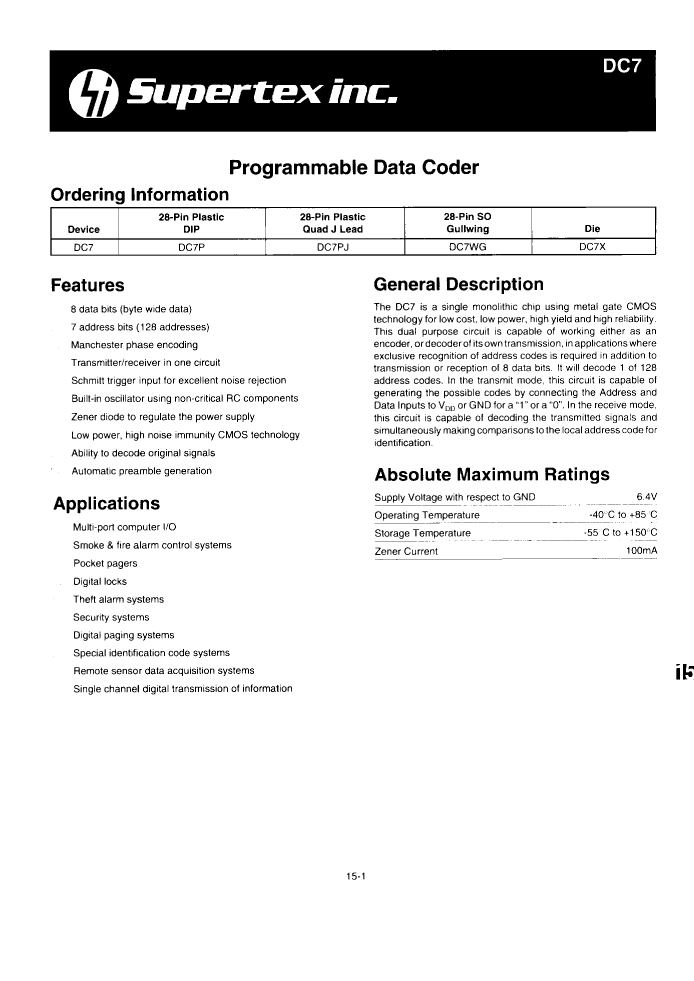

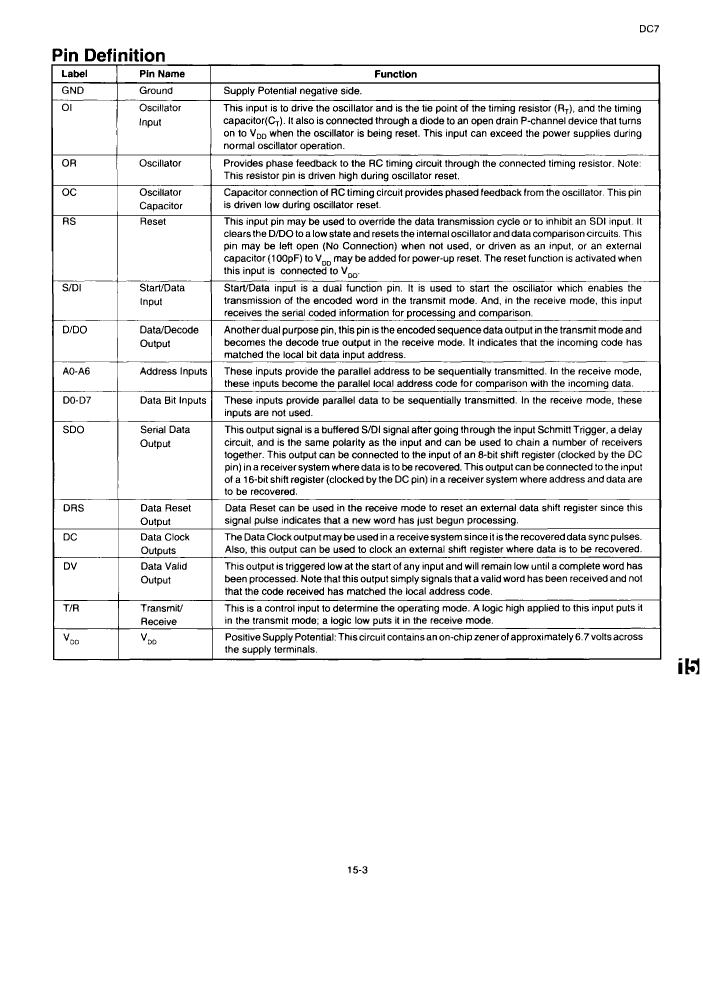

DC7X Overview

Manchester Encoder/Decoder, CMOS, DIE

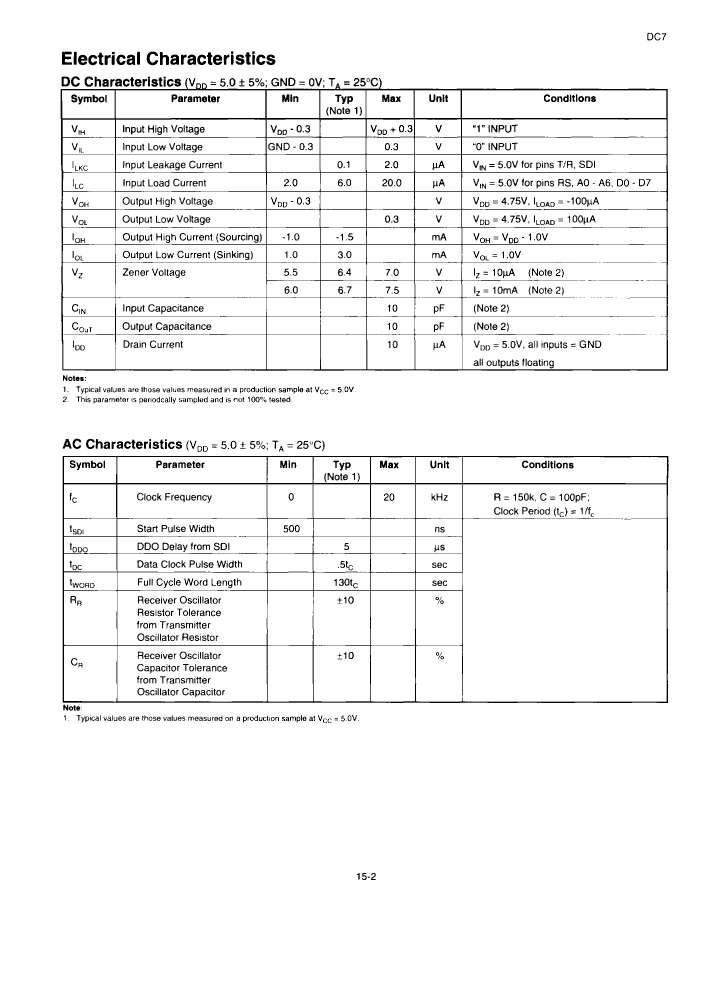

DC7X Parametric

Parameter NameAttribute value
MakerSupertex
Parts packaging codeDIE
package instructionDIE, DIE OR CHIP
Contacts28
Reach Compliance Codeunknown
JESD-30 codeR-XUUC-N28
Number of functions1
Number of terminals28
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package body materialUNSPECIFIED
encapsulated codeDIE
Encapsulate equivalent codeDIE OR CHIP
Package shapeRECTANGULAR
Package formUNCASED CHIP
power supply5 V
Certification statusNot Qualified
Nominal supply voltage5 V
surface mountYES
technologyCMOS
Telecom integrated circuit typesMANCHESTER ENCODER/DECODER
Temperature levelINDUSTRIAL
Terminal formNO LEAD
Terminal locationUPPER
Base Number Matches1

DC7X Related Products

DC7X DC7P DC7PJ DC7WG
Description Manchester Encoder/Decoder, CMOS, DIE Manchester Encoder/Decoder, CMOS, PDIP28, PLASTIC, DIP-28 Manchester Encoder/Decoder, CMOS, PQCC28, PLASTIC, J LEAD, QUAD-28 Manchester Encoder/Decoder, CMOS, PDSO28, SOW-28
Maker Supertex Supertex Supertex Supertex
Parts packaging code DIE DIP QFJ SOIC
package instruction DIE, DIE OR CHIP DIP, DIP28,.6 QCCJ, LDCC28,.5SQ SOP, SOP28,.5
Contacts 28 28 28 28
Reach Compliance Code unknown unknown unknown unknown
JESD-30 code R-XUUC-N28 R-PDIP-T28 S-PQCC-J28 R-PDSO-G28
Number of functions 1 1 1 1
Number of terminals 28 28 28 28
Maximum operating temperature 85 °C 85 °C 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C
Package body material UNSPECIFIED PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code DIE DIP QCCJ SOP
Encapsulate equivalent code DIE OR CHIP DIP28,.6 LDCC28,.5SQ SOP28,.5
Package shape RECTANGULAR RECTANGULAR SQUARE RECTANGULAR
Package form UNCASED CHIP IN-LINE CHIP CARRIER SMALL OUTLINE
power supply 5 V 5 V 5 V 5 V
Certification status Not Qualified Not Qualified Not Qualified Not Qualified
Nominal supply voltage 5 V 5 V 5 V 5 V
surface mount YES NO YES YES
technology CMOS CMOS CMOS CMOS
Telecom integrated circuit types MANCHESTER ENCODER/DECODER MANCHESTER ENCODER/DECODER MANCHESTER ENCODER/DECODER MANCHESTER ENCODER/DECODER
Temperature level INDUSTRIAL INDUSTRIAL INDUSTRIAL INDUSTRIAL
Terminal form NO LEAD THROUGH-HOLE J BEND GULL WING
Terminal location UPPER DUAL QUAD DUAL
Base Number Matches 1 1 1 1
Is it Rohs certified? - incompatible incompatible incompatible
JESD-609 code - e0 e0 e0
length - 36.83 mm 11.43 mm 17.8943 mm
Maximum seat height - 3.937 mm 4.572 mm 2.6416 mm
Terminal surface - Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal pitch - 2.54 mm 1.27 mm 1.27 mm
width - 15.24 mm 11.43 mm 7.493 mm
