628-M09-221-BT3 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 628-M09-221-BT3

628-M09-221-BT3: DescriptionD Subminiature Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40 Unc, Receptacle,; CategoryThe connector The connector; File Size357KB，3 Pages; ManufacturerEDAC; Environmental Compliance

Download Datasheet Parametric View All

628-M09-221-BT3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	628-M09-221-BT3	-	-	View	Buy Now

628-M09-221-BT3 Overview

D Subminiature Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40 Unc, Receptacle,

628-M09-221-BT3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7415590954
Reach Compliance Code	compliant
YTEOL	8.5
Other features	EMI/RFI SHIELDING
Board mount options	HOLE .125-.137
body width	0.492 inch
subject depth	0.201 inch
body length	1.213 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contactor design	MACHINED
Contact point gender	FEMALE
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1414VAC V
empty shell	NO
Filter function	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYAMIDE6T
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Plug information	MULTILE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#4-40 UNC
Installation option 2	SCREW
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.84 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL
Shell surface	TIN
Shell material	STEEL
Housing size	1/E
Terminal pitch	2.77 mm
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

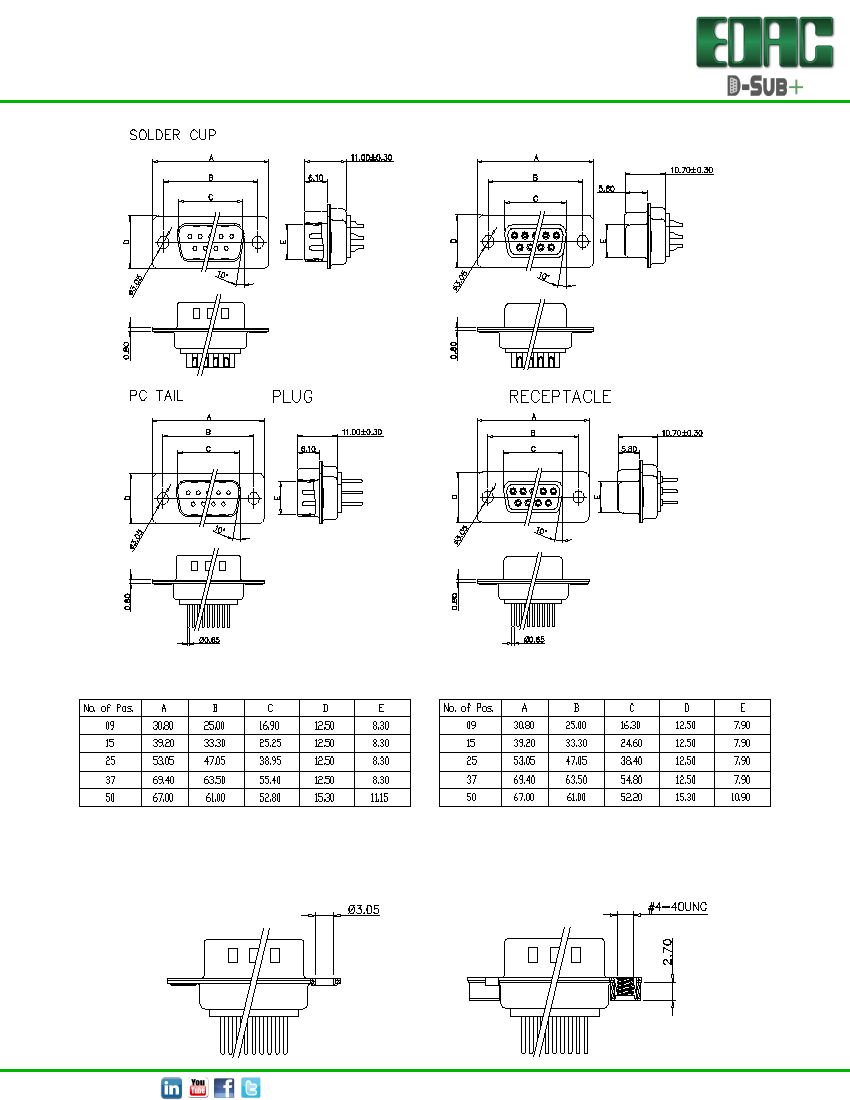

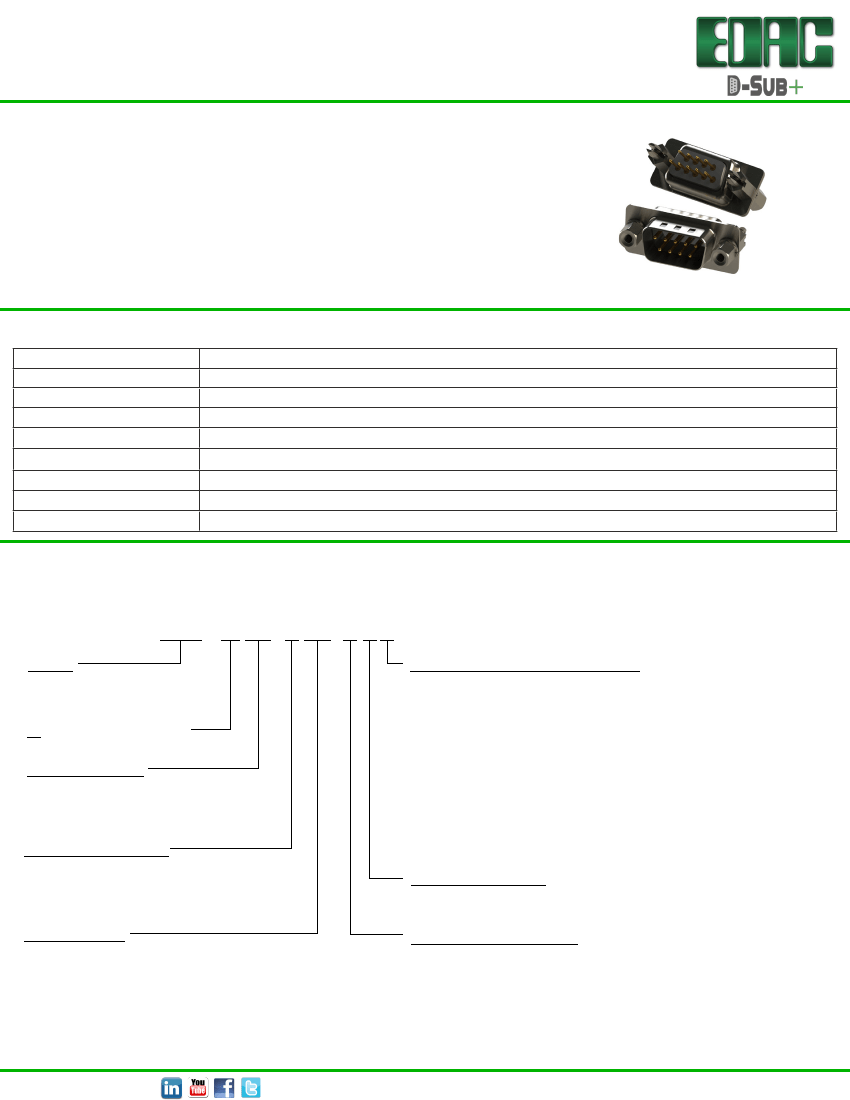

627M/628M

SERIES

Machined D-Sub Connectors: Vertical

Features:

•

Standard density, straight D-Sub with machined contacts

0.109”(2.77mm) contact spacing x 0.112”(2.84mm) row spacing

Plug and receptacle in 9, 15, 25, 37 or 50 contact sizes

Pin and socket contact mating design with P.C. tail, and solder cup termination

Metal shell provides EMI/RFI shielding, plug shell indents provide grounding and additional mating

retention

Grounding features include boardlock for exceptional retention to P.C. board

Mounting options for panel mount or connector mating include through hole, threaded inserts and

threaded standoffs

Insulation housings are offered in different colors: black, white, green and blue

D-shaped connector mating outline provides polarization

Specifications:

Insulator Material

Contact Material

Contact Plating

Shell Material

Current Rating

Contact Resistance

Dielectric Withstanding Voltage

Insulation Resistance

Operating Temperature

PA6T, UL 94V-0, Color: Black, White, Blue or Green

Precision Machined Copper Alloy

Gold Plating over Nickel All Over

Nickel Plated Steel (Optional Tin Plating)

5 amps

10 Milliohms maximum

5000 megaohms minimum

1000 V AC rms at Sea Level

-55°C To +125°C

Ordering Code:

627-M25-220-BN3

SERIES:

627: PLUG (PIN)

628: RECEPTACLE (SOCKET)

M: MACHINED CONTACTS

NO. OF CONTACTS:

09 - 9 CONTACTS 25 - 25 CONTACTS

15 - 15 CONTACTS 37 - 37 CONTACTS

50 - 50 CONTACTS

CONTACT FINISH CODE:

2 - GOLD FLASH PLATING

3 - 15 MICROINCHES OF GOLD PLATING

6 - 30 MICROINCHES OF GOLD PLATING

CONTACT CODE:

20 - .224"(5.70mm) PC TAIL (ONLY FOR PLUG)

21 - .232"(5.90mm) PC TAIL (ONLY FOR RECEPTACLE)

22 - SOLDER CUP TAIL

23 - .495".(12.57mm) PC TAIL

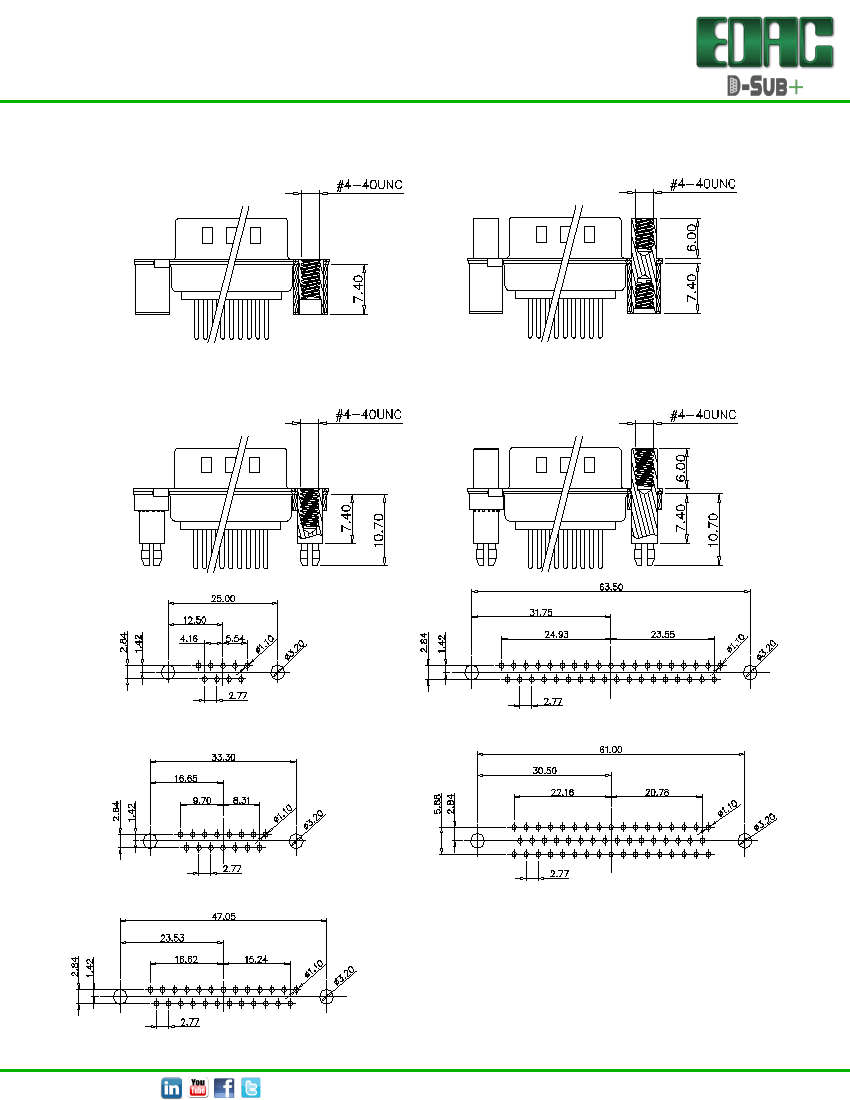

MOUNTING & GROUNDING OPTIONS:

1 - Ø.120"(Ø3.05MM) THROUGH HOLE

2 - 4-40 UNC, 2.7MM THREADED INSERT

(NOTE: CODES 3, 4, 5, & 6 ARE FOR PC TAIL ONLY)

3 - 4-40 UNC THREADED BOARDSPACER

4 - 4-40 UNC THREADED STANDOFF WITH

THREADED BOARDSPACER

5 - 4-40 UNC THREADED BOARDSPACER

WITH BOARDLOCKS

6 - 4-40 UNC THREADED STANDOFF WITH

BOARDSPACER & BOARDLOCKS

SHELL PLATING CODE:

N - NICKEL

T - TIN

HOUSING MATERIAL CODE:

B - BLACK

W - WHITE

G - GREEN

L - BLUE

www.edac.net
