C0402T229D5GACTM datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> C0402T229D5GACTM

C0402T229D5GACTM: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 22.7273% +Tol, 22.7273% -Tol, C0G, -/+30ppm/Cel TC, 0.0000022uF, 0402,; CategoryPassive components capacitor; File Size1MB，18 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

C0402T229D5GACTM Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 22.7273% +Tol, 22.7273% -Tol, C0G, -/+30ppm/Cel TC, 0.0000022uF, 0402,

C0402T229D5GACTM Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	929286314
package instruction	, 0402
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.0000022 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.5 mm
JESD-609 code	e3
length	1 mm
multi-layer	Yes
negative tolerance	22.7273%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, Paper, 7 Inch
positive tolerance	22.7273%
Rated (DC) voltage (URdc)	50 V
series	C(SIZE)T(C0G)-COTS
size code	0402
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
width	0.5 mm

Preview

Download Datasheet

View All

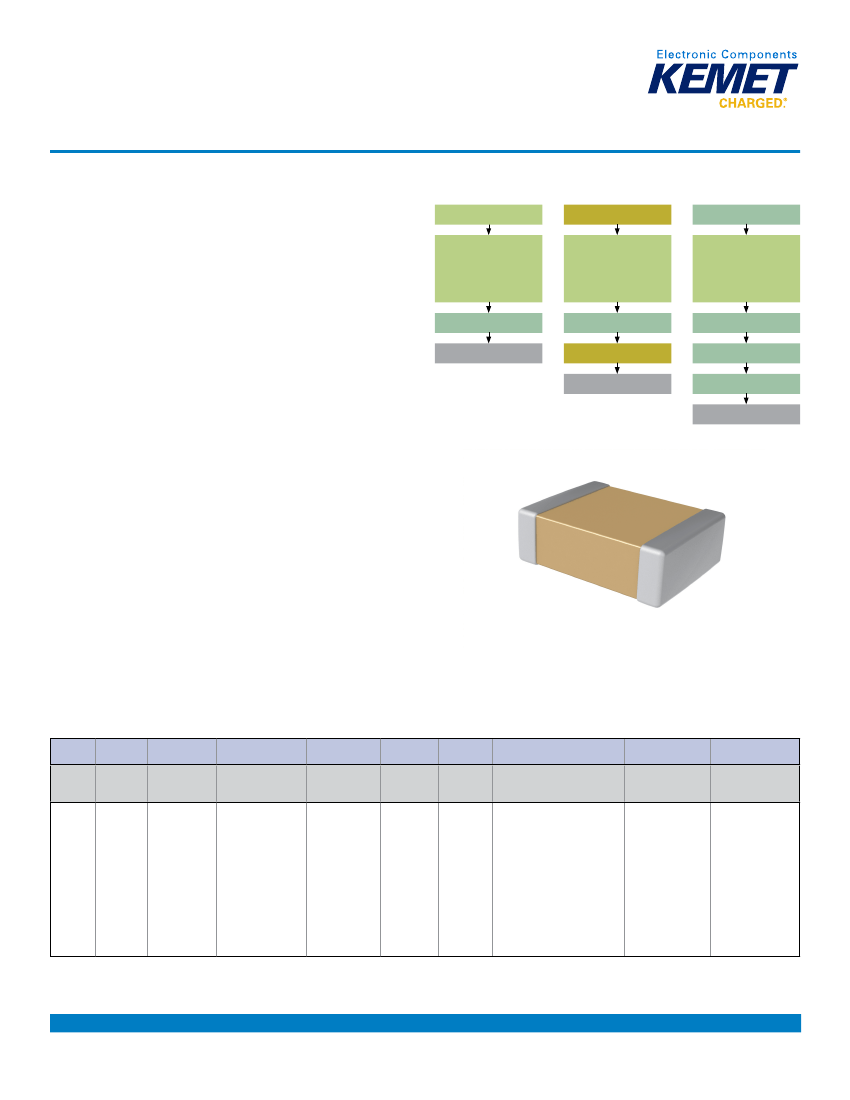

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

Commercial Off-The-Shelf (COTS) for Higher Reliability

Applications, C0G Dielectric, 10 – 250 VDC

Overview

KEMET’s COTS program is an extension of KEMET knowledge

of high reliability test regimes and requirements. KEMET regularly

supplies “up-screened” products by working with customer drawings

and imposing specified design and test requirements. The COTS

program offers the same high quality and high reliability components

as up-screened products, but at a lower cost to the customer. This is

accomplished by eliminating the need for customer-specific drawings

to achieve the reliability level required for customer applications. A

series of tests and inspections have been selected to provide the

accelerated conditioning and 100% screening necessary to eliminate

infant mortal failures from the population.

KEMET’s C0G dielectric features a 125°C maximum operating

temperature and is considered “stable.” The Electronics Components,

Assemblies & Materials Association (EIA) characterizes C0G

dielectric as a Class I material. Components of this classification

are temperature compensating and are suited for resonant

circuit applications or those where Q and stability of capacitance

characteristics are required. C0G exhibits no change in capacitance

with respect to time and voltage and boasts a negligible change in

capacitance with reference to ambient temperature. Capacitance

change is limited to ±30 ppm/ºC from -55°C to +125°C.

All COTS testing includes voltage conditioning and post-electrical

testing as per MIL–PRF–55681. For enhanced reliability, KEMET also

provides the following test level options and conformance certifications:

Click image above for interactive 3D content

Open PDF in Adobe Reader for full functionality

Test Level A

Voltage Conditioning

DWV

IR@25°C

CAP

PDA 8%

C of C

Test Level B

Voltage Conditioning

DWV

IR@25°C

CAP

PDA 8%

DPA

C of C

Test Level C

Voltage Conditioning

DWV

IR@25°C

CAP

PDA 8%

DPA

85/85

C of C

Ordering Information

Ceramic

1206

104

Capacitance

Code (pF)

2 significant digits

+ number of zeros

Use 9 for

1.0 – 9.9 pF

Use 8 for

0.5 – .99 pF

ex. 2.2 pF = 229

ex. 0.5 pF = 508

Capacitance

Tolerance

B = ±0.10 pF

C = ±0.25 pF

D = ±0.5 pF

F = ± 1%

G = ±2%

J = ±5%

K = ±10%

M = ±20%

Voltage

Dielectric

Failure Rate/Design

A = Testing per MIL–PRF–

55681 PDA 8%

B= Testing per MIL–PRF–

55681 PDA 8%, DPA per

EIA–469

C = Testing per MIL–

PRF–55681 PDA 8%, DPA

per EIA–469, Humidity per

MIL–STD–202, Method 103,

Condition A

Termination

Finish

C = 100%

Matte Sn

L = SnPb (5%

minimum)

Packaging/Grade

(C-Spec)

Blank = Bulk

TU = 7" Reel

Case Size

Specification/

(L" x W")

Series

0402

0603

0805

1206

1210

1812

2220

T = COTS

8 = 10 V

G = C0G

4 = 16 V

3 = 25 V

6 = 35 V

5 = 50 V

1 = 100 V

2 = 200 V

A = 250 V

Additional capacitance tolerance offerings may be available. Contact KEMET for details.

Additional termination finish options may be available. Contact KEMET for details.

Additional reeling or packaging options may be available. Contact KEMET for details.

One world. One KEMET

C1026_C0G_COTS_SMD • 12/15/2014
