BZX85C30-AP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BZX85C30-AP

BZX85C30-AP: DescriptionZener Diode, 30V V(Z), 6.67%, 1.3W, Silicon, Unidirectional, DO-41, ROHS COMPLIANT, DO-41G, 2 PIN; CategoryDiscrete semiconductor diode; File Size262KB，3 Pages; ManufacturerMicro Commercial Components (MCC); Environmental Compliance

Download Datasheet Parametric View All

BZX85C30-AP Overview

Zener Diode, 30V V(Z), 6.67%, 1.3W, Silicon, Unidirectional, DO-41, ROHS COMPLIANT, DO-41G, 2 PIN

BZX85C30-AP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Micro Commercial Components (MCC)
Parts packaging code	DO-41
package instruction	O-XALF-W2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW NOISE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JEDEC-95 code	DO-41
JESD-30 code	O-XALF-W2
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	1.3 W
Certification status	Not Qualified
Nominal reference voltage	30 V
surface mount	NO
technology	ZENER
Terminal surface	Matte Tin (Sn)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	6.67%
Working test current	8 mA
Base Number Matches	1

Preview

Download Datasheet

View All

MCC

Micro Commercial Components

omponents

20736 Marilla

Street Chatsworth

!"#

$ % !"#

BZX85C

Series

Features

•

Low noise and Low reverse current

Very high stability

Very sharp reverse characteristic

Lead Free Finish/RoHS Compliant (Note1) ("P"Suffix designates

Compliant. See ordering information)

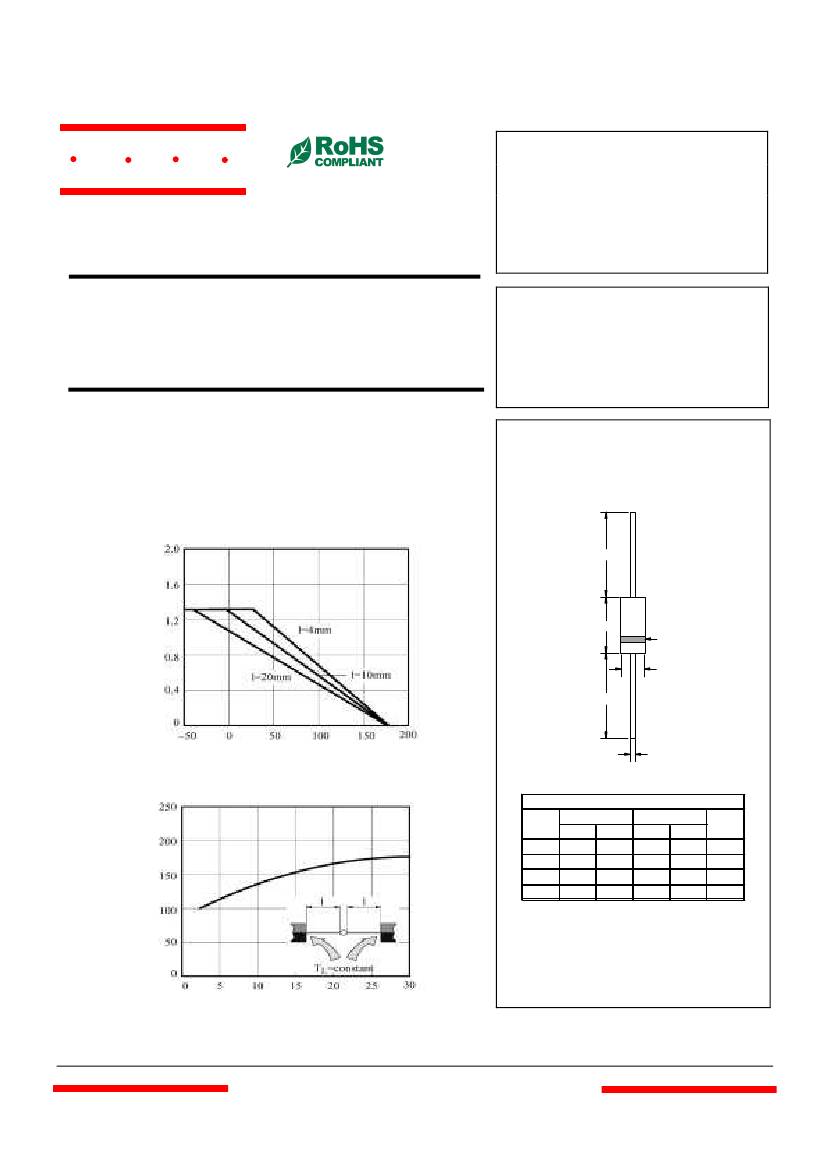

Maximum Ratings

•

1.3 Watt

Zener Diode

2.7 to

Volts

DO-41G

Operating Temperature: -65 to +175

Storage Temperature: -65 to +175

DC Power Dissipation: 1.3 Watt @ L=4mm T

Forward Voltage @ 200mA: 1.0 Volts

Thermal Resistance: 110K/W Junction to Ambient

Moisture Sensitivity Level 1

Figure1.

Power Dissipation vs. Ambient Temperature

Ptot –Total Power Dissipation (W)

Cathode

Mark

Tamb – Ambient Temperature(

)

Figure2. Thermal Resistance vs. Lead Length

DIMENSIONS

INCHES

NOTE

MIN

-----

0 .0 2 6

1.0 0 0

MAX

0.177

0.110

0.0 34

-----

MIN

-----

0.70

2 5 .40

MAX

4.50

2.80

0.90

-----

Diameter

DIM

thJA

– Therm. Resist. Junction/

Ambient (K/W)

L– Lead Length (mm)

Note:

Lead in Glass Solder Exemption Applied, see EU Directive Annex 5.

Revision:

www.mccsemi.com

1 of 3

2011/01/01
