Data sheet
MI8DI-S F10 S
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

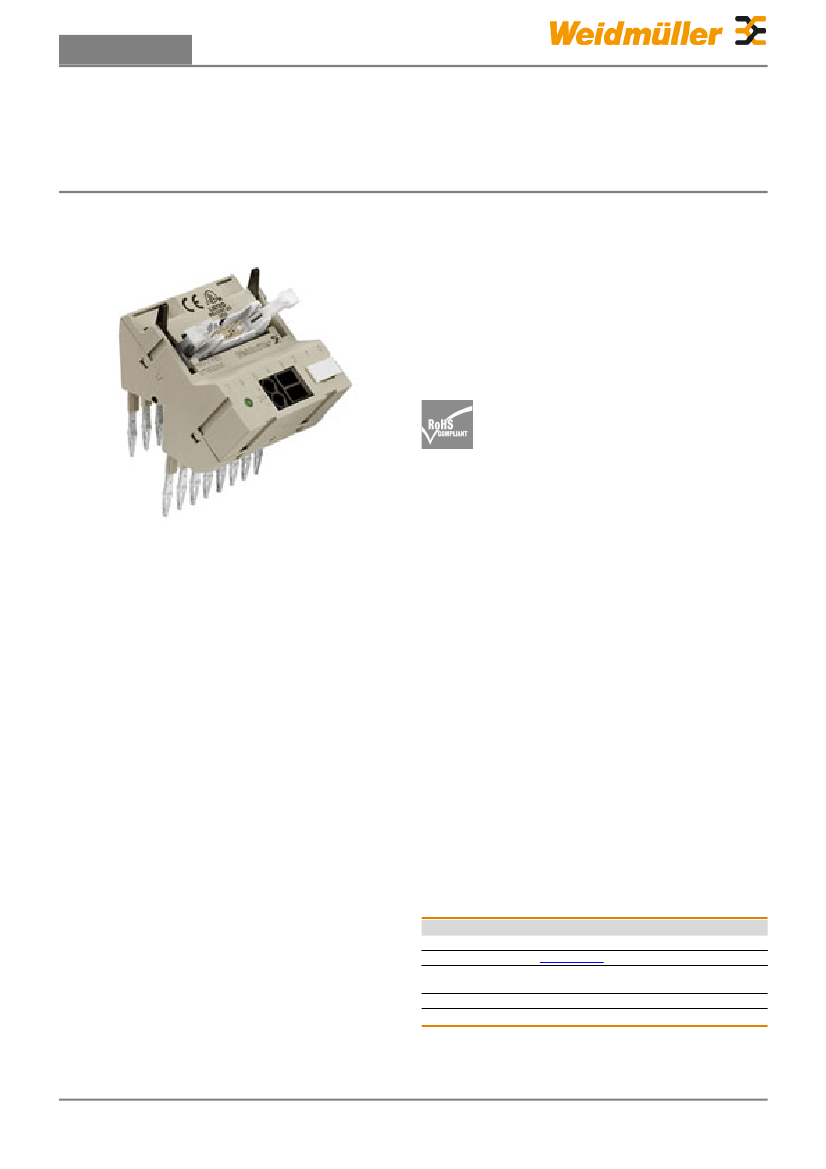

Specific adapter to be connected to the MICROSERIE
RELAYS using a 10-pole flat-cable connector or 15-pole
Sub-D connector.
General ordering data
Type
Order No.
Version
GTIN (EAN)
Qty.
MI8DI-S F10 S
8773510000
Connector according IEC60603-13/DIN41651,
Screw connection
4032248442034
1 pc(s).
Creation date January 3, 2014 6:59:23 PM CET
Catalogue status / We reserve the right to make technical changes.
1
Data sheet
MI8DI-S F10 S
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
48 mm
53 mm
Width
Net weight
Dimensions and weights
Length
Height
59 mm
81 g
Temperatures
Operating temperature
Storage temperature
0...+55°C
-20...+85 °C
Ambient temperature
0 °C...+55 °C
Connection data
Connection on control side
Supply voltage
Connector according
IEC60603-13/DIN41651
24 V DC
Number of poles (control side)
Supply plug-in connectors
10-pole plug
TOP 1.5GS2/180
Ratings data
Operating voltage
Total operating current
30 V UC
2A
Max. current per channel
0.5 A
Insulation coordination (EN50178)
According to
Surge voltage category
Insulation test voltage
DIN EN 50178
III
0.35 kVAC
Rated insulation voltage
Pollution severity level
< 50 V AC
2
Supply connection
Type of connection
Clamping range, max.
Solid, max. H05(07) V-U
Flexible, max. H05(07) V-K
Flexible with sleeve, min.
Wire cross-section, min. AWG
Tightening torque, min.
Stripping length
Screw connection
0.13 mm²
0.5 mm²
0.5 mm²
2.5 mm²
AWG 14
0.4 Nm
10 mm
Clamping range, min.
Solid, min. H05(07) V-U
Flexible, min. H05(07) V-K
Flexible with sleeve, max.
Ferrule with plastic collar, max.
Wire cross-section, max. AWG
Tightening torque, max.
2.5 mm²
2.5 mm²
2.5 mm²
0.5 mm²
0.5 mm²
AWG 26
0.5 Nm
Classifications
ETIM 3.0
eClass 5.1
eClass 7.1
EC001421
27-24-22-02
27-24-22-02
UNSPSC
eClass 6.2
30-21-18-01
27-24-22-02
Product information
Descriptive text ordering data
MI8DI-S = screw connection
MI8DI-Z = tension clamp connection
Creation date January 3, 2014 6:59:23 PM CET
Catalogue status / We reserve the right to make technical changes.
2
Data sheet
MI8DI-S F10 S
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
Approvals
Approvals
ROHS
Conform
Downloads
Declaration of Conformity
K274_10_04.pdf
Creation date January 3, 2014 6:59:23 PM CET
Catalogue status / We reserve the right to make technical changes.
3
Data sheet
MI8DI-S F10 S
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Drawings
Creation date January 3, 2014 6:59:23 PM CET
Catalogue status / We reserve the right to make technical changes.
4
