C231F3 datasheet, PDF - EEWORLD Datasheet

C231F3: DescriptionSilicon Controlled Rectifier, 25000mA I(T), 50V V(DRM); CategoryAnalog mixed-signal IC Trigger device; File Size203KB，3 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric View All

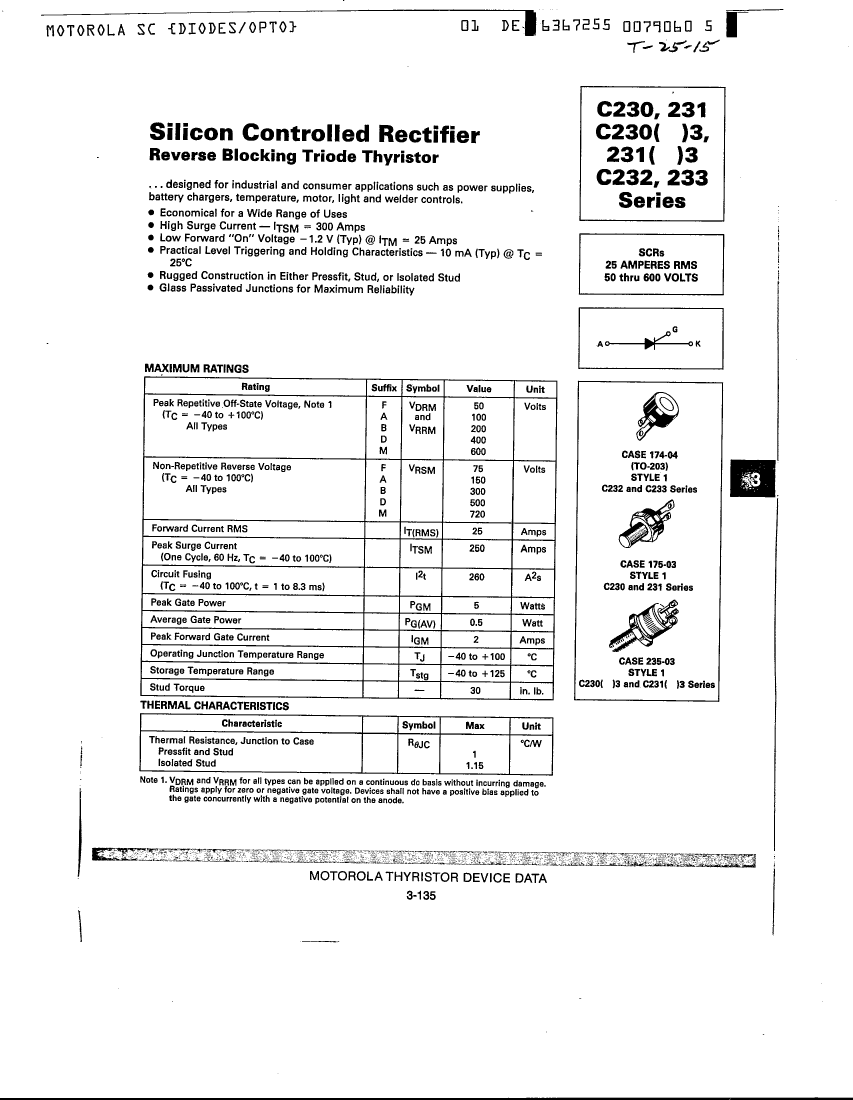

C231F3 Overview

Silicon Controlled Rectifier, 25000mA I(T), 50V V(DRM)

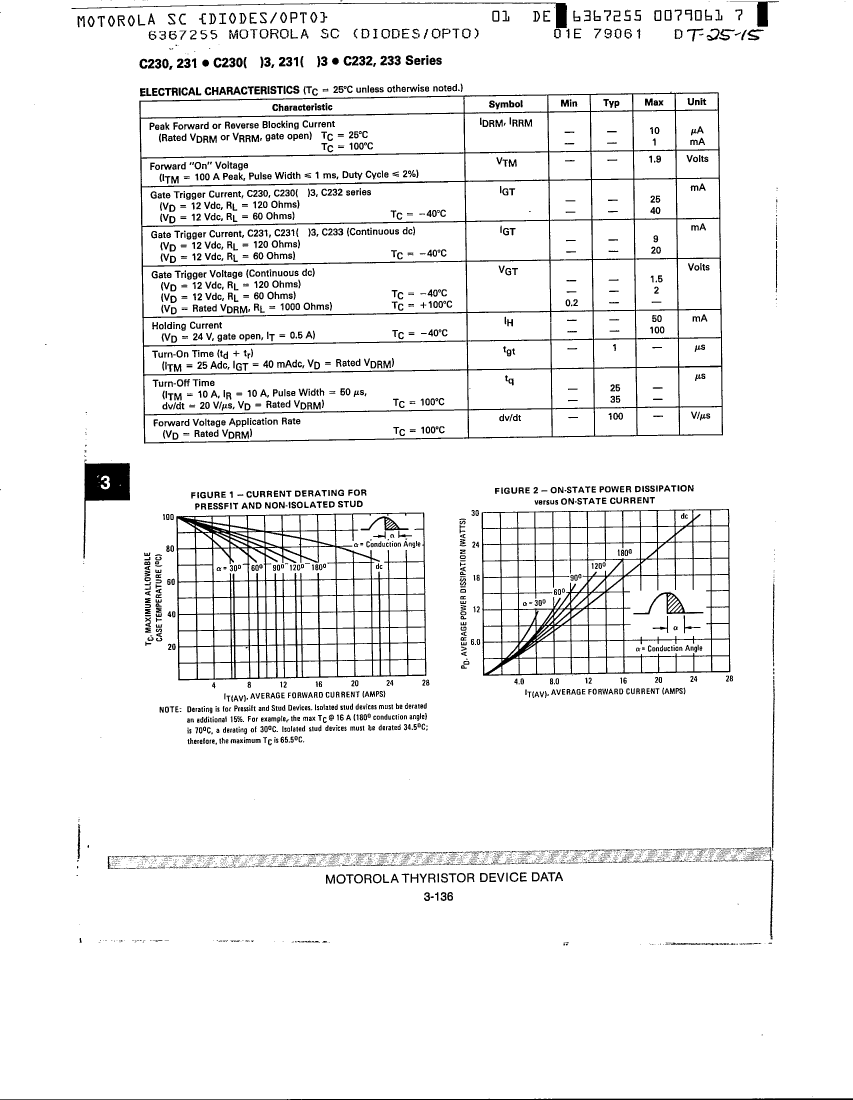

Parameter Name	Attribute value
Objectid	1436197567
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Nominal circuit commutation break time	25 µs
Critical rise rate of minimum off-state voltage	50 V/us

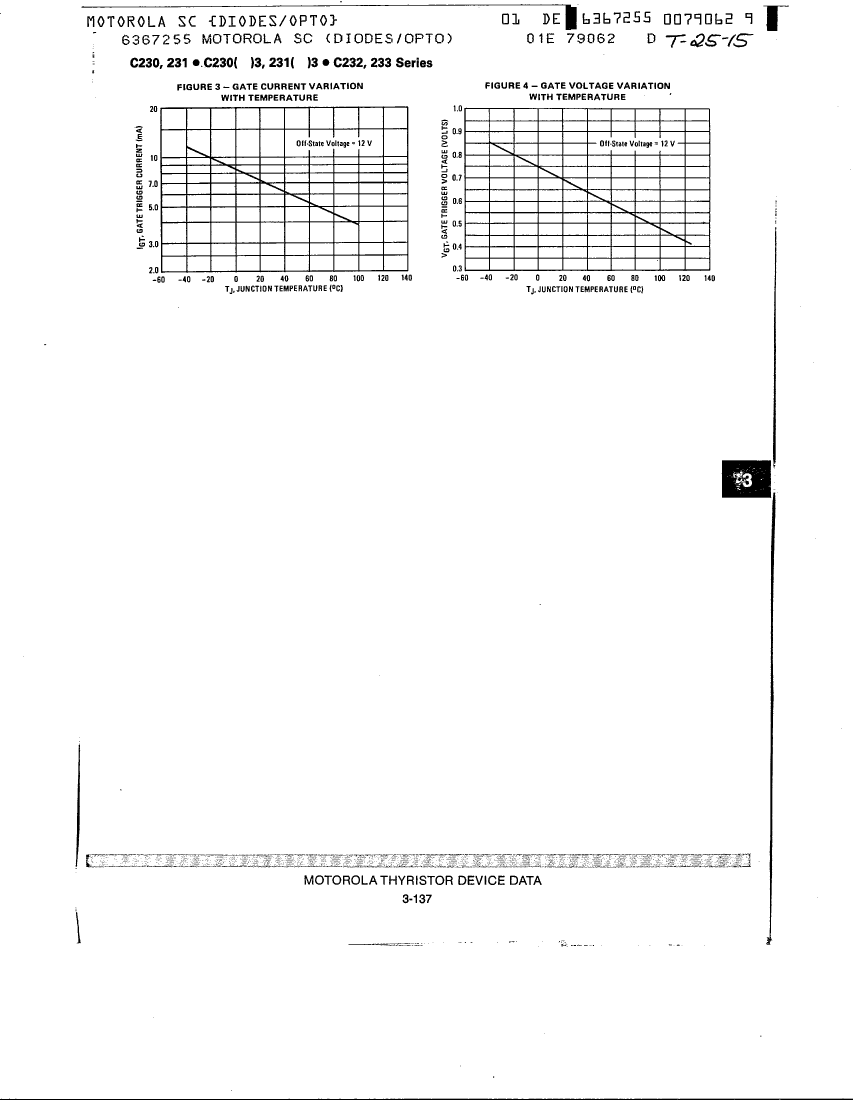

Maximum DC gate trigger current	9 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	50 mA
Maximum leakage current	1 mA
On-state non-repetitive peak current	250 A
Maximum on-state voltage	1.9 V
Maximum on-state current	25000 A
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Off-state repetitive peak voltage	50 V
surface mount	NO
Trigger device type	SCR
