DIGITAL I/O MODULE MOUNTING BOARDS
FOR QUAD-PACK MODULES
PB32HQ

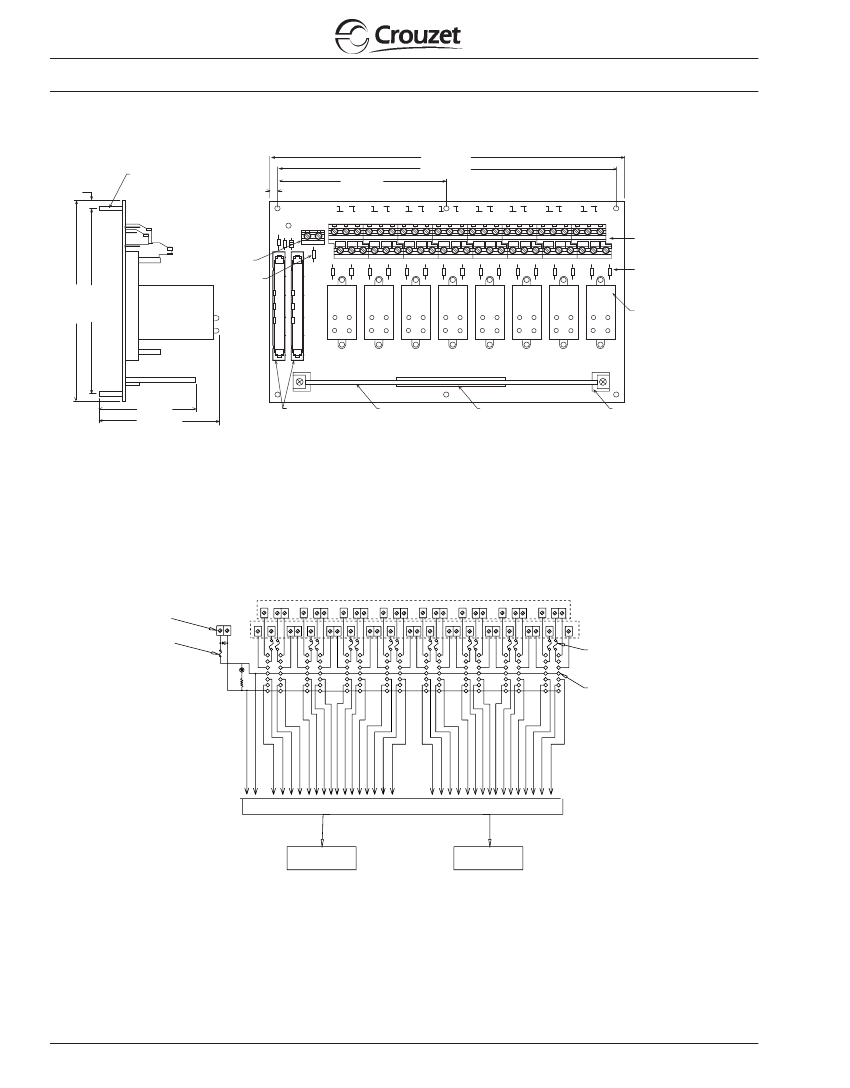

DIMENSIONS: INCHES (MILLIMETERS)
TOLERANCE:
±0.020
(±0.50)
SWAGED STANDOFF
THRU HOLE
0.15 (3.8) DIA.
x 0.75 (19,1) LONG (4)
11.5 (291,9)
11.0 (279,4)
5.5 (139,7)
0.25 (6,4)
1
2
TB1
0.25 (6,4)
PWR
ON
5A
D2
SPARE
FUSE
R1 D1
GND +5V
C
C
3
4
5
6
C
C
7
8
9
10
C
C
11 13
12 14
C
C
15
16
17
18
C
C
19 21
20 22
C
C
23
24
25
26
C
C
27
28
29
30
C
C
31
32
TB3
F1A
POWER BARRIER STRIPS
(SEE NOTE 2,3)
6.5 (164,9)
6.0 (152,4)
4-40 SCREW TERMINAL
LOGIC SUPPLY BARRIER STRIP
REPLACEABLE 2 AMP
LOGIC SUPPLY FUSE
(SEE NOTE 4)
J1
J2
F1
F2
F3
F4
F5
F6
F7
F8
F9
F10
F11
F12
F13
F14
F15
F16
REPLACEABLE 5 AMP
LINE FUSES (16)
(SEE NOTE 5)
GORDOS QUAD-PACK DIGITAL
I/O MODULES SOLD
SEPERATELY
0-3
4-7
8-11
12-15
16-19
20-23
24-27
28-31
J3
CROUZET CORP.
57-462
PB-32HQ
3.15 (80,0)
3.9 (100,2)
50 CONDUCTOR MALE
PIN CONNECTORS (J1,J2)
(SEE NOTE 1)
PAM-4 MULTIPLEXER
BOARD SOLD SEPERATELY
HEADER CONNECTOR (J3)
CARD SUPPORTS (2)
NOTES: 1) CONNECTOR IS CIRCUIT ASSEMBLY CA-50H-2B-SR OR EQUIVALENT.
CONNECTORS ARE WIRED IN PARALLEL.
2) 6-32 SCREW TERMINAL BARRIER STRIPS ACCEPT WIRE SIZES FROM 24 TO 12 AWG.
3) OPTIONAL JUMPERS AVAILABLE TO INTERCONNECT BARRIER STRIP COMMONS.
ORDER 2 EACH JUMPERS "JQ2" AND 4 EACH JUMPERS "JQ4".
4) LITTLE FUSE 251001 OR EQUIVALENT.
5) LITTLE FUSE 251005 OR EQUIVALENT.
1
C
3
5
C
7
9
C
11
13
C
15
17
C
19
21
C
23
25
C
27
29
C
31
LOWER BARRIER STRIP
32
LOGIC SUPPLY
BARRIER STRIP
1 AMP
LOGIC
SUPPLY
FUSE
+5V GND
2
C
4
6
C
8
10
C
12
14
C
16
18
C
20
22
C
24
26
C
28
30
C
UPPER BARRIER STRIP
5 AMP LINE
FUSES (16)
1
2
8
9
10
11
12
13
14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
PWR
ON
3
4
5
6
7
I/O MODULE PIN
SOCKETS
70-PIN MALE CONNECTOR ACCEPTS PAM4 MULTIPLEXER BOARD
J1
J2
SIGNAL INPUT/OUTPUT 50 CONDUCTOR
MALE PIN CONNECTORS. J1 AND J2
ARE WIRED IN PARALLEL.
