DataSheet
PB8
MOUNTING BOARD
•
Plug-compatible logic connections
•
Screw terminal barrier block for load connections
•
Resident pull-up resistors
•
5 amp field-replaceable fuses
(LITTELFUSE #251005 or equivalent)
•
LEDs indicate logic status
•
All even-numbered logic connections are logic ground
•
Input and output modules accepted interchangeably
•
Operate with 5, 15 or 24 volt logic supplies
•
Captive-screw retaining system for standard-size
modules
I/O Modules

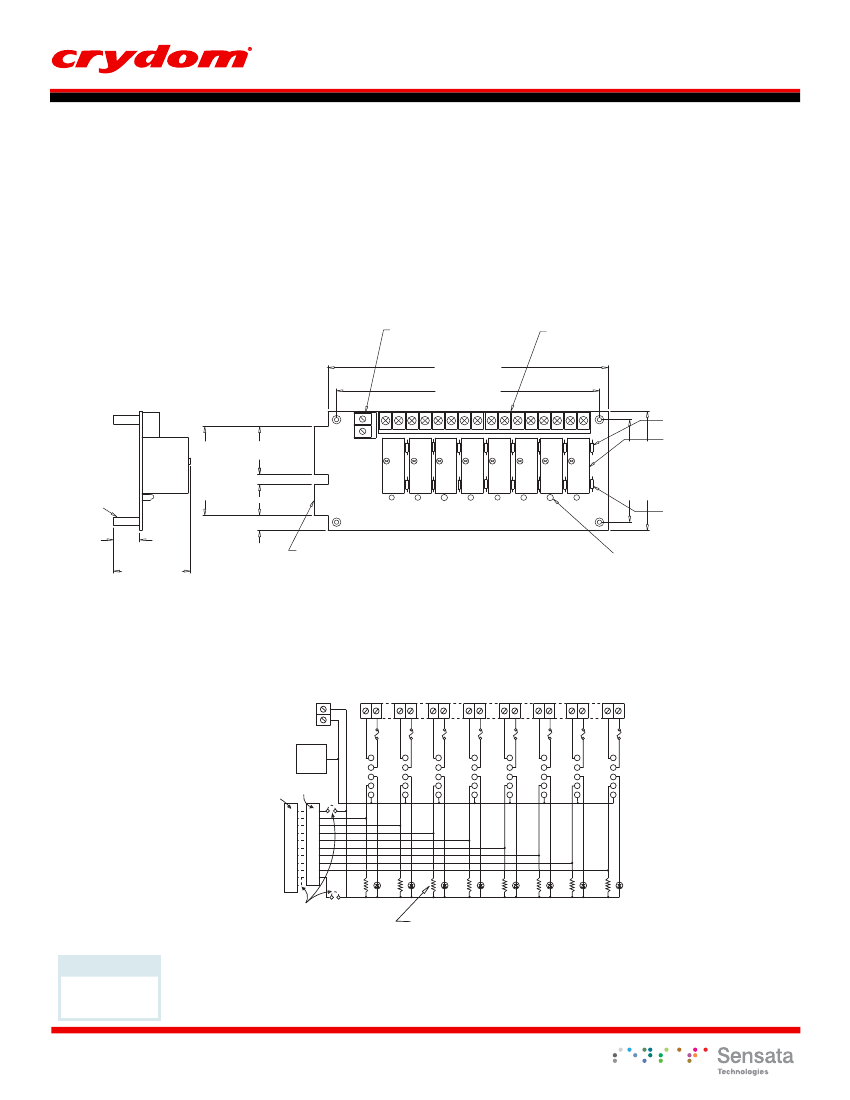

MECHANICAL SPECIFICATIONS
Do not forget to visit us at:
www.crydom.com
Copyright © 2017 Crydom Inc. Specifications subject to change without notice.
Ob
so
let
e
SCREW TERMINAL
LOGIC SUPPLY
BARRIER STRIP
6-32 SCREW TERMINAL
POWER BARRIER STRIP
(see note 2)
8.0 (203,2)
DIMENSIONS: INCHES (MILLIMETERS)
TOLERANCE:+0.020 ( + 0,50)
-
-
7.5 (190,5)
6
7
8
1
2
3
4
5
9
10 11 12 13 14 15 16
-
REPLACEABLE 5 AMP
LINE FUSE (8)
(see note 4)
CRYDOM DIGITAL I/O
MODULES SOLD SEPARATELY
1.4 (35,6)
+
2.6 (66,0)
SWAGED STANDOFF
THRU HOLE
0.15 (3,2) DIA.
(4)
0.3 (7,6)
0
1
2
3
4
5
6
7
3.0 (76,2)
3.5 (88,9)
0.45 (11,4)
PULL UP RESISTORS
3.3K OHM (8)
0.75 (19,1)
2.2 (55,9)
SIGNAL INPUT/OUTPUT
50 TRACE (0.1" CENTERS)
MALE CARD EDGE
(see note 1)
LED STATUS INDICATORS (8)
NOTES: 1) MATING CONNECTOR IS BERG 66317-150 OR EQUIVALENT.
SPECIFY SUFFIX "V" FOR OPTIONAL CA26HM-2F-SR CIRCUIT ASSEMBLY OR
EQUIVALENT 26 CONDUCTOR PERPENDICULAR-TO-THE-BOARD
MALE PIN CONNECTOR.
2) 6-32 SCREW TERMINAL BARRIER STRIPS ACCEPT WIRE SIZES FROM 24 TO 12 AWG.
3) OPTIONAL JUMPERS ARE AVAILABLE TO INTERCONNECT BARRIER
STRIP COMMONS. ORDER 1 EACH "JS8".
4) LITTELFUSE 251005 OR EQUIVALENT.
LOGIC SUPPLY
BARRIER STRIP 1 2
+
-
BOTTOM
ALL
EVEN
PINS
3 4
POWER BARRIER STRIP
5 6
7 8
9 10 1112 1314
15 16
5 AMP LINE FUSE
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
“V” OR “C” OPTION
EDGE CONN TOP
+ LOGIC
49 25
47
45
43
41
39
37
35
33
25
1
23
21
19
17
15
13
11
9
1
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
I/O MODULE
PIN SOCKETS
AMP #645979-1
OR EQUIVALENT
SIGNAL INPUT/OUTPUT
50 TRACE (0.1" CENTERS)
MALE CARD EDGE OR
OPTIONAL PIN CONNECTOR
+LOGIC
AGENCY APPROVALS
UL E79183
CSA 38595
CUSTOMER INSTALLED
OPTIONAL JUMPERS
FOR CONNECTING LOGIC
SUPPLY THRU CARD EDGE
CONNECTOR
LED STATUS
INDICATOR
(8)
PULL UP RESISTOR
3.3K OHM
(8)
Rev. 083116
