DFAS2-LSVFREQN2.5: DescriptionSine Output Oscillator, 10MHz Min, 30MHz Max, ULTRA MINIATURE PACKAGE-4; CategoryPassive components oscillator; File Size87KB，1 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric Compare View All

DFAS2-LSVFREQN2.5 Overview

Sine Output Oscillator, 10MHz Min, 30MHz Max, ULTRA MINIATURE PACKAGE-4

DFAS2-LSVFREQN2.5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CTS
Reach Compliance Code	unknown
Ageing	1 PPM/FIRST YEAR
Maximum control voltage	3 V
Minimum control voltage	0.3 V
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	15 ppm
frequency stability	2.5%
Manufacturer's serial number	DFAS2-LSV
Installation features	SURFACE MOUNT
Maximum operating frequency	30 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	75 °C
Minimum operating temperature	-30 °C
Oscillator type	SINE
Output impedance	10000 Ω
Output level	1 V
physical size	7.2mm x 5.3mm x 3.2mm
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

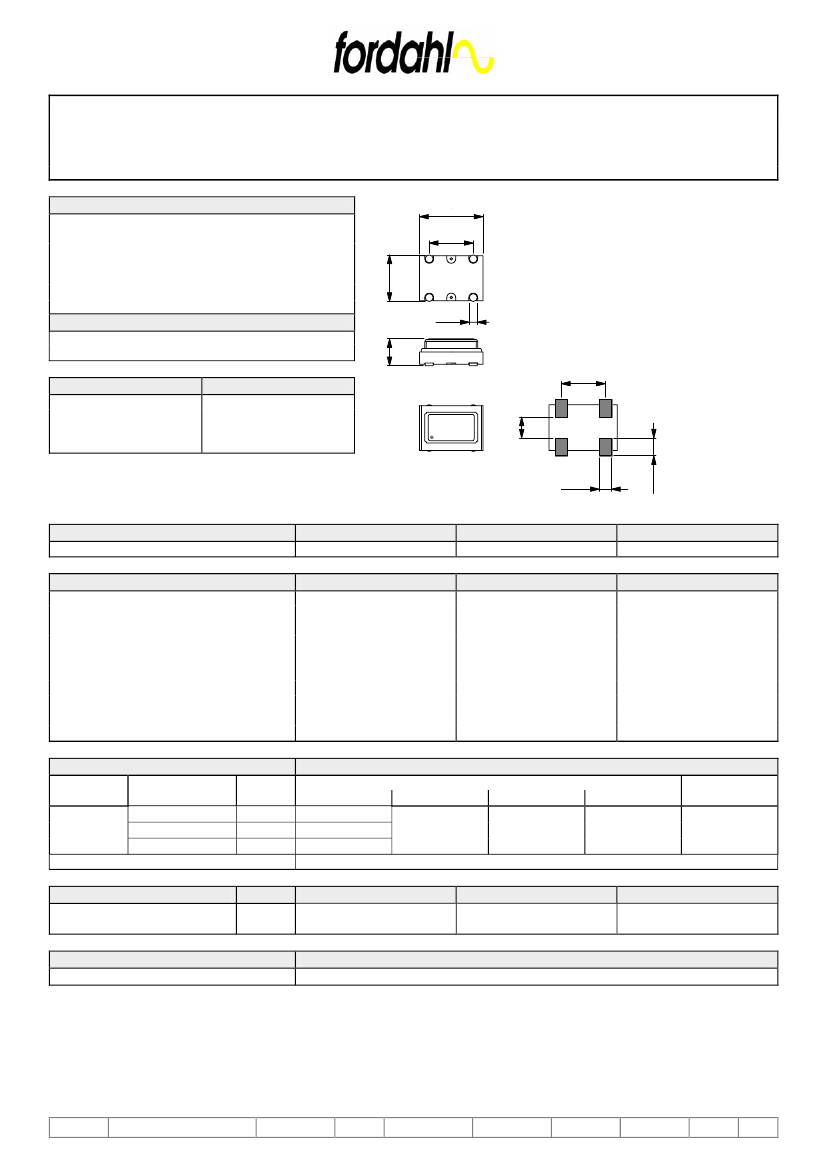

FREQUENCY CONTROL PRODUCTS

ULTRA MINIATURE SURFACE MOUNT TCXO

DFA S2-KS / LS / US

KEY FEATURES

10 to 30 MHz

5.3±0.1

7.2±0.2

5.08

Miniature size

Analogue temperature compensation

APPLICATIONS

Mobile communications/Microwave

Function

V control

GND

Output

Vcc

0.9

3.2±0.2

DFA S2

1

2

3

4

1

2.4

5.08

3

2

PC board footprint

1.4

TYPE

Frequency Range

DFA S2-KS

10 to 30 MHz

DFA S2-LS

10 to 30 MHz

2.0

DFA S2-US

10 to 30 MHz

ELECTRICAL SPECIFICATIONS

supply voltage

supply current ( no load)

output load

high/low levels or output amplitude

harmonics

spurious

start-up

5V ±5%

≤

2 mA

sine wave 10 kΩ//10 pF

≥

1.0 V p-p

≤

-25 dBc

≤

-70 dBc

≤

10 ms @ 4.75 V

3.3 V ± 5 %

≤

2 mA

sine wave 10 kΩ//10 pF

≥

1.0 V p-p

≤

-25 dBc

≤

-70 dBc

≤

10 ms @ 3.15 V

3.0 V ± 5 %

≤

2 mA

sine wave 10 kΩ//10 pF

≥

1.0 V p-p

≤

-25 dBc

≤

-70 dBc

≤

10 ms @ 2.85 V

FREQUENCY STABILITY

type

all types

remark

temperature

range

0 to 70°C

-20 to 70°C

-30 to 75°C

model

code

B0.5

C1.5

N2.5

temperature

≤

± 0.5

≤

± 1.5

≤

± 2.5

detailed tolerances [ ppm ]

stability versus:

Vcc ± 5 %

load ± 10 %

≤

± 0.3

≤

± 0.3

ageing is 1

st

year at 25°C

ageing

≤

±1

calibration

@ 25°C

≤

±1

OPTIONS

voltage control (positive slope )

CODE

V

≥

± 5 ppm,

≤ ±

15 ppm

2.5 V ± 2 V

≥

± 5 ppm,

≤ ±

15 ppm

1.65 V ± 1.35 V

≥

± 5 ppm,

≤ ±

15 ppm

1.5 V ± 1.0 V

ORDERING CODE

Example

type + option code + frequency + model code

DFA S2-LSV 12.8 MHz B0.5

TYPE

DFA S2-KS/LS/US

REVISION

01

CHECKED

NE

DATE

11.03.2004

PAGE

53
