84145001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 84145001

84145001: Descriptionoutput module DC 6ma 24vdc; CategoryTopical application Mechanical and electrical/engineering/automation; File Size34KB，1 Pages; ManufacturerCrouzet; Environmental Compliance

Download Datasheet Compare View All

84145001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	84145001	-	-	View	Buy Now

84145001 Overview

output module DC 6ma 24vdc

Preview

Download Datasheet

View All

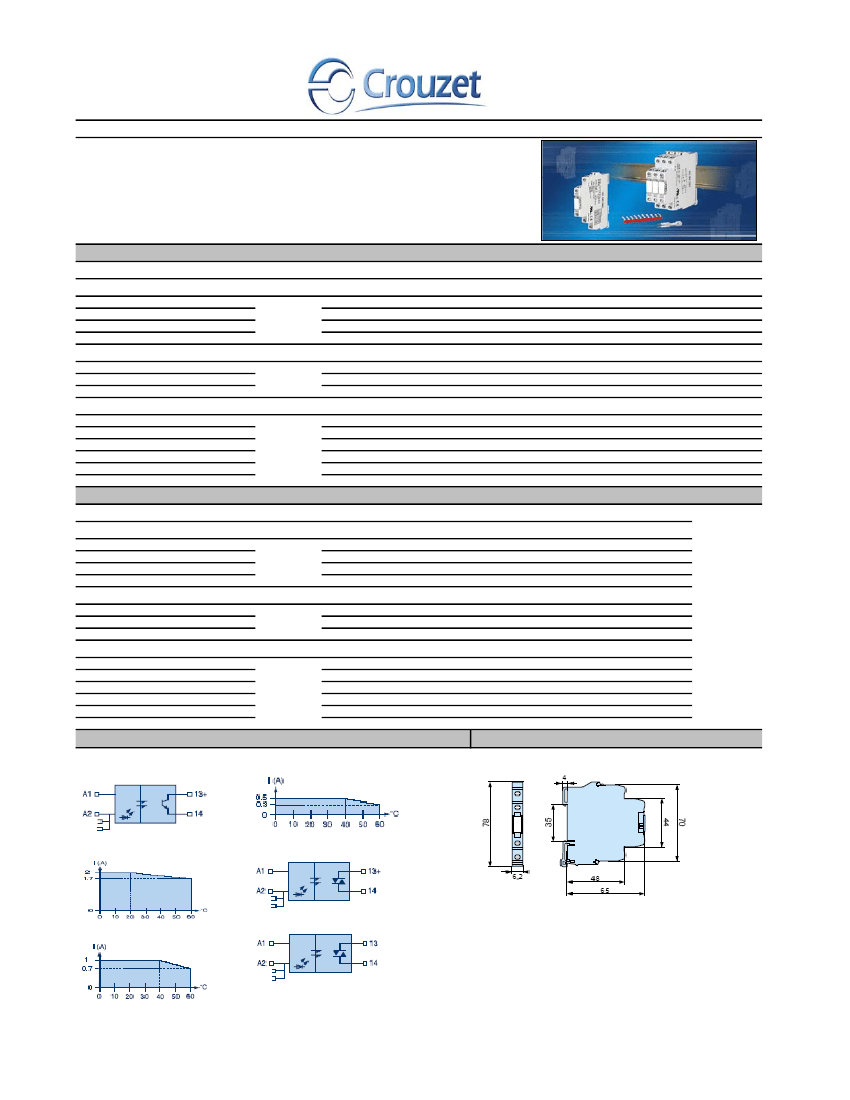

SIMM Series Output Modules

6.2 mm wide and 65 mm deep

* DIN Rail mounted

* LED input status indicator

* Bridges enable quick linking of common voltage

* Identification zone on front face

* IP20

Part numbers

84145001

84145004

110Vac/dc

70-130Vac/dc

7 mA

30Vac/dc

5-48Vdc

0.5A

Transistor

-20 to 60°C

-40 to 80°C

30 ms

20 ms

10 Hz

1.13 oz

84145021

24Vdc

10-44Vdc

6mA

3Vdc

24-250Vac

0.5A

Triac

-20 to 60°C

-40 to 80°C

10 ms

20 Hz

1.13 oz

84145005

230Vac

90-230Vac

8.5 mA

40Vac

5-48Vdc

0.5A

Transistor

-20 to 60°C

-40 to 80°C

45 ms

15 ms

10 Hz

1.13 oz

84145024

110Vac/dc

70-130Vac/dc

6mA

35Vac/dc

24-250Vac

0.5A

Triac

-20 to 60°C

-40 to 80°C

10 ms

20 Hz

1.13 oz

84145010

5Vdc

4-5.5Vdc

6 mA

2Vdc

5-48Vdc

Transistor

-20 to 60°C

-40 to 80°C

1 ms

5 ms

10 Hz

1.06 oz

84145025

230Vac

140-250Vac

7mA

80Vac

24-250Vac

0.5A

Triac

-20 to 60°C

-40 to 80°C

10 ms

20 Hz

1.13 oz

84145011

24Vdc

10-44Vdc

6 mA

3Vdc

5-48Vdc

Transistor

-20 to 60°C

-40 to 80°C

1 ms

5 ms

10 Hz

1.06 oz

84145031

24Vdc

10-44Vdc

6 mA

3Vdc

24-250Vac

Triac

-20 to 60°C

-40 to 80°C

8.33 ms

20 Hz

.95 oz

84145015

230Vac

90-230Vac

7mA

40Vac

5-48Vdc

Transistor

-20 to 60°C

-40 to 80°C

1 ms

10 ms

10 Hz

1.06 oz

Input Characteristics (at ambient 25 C°)

Nominal voltage

Operating voltage range

Max input current

Drop out voltage

24Vdc

10-44Vdc

6 mA

5Vdc

5-48Vdc

0.5A

Transistor

-20 to 60°C

-40 to 80°C

20 us

100 us

1k Hz

1.13 oz

84145020

Output Characteristics (at ambient 25 C°)

Operating voltage range

Max current

Output Type

General Characteristics

Operating temperature range

Storage temperature range

Turn-On time

Turn-Off time

Switching frequency

Weight

Part numbers

Input Characteristics (at ambient 25 C°)

Nominal voltage

Operating voltage range

Max input current

Drop out voltage

5Vdc

4-6.2Vdc

6mA

2Vdc

24-250Vac

0.5A

Triac

-20 to 60°C

-40 to 80°C

10 ms

20 Hz

1.13 oz

84145001 / 004 / 005

84145020 / 021 / 024 / 025

Output Characteristics (at ambient 25 C°)

Operating voltage range

Max current

Output Type

General Characteristics

Operating temperature range

Storage temperature range

Turn-On time

Turn-Off time

Switching frequency

Weight

Derating Curves:

84145001 / 004 / 005

84145010 / 011 / 015

Dimensions:

Solid State Output:

84145010 / 011 / 015

84145020 / 021 / 024 / 025

84145031

Products and specifications subject to change without notice.

Consult factory for applications. www.crouzet-usa.com
