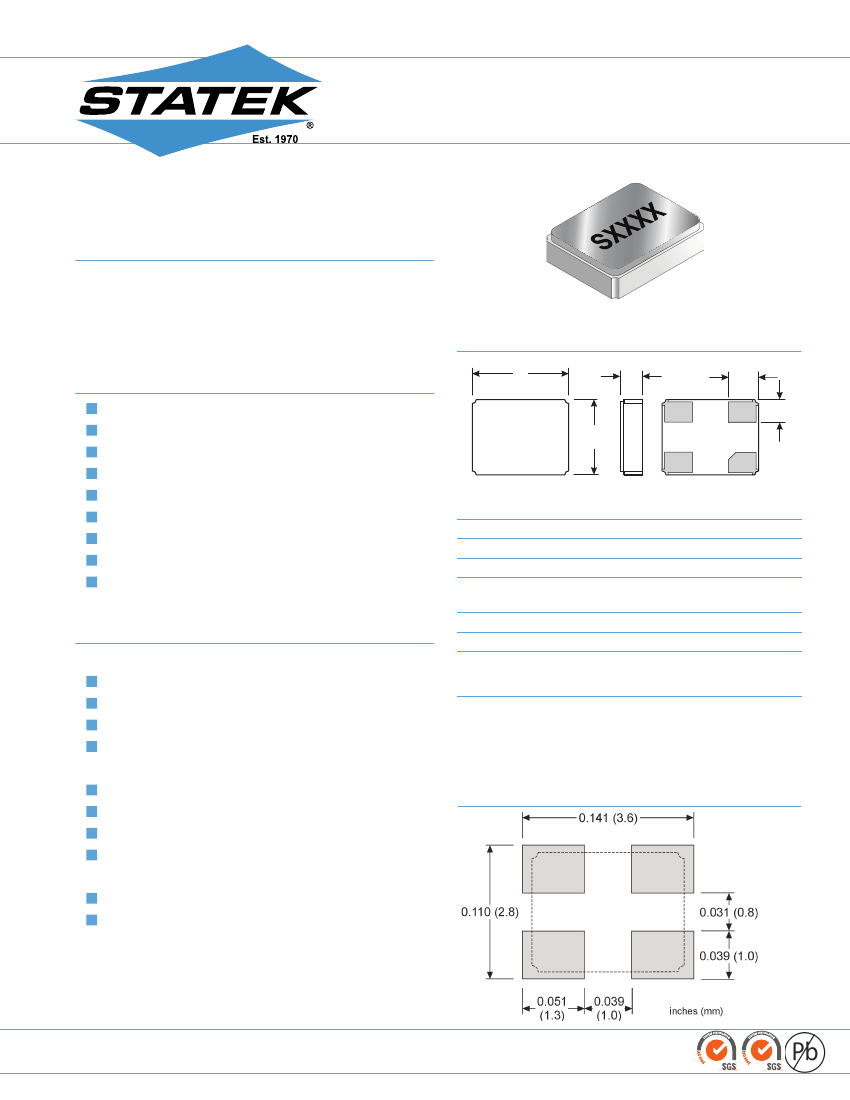

CXOXLPN OSCILLATOR
20 MHz to 50 MHz
Ultra-Miniature, Low Phase Noise & Low Jitter
High Shock Crystal Oscillator
DESCRIPTION
Statek’s ultra miniature and ultra low phase noise and jitter
oscillators consist of a CMOS/TTL compatible hybrid circuit
and a state-of-the-art, miniature, fundamental-mode crystal.
Typical RMS Jitter 12 kHz to 20 MHz - 153 femto seconds.
FEATURES
DIMENSIONS
A
4
TOP
C
3
3
D
4
BOTTOM
High shock resistance (HG version) - 50,000 g option
CMOS output with Enable/Disable
Low phase noise and jitter
Full military testing available
Low acceleration sensitivity - 0.5 ppb/g or better option
Wide supply voltage (1.8 V to 3.3 V)
No PLL artifacts
Hermetically sealed ceramic package
Designed and manufactured in the USA
E
B
2
2
1
1
TYPICAL
DIM
A
B
inches
0.126
0.099
mm
3.20
2.50
1.00
1.12
1.00
0.75
MAXIMUM
inches
0.136
0.107
0.043
0.048
0.041
0.031
mm
3.40
2.70
1.09
1.21
1.10
0.85
C
(SM1)
0.039
C
(SM3/SM5)
0.044
D
E
0.040
0.030
APPLICATIONS
Military & Aerospace
Smart munitions
Communications
Navigation
GPS
Industrial, Computer & Communications
Miniature clock oscillator
Handheld instrumentation
PDA
Transponder/Animal migration
Medical
Test & diagnostic equipment
Handheld devices
PIN CONNECTIONS
1. Output Enable/Disable (E) or no connection (N)
2. Ground
3. Output
4. V
DD
SUGGESTED LAND PATTERN
10226 Rev A
STATEK CORPORATION 512 N. MAIN ST., ORANGE, CA 92868 714-639-7810 FAX: 714-997-1256
www.statek.com
SPECIFICATIONS
ABSOLUTE MAXIMUM RATINGS
Specifications below are examples. Specifications are subject
to change without notice. Tighter specifications available.
Please contact factory.
Frequency Range
Supply Voltage
Calibration Tolerance
1
Frequency Stability
Over Temperature
2
Supply Current (Typical)
3
20 MHz
30 MHz
50 MHz
Output Load (CMOS)
Start-up Time
Rise/Fall Time
Duty Cycle
Aging, first year
Shock, survival
Vibration, survival
4
20 MHz to 50 MHz
1.8 V to 3.3 V ± 10%
± 50 ppm
± 30 ppm for Industrial
± 50 ppm for Military
1.8 V
0.5 mA
0.6 mA
0.9 mA
15 pF
5 ms MAX
6 ns MAX
45% MIN 55% MAX
3 ppm MAX
STD: 5,000 g, 0.3 ms,
sine
High Shock Options in “How to Order”
20 g, 10-2,000 Hz swept sine
1
/
2
Supply Voltage V
DD
-0.3 V to 4.0 V
Storage Temperature
-55
O
C to 125
O
C
Maximum Process Temperature 260
O
C for 20 seconds
ENABLE/DISABLE OPTIONS (E/N)
3.3 V
1.4 mA
1.6 mA
2.1 mA
2.5 V
0.7 mA
0.8 mA
1.3 mA
Statek offers two enable/disable options: E and N. The E-
version has a Tri-State output and stops oscillating internally
when the output is put into the high Z state. The N-version
does not have PIN 1 connected internally and so has no
enable/disable capability. The following table describes the
Enable/Disable option E.
ENABLE/DISABLE OPTION E
FUNCTION TABLE
Enable (Pin 1 High*) Disable (Pin 1 Low)
Output
Oscillator
Current
Frequency Output
Oscillates
Normal
High Z State
Stops
Very Low
*
When PIN 1 is allowed to float, it is held high by an internal pull-up resistor.
Operating Temp. Range -10
O
C to 70
O
C (Commerical)
-40
O
C to 85
O
C (Industrial)
-55
O
C to 125
O
C (Military)
PACKAGING OPTIONS
Tighter tolerances available.
Does not include calibration tolerances. Tighter tolerances available.
No Load 25
O
C.
Per MIL-STD-202G, Method 204D, Condition D. Random vibration testing also
available.
Note: All parameters are measured at ambient temperature with a 10 M , 15 pF load.
1.
2.
3.
4.
CXOXLPN
- Tray Pack
- 12 mm tape, 7” or 13” reels
Per EIA 481

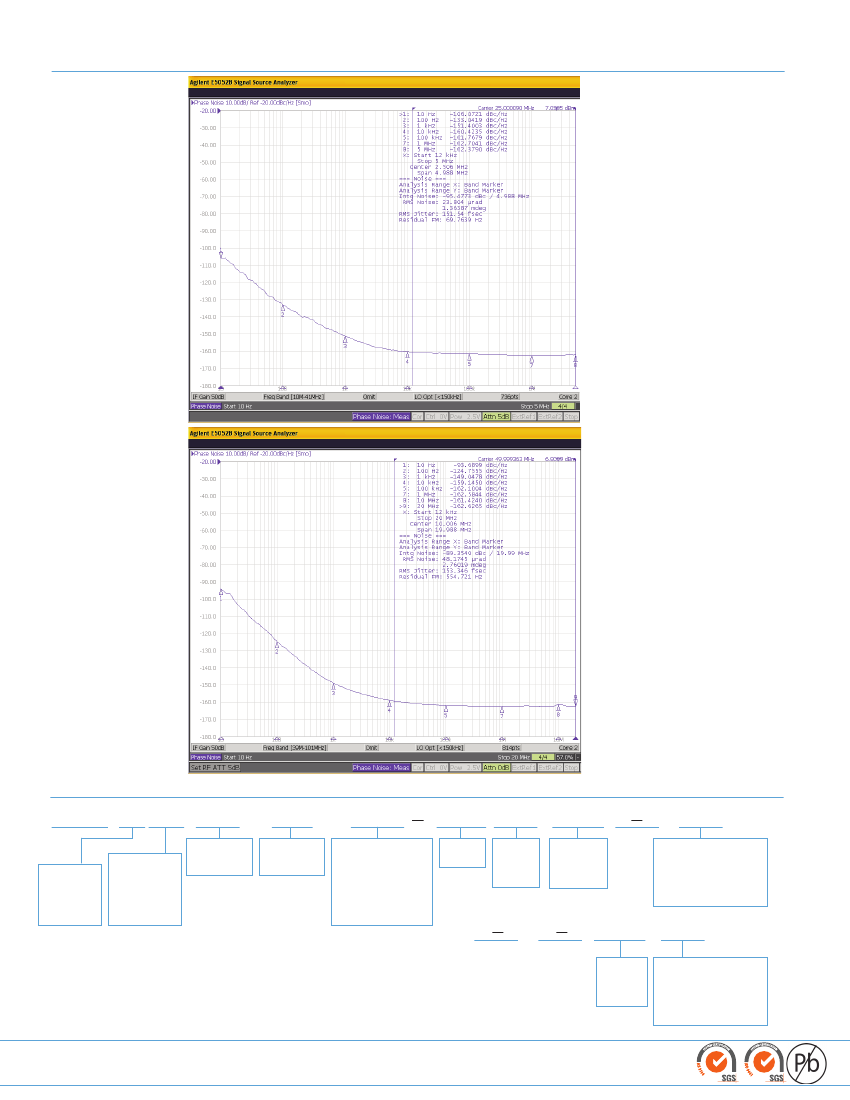

PHASE NOISE AND JITTER PERFORMANCE
Typical Phase Noise (dBc/Hz)
Frequency Offset
Clock Frequency (MHz)
(Hz)
25 MHz
50 MHz
10 Hz
-106
-93
100 Hz
-133
-124
1 kHz
-151
-149
10 kHz
-160
-159
100 kHz
-161
-162
1 MHz
-162
-162
5 MHz
-162
-162
20 MHz
---
-162
Integrated RMS Jitter (12 kHz to 20 MHz)
1
Frequency
25 MHz
50 MHz
V
DD
= 2.5V
160 femtosec.
179 femtosec.
V
DD
= 3.3V
151 femtosec.
153 femtosec.
20 MHz integration point is Clock Frequency dependent.
Period Jitter (Typical) 10,000 cycles
Frequency
RMS
Peak to Peak
1.15
Pico seconds
9.6
Pico seconds
25 MHz
1.02
Pico seconds
8.1
Pico seconds
50 MHz
10226 Rev A
STATEK CORPORATION 512 N. MAIN ST., ORANGE, CA 92868 714-639-7810 FAX: 714-997-1256
www.statek.com
