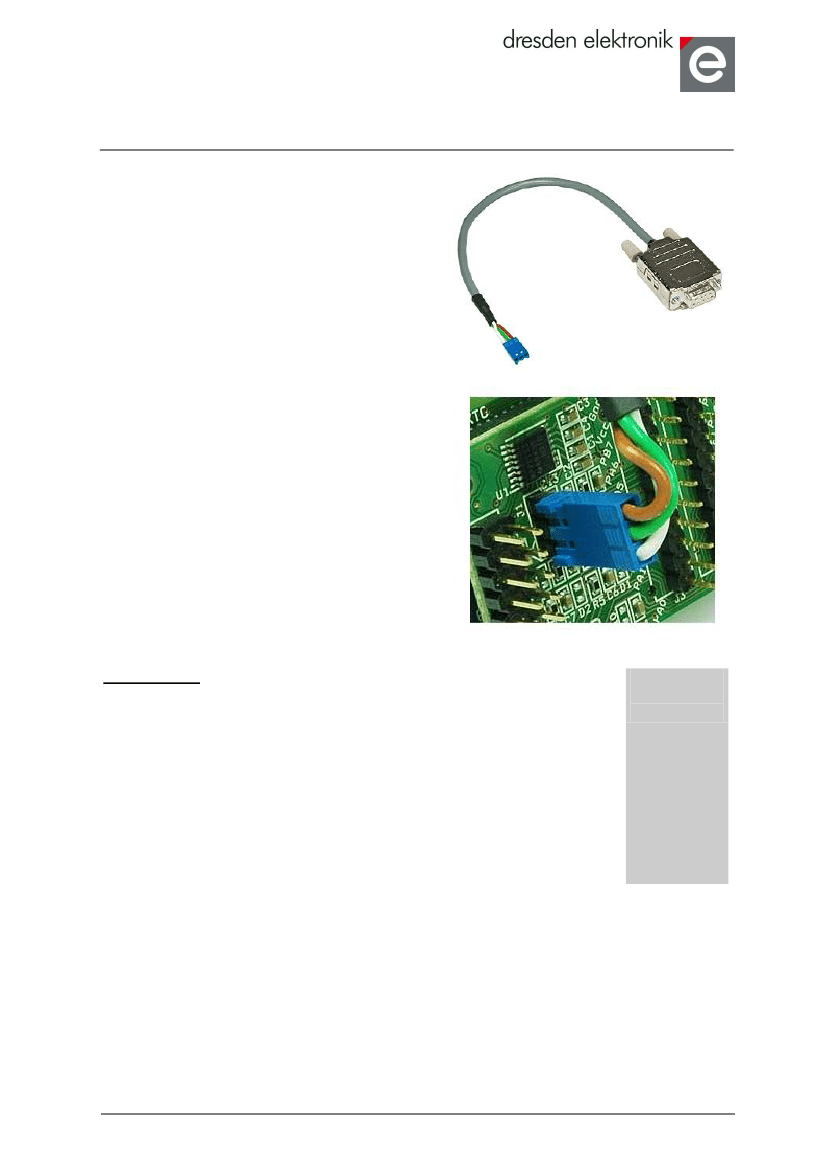

RCB Breakout Board RS232 Cable
Datasheet
The RCB Breakout Board RS232 cable implements
the direct connection of a RCB Breakout Board or a
RCB Breakout Board light at a serial interface
according to EIA-232 (COM port).
It connects the EIA-232 transceiver of the RCB
Breakout Board with a DE-9 terminal.
Technical data
Length
Control and display elements
Power supply
Connection to target
300 mm
None
Not required
1x socket strip
Single-row; 3 pole; pitch 2.54 mm
Type: DUBOX
1x DE-9 according to EIA/TIA-574
(9 pole D-sub)
in metallized plastic case
Double-sided EIA/TIA-232 (RS232)
Technical
Data
Connection to PC
Interface
dresden elektronik ingenieurtechnik gmbh
10-2012
Pin configuration
Connections
Connector X2
Type: female connector, single-row,
3 pole
Pin
Signal
Core color
1
TxD
white
2
RxD
green
3
GND
brown
Connector X1
Type: D-sub connector 9 pole
Pin
Signal
Core color
1
n.c.
2
RxD
green
3
TxD
white
4
n.c.
5
GND
brown
6
n.c.
7
n.c.
8
n.c.
9
n.c.
Scope of delivery
RCB Breakout Board RS232 cable
Suitable for ...
RCB Breakout Board
RCB Breakout Board light
Order online: http://www.dresden-elektronik.de
Order No.
BN-026790
Order
Information
BN-025310
BN-025589
