25RSR10K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 25RSR10K

25RSR10K: DescriptionRESISTOR, TRIMMER, CERMET, 1 TURN(S), 0.5W, 10000ohm, 1/4 INCH, SQUARE, 3 PINS; CategoryPassive components The resistor; File Size133KB，4 Pages; ManufacturerTT Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

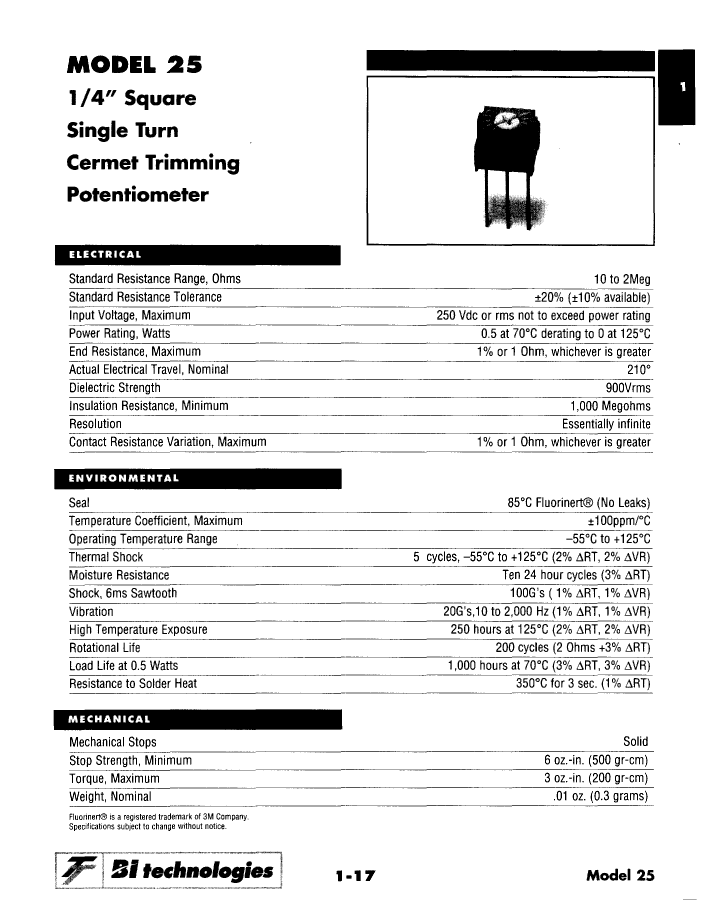

25RSR10K Overview

RESISTOR, TRIMMER, CERMET, 1 TURN(S), 0.5W, 10000ohm, 1/4 INCH, SQUARE, 3 PINS

25RSR10K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	PCB Mount, 2728
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator direction	HORIZONTAL
Actuator type	SCREW
structure	Trimmer Pot
Lead length	5 mm
Manufacturer's serial number	25
Installation features	THROUGH HOLE MOUNT
Number of terminals	3
number of turns	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	8.2 mm
Package length	6.8 mm
Package shape	RECTANGULAR PACKAGE
Package form	PCB Mount
Package width	7 mm
method of packing	BULK
Rated power dissipation(P)	0.5 W
Rated temperature	70 °C
resistance	10000 Ω
resistance law	LINEAR
Resistor type	TRIMMER
series	25
size code	2728
surface mount	NO
technology	CERMET
Temperature Coefficient	-100,100 ppm/°C
Terminal shape	FLAT
Tolerance	20%
Operating Voltage	250 V

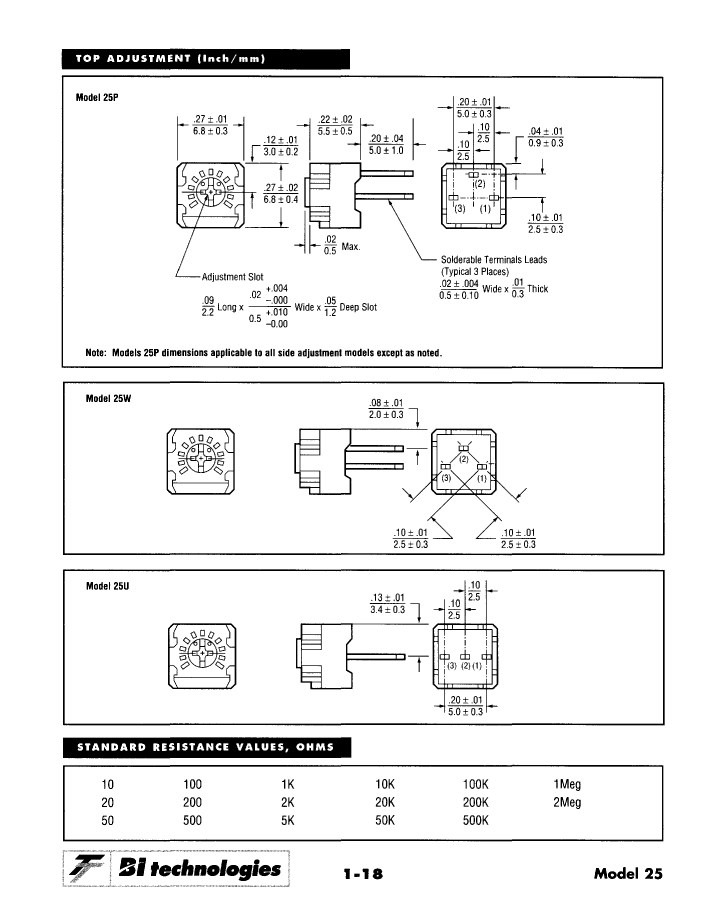

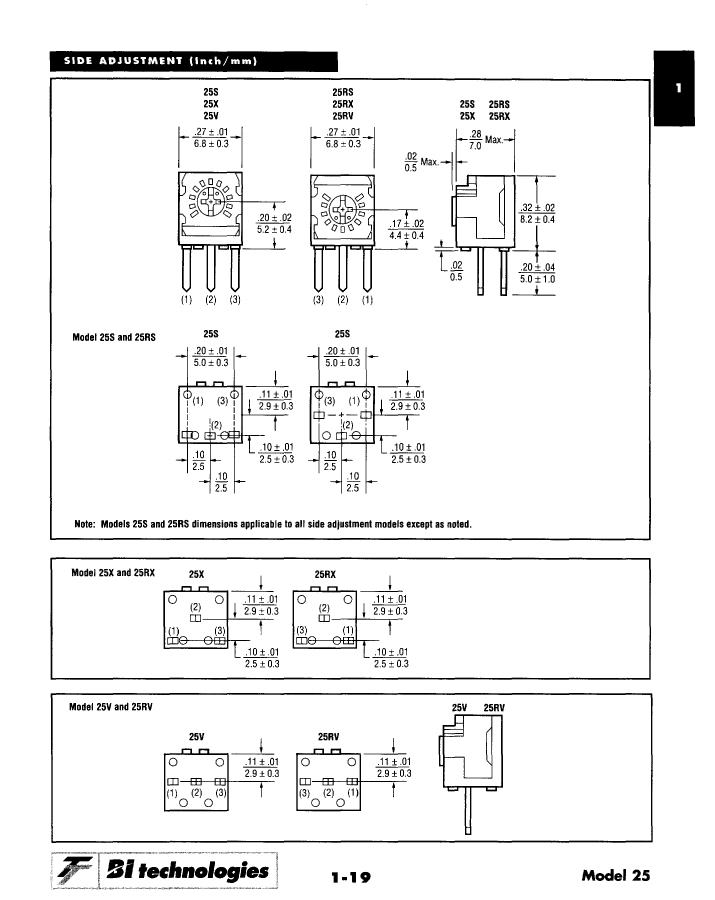

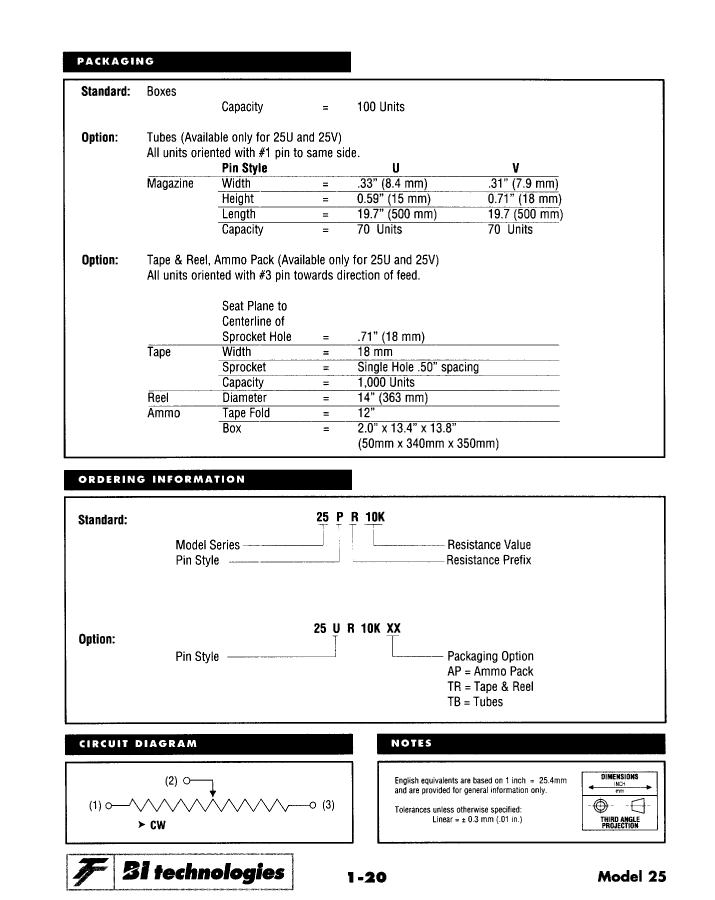

Preview

Download Datasheet

View All

25RSR10K Related Products

	25RSR10K	25RSR2K	25RVR2K	25RSR100K	25RVR10K	25RSR200K	25RVR200K	25RVR2MEG
Description	RESISTOR, TRIMMER, CERMET, 1 TURN(S), 0.5W, 10000ohm, 1/4 INCH, SQUARE, 3 PINS	RESISTOR, TRIMMER, CERMET, 1 TURN(S), 0.5W, 2000ohm, 1/4 INCH, SQUARE, 3 PINS	RESISTOR, TRIMMER, CERMET, 1 TURN(S), 0.5W, 2000ohm, 1/4 INCH, SQUARE, 3 PINS	RESISTOR, TRIMMER, CERMET, 1 TURN(S), 0.5W, 100000ohm, 1/4 INCH, SQUARE, 3 PINS	RESISTOR, TRIMMER, CERMET, 1 TURN(S), 0.5W, 10000ohm, 1/4 INCH, SQUARE, 3 PINS	RESISTOR, TRIMMER, CERMET, 1 TURN(S), 0.5W, 200000ohm, 1/4 INCH, SQUARE, 3 PINS	RESISTOR, TRIMMER, CERMET, 1 TURN(S), 0.5W, 200000ohm, 1/4 INCH, SQUARE, 3 PINS	RESISTOR, TRIMMER, CERMET, 1 TURN(S), 0.5W, 2000000ohm, 1/4 INCH, SQUARE, 3 PINS
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	PCB Mount, 2728	PCB Mount, 2728	PCB Mount, 2728	PCB Mount, 2728	PCB Mount, 2728	PCB Mount, 2728	PCB Mount, 2728	PCB Mount, 2728
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator direction	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL
Actuator type	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW
structure	Trimmer Pot	Trimmer Pot	Trimmer Pot	Trimmer Pot	Trimmer Pot	Trimmer Pot	Trimmer Pot	Trimmer Pot
Lead length	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
Manufacturer's serial number	25	25	25	25	25	25	25	25
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of terminals	3	3	3	3	3	3	3	3
number of turns	1	1	1	1	1	1	1	1
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package height	8.2 mm	8.2 mm	8.2 mm	8.2 mm	8.2 mm	8.2 mm	8.2 mm	8.2 mm
Package length	6.8 mm	6.8 mm	6.8 mm	6.8 mm	6.8 mm	6.8 mm	6.8 mm	6.8 mm
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Package form	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount
Package width	7 mm	7 mm	7 mm	7 mm	7 mm	7 mm	7 mm	7 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
Rated power dissipation(P)	0.5 W	0.5 W	0.5 W	0.5 W	0.5 W	0.5 W	0.5 W	0.5 W
Rated temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
resistance	10000 Ω	2000 Ω	2000 Ω	100000 Ω	10000 Ω	200000 Ω	200000 Ω	2000000 Ω
resistance law	LINEAR	LINEAR	LINEAR	LINEAR	LINEAR	LINEAR	LINEAR	LINEAR
Resistor type	TRIMMER	TRIMMER	TRIMMER	TRIMMER	TRIMMER	TRIMMER	TRIMMER	TRIMMER
series	25	25	25	25	25	25	25	25
size code	2728	2728	2728	2728	2728	2728	2728	2728
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	CERMET	CERMET	CERMET	CERMET	CERMET	CERMET	CERMET	CERMET
Temperature Coefficient	-100,100 ppm/°C	-100,100 ppm/°C	-100,100 ppm/°C	-100,100 ppm/°C	-100,100 ppm/°C	-100,100 ppm/°C	-100,100 ppm/°C	-100,100 ppm/°C
Terminal shape	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Tolerance	20%	20%	20%	20%	20%	20%	20%	20%
Operating Voltage	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V
