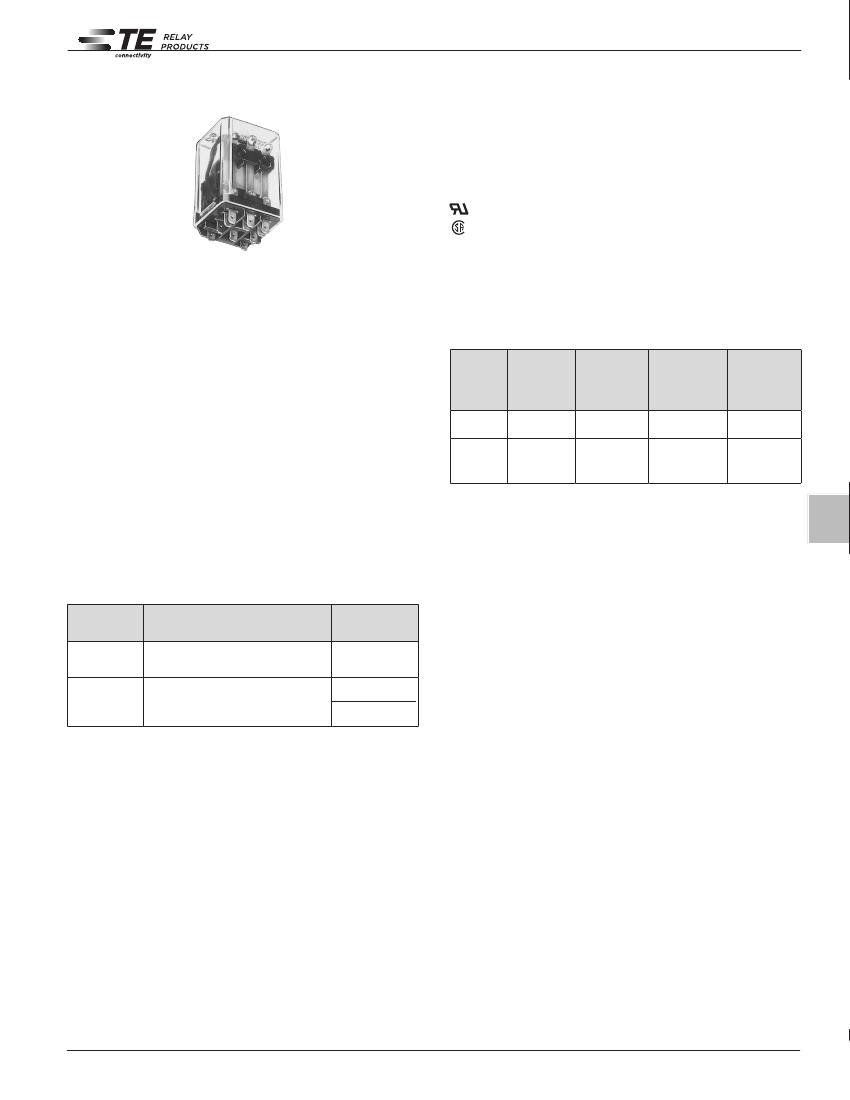

Catalog 1308242
Issued 11-15
P&B
KUP93
series
General Purpose
3 to 10 Amp, Multicontact
AC or DC Relay
File E22575
File LR15734
Users should thoroughly review the technical data before selecting a product part
number. It is recommended that users also seek out the pertinent approvals files
of the agencies/laboratories and review them to ensure the product meets the
requirements for a given application.
Features
• AC coils 24, 120 & 240V 50/60 Hz.; DC 12 & 24VDC.
• Contact arrangement to 3PDT.
• Sockets available for all models.
• Accepted pin pattern for HVAC industry.
• Primarily designed for the HVAC industry.
Coil Data
Nominal
Voltage
DC
Coils
AC
Coils
*AC coils, ± 15%
DC
Resistance
in Ohms
± 10%*
120
472
72
1,700
7,200
Must
Operate
Voltage
9.0
18.0
20.4
102.0
204.0
Nominal
Coil
Current
(mA)
100
51
115
24
12
12
24
24
120
240
Contact Data @ 25°C
Material:
Fine silver or silver-cadmium oxide.
Contact rating
Material
Fine silver
Operate Data @ 25°C
UL/CSA Ratings
5A @ 28VDC or 240VAC, 80% PF, 1/10
HP @ 120VAC, 1/4 HP @ 240VAC
Life
Expected
100,000
100,000
30,000
10A @ 28VDC or 240VAC, 80% PF,
Silver cadmiun 1/4 HP @ 120VAC, 1/3 HP @ 240 VAC
10 FLA, 30 LRA @ 120 VAC, 5 FLA,
oxide
15 LRA @ 240 VAC
Must Operate Voltage:
DC Coils:
75% of nominal voltage or less.
AC Coils:
85% of nominal voltage or less.
Operate Time (Excluding Bounce):
15 milliseconds, typical,
at nominal voltage.
Release Time (Excluding Bounce):
DC Coils:
10 milliseconds, typical, at nominal voltage.
AC Coils:
10 milliseconds, typical, at nominal voltage.
Environmental Data
Initial Dielectric Strength
Between Open Contacts:
500V rms.
Between Adjacent Contacts:
1,500V rms.
Between Contacts and Coil:
1,500V rms.
Temperature Range:
Storage:
All Coils:
-45°C to +105°C.
Operating:
DC Coils:
-45°C to +70°C.
AC Coils:
-45°C to +45°C.
Coil Data @ 25°C
Nominal Power:
DC Coils:
1.2 Watts.
AC Coils:
2.7VA.
Initial Insulation Resistance:
100 megohms, min., at 25°C.r
Dimensions are shown for
reference purposes only.
N
Dimensions are in inches over
(millimeters) unless otherwise
specified.
Mechanical Data
Termination:
.187” x .020” quick connect.
Enclosures:
Clear polycarbonate dust cover.
Weight:
3.0 oz. (86g) approximately.Ñ
Specifications and availability
subject to change.
www.te.com
Technical support:
731
Refer to inside back cover.
Catalog 1308242
Issued 11-15
P&B
Ordering Information
Typical Part No.
1. Type:
KUP93 = Enclosed general purpose relay.
2. Contact Arrangement:
14 = 3 Form C (3PDT)
3. Coil Input:
A = AC
D = DC
4. Mounting:
1 = PLAIN CASE;
5. Terminals, Contact Material & Rating:
1 = .187” (4.75mm) quick connect, silver, 5 amps.
3 = .187” (4.75mm) quick connect, silver-cadmium oxide, 10 amps.
6. Coil Voltage:
To 240VAC, 50/60 Hz. or 110VDC.
>
KUP93
14
A
2
1
-24
Our authorized distributors are more likely to stock the following items for immediate delivery.
No items in this series typically are stocked.o
Outline Dimensions
Wiring Diagrams
3 Form C
8
9
7
C2
5
6
4
2
3
1
C1
KUP93 Sockets
.205 DIA.
(5.21)
(2 HOLES)
1.308
(33.22)
.218 REF
.
(5.54)
2.350
(59.69)
MTG. HOLE
.157
±
.003
(3.99
±
.08)
Socket PC Board Layout (Component Side of Board)
.790
20.07
1.858
(47
.19)
.395
.276 (10.03)
(7
.01)
.062
.338
(1.57)
(8.58)
.710
(18.03)
.161
±
.005
(4.09
±
.13)
DIA. (2) HOLES
.737
(18.72)
.790
(20.07)
1.250
(31.75)
.100
(2.54)
.469
±
.015
(11.91
±
.38)
.465
(11.81)
.317
(8.05)
1.858
(47
.19)
.097
±
.004
(2.46
±
.10)
DIA. (11) HOLES
KUP93 Socket Number
Socket
Color
Natural Nylon
**UL Recognized, file E22575
P C Socket With
Terminals
27E168**
Socket:
Rated 10 amperes. Will accept .187” (4.75mm)
quick-connect terminals of all KUP93 relays. »
732
reference purposes only.
N
Dimensions are shown for
Dimensions are in inches over
(millimeters) unless otherwise
specified.
Specifications and availability
subject to change.
www.te.com
Technical support:
Refer to inside back cover.
