2110992-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2110992-5

2110992-5: DescriptionBoard Connector, 5 Contact(s), 1 Row(s), Female, Crimp Terminal, Receptacle; CategoryThe connector The connector; File Size172KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

2110992-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2110992-5	-	-	View	Buy Now

2110992-5 Overview

Board Connector, 5 Contact(s), 1 Row(s), Female, Crimp Terminal, Receptacle

2110992-5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1029474737
Reach Compliance Code	compliant
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2019-01-13 19:35:59
Other features	POLARIZED, LATCHED
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Termination type	CRIMP
Total number of contacts	5
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

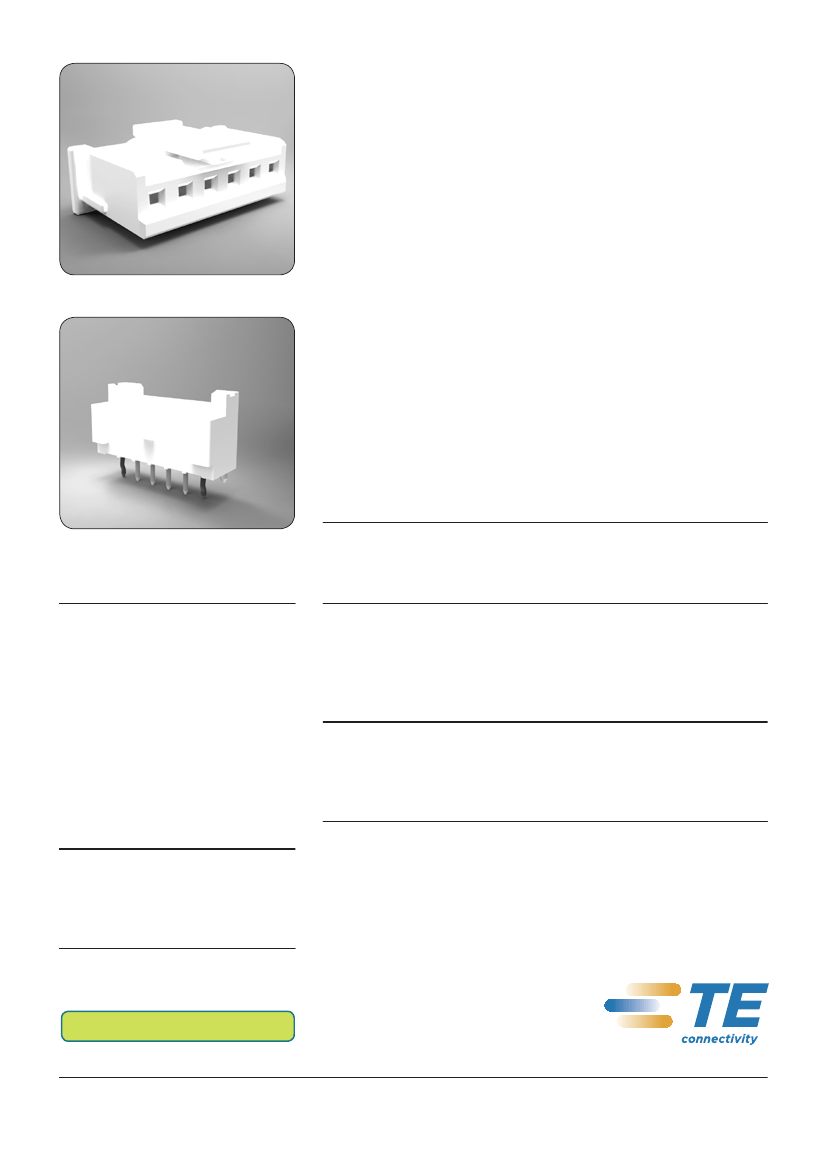

Introducing

EP 2.5 Connector Series

Economy Power 2.5 (EP 2.5) is a new type of single-row crimp connector system.

EP 2.5 comprises of new plug housings, contacts, and headers, based on a .100”

centerline (2.5 mm pitch), which makes it a very compact solution.

As good handling properties are essential for such a compact connector to achieve

a correct and reliable interconnection during assembly, EP 2.5 housings and contacts

(terminals) were designed to help the workers on the shop floor with their manual

tasks. The low-insertion force terminals, for instance, have an asymmetrically shape

P 2.5 6-Posn Receptacle Housing with Latch and Tabs,

part number 2110992-6

which means that they can only be loaded in the housing’s cavity in the correct way.

This type of tactile feedback works even under adverse shop-floor conditions with

noise and distraction.

EP 2.5 connector halves are available with 2 to 20 positions. This high number can be

utilized to integrate up to 20 discrete wires with 26 to 22 AWG size into a single PC

board section of roughly two inches length. As board space is increasingly often at

a premium, the EP 2.5 interconnection system offers ideal conditions for contacting

densely packed small boards. EP 2.5 connectors are intermateable with similar products

in the market to facilitate simple retrofitting.

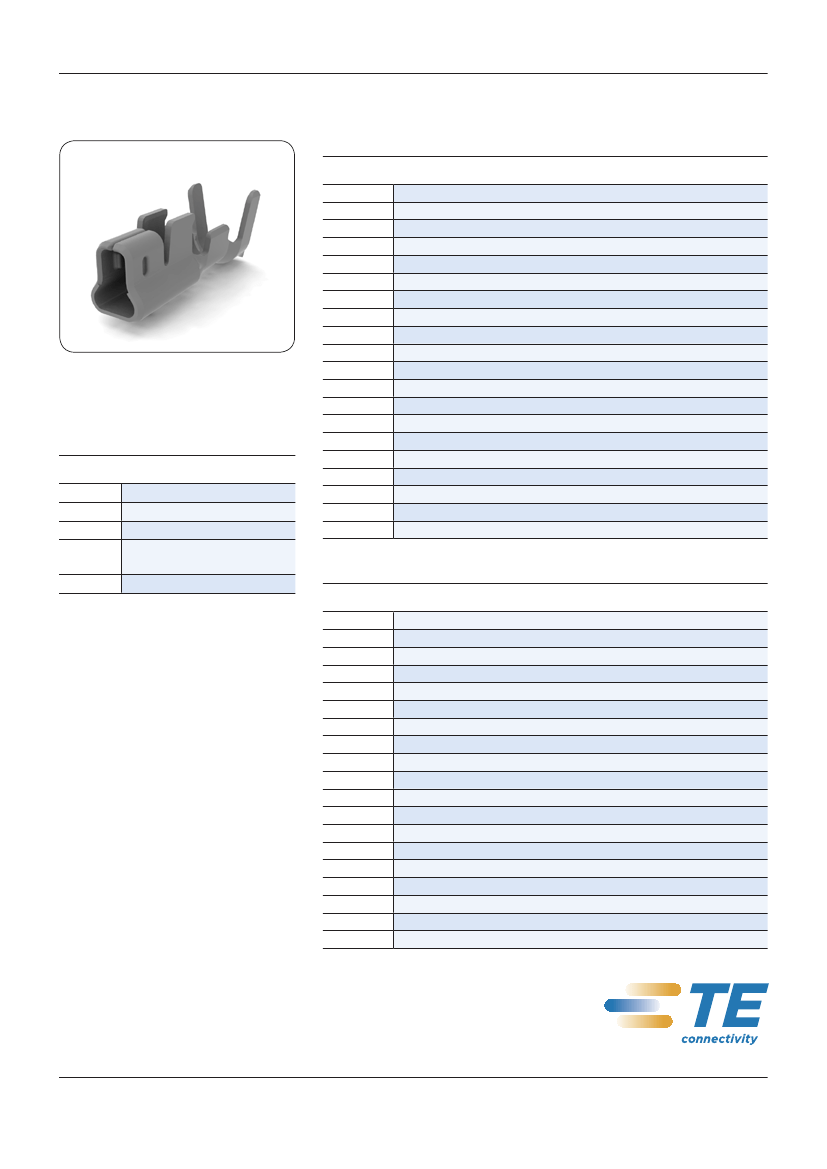

ELECTRICAL

EP 2.5 6-Posn Vertical Shrouded Header,

part number 2132230-6

•

Voltage rating: 250 VAC

•

Current rating: 3 A

KEY FEATURES

•

.100” centerline (2.5 mm)

•

2 - 20 positions for discrete wires

MECHANICAL

•

Positions: 2 to 20 (single row)

•

Wire size: 26 to 22 AWG discrete wire

•

Centerline: .100’’ (2.5 mm)

•

Operating temperature: -55 to 105 °C

AWG 26-22

•

Voltage up to 250 VAC

•

Current up to 3 A

•

Housing locking latch

•

Polarization tabs

•

Asymmetrical terminals can only be loaded

MATERIALS

•

Housings: UL 94V-0 rated nylon

•

Contacts: Tin-plated Phos Bronze

•

Color housings available upon request

one way

•

Low insertion force terminals

•

Contact lubrication

STANDARDS

•

UL recognized

APPLICATIONS

•

Household appliances

•

HVAC

•

Industrial machinery (e.g. control boards)

SPECIFICATIONS

•

Product specification: 108-2418

SAMPLES NOW AVAILABLE

te.com/products/EP

7-1773461-6 CIS SP 08/2011

TE Connectivity and the TE connectivity (logo) are trademarks. Other logos, product and/or

company names might be trademarks of their respective owners.

USA: 1-800-522-6752

Canada: +1-905-475-6222

Mexico: +52 (0) 55-1106-0800

Latin/S. America: +54 (0) 11-4733-2200

Germany: +49 (0) 6251-133-1999

UK: +44 (0) 800-267666

France: +33 (0) 1-3420-8686

Netherlands: +31 (0) 73-6246-999

China: +86 (0) 400-820-6015
