MS4525
SPECIFICATIONS
PCB Mounted Pressure Transducers
Amplified Ratiometric Analog Output
Differential, Gage, Absolute, Compound, &
Vacuum
Temperature Compensated
3.3 or 5.0 V
DC
Supply Voltage
FEATURES
PSI Pressure Ranges
PCB Mountable
High Level Analog Output
Barbed Pressure Ports

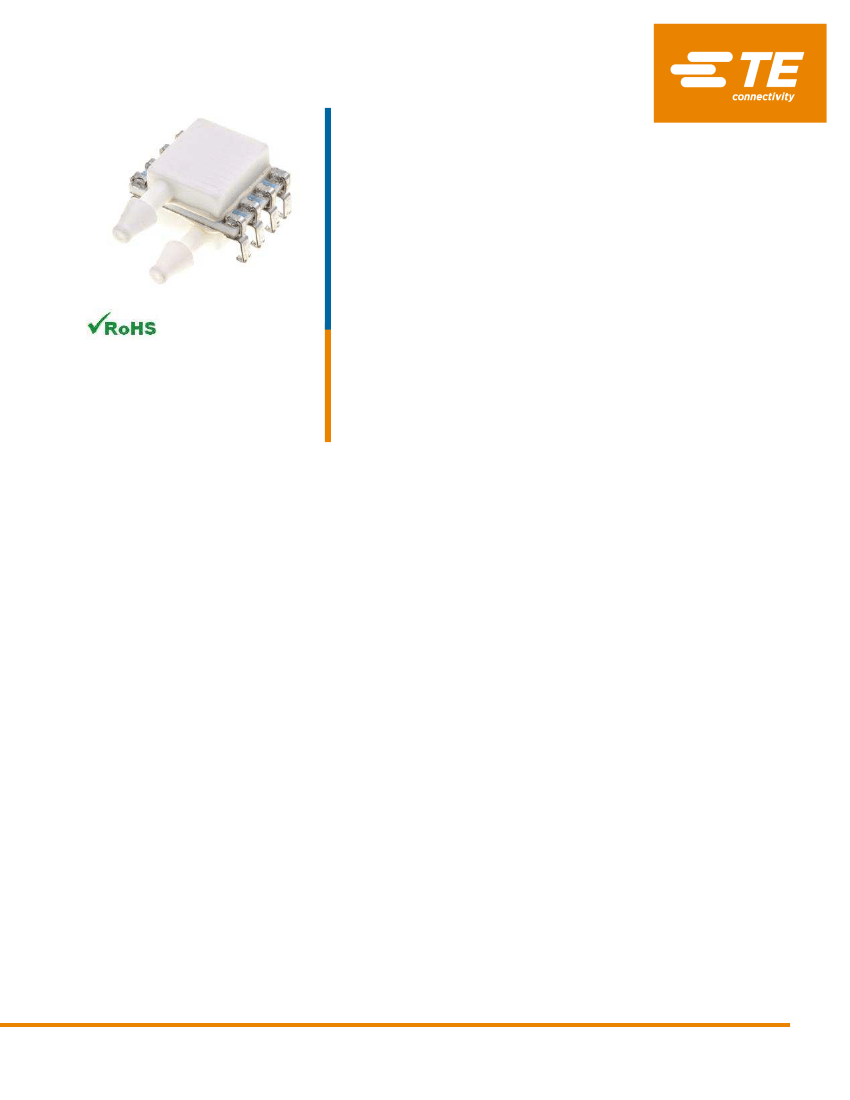

The MS4525 is a small, ceramic based, PCB mounted
pressure transducer from TE Connectivity. The transducer is
built using our
proprietary UltraStable™ process and the latest
CMOS sensor conditioning circuitry to create a low cost, high
performance transducer designed to meet the strictest
requirements from OEM customers.
The MS4525 is fully calibrated and temperature compensated
with a total error band (TEB) of less than 1.0% over the
compensated range. The sensor operates from single supply of
either 3.3 or 5.0V
DC
and requires a single external component for
proper operation.
The rugged ceramic transducer is available in side port, top port,
and manifold mount and can measure absolute, gage,
differential, or compound pressure from
1 to 150psi. The 1/8”
barbed pressure ports mate securely with 3/32” ID tubing.
APPLICATIONS
Blocked Filter Detection
Altitude and Airspeed Measurements
Medical Instruments
Fire Suppression System
Panel Meter
Air Movement/Environmental Controls
Pneumatic Controls
SENSOR SOLUTIONS
/// MS4525
04/2019
Page 1
MS4525
STANDARD RANGES (PSI)
Pressure
1
2
5
15
30
50
100
150
Absolute
Gage
DS, SS, TP, MM
DS, SS, TP, MM
DS, SS, TP, MM
DS, SS, TP, MM
DS, SS, TP, MM
DS, SS, TP, MM
DS, SS, TP, MM
DS, SS, TP, MM
Differential
DS, SS, TP
DS, SS, TP
DS, SS, TP
DS, MM
DS, MM
DS, MM
DS, MM
DS, MM
Compound
Vacuum
Option Availability
-F
-F
-F
-F
-F
-F
-F
-F
SS, TP
SS, TP
SS, TP
SS, TP
SS, TP
SS, TP
SS, TP
SS, TP
SS, TP
SS, TP
SS, TP, DS
See Package Configurations: DS= Dual Side Port, SS= Single Side Port, TP= Top Port, MM= Manifold Mount
Pin Style “L” is only available SS and MM port types.
Pin Style “C” is only available SS,
TP and MM port types.
BLOCK DIAGRAM
SENSOR SOLUTIONS
/// MS4525
04/2019
Page 2
MS4525
ABSOLUTE MAXIMUM RATINGS
Parameter
Supply Voltage
Output Current
Load Resistance (R
L
)
Storage Temperature
Humidity
Overpressure
Burst Pressure
ESD
Solder Temperature
Conditions
T
A
= 25 °C
T
A
= 25°C
T
A
= 25°C
T
A
= 25°C
T
A
= 25 °C, both Ports
T
A
= 25 °C, Port 1
HBM
Min
2.7
10
-40
Max
5.5
3
Unit
V
mA
kΩ
°C
%RH
psi
psi
kV
Notes
+125
95
Not to Exceed 300
+4
250°C, 5 sec max.
Non Condensing
See Table 1
EN 61000-4-2
-4
TABLE 1- BURST PRESSURE BY RANGE AND PACKAGE STYLE
Range
001
002
005
015
030
050
100
150
DS
20
20
15
45
90
150
300
300
TP, SS, MM
20
20
20
90
200
300
300
300
Unit
psi
psi
psi
psi
psi
psi
psi
psi
ENVIRONMENTAL SPECIFICATIONS
Parameter
Mechanical Shock
Mechanical Vibration
Thermal Shock
Life
MTTF
Conditions
Mil Spec 202F, Method 213B, Condition C, 3 Drops
Mil Spec 202F, Method 214A, Condition 1E, 1Hr Each Axis
100 Cycles over Storage Temperature, 30 minute dwell
1 Million FS Cycles
>10Yrs, 70 ºC, 1.188 Million Pressure Cycles, 120%FS
Pressure
SENSOR SOLUTIONS
/// MS4525
04/2019
Page 3
MS4525
PERFORMANCE SPECIFICATIONS
Supply Voltage
1
: 5.0V or 3.3 V
DC
Ambient Temperature: 25°C (unless otherwise specified)
PARAMETERS
Output
Accuracy
Total Error Band (TEB)
Supply Current
Long Term Stability (Offset & Span)
Compensated Temperature
Operating Temperature
Response Time
Weight
Start time to data ready
Media
-10
-25
1
3
5
MIN
0.500
0.250
-0.25
-1.0
3
±0.5
+85
+105
TYP
MAX
4.500
4.750
0.25
1.0
%Span
%Span
mA
%Span
ºC
ºC
mS
grams
ms
5
4
2
3,5
5
UNITS
V
NOTES
1,2,3
Non-Corrosive Dry Gases Compatible with Ceramic, Silicon, Borosilicate Glass,
RTV, Gold, Aluminum and Epoxy. See “Wetted Material by Port Designation” chart
below.
Notes
1. Proper operation requires an external capacitor placed as shown in Connection Diagram. Output is ratiometric to supply voltage
variations of less than 10%.
2. The maximum deviation from a best fit straight line (BFSL) fitted to the output measured over the pressure range at 25°C. Includes all
errors due to pressure non linearity, hysteresis, and non repeatability.
3. Total error band includes all accuracy errors, thermal errors over the compensated temperature range, and span and offset calibration
tolerances. For ideal sensor output with respect to input pressure, reference Pressure Transfer Function charts below. TEB values are
valid only at the calibrated supply voltage.
4. For errors beyond the compensated temperature range, see Extended Temperature Multiplier chart below.
5. This product can be configured for custom OEM requirements, contact factory for lower power consumption or higher accuracy.
6. Long term stability over a year period with constant voltage and temperature
7. Pressure connection: barbed ports are designed for use with tubing 3/32” ID, 60-70A durometer (PVC).
8. For details on environmental conditions and pressure type descriptions, reference to relative tables.
CONNECTION DIAGRAM
Notes:
1.
Place 100nF capacitor between Supply and GND to within 2 cm of sensor.
SENSOR SOLUTIONS
/// MS4525
04/2019
Page 4
MS4525

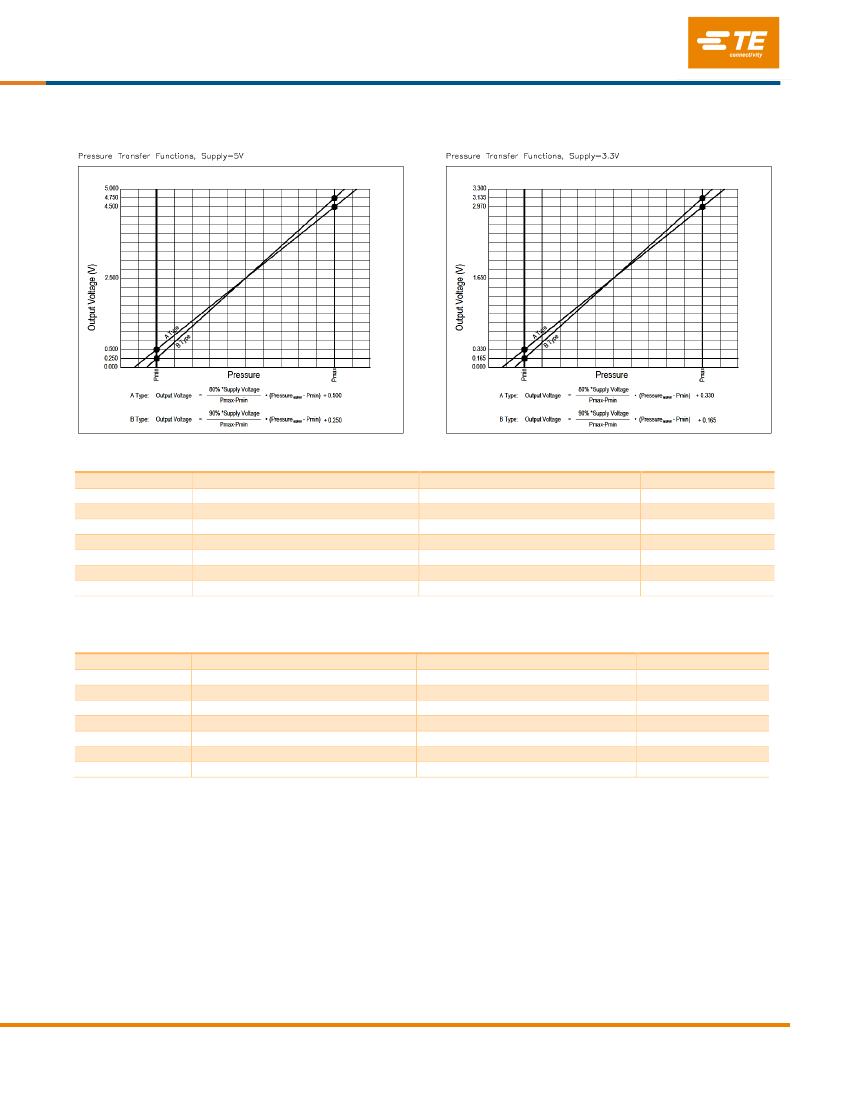

PRESSURE AND TEMPERATURE TRANSFER FUNCTION
Sensor Output at Significant Percentages,
(Vs=5.00)
OUTPUT (%Vs)
0
5
10
50
90
95
100
Output Type A (psi)
P
MIN
-(P
MAX
-P
MIN
)*10/80
P
MIN
P
MAX
P
MAX
+(P
MAX
-P
MIN
)*10/80
P
MAX
P
MAX
+(P
MAX
-P
MIN
)*5/90
Output Type B (psi)
P
MIN
-(P
MAX
-P
MIN
)*5/90
P
MIN
Voltage (V)
0.000
0.250
0.500
2.500
4.500
4.750
5.000
Sensor Output at Significant Percentages, (Vs=3.30)
Output (%Vs)
0
5
10
50
90
95
100
Output A (psi)
P
MIN
-(P
MAX
-P
MIN
)*10/80
P
MIN
P
MAX
P
MAX
+(P
MAX
-P
MIN
)*10/80
P
MAX
P
MAX
+(P
MAX
-P
MIN
)*5/90
Output B (psi)
P
MIN
-(P
MAX
-P
MIN
)*5/90
P
MIN
Voltage (V)
0.000
0.165
0.330
1.650
2.970
3.315
3.300
SENSOR SOLUTIONS
/// MS4525
04/2019
Page 5
