M55342K04B51D1M datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> M55342K04B51D1M

M55342K04B51D1M: DescriptionFixed Resistor, Thin Film, 0.15W, 51.1ohm, 40V, 1% +/-Tol, -100,100ppm/Cel, Surface Mount, 1505, CHIP; CategoryPassive components The resistor; File Size804KB，3 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric View All

M55342K04B51D1M Overview

Fixed Resistor, Thin Film, 0.15W, 51.1ohm, 40V, 1% +/-Tol, -100,100ppm/Cel, Surface Mount, 1505, CHIP

M55342K04B51D1M Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	2048970422
package instruction	CHIP
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PRECISION
structure	Chip
JESD-609 code	e0
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package height	0.635 mm
Package length	3.937 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	1.27 mm
method of packing	TAPE
Rated power dissipation(P)	0.15 W
Rated temperature	70 °C
Guideline	MIL-PRF-55342
resistance	51.1 Ω
Resistor type	FIXED RESISTOR
series	PFC(MILITARY)
size code	1505
surface mount	YES
technology	THIN FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	1%
Operating Voltage	40 V

Preview

Download Datasheet

View All

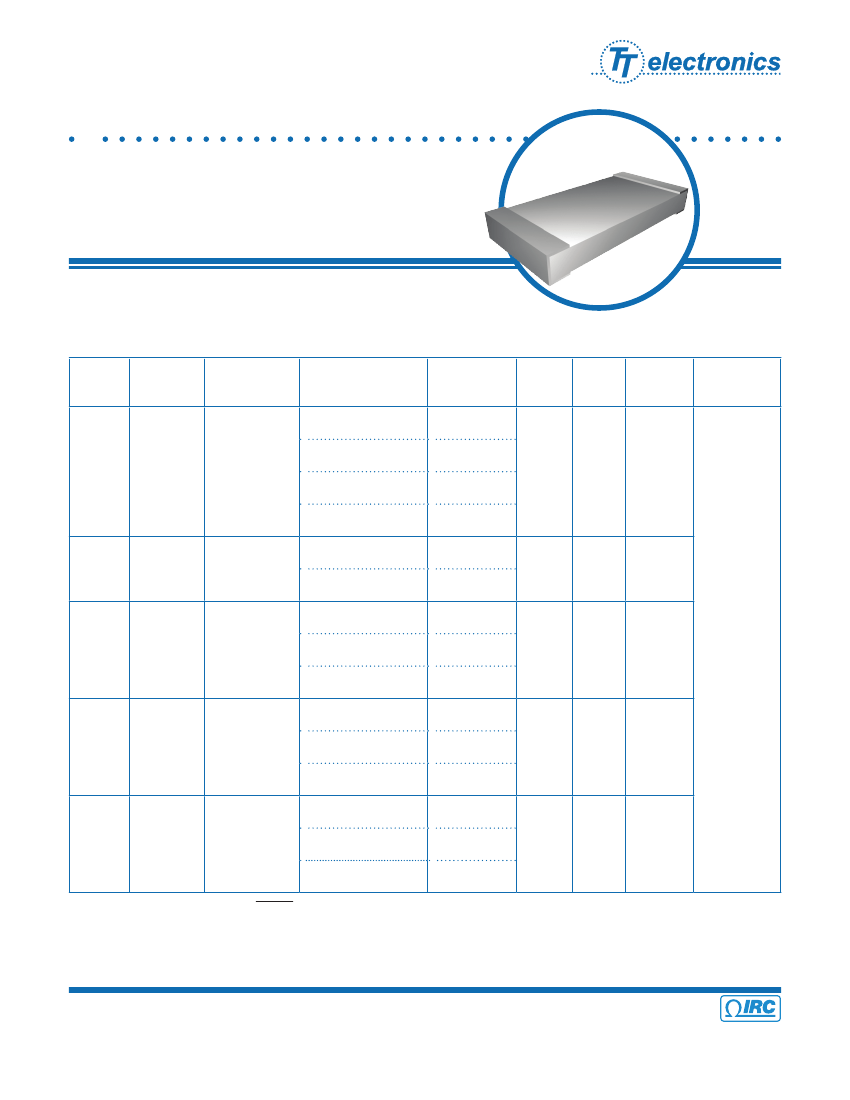

Precision Military and Space

Qualiﬁed Chip Resistors

MIL-CHIP Series

•

Now

qualiﬁed to MIL-PRF-55342 Space Level

•

Seven industry standard sizes available

•

MIL-PRF-55342 Characteristics E, H, K, and M

•

MIL-PRF-55342

extended

reliability levels C, M, P, R, S and

MIL-PRF-55342 Qualiﬁed Product Listing (QPL)

Style

Size

Technology

MIL-PRF-55342

Characteristic

Tolerance

±0.1%

Thin Film

PFC Series

(TaNFilm

)

±1%

E, H, K, M

±2%, ±5%

±10%

Thin Film

PFC Series

(TaNFilm

)

±0.1%, ±1%

E, H, K, M

±2%, ±5%, ±10%

±0.1%

Style 06

RM0705

Thin Film

PFC Series

(TaNFilm

)

E, H, K, M

±1%

±2%, ±5%, ±10%

±0.1%

Style 07

RM1206

Thin Film

PFC Series

(TaNFilm

)

E, H, K, M

±1%

±2%, ±5%, ±10%

±0.1%

Style 04

RM1505

Thin Film

PFC Series

(TaNFilm

)

E, H, K, M

±1%

±2%, ±5%, ±10%

10R0- 56K

10R0 - 125K

10R0- 124K

10R0- 120K

100R - 500K

10R0- 499K

10R0- 470K

100R - 500K

10R0- 499K

10R0- 470K

125

150

C, M, P,

R, S,

100

250

C, M, P,

R, S,

150

C, M, P,

R, S,

51R0 - 30K

51R0 - 27K

10R0 - 59K

100

Resistance

Range

(Ω)

100R - 30K

49R9 - 29K

Rated

Voltage*

(V)

Rated

Power

(mW)

Reliability

Level

Termination

Type

Style 11

RM0402

C, M, P,

R, S

Style 12

RM0603

C, M, P,

R, S,

Type

`B´

Sn/Pb solder

over

nickel

barrier

*Note:

Voltage

shall not

exceed

√P

X R

General Note

IRC reserves the right to make changes in product speciﬁcation without notice or liability.

All information is subject to IRC’s own data and is considered accurate at time of going to print.

• 4222 South Staples Street • Corpus

Christi Texas

78411 USA

Telephone:

361 992 7900 •

Facsimile:

361 992 3377 •

Website: www.irctt.com

A subsidiary of

TT electronics plc

MIL-CHIP Series

Issue March

2011 Sheet 1 of 3
